Dear Customer,
Thank you very much for purchasing a Smeg 50's Style stand mixer.
By choosing one of our products, you have selected an appliance which combines
iconic style with innovative technical design and attention to detail.
This appliance matches perfectly with other Smeg products, and also works great as a
standalone statement piece in your kitchen.
We hope you enjoy using your new appliance!
For any further information please visit www.smegusa.com.

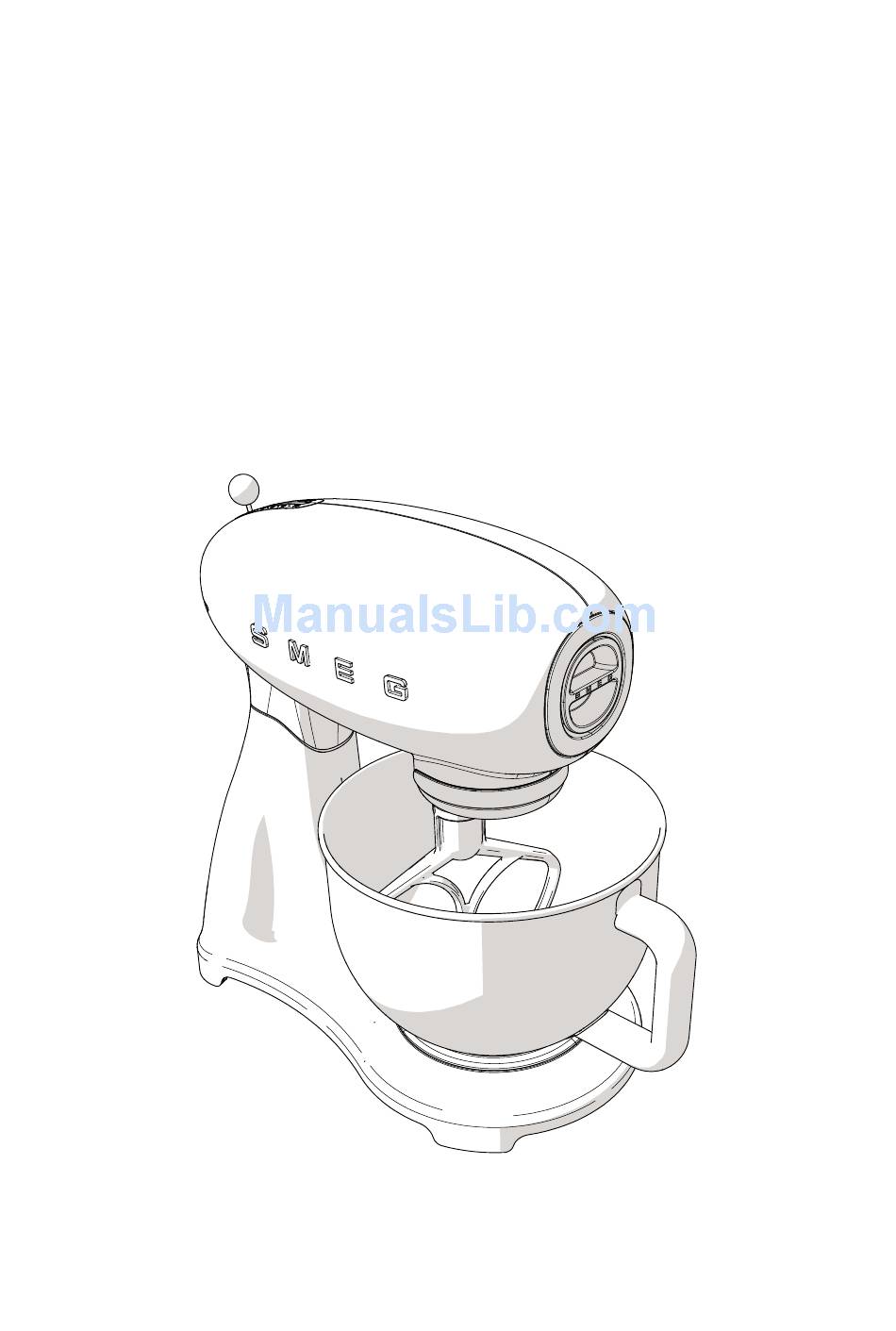

Model SMF01
Stand mixer
Advertisement
Table of Contents
Related Manuals for Smeg SMF01
Summary of Contents for Smeg SMF01
- Page 1 By choosing one of our products, you have selected an appliance which combines iconic style with innovative technical design and attention to detail. This appliance matches perfectly with other Smeg products, and also works great as a standalone statement piece in your kitchen.
-
Page 2: Table Of Contents
Contents 1 Instructions 1.1 Introduction 1.2 This user manual 1.3 Intended use 1.4 Manufacturer liability 1.5 Identification plate 1.6 Disposal 2 Description 2.1 Product description 2.2 Standard accessories 3 Use 3.1 Before first use 3.2 Using the stand mixer 3.3 Using the pouring shield 3.4 Functions 3.5 Speed setting suggestions 4 Cleaning and Care... - Page 3 Important Safeguards RECOGNIZE SAFETY INFORMATION This is a safety alert symbol. This symbol alerts you to potential hazards that can result in severe personal injury or death. UNDERSTAND SIGNAL WORDS A signal word - DANGER, WARNING or CAUTION - is used with the safety alert symbol.
- Page 4 Important Safeguards WARNING To reduce the risk of fire, electrical shock, personal injury, or damage when using the appliance, follow basic safety precautions, including the following: Follow all safety instructions in order to use • Disconnect the appliance from the the appliance safely.
- Page 5 Important Safeguards For this appliance • Do not exceed the bowl's maximum capacity. • Unplug the appliance from the power • Let the appliance cool down before socket as soon as you have finished cleaning. using it and before cleaning it. •...
-
Page 6: Instructions
Important Safeguards 1 Instructions 1.2 This user manual This user manual is an integral part of the 1.1 Introduction appliance and must therefore be kept in its entirety and within the user’s reach for the Key information for the user: whole working life of the appliance. -
Page 7: Manufacturer Liability
Important Safeguards 1.4 Manufacturer liability 1.6 Disposal The manufacturer declines all liability for Power voltage damage to persons or property caused by: Danger of electrocution • Use of the appliance other than as envisaged; • Turn off the appliance. • Not having read the user manual; •... -
Page 8: Description
Description 2 Description 2.1 Product description Model SMF01 - Stand Mixer 1 Motor head 7 Front hub cover 2 Body 8 Bowl base 3 Power and speed selector 9 Bowl 4 Head raising/lowering release button 10 Pouring shield 5 Lower attachment shaft for supplied... - Page 9 Description Motor head (1) Front attachment hub for optional accessories (6) Upper part of the appliance, rotates the attachments and accessories. Attachment for connecting optional accessories. Power and speed selector (3) It is protected by a removable cover. Lever for speed selection. Bowl base (8) The ‘0’...
-
Page 10: Standard Accessories
Description 2.2 Standard accessories Aluminum dough hook Aluminum flat beater For slowly combining, mixing and kneading For combining, mixing, and starting all leavened dough type mixtures including mixing procedures. bread, pasta, pizza, etc. For preparing cake batters and pastries, biscuits, icing, etc. and for other, thicker batters and mixes. -
Page 11: Use
3 Use If a longer detachable power supply cord or extension cord is used: • The marked electrical rating of the power supply cord or extension cord Electrical Shock Hazard should be at least as great as the electrical rating of the appliance. •... -
Page 12: Using The Stand Mixer
3.2 Using the stand mixer 4. Insert the bowl (3) in its base (4). Grasp the bowl by its handle (5) and 1. Place the mixer on a flat, stable and dry turn the bowl (3) clockwise until it locks surface. - Page 13 6. Slip the attachment (6) onto the lower 7. Add the ingredients to the bowl. attachment shaft (7) and push it upwards. 8. To close, bring the motor head down by Keep pressing the attachment upwards pressing the release button (1), and then and turn it counterclockwise until the pin tilt the motor head (2) backwards slightly (8) locks fully into place.
- Page 14 11. Check that the speed selector (10) is Moving parts positioned on ‘0’ (OFF). Danger of personal injury and 12. Insert the plug into the power socket. damage to the appliance 13. Select the required speed (from 1 to • Do not touch the attachments while the 10) using the selector (10) to start the appliance is moving appliance and begin mixing the...
- Page 15 When you have finished using the mixer: 3. Press the release button (1) to raise the head (2). 1. Position the speed selector (10) on ‘0’ (OFF) and unplug the mixer from the socket. 2. Remove the pouring shield, if it is on the bowl (9).
- Page 16 4. Push the attachment (6) upwards slightly 5. Remove the bowl (3) from its base (4) by and turn it clockwise to unlock it from the turning it counterclockwise to release it. pin (8). Remove the attachment (6) from the lower attachment shaft (7).
-
Page 17: Using The Pouring Shield
3.3 Using the pouring shield 2. Fit the pouring shield with the opening (1) facing outwards in order to add 1. Fit the pouring shield (1) to the upper lip ingredients to the bowl without stopping of the bowl after inserting the bowl in its the mixer. -
Page 18: Functions
3.4 Functions Planetary movement The planetary movement is generated by Safety lock system rotation (1) of the attachment around its axis The appliance has a safety system which in the opposite direction to the rotary automatically shuts off the appliance when movement (2) of the mixer. -
Page 19: Speed Setting Suggestions
3.5 Speed setting suggestions The speed selector shows the most appropriate attachment to use with the selected speed. The speeds indicated in the table are approximate and can vary depending on the recipe and the interaction of the different ingredients used. Speed setting Function Attachment... - Page 20 General advice Recommendations for recipes using eggs • Turn on the appliance at a low speed • For the best results, use eggs at room until all the ingredients are mixed, then temperature. increase the speed based on the • When working with stiff pasta doughs, required operation.
- Page 21 Recommendations for kneading • If the mixer is struggling, turn it off and remove half of the bowl’s contents. The • Use speed setting 2 or 3 to knead appliance should then be able to leavened doughs or particularly tough process the two halves separately.
-
Page 22: Cleaning And Care
Cleaning and Care 4 Cleaning and Care 4.3 Cleaning the surfaces To keep the surfaces in good condition, 4.1 Instructions they should be cleaned regularly after use. Let them cool first. Improper use 4.4 Ordinary daily cleaning Danger of electrocution To clean the mixer body, wipe it down with a damp cloth. -
Page 23: What To Do If
Cleaning and Care 4.6 What to do if... Problem Possible cause Solution Disconnect the mixer from The motor has overheated. the power and leave the motor to cool. Insert the plug into the power socket. Do not use The plug is not properly inserted in adaptors or extensions. - Page 24 Cleaning and Care Problem Possible cause Solution Place the mixer on a flat, The mixer is not resting on a stable surface. stable surface. Have them replaced at an The anti-slip rubber feet are worn. Authorized Service Center. The mixer vibrates Set a lower speed and The speed used is too high or the ensure the bowl has not...
- Page 25 Cleaning and Care Problem Possible cause Solution The dough mixture is too thick and Add water or other liquid to is stopping the attachment from loosen the dough mixture. turning. The attachment is struggling to turn inside the bowl Remove half the bowl’s The bowl is too full.
- Page 26 The manufacturer reserves the right to make any changes deemed useful for improvement of his products without prior notice. The illustrations and descriptions contained in this manual are therefore not binding and are merely indicative. Le constructeur se réserve la faculté d'apporter, sans préavis, toutes les modifications qu'il jugera utiles pour l'amélioration de ses produits.
