Efficient Networks 5800 Series User Reference Manual

Business class routers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Efficient Networks Business Class
5800 Series
Business Class Routers
User Reference Guide
222-00974-01

Advertisement

Table of Contents
loading

Related Manuals for Efficient Networks 5800 Series

Summary of Contents for Efficient Networks 5800 Series

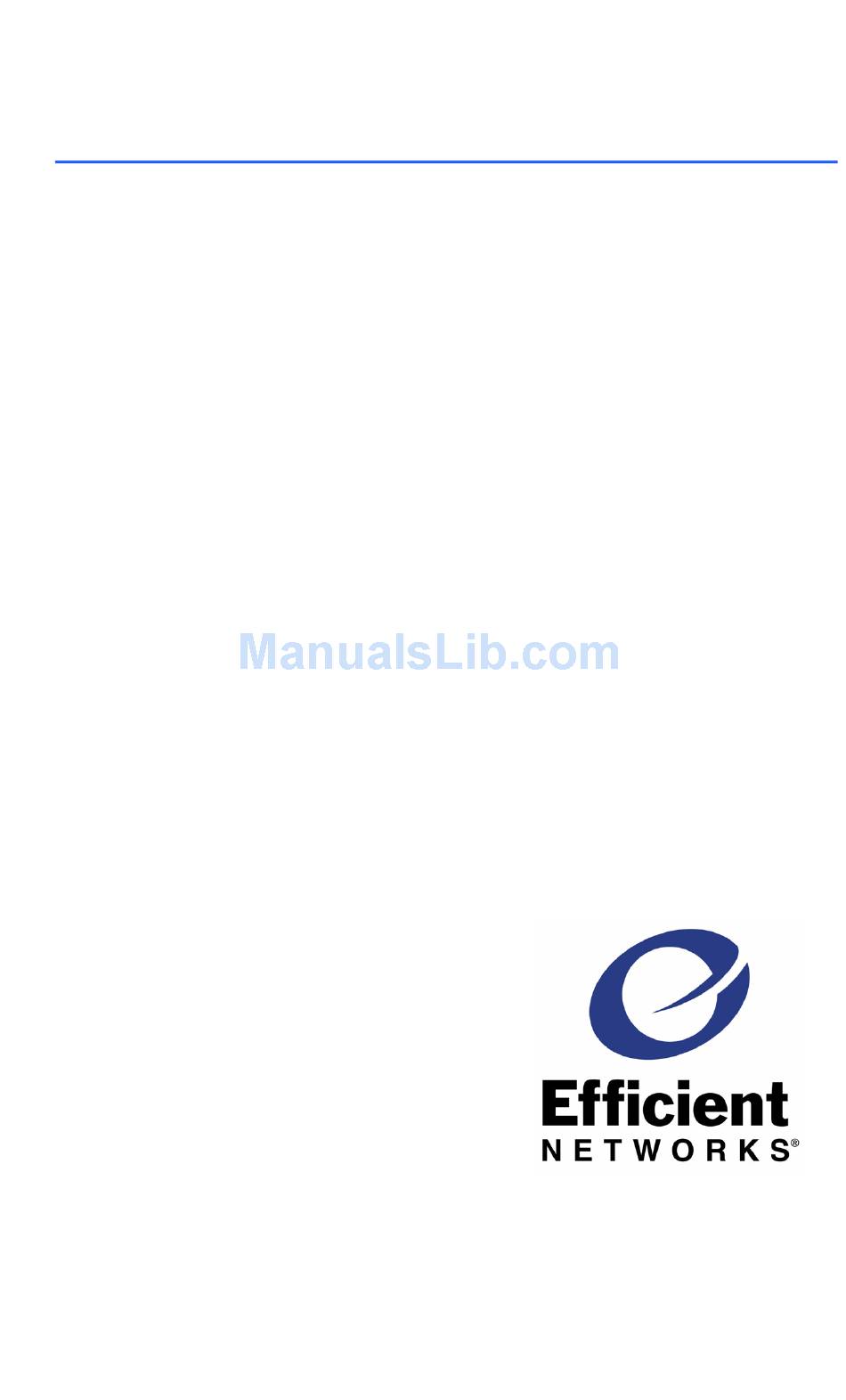

  • Page 1 Efficient Networks Business Class 5800 Series Business Class Routers User Reference Guide 222-00974-01...

  • Page 3: Efficient Networks

    Efficient Networks and SpeedStream are registered trademarks, and the Efficient Networks logo is a trade- mark of Efficient Networks, Inc. All other names may be trademarks, service marks or registered trademarks held by their respective companies. This document is for information purposes only, Efficient Networks is not responsible for errors or omissions herein.
  • Page 4 The following limited warranties provided by EFFICIENT extend to the original end user of the Hardware/ licensee of the Software and are not assignable or transferable to any subsequent purchaser/licensee. 1. Hardware. EFFICIENT warrants that the Hardware will be free from defects in materials and work- manship and will perform substantially in compliance with the user documentation relating to the Hard- ware for a period of three years from the date the original end user received the Hardware.
  • Page 5 The following general provisions apply to the foregoing Software License and Limited Warranty. 1. No Modification. The foregoing Limited Warranty is the end user’s sole and exclusive remedy and is in lieu of all other warranties, express or implied. No oral or written information or advice given by EF- FICIENT or tis dealers, distributors, employees or agents shall in any way extend, modify or add to the foregoing Software License and Limited Warranty.

  • Page 7: Table Of Contents

    IKE IPSec Policy Definition... 3-22 Command Line Interface... 3-24 Frequently Asked Questions ... 4-1 Product Specifications ... 5-1 Front Panel ... 5-1 5800 Series Back Panel ... 5-3 Hardware Specifications ... 5-4 Modem Specifications... 5-5 Software Specifications... 5-6 ® Efficient Networks...
  • Page 8 ® Table of Contents Efficient Networks 5800 Series User Reference Guide ® TOC-2 Efficient Networks...

  • Page 9: Installation

    ® Efficient Networks 5800 Series User Reference Guide Introduction This User Reference Guide covers basic installation and setup of the 5800 Series Business Class Routers including: • 5851 Symmetric Digital Subscriber Line router (SDSL) • 5861 Asymmetric DSL / Discrete Multi Tone router (DMT) •...

  • Page 10: Package Contents

    Your package should contain the items listed below. If you determine anything to be damaged or missing, please contact the dealer from whom the equipment was purchased. • One Efficient Networks 5800 Series Business Class Router • One Efficient Networks Documentation Kit •...

  • Page 11: Connecting Your Router

    Connect your router to the DSL jack using the remaining Ethernet 10Base-T, RJ-45 cable. Connect the router to an AC power outlet using the power cord. The following diagram shows an Efficient Networks 5800 Series Business Class Router when fully connected: Figure 1-1: 5800 Series Router Fully Connected CAUTION: To reduce the risk of fire, use only no.

  • Page 12: Configuring Your Computer

    Users of Windows NT should select “Obtain an IP Address from a DHCP server”. Click OK as needed to confirm your settings, and reboot your computer. Figure 1-2: MS Windows TCP/IP Properties Dialog Page 1-4 ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...

  • Page 13: Administration Login

    ® Efficient Networks 5800 Series User Reference Guide Administration Login Figure 1-3: Administration Login Dialog Using your web browser, enter the following default router address into the address field of your browser: http://192.168.254.254/ At the login prompt, make the following entries:...
  • Page 14 ® Chapter 1: Installation Efficient Networks 5800 Series User Reference Guide Figure 1-5: Router Information Screen ® Page 1-6 Efficient Networks...

  • Page 15: Easy Setup

    ® Efficient Networks 5800 Series User Reference Guide Router Information Screen The first screen in the Web User Interface is the Router Configuration screen. This screen displays basic router information and router configuration settings. It also provides links to other router setup and control forms. On the Router Configuration screen, the following information is presented: •...

  • Page 16: Easy Setup

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide Easy Setup Wide Area Network Configuration Figure 2-1: WAN Interface Screen ® Page 2-2 Efficient Networks...
  • Page 17 ® Efficient Networks 5800 Series User Reference Guide The first Easy Setup screen is for entering and reviewing information about Wide Area Network (WAN) settings. Your Network Service Provider (NSP) can provide you with the information needed to correctly make these WAN settings.

  • Page 18: Point-To-Point Protocol Over Atm

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide Point-to-Point Protocol over ATM Figure 2-2: Point-to-Point Protocol Screen ® Page 2-4 Efficient Networks...
  • Page 19 ® Efficient Networks 5800 Series User Reference Guide If you have selected PPP as your WAN protocol, you will see a screen requesting a PPP User Name and a PPP Password. Enter this information in the fields provided. Select one of the following PPP Networking options: –...

  • Page 20: Point-To-Point Protocol Over Ethernet Over Pppoa

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide Point-to-Point Protocol over Ethernet over PPPoA Figure 2-3: Point-to-Point Protocol over Ethernet over PPPoA Screen ® Page 2-6 Efficient Networks...
  • Page 21 ® Efficient Networks 5800 Series User Reference Guide If you have selected PPPoEoA as your WAN protocol, you will see a screen requesting a PPP user name and a PPP password. You should have received this information from your service provider.

  • Page 22: Point-To-Point Over Ethernet Over Rfc 1483

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide Point-to-Point over Ethernet over RFC 1483 Figure 2-4: Point-to-Point Protocol over Ethernet over RFC 1483 Screen ® Page 2-8 Efficient Networks...
  • Page 23 ® Efficient Networks 5800 Series User Reference Guide If you have selected PPPoE over RFC 1483 as your WAN protocol, you will see a screen requesting a PPP user name and a PPP password. You should have received this information from your service provider.

  • Page 24: Rfc 1483 Networking

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide RFC 1483 Networking Figure 2-5: RFC 1483 Networking Screen ® Page 2-10 Efficient Networks...
  • Page 25 ® Efficient Networks 5800 Series User Reference Guide If you have selected RFC 1483 as your WAN protocol, you will see a screen for selecting networking options, and for setting your IP routing configurations. Choose either Bridging enabled or IP routing enabled. If you choose bridging, all traffic to remote computers that is not routed will be bridged.

  • Page 26: Rfc 1483 Mac Encapsulated Routing

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide RFC 1483 MAC Encapsulated Routing Figure 2-6: RFC 1483 MER Networking Screen ® Page 2-12 Efficient Networks...
  • Page 27 ® Efficient Networks 5800 Series User Reference Guide If you have selected RFC 1483 MER (MAC Encapsulated Routing) as your WAN protocol, you will see a screen for selecting networking options, and for setting IP routing configurations. Choose either Bridging enabled or IP routing enabled. If you choose bridging, all traffic to remote computers that is not routed will be bridged.

  • Page 28: Dynamic Host Configuration Protocol

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide Dynamic Host Configuration Protocol Figure 2-7: Dynamic Host Configuration Protocol Screen ® Page 2-14 Efficient Networks...
  • Page 29 ® Efficient Networks 5800 Series User Reference Guide DHCP dynamically assigns IP configuration information to PCs on the LAN, thus avoiding the need to set IP configurations for each PC manually. You can enable DHCP by clicking on the indicated checkbox.

  • Page 30: Local Area Network Configuration

    ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide Local Area Network Configuration Figure 2-8: ® Page 2-16 Efficient Networks...
  • Page 31 ® Efficient Networks 5800 Series User Reference Guide The final screen in Easy Setup is for Local Area Network (LAN) configuration. Enter the IP address into the field provided. The IP address is the network address of your router. This address must be globally unique, unless NAT has been enabled.
  • Page 32 ® Chapter 2: Easy Setup Efficient Networks 5800 Series User Reference Guide Figure 2-9: Router Restart Screen ® Page 2-18 Efficient Networks...

  • Page 33: Additional Features

    ® Efficient Networks 5800 Series User Reference Guide Beyond Easy Setup, your router is equipped with additional features that add services and value to your DSL connection. These features can be implemented using the Web interface links found on the Router Information Screen. These features, along with brief descriptions of each, are listed below: •...

  • Page 34: Access Control

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide Access Control Figure 3-1: Access Control Screen ® Page 3-2 Efficient Networks...
  • Page 35 ® Efficient Networks 5800 Series User Reference Guide The Access Control feature restricts administrative access and control of your router to a select group of hosts. In this web form, you can select which router services can be accessed from PCs. For each selected service, you can restrict the hosts that can manage the service remotely.

  • Page 36: Feature Activation

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide Feature Activation Figure 3-2: Feature Activation Screen ® Page 3-4 Efficient Networks...
  • Page 37 ® Efficient Networks 5800 Series User Reference Guide Several optional software features are available for your router, such as L2TP, IPSec, DES Encryption, and 3DES Encryption. These features can be purchased from the Efficient Networks web site (www.efficient.com). You will need your router serial number to purchase a feature activation key.

  • Page 38: Setting The Date And Time

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide Setting The Date and Time Figure 3-3: Current Date and Time Screen ® Page 3-6 Efficient Networks...
  • Page 39 ® Efficient Networks 5800 Series Chapter 3: Additional Features User Reference Guide This feature enables you to set the date and time on your router. The current date and time from your PC are displayed in the field labeled Current Date and Time.

  • Page 40: Dial Backup

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide Dial Backup Figure 3-4: Dial Backup Screen ® Page 3-8 Efficient Networks...
  • Page 41 ® Efficient Networks 5800 Series User Reference Guide Dial Backup provides a backup connection to the Internet through an external V.90 modem, connected to the console port of your router. This backup connection can be activated in the event of a DSL service interruption. During a DSL interruption, your router will use the dialup modem connection while waiting for DSL service to be restored.

  • Page 42: Ike/Ipsec Configuration

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide IKE/IPSec Configuration Figure 3-5: IKE/IPSec Information Screen ® Page 3-10 Efficient Networks...
  • Page 43 ® Efficient Networks 5800 Series Chapter 3: Additional Features User Reference Guide IKE/IPSec is an optional feature for your router. IKE/IPsec (Internet Key Exchange/Internet Protocol Security) configuration screens enable optional authentication and encryption of IP traffic for the authenticity, integrity and privacy of your communications.

  • Page 44: Ike/Ipsec Setup

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide IKE/IPSec Setup Figure 3-6: Easy IKE/IPSec Setup Screen ® Page 3-12 Efficient Networks...
  • Page 45 ® Efficient Networks 5800 Series User Reference Guide IKE Peer Name: The first field in the Easy IKE/IPSec Setup screen is to assign a logical name to the IKE peer. This name is of no importance to the remote IKE peer. Choose a name that is meaningful to you.

  • Page 46: Advanced Ike/Ipsec Setup

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide Advanced IKE/IPSec Setup Figure 3-7: Advanced IKE/IPSec Setup Screen ® Page 3-14 Efficient Networks...
  • Page 47 ® Efficient Networks 5800 Series User Reference Guide The Advanced IKE/IPSec Setup screen presents information about your IKE and IPSec peers, policies and proposals. Each section of this screen includes a Create link to screens for establishing new IKE and IPSec definitions. On this...

  • Page 48: Ike Peer Definition

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide IKE Peer Definition Figure 3-8: IKE Peer Definition Screen ® Page 3-16 Efficient Networks...
  • Page 49 ® Efficient Networks 5800 Series User Reference Guide IKE Peer Name: The first field in the IKE Peer Definition screen is to assign a logical name to the IKE peer. This name is of no importance to the remote IKE peer. Choose a name that is meaningful to you.

  • Page 50: Ike Proposal Definition

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide IKE Proposal Definition Figure 3-9: IKE Proposal Definition Screen ® Page 3-18 Efficient Networks...
  • Page 51 ® Efficient Networks 5800 Series User Reference Guide IKE Proposal Name: Enter a logical name for the IKE Proposal Definition. This name is of no importance to the remote IKE peer. Message Authentication Scheme: Select the message authentication scheme from two possible message authentication proposals: –...

  • Page 52: Ike Ipsec Proposal Definition

    Proposal Definition. This name is of no importance to the remote IKE IPSec peer. AH Authentication Scheme: Select which AH method to propose: – NONE: Request no AH encapsulation. – MD5: Request AH encapsulation and authenticate using Message Page 3-20 ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...
  • Page 53 ® Efficient Networks 5800 Series User Reference Guide Digest 5. – SHA1: Request AH encapsulation and authenticate using Secure Hashing Algorithm 1. ESP Authentication Scheme: Select which ESP message authentication to propose: – NONE: Perform no message authentication. – MD5: Perform message authentication using Message Digest 5.

  • Page 54: Ike Ipsec Policy Definition

    ® Chapter 3: Additional Features Efficient Networks 5800 Series User Reference Guide IKE IPSec Policy Definition Figure 3-11: IKE IPSec Policy Definition Screen ® Page 3-22 Efficient Networks...
  • Page 55 ® Efficient Networks 5800 Series User Reference Guide IPSec Policy Name: Enter a logical name for the IPSec policy. The name you choose is of no consequence to the other IPSec party. Peer Binding: Specify the remote IKE peer to which this policy shall apply.

  • Page 56: Command Line Interface

    Note: The console port is disabled if Dial Backup is enabled. For specific configuration information and instructions, please refer to the Command Line Interface Reference Manual included on your CD-ROM. Page 3-24 None ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...

  • Page 57: Frequently Asked Questions

    ® Efficient Networks 5800 Series Chapter 4: Frequently Asked Questions User Reference Guide Chapter 4 Frequently Asked Questions Chapter 4 Which cable do I use to connect a new LAN device to the router? If you are connecting your LAN device to one of the Ethernet ports on your router, use a straight-through (red) cable.
  • Page 58 ® Chapter 4: Frequently Asked Questions Efficient Networks 5800 Series User Reference Guide To provide secure connections across the Internet, consider purchasing the Virtual Private Network (VPN) software option. Additional information on NAT, Firewall, and Secure VPN can be found in the CLI Reference Manual.

  • Page 59: Product Specifications

    ® Efficient Networks 5800 Series Chapter 5: Product Specifications User Reference Guide Chapter 5 Product Specifications Chapter 5 Front Panel Figure 5-1: 5800 Series Router Front Panel ® Efficient Networks Page 5-1...
  • Page 60 DSL modem link successful DSL modem link is shut down WAN transmissions detected No WAN transmissions detected Transmitting LAN traffic Not transmitting LAN traffic Receiving LAN traffic Not receiving LAN traffic ® Efficient Networks 5800 Series User Reference Guide Indications Efficient Networks ®...

  • Page 61: 5800 Series Back Panel

    ® Efficient Networks 5800 Series User Reference Guide 5800 Series Back Panel Figure 5-2: 5800 Series Router Back Panel Table 5-2: 5800 Series Back Panel Port Functions Connection Power DSL WAN Port Ethernet Ports Mgmt Pin Console Port ® Efficient Networks...

  • Page 62: Hardware Specifications

    RJ-14 - (5861/5865) 3/4 pinout • Others: RJ-45 3/4 pinout Page 5-4 21.3W x 17.8D x 4.3H cm 1.5 lbs. .68 Kg. 5°C to 40°C 20% to 80% non-condensing ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...

  • Page 63: Modem Specifications

    ® Efficient Networks 5800 Series User Reference Guide Serial Interface • One RS-232 asynchronous console or modem port (RJ-45) Agency Approvals • CE Mark • • Safety: • Emissions: FCC Part 15 Class B • Immunity: Modem Specifications DMT/ADSL •...

  • Page 64: Software Specifications

    Administration through HTTP, SNMP, Telnet or VT100 terminal • Network boot uses the BootP server (RFC 2131, RFC 2132) Dial Backup • Failover to modem on console port Page 5-6 ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...
  • Page 65 ® Efficient Networks 5800 Series User Reference Guide • Web graphical user interface • User selectable fail/restore criteria • Optional modem connector (DB9 or DB25) • Supports L2TP and IPSec tunnel failover Asynchronous Transfer Mode (ATM) • Encapsulation (IP, Bridging, and Bridge Encapsulated Routing) (RFC 1483) •...
  • Page 66 • HTTP/Syslog/SNMP/Telnet port reassignment, access control list • Optional VPN software (L2TP, IPSec, IKE, DES, 3DES) • Firewall (IP filtering) • 3DES hardware assist (on most models) Page 5-8 ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...
  • Page 67 ® Efficient Networks 5800 Series User Reference Guide Important Information about this device: When using this device, basic safety precautions should always be followed to re- duce the risk of fire, electric shock, and injury to persons including the following: •...
  • Page 68 Efficient Networks, Inc. 4849 Alpha Road Dallas, TX 75244 USA Efficient Networks Technical Support Services: RMA service hours: 8:00am - 5:00pm (CST) Monday - Friday Telephone: +1 (972) 852-1000 ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...
  • Page 69 ® Efficient Networks 5800 Series Appendix A User Reference Guide Attn: RMA # Email: support@efficient.com If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
  • Page 70 ® Appendix A Efficient Networks 5800 Series User Reference Guide Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
  • Page 71 ® Efficient Networks 5800 Series User Reference Guide Information importante concernant cet appareil Lorsque vous utilisez cet appareil, les précautions suivantes doivent être prises afin d’éviter les risques d'incendie, de décharge électrique ou de tout accident cor- porel: Ne pas utiliser cet appareil à proximité de l’eau. Exemple: près d’une baignoire, toilette, lavabo, piscine, etc.
  • Page 72 FCC si vous le jugez nécessaire. IL N'EST PAS Services de support technique Efficient Networks : Heures d’ouverture : 8 h à 17 h du lundi au vendredi Téléphone: +1 (972) 852-1000 Courrier électronique : support@efficient.com ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...
  • Page 73 ® Efficient Networks 5800 Series Appendix A User Reference Guide POSSIBLE DE REPARER INDIVIDUELLEMENT LES COMPOSANTS DE CET EQUIPEMENT. Veuillez alors contacter Efficient Networks, Inc. Cet équipement n’est pas destiné à être utilisé avec les téléphones publics de la compagnie de téléphone. Dans le cas de plusieurs voix sur une même ligne, les tarifs appliqués sont ceux définis par la compagnie de téléphone utilisée.
  • Page 74 ® Appendix A Efficient Networks 5800 Series User Reference Guide Les utilisateurs devraient s’assurer pour leur propre protection que les prises électriques de terre des services d’électricité, des lignes téléphoniques et du système métallique interne des conduites d’eau, s’il y a lieu, sont connectées ensemble.
  • Page 75 ® Efficient Networks 5800 Series User Reference Guide Información importante sobre el Equipo: Cuando se use este equipo deben seguirse unas precauciones básicas de seguridad, para reducir el riesgo de incendio, descarga eléctrica y daño a personas, incluyen- do las siguientes: No usar este producto cerca del agua.
  • Page 76 Party Line está sujeta a las tarifas estatales. (Contacte con la A-10 Servicio de Soporte Técnico Efficient Networks: Horario: 8:00am - 5:00pm (CST) Lunes - Viernes Teléfono: +1 (972) 852-1000 Email: support@efficient.com ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...
  • Page 77 ® Efficient Networks 5800 Series Appendix A User Reference Guide Comisión de Utilidad del Estado Público, la Comisión del Servicio Público o la Comisión de la Corporación para más información ). El uso de este equipo puede estar sujeto al control de la ley en su país. Este equipo es compatible con audífono si se usa en una línea de teléfono standard con el interfaz adecuado.
  • Page 78 ® Appendix A Efficient Networks 5800 Series User Reference Guide Declaración de Conformidad de la Comunidad Europea (EC) Efficient Networks, Inc. declara bajo su única responsabilidad que el equipo al que se refiere esta declaración es conforme a los siguientes standards u otros documentos normativos EN 55022: 1994, Límites y métodos de medida de radio interferencias...
  • Page 79 ® Efficient Networks 5800 Series User Reference Guide Wichtige Information über das Gerät Bei der Verwendung des Gerätes müssen grundsätzliche Sicherheitsbedingungen berücksichtigt werden, um Feuerrisiko, elektrischen Schock und Verletzung von Personen zu vermeiden, unter anderem: Verwenden Sie dieses Produkt nicht in der Nähe von Wasser, zum Beispiel neben Badewanne, Waschbecken, Spüle oder...
  • Page 80 Sie bei Bedarf Efficient Networks, Inc. wie oben angegeben. Diese Einrichtung ist nicht zur Verwendung mit einem öffentlichen Fernsprecher A-14 Servicezeiten: 8:00 - 17:00 (CST: 7 Std. Zeitdifferenz zu MEZ) Montag - Freitag Email: support@efficient.com ® Efficient Networks 5800 Series User Reference Guide ® Efficient Networks...
  • Page 81 ® Efficient Networks 5800 Series Appendix A User Reference Guide gedacht. Der Betrieb an einem Telefonanschluß, der mit weiteren Personen geteilt wird, kann von Ihrem Telefonnetz- oder Dienstbetreiber oder von der Telekommumikationsbehörde Ihres Landes reglementiert sein. (Für weitere Information wenden Sie sich bitte an Ihren Telefonnetz- oder Dienstbetreiber oder die Telekommunikationsbehörde).
  • Page 82 ® Appendix A Efficient Networks 5800 Series User Reference Guide Der Verbraucher sollte zum eigenen Schutz sicherstellen, daß die Erdungen der Stromversorgung, der Telfonleitung und von Metallrohrsystemen, falls vorhanden, gemeinsam angeschlossen sind. Diese Sicherheitsmaßnahmen können von besonderer Bedeutung in ländlichen Gegenden sein. Vorsicht: Verbraucher sollten nicht versuchen solche Anschlüsse selbst herzustellen, sie...
  • Page 83 ® Efficient Networks 5800 Series User’s Reference Guide For specific product support, contact the organization that provided or sold the equipment to you. If you need to contact your Network Service Provider for technical support, please have the following information ready: •...
  • Page 84 ® Appendix B Efficient Networks 5800 Series User’s Reference Guide ® Efficient Networks...
  • Page 85 ADSL Specifications ... 5-5 Agency Approvals ... 5-5 Analog telephone line support... 5-6 ATM specifications ... 5-7 Back Panel, 5800 Series... 5-3 Bridging specifications ... 5-6 Command Line Interface... 3-24 Configuration management specifications ... 5-6 Configuring Your Computer ... 1-4 Connecting Your Router ...
  • Page 86 Protocol conformance testing... 5-7 Requirements installation ... 1-1 Network Service Provider... 1-1 PC ... 1-1 power ... 5-4 RFC 1483 MAC Encapsulated Routing... 2-12 RFC 1483 Networking... 2-10 Router ® Efficient Networks 5800 Series User Reference Guide Efficient Networks ®...
  • Page 87 ® Efficient Networks 5800 Series User Reference Guide Connecting ... 1-3 Login ... 1-5 Router Information Screen ... 2-1 Routing specifications ... 5-6 Screen Access Control ... 3-2 Current Date and Time... 3-6 Dial Backup ... 3-8 Dynamic Host Configuration Protocol ... 2-14 Feature Activation ...

  • Page 88: Wan Interface

    ® Index Efficient Networks 5800 Series User Reference Guide Testing, protocol conformance ... 5-7 WAN Interface ... 5-4 ® Efficient Networks...
