INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER: ANSI Z21.60-2002 / CSA 2.26-2002 DECORATIVE GAS APPLIANCES FOR INSTALLATION IN SOLID-FUEL BURNING APPLIANCES

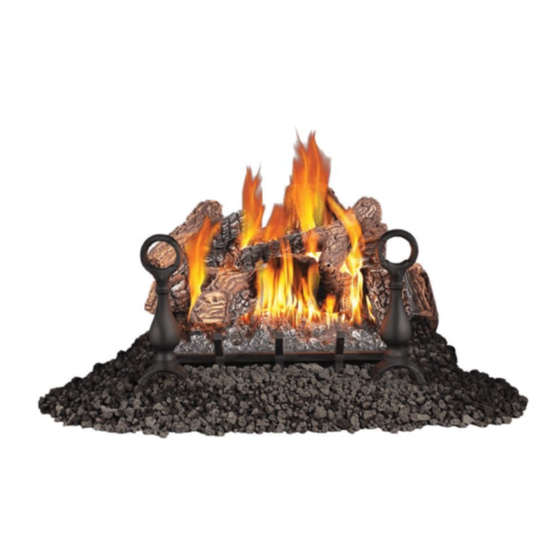

GL18N, GL24N,
GL30N
NATURAL GAS
GL18P, GL24P,
GL30P
PROPANE
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do
not use any phone in your building.
•
Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier,
call the fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com
$10.00
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
GL18
GL24
GL30
1.4A
W415-0472 / D / 11.24.10
1
Advertisement
Table of Contents
Related Manuals for Napoleon GL18N
Summary of Contents for Napoleon GL18N
- Page 1 - Installation and service must be performed by a qualifi ed installer, service agency or the supplier. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com 1.4A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INSTALLATION OVERVIEW INTRODUCTION GENERAL INSTRUCTIONS GENERAL INFORMATION MINIMUM APPLIANCE SIZE RATING PLATE INSTALLATION GAS PIPING DAMPER STOP INSTALLATION FINISHING ANDIRON AND GRATE ASSEMBLY REMOTE INSTALLATION LOG PLACEMENT MEDIA LOGO PLACEMENT OPERATING INSTRUCTIONS LIGHTING INSTRUCTIONS OPERATION ADJUSTMENTS PILOT BURNER ADJUSTMENT VENTURI ADJUSTMENT FLAME ADJUSTMENT FLAME CHARACTERISTICS... -
Page 3: Introduction
2.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR IT’S CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi... -
Page 4: General Instructions
GENERAL INSTRUCTIONS WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPENED OR REMOVED. PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE. PROVIDE ADEQUATE VENTILATION. NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48”... -
Page 5: General Information
PIEZO IGNITOR BRACKET AND REFERENCE # W/N 15987 SHOULD BE TUCKED UNDER THE ENTIRE ASSEMBLY 24 NAPOLEON ROAD. BARRIE, ONTARIO L4M 4Y8 CANADA 24 NAPOLEON ROAD. 103 Miller Drive, Crittenden, Kentucky, USA, 41030 103 Miller Drive, C 18” 18” SERIAL NUMBER/NO. DE SERIE: 18”... -
Page 6: Installation
3.0 INSTALLATION The appliance and gas logs function as a system. If the appliance is not drafting properly and spilling into the room (check with a match or a smoke stick), reposition the damper clamp until a positive draft is obtained by opening the damper. -
Page 7: Damper Stop Installation
DAMPER STOP INSTALLATION The damper must be permanently locked in position to prevent full closure and to provide DAMPER STOP a minimum fl ue opening. Various methods for locking the damper may be used but may be restricted from region to region and it is DAMPER important to know the specifi... -
Page 8: Finishing
4.0 FINISHING ANDIRON AND GRATE ASSEMBLY USE ONLY ACCESSORIES With the 2 andirons laying face DESIGNED FOR AND down, secure the grate overtop LISTED WITH YOUR using two ¼-20 bolts (supplied in SPECIFIC LOG SET. the manual baggie). Install the grate/andiron assembly to the burner base using four 1 ¼”... -
Page 9: Log Placement
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE. 76.1A Phazer logs, exclusive to Napoleon Appliances, provide a unique and realistic glowing effect that is different in every installation. Failure to follow these log placement instructions may cause sooting. Place the rear log #1 onto... -
Page 10: Media
MEDIA GL 18 Place lava or ember rock around the base of the appli- ance, making sure not to block any burner ports or valve access. Retain a small amount of lava rock for step 3 and if applicable step 4. Place formed charcoal lumps around the front and sides of the appliance. -
Page 11: Operating Instructions
5.0 OPERATING INSTRUCTIONS If the fi replace is equipped with decorative glass doors, they must be fully opened when operating this gas log set. LIGHTING INSTRUCTIONS Locate the pilot burner at the rear of the log set on the right side. -
Page 12: Operation
6.0 OPERATION WARNING IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT WITH THE GLASS DOOR OPENED OR REMOVED. -
Page 13: Adjustments
7.0 ADJUSTMENTS PILOT BURNER ADJUSTMENT Adjust the pilot screw to provide properly sized fl ame. Turn in a clockwise PILOT direction to reduce the gas fl ow. BURNER THERMOPILE Inlet pressure can be checked by turning screw (A) THERMOCOUPLE counter-clockwise until loosened and then placing pressure gauge tubing over the test point. -
Page 14: Flame Adjustment
FLAME CHARACTERISTICS It’s important to periodically perform a visual check of the pilot and burner fl ames. Compare them to the illustrations provided. If any fl ames 3/8” - 1/2” appear abnormal call a service person. FLAME MUST ENVELOPE UPPER 3/8"... -
Page 15: Replacements
#22 ORIFICE - NG (GL30) W456-0043 #43 ORIFICE - LP (GL30) W660-0023 ON / OFF SWITCH W725-0035 VALVE - NG W725-0043 VALVE - LP W385-0334 NAPOLEON LOGO W680-0015 THERMOPILE 17** W680-0014 THERMOCOUPLE W010-0801 NATURAL GAS PILOT ASSEMBLY W010-0800 PROPANE GAS PILOT ASSEMBLY... - Page 16 ACCESSORIES REF NO. GAS LOGS DESCRIPTION GD-660 REMOTE WALL SWITCH W/20” WIRE W690-0001 MILLIVOLT WALL THERMOSTAT W660-0026 PROGRAMMABLE TIMER ON/OFF REMOTE F40-6 ON/OFF REMOTE -BULK THERMOSTATIC REMOTE F50-6 THERMOSTATIC REMOTE -BULK W415-0472 / D / 11.24.10...
-
Page 17: Trouble Shooting
10.0 TROUBLE SHOOTING WARNING TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE. APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED. DO NOT USE ABRASIVE CLEANERS. SYMPTOM PROBLEM TEST SOLUTION Main burner goes out; pilot Pilot fl... - Page 18 SYMPTOM PROBLEM TEST SOLUTION Pilot will not light. No spark at pilot burner. Check if pilot can be lit by a match. Check that the wire is connected to the push button igniter. Check if the push button igniter needs tightening. Replace the wire if the wire insulation is broken or frayed.
-
Page 19: Warranty
All parts replaced under the President’s Limited Lifetime Warranty Policy are subject to a single claim. During the fi rst 10 years NAPOLEON® will replace or repair the defective parts covered by the lifetime warranty at our discretion free of charge. From 10 years to life, NAPOLEON® will provide replacement parts at 50% of the current retail price. -
Page 20: Service History
12.0 SERVICE HISTORY 43.1 W415-0472 / D / 11.24.10...
