DM2000V2 Quick Start Guide
✦

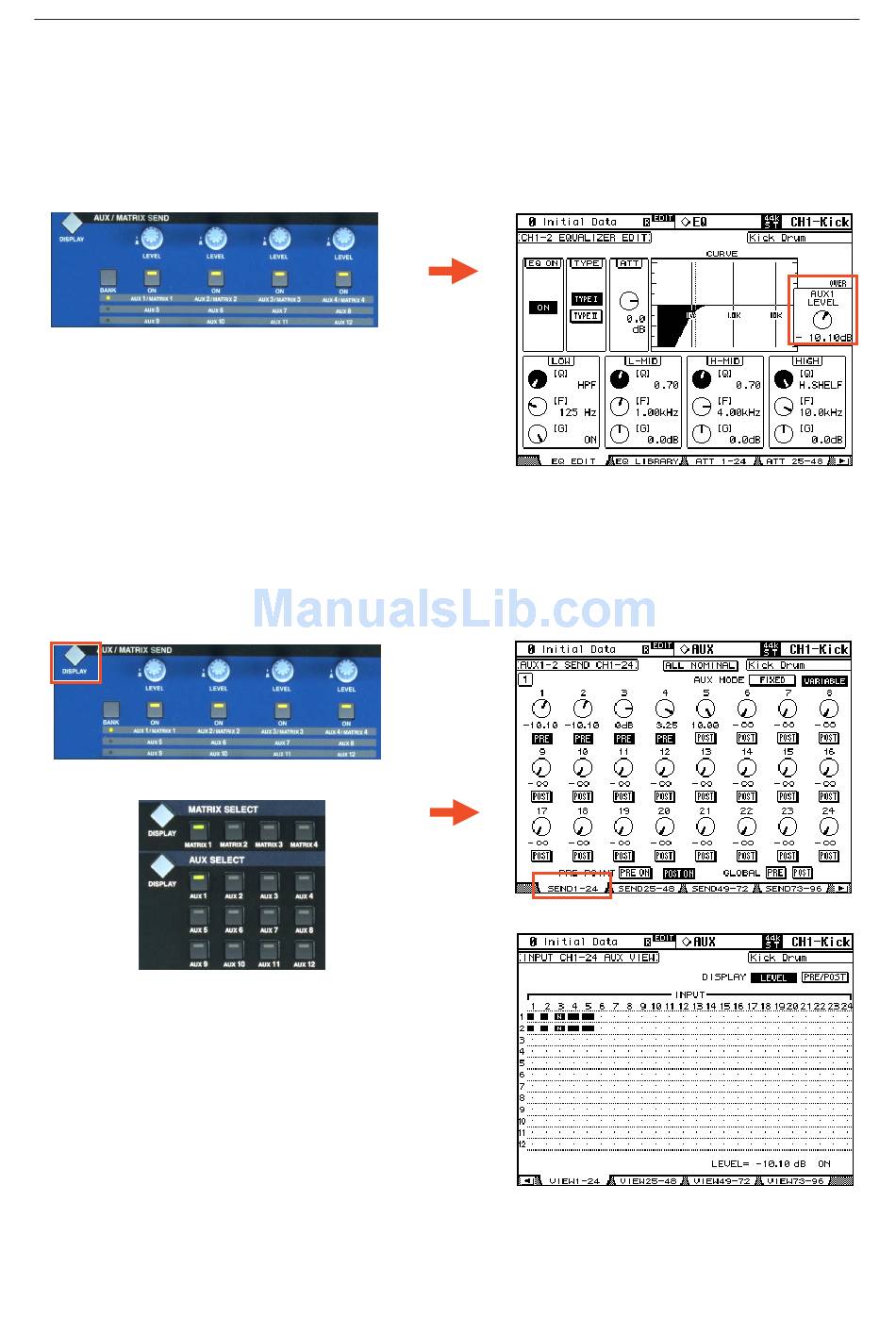

AUX/MATRIX SEND

Each input channel has 12 Aux Sends, and each Bus and Aux channel has 4 Matrix Sends. In this section the LEVEL
and ON status can be adjusted. Use the [BANK] switch to access the required Aux Send control for the selected input
channel: 1-4; 5-8; 9-12.
Even when the AUX or MATRIX menu is not shown on the LCD, the Send Level will always 'pop-up' on the LCD
whenever it is adjusted or when the encoder is simply pressed.
Press the AUX/MATRIX SEND [DISPLAY] button to see the relevant information on the LCD. Use the [AUX#] and
[MATRIX#] SELECT buttons on the left side of the DM2000 to choose which Aux or Matrix number to view. Pressing
the [DISPLAY] button repeatedly will access LEVEL and PRE/POST settings for all the channels. The VIEW pages
show all the Aux or Matrix Sends for each fader layer in a bar-graph format.
13/28
