Control Panel - Sharp DW-R268A Operation Manual

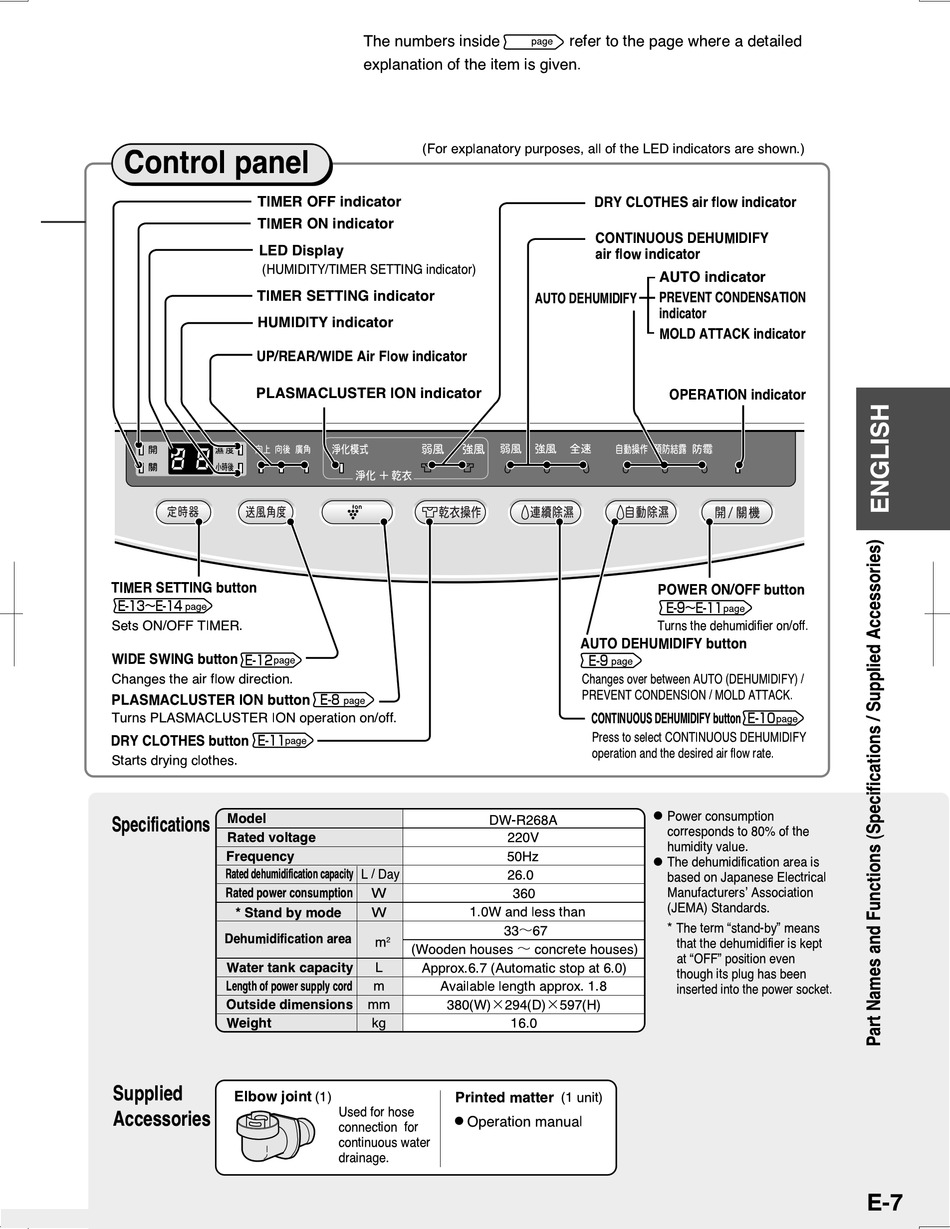

Control panel

TIMER OFF indicator
TIMER ON indicator
LED Display
(HUMIDITY/TIMER SETTING indicator)
TIMER SETTING indicator
HUMIDITY indicator
UP/REAR/WIDE Air Flow indicator
PLASMACLUSTER ION indicator
TIMER SETTING button
page
Sets ON/OFF TIMER.
page
WIDE SWING button
Changes the air flow direction.
PLASMACLUSTER ION button
Turns PLASMACLUSTER ION operation on/off.
DRY CLOTHES button
Starts drying clothes.
Model
Specifications
Rated voltage
Frequency
Rated dehumidification capacity
Rated power consumption
* Stand by mode
Dehumidification area
Water tank capacity
Length of power supply cord
Outside dimensions
Weight
Supplied
Elbow joint
Accessories
The numbers inside
explanation of the item is given.
(For explanatory purposes, all of the LED indicators are shown.)
page
page
L / Day
W
W
m
2
(Wooden houses concrete houses)
L
Approx.6.7 (Automatic stop at 6.0)
m
Available length approx. 1.8
mm
380(W) 294(D) 597(H)
kg
(1)
Used for hose
connection for
continuous water
drainage.
refer to the page where a detailed
page
DRY CLOTHES air flow indicator
CONTINUOUS DEHUMIDIFY
air flow indicator
AUTO DEHUMIDIFY
AUTO DEHUMIDIFY button
page
Changes over between AUTO (DEHUMIDIFY) /
PREVENT CONDENSION / MOLD ATTACK.
CONTINUOUS DEHUMIDIFY button
Press to sel e ct CONTINUOUS DEHUMIDIFY
operati o n and the desi r ed ai r fl o w rate.
DW-R268A
220V
50Hz
26.0
360
1.0W and less than
33 67
16.0
(1 unit)
Printed matter
Operation manual
AUTO indicator
PREVENT CONDENSATION
indicator
MOLD ATTACK indicator
OPERATION indicator
POWER ON/OFF button
page
Turns the dehumidifier on/off.
page
Power consumption
corresponds to 80% of the
humidity value.
The dehumidification area is
based on Japanese Electrical
ManufacturersÕ Association
(JEMA) Standards.
* The term Òstand-byÓ means
that the dehumidifier is kept
at ÒOFFÓ position even
though its plug has been
inserted into the power socket.
E-7
