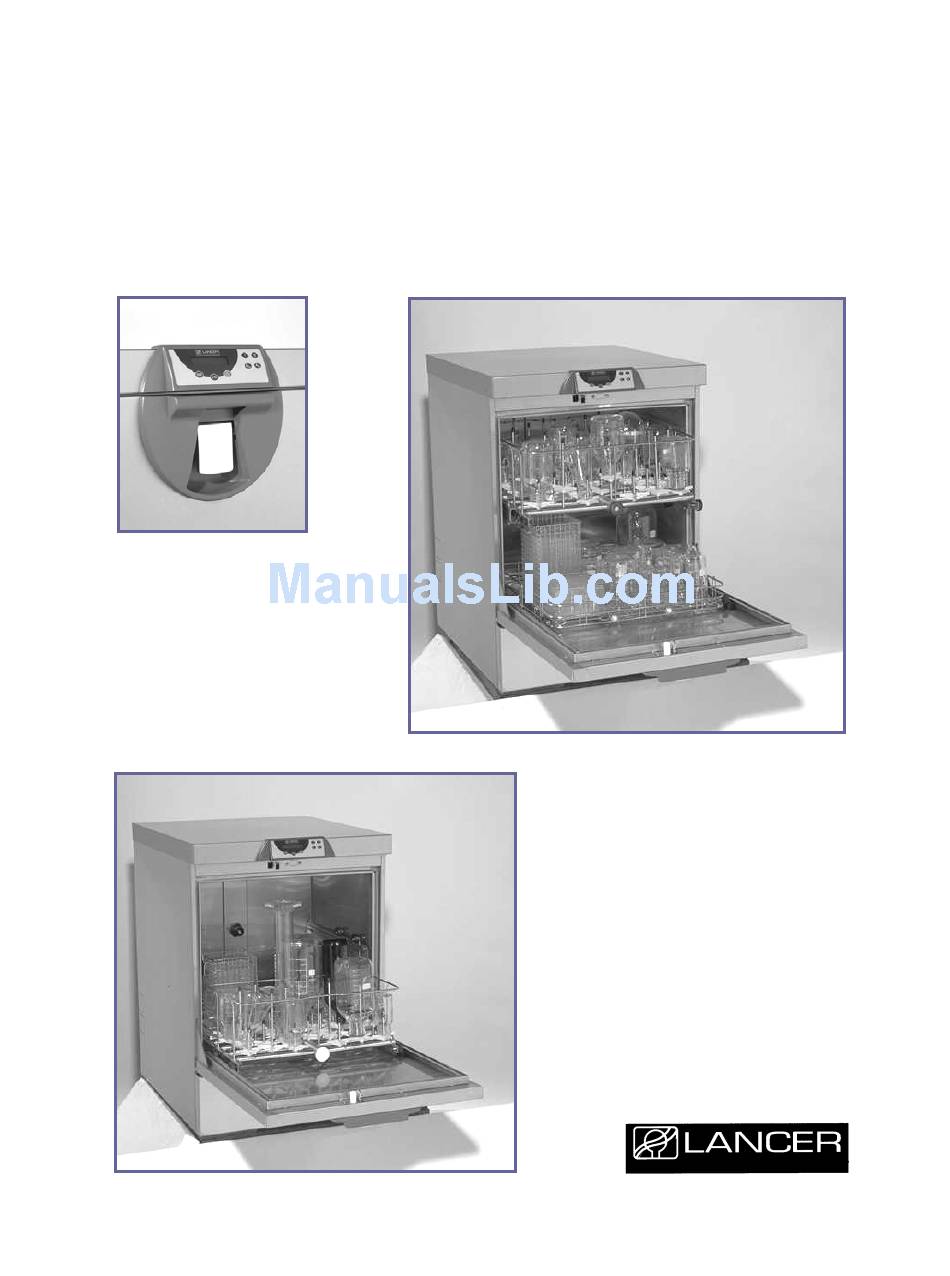

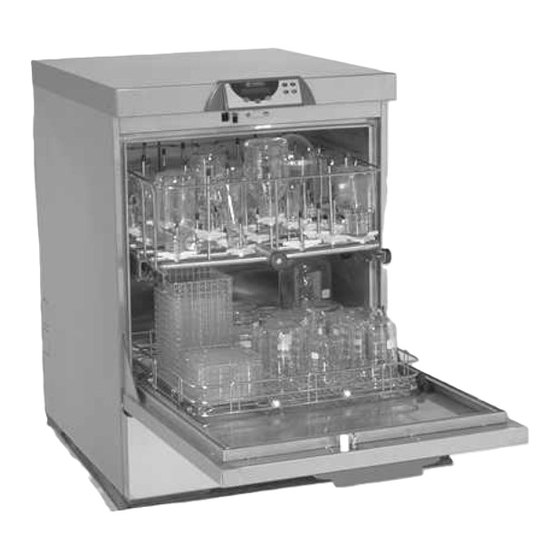

USER'S MANUAL
815 LX
LANCER
.
RESERVES THE RIGHT TO MAKE CHANGES IN THIS MANUAL

Advertisement

Table of Contents
loading

Related Manuals for lancer 815 LX

Summary of Contents for lancer 815 LX

  • Page 1 USER'S MANUAL 815 LX LANCER RESERVES THE RIGHT TO MAKE CHANGES IN THIS MANUAL...
  • Page 2 NU_815_LX_ANG_C...

  • Page 3: Introduction

    815 LX / UTILIZATION INTRODUCTION Dear Sir or Madam, You are now the owner of a LANCER washer. This machine is one of the most highly perfected on the market. It ensures thorough washing through mechanical, thermal and chemical processes.

  • Page 5: Table Of Contents

    815 LX / UTILIZATION CONTENTS INTRODUCTION ....................1 CONTENTS ......................3 CHAPTER 1 BEFORE YOU START............. 7 PRECAUTIONS TO BE TAKEN BEFORE USE ’ ’ NON-FOAMING DETERGENT NEUTRALIZING ACID SWITCHING TYPE/BRAND OF CLEANING CHEMICALS WHEN TO CHANGE THE CHEMICAL CONTAINERS ?
  • Page 6 815 LX / UTILIZATION CHAPTER 2 WASHING CYCLE LAUNCHING........19 CHAPTER 3 PROGRAMMING ..............27 CHAPTER 4 MAINTENANCE..............35 BASIN STRAINER WHEN TO DECONTAMINATE THE WASHER ? HOW TO DECONTAMINATE THE MACHINE ? CONTENTS...
  • Page 7 815 LX / UTILIZATION CHAPTER 5 PROBLEMS ................43 THE DETERGENT OR ACID DOES NOT ENTER THE WASHER THE WASHER DOES NOT FILL WITH WATER (FILLING FAULT ALARM) THE WASHER DISPLAY DOES NOT FUNCTION ABNORMAL NOISE THE WASHER DOES NOT HEAT (HEATING FAULT ALARM)

  • Page 9: Chapter 1 Before You Start

    815 LX / UTILIZATION CHAPTER 1 BEFORE YOU START After have install correctly your washer, in accordance with the install manual, you can to familiarise with it. You'll get in this chapter every indispensable information to ensure its good functioning and avoid material damages and corporeal.

  • Page 11: Safety Recommendations

    815 LX / UTILIZATION PLEASE READ AND UNDERSTAND THE ENTIRE USERS MANUAL BEFORE STARTING TO USE THIS MACHINE 1. SAFETY RECOMMENDATIONS PRECAUTIONS TO BE TAKEN BEFORE USE USER TRAINING IS REQUIRED PRIOR TO OPERATING THIS MACHINE All personnel that use or maintain this machine should be trained in every aspect of its proper care and operation.
  • Page 12 815 LX / UTILIZATION HIGH TEMPERATURES AT END OF CYCLE Items that have been washed should be allowed to cool after a successful wash cycle before handling them to avoid exposure to HIGH TEMPERATURES. (D) NICHT WÄHREND DEM SPÜLGANG ÖFFNEN...

  • Page 13: Opening The Washer's Door

    815 LX / UTILIZATION 2. OPENING THE WASHER’S DOOR Pull the handle towards you and lower the door to the horizontal position. O NOT CLIMB OR SIT ON THE DOOR 35 Kg (77 AXIMUM WEIGHT ALLOWED ON THE DOOR IS lbs).

  • Page 14: Installing The 2 Chamber Filters

    815 LX / UTILIZATION 3. INSTALLING THE 2 CHAMBER FILTERS Both chamber filters are necessary to large contaminants from entering the plumbing circuit. PUMP SUCTION FILTER LABEL FILTER PRESSURESTAT PROTECTION PROTECTION GRID O NOT EXTRACT IN ANY CASE THE PROTECTION GRID...

  • Page 15: Cleaning Chemicals

    DETERGENT USED IN THIS EQUIPMENT. THE PROGRAMMED CYCLES ON THIS WASHER HAVE BEEN VALIDATED WITH LANCER CHEMICALS. Please do not hesitate to consult LANCER for application specific solutions. NEUTRALIZING ACID Using the correct non-foaming neutralizing acid is required for proper cleaning in this machine.

  • Page 16: When To Change The Chemical Containers

    Please contact LANCER for advice or assistance. WHEN TO CHANGE THE CHEMICAL CONTAINERS ? For a washer equipped with level detection devices : This message is displayed when the chemical bottles are almost empty.

  • Page 17: The Baskets

    815 LX / UTILIZATION 5. THE BASKETS SOME EXAMPLES In order to wash items in "TE" or "TH" type baskets, place the baskets on the "PS" (basic rack) or "PSB" (basic rack with spray arm) after removing one or more "GS" (support grilles).
  • Page 18 815 LX / UTILIZATION It is extremely important that the items to be washed are prevented from moving in order to obtain correct cleaning avoid breakage of fragile items. Items that can be easily moved or knocked over when loaded on the "PS" or "PSB"...
  • Page 19 Please feel free to contact LANCER for advice or assistance. When several racks are used simultaneously on the different levels, only one rack should be pulled out of chamber on the door and the runners at a time.

  • Page 20: Setting Up

    F IT THE PINS BACK IN PLACE BETWEEN WHEELS 1-2-3 BASKET WHEELS THE CHOICE OF THE BASKETS AND RACKS IS VERY IMPORTANT TO EFFICIENT CLEANING Please feel free to contact LANCER for advice or assistance. CHAPTER 1 BEFORE YOU START...

  • Page 21: Chapter 2 Washing Cycle Launching

    815 LX / UTILIZATION CHAPTER 2 WASHING CYCLE LAUNCHING This chapter has been made to enable to function your washer. You will get the launching procedure of a washing cycle and the manipulations to do at the start and the end of cycle.
  • Page 23 815 LX / UTILIZATION 1. DESCRIPTION AND BASIC FUNCTIONS OF KEYPAD 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2...
  • Page 24 815 LX / UTILIZATION 2. SETTING INTO SERVICE - The baskets and racks must be correctly loaded. - Close the washer door and lock the handle. - Open the water supply valves. - Verify that the detergent and acid containers are correctly installed.
  • Page 25 815 LX / UTILIZATION b) If the chemical container(s) are empty, the display indicates* : W A R N I N G L A C K C H E M I C . It is necessary to fill the detergent or acid container to start the cycle.
  • Page 26 815 LX / UTILIZATION VOID OPENING THE CHAMBER DOOR DURING THE WASH CYCLE URN DANGER EXISTS WHEN OPENING THE DOOR 60°C. AT TEMPERATURES HIGHER THAN T THE END OF A CYCLE ALLOW THE RACK AND WASHED ITEMS TO COOL BEFORE HANDLING THEM 4.

  • Page 27: End Of Cycle

    815 LX / UTILIZATION 5. END OF CYCLE The display unit -6- indicates " ". END OF CYCLE E N D C Y C L E Push on , to return to the initial state. 6. OPENING Proceed as described page 11.

  • Page 29: Chapter 3 Programming

    815 LX / UTILIZATION CHAPTER 3 PROGRAMMING This chapter has been made to enable the choosing of a washing cycle. You will get the table of factory-programmed cycles. More, thanks to the access code LEVEL 1 / USER you can modify the programming and consult the information about it.
  • Page 31 815 LX / UTILIZATION 1. 1. TABLE OF FACTORY-PROGRAMMED CYCLES The washer is supplied with 4 factory-programmed cycles that are designed to meet most washing needs. However, all cycles can be modified to meet customer requirements (see page 31). Water consumption estimated per phase (depends on the baskets/racks used): 12 litters.
  • Page 32 815 LX / UTILIZATION SER MUST CONTROL THAT EQUIPEMENTS TO BE WASHED AND DRIED ARE COMPATIBLE TO WASHING AND DRYING TEMPERATURES URN DANGER EXISTS WHEN OPENING THE DOOR AT 60°C. TEMPERATURES HIGHER THAN T THE END OF A CYCLE ALLOW THE RACK AND WASHED...
  • Page 33 815 LX / UTILIZATION 2. 2. ACCESS TO PROGRAMMING A WASHING CYCLE Switch on the appliance by pressing The display indicates the number of the last cycle performed. P R O G R A M M E n ° 0 1...
  • Page 34 815 LX / UTILIZATION 3. 3. MODIFYING THE WASHING CYCLES F A CYCLE PHASE IS PROGRAMMED WITH A TIME OF 00m00s THAT PHASE WILL BE SKIPPED WHEN THE WASH CYCLE IS EXECUTED Choose the time for pre-wash 1 : 0 to 30 mn 59 s.
  • Page 35 815 LX / UTILIZATION Select the number of running water rinses 1 (0 to 9), with / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + buttons.
  • Page 36 815 LX / UTILIZATION Select the duration of the hot demi.(*) rinse : 0 to 30 mn 59 s. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + Select the minutes with buttons.

  • Page 37: Chapter 4 Maintenance

    815 LX / UTILIZATION CHAPTER 4 MAINTENANCE This chapter gives the maintenance operations to ensure a good functioning of your washer to have the best results. 1. THE FILTERS 2. SHUTDOWN AT END OF DAY 3. EXTERNAL MAINTENANCE OF THE WASHER 4.

  • Page 39: The Filters

    815 LX / UTILIZATION RESIDUES OF PRODUCTS SUCH AS ACETONE SOLVENTS PETROLEUM PETROLEUM DERIVATIVES CHROMIUM SULPHATE ACID SULPHURIC NITRIC HYDROCHLORIC EVEN AT A LOW CONCENTRATION MUST NOT BE USED OR PLACED IN THE WASHER IN ANY CIRCUMSTANCES 1. THE FILTERS BASIN Clean the basin filters after each cycle.

  • Page 40: External Maintenance Of The Washer

    815 LX / UTILIZATION 3. EXTERNAL MAINTENANCE OF THE WASHER The bodywork of the LANCER washer is made of stainless steel. LEANING METHOD Weekly cleaning of the bodywork has to be done with mild cleaner. We recommend the use of a product specifically designed for cleaning stainless steel.
  • Page 41 815 LX / UTILIZATION Acid products : They should only be used in very specific cases. Acetic acid can be used to remove mineral stains. It is possible to find products made of phosphoric or nitric acid which are especially made to clean stainless steel.

  • Page 42: Decontamination Of The Machine And Parts

    815 LX / UTILIZATION 4. DECONTAMINATION OF THE MACHINE AND PARTS WHEN TO DECONTAMINATE THE WASHER ? Special care must be taken to protect users and maintenance personnel from coming in contact with the chemicals, temperatures, and hazardous materials that may be used in this machine.
  • Page 43 ERIFY THE CORRECT OPERATION OF ALL RELAYS AND THEIR ASSOCIATED COMPONENTS HANGE THE HEATING RELAY (1) Daily maintenance must be handled by users staff. (2) Others maintenances (bi-annual, 1 year, 2 years & 5 years) must be carry out by the Lancer’s technical assistance service. CHAPTER 4 MAINTENANCE...
  • Page 44 815 LX / UTILIZATION 6. RECOMMENDED SPARE PARTS Quantity/ Description Part # Machine Door Spring 12010003 Door wheels 46020064 Door sling 46040004 Emptying Pump 50 hz 23010047 Emptying Pump 60hz 23010070 Pressurestat 28020066 Autoclude™ Internal tubing 23080014 Main Pump50hz 23010076...
  • Page 45 815 LX / UTILIZATION CHAPTER 5 PROBLEMS This chapter explains all problems that can occur on the washer. 1. OPERATING PROBLEMS 2. FAULT ALARMS CHAPTER 5 PROBLEMS...
  • Page 47 815 LX / UTILIZATION 1. OPERATING PROBLEMS THE DETERGENT OR ACID DOES NOT ENTER THE WASHER - the chemical suction or delivery tubing is blocked, pinched, cut, or damaged. - the chemical container is empty. - the peristaltic chemical pump hose is blocked, pinched, cut, or damaged.
  • Page 48 815 LX / UTILIZATION 2. FAULT ALARMS These alarms stop the operation of the washer. To clear the alarm mode, the washer must be switched off by pressing key. N°1 P ROBE FAULT F A U L T N ° 0 1...
  • Page 49 815 LX / UTILIZATION N°3 H EATING EXCESS F A U L T n ° 0 3 H E A T I N G E X C E S S Heating Excess Definition : Is displayed if the basin temperature exceeds the programmed temperature by 20°C.
  • Page 50 815 LX / UTILIZATION N°5 N O WATER F A U L T n ° 0 5 W A T E R No Water Definition : The washer did not reach the required water level by the end of the normal filling time defined in the Common Times menu.
