Connections for a Standard-Defi nition TV (SDTV)

When using the receiver with an SDTV, you must make one of the following connections to view
content. Some SDTVs may not have all these connections. Refer to the owner's manual for your TV
and the cabling diagrams in this manual for more detailed information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
• The labeling on your receiver or SDTV may vary slightly from the illustrations shown below.
• Some cables shown in the connection diagrams may not be included with this receiver.

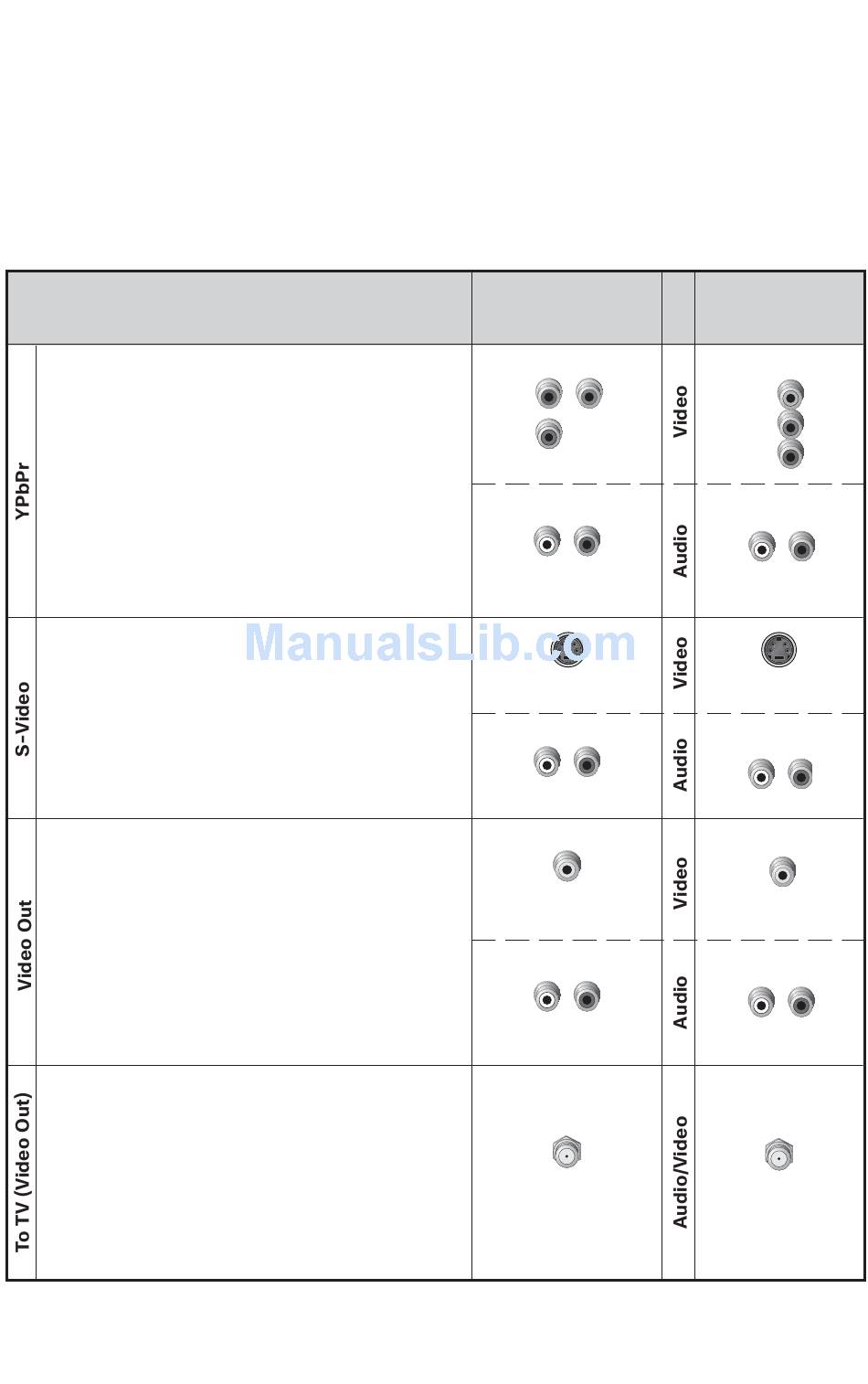

Use One of These Required Connections
The YPbPr (red, blue, and green) connectors
can provide standard-defi nition component
video signals to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 18 for an
example.
The S-Video connection provides an optimal
video connection to SDTVs. A separate audio
connection is also needed.
See the connection diagram on page 19 for
an example.
The Video Out connector provides a video
connection to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 20 for
an example.
The To TV (Video Out) connector provides both
a video and audio connection to an SDTV.
See the connection diagram on page 21 for
an example.
to an SDTV
Receiver
Connections
Pb Y
Pr
L R
AUDIO
OUT
S-VIDEO
L R
AUDIO
OUT
VIDEO
OUT
L R
AUDIO
OUT
TO TV
(VIDEO OUT)
SDTV
Connections
Y
Pb
Pr
L R
S-VIDEO
IN
L R
VIDEO
IN
L R
CABLE IN/
ANT IN
13
