GPS NAVIGATION SYSTEM
DNX7140
DNX7000EX
MONITOR WITH DVD RECEIVER
DDX714
DDX7034BT
INSTRUCTION MANUAL
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best
performance from your new GPS Navigation System/DVD Receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the
warranty card, and in the space provided below. Refer to the model and serial numbers
whenever you call upon your Kenwood dealer for information or service on the product.
Model DNX7140/DNX7000EX/DDX714/DDX7034BT Serial number
US Residents Only
Register your Kenwood product at
www.Kenwoodusa.com
© B64-4502-00/00 (KW/K2W/RW)
Register Online
Advertisement
Chapters
Table of Contents
Related Manuals for Kenwood DDX7034BT
Summary of Contents for Kenwood DDX7034BT

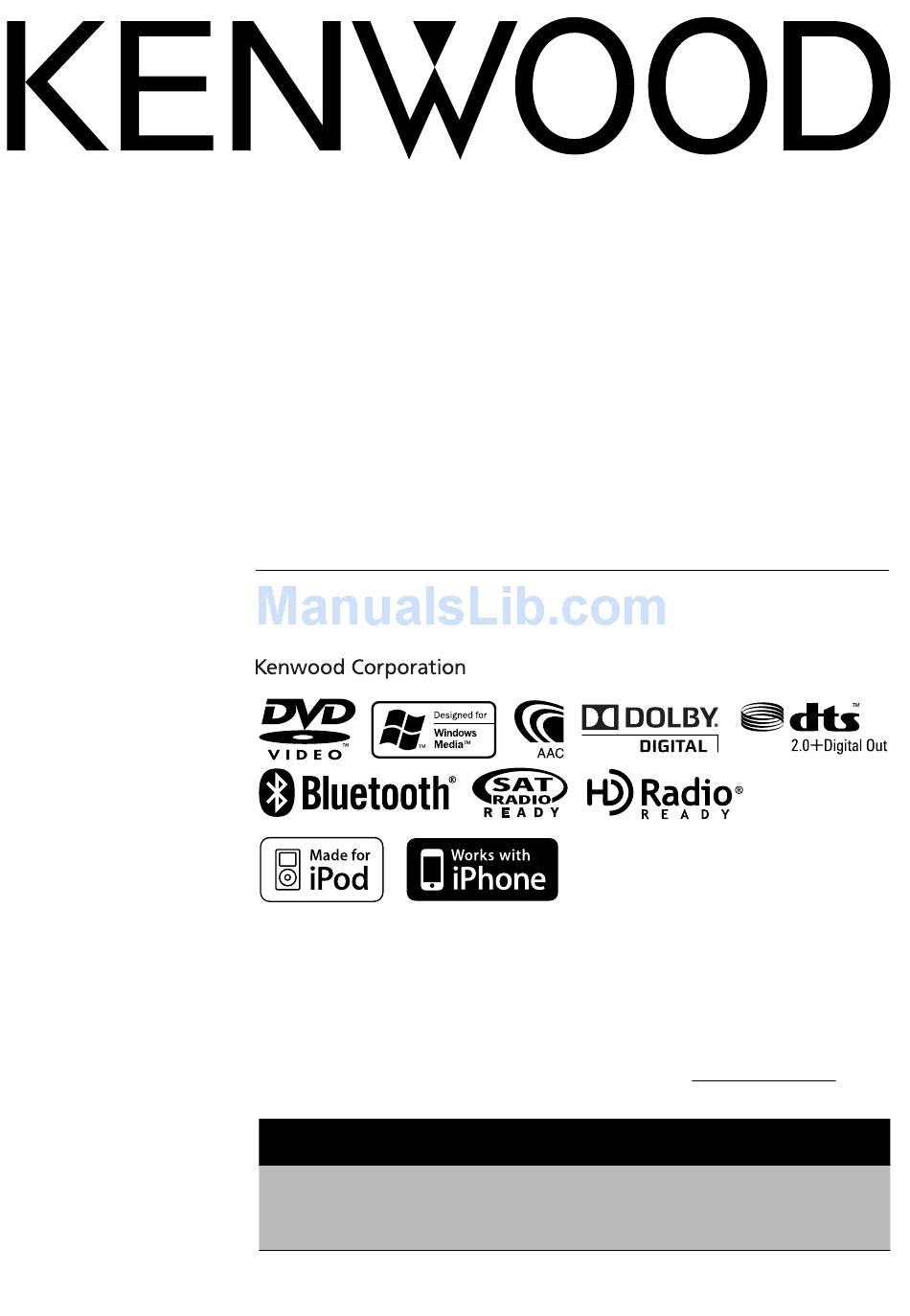

- Page 1 Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product. Model DNX7140/DNX7000EX/DDX714/DDX7034BT Serial number...
-
Page 2: Table Of Contents
Movie Menu Control iPod Control Playback Screen Easy Control Screen Source Control Screen iPod List Link search (Music file) DNX7140/DNX7000EX/DDX714/DDX7034BT Initial Setup Radio Listening Source Control Screen Preset Select Auto Memory Manual Memory Radio Text (North American sales area only) 32... - Page 3 DVD Setup DVD Language Setup DVD Parental Level Setup Disc Setup [USB SETUP] USB Setup [iPod SETUP] iPod Setup [SIRIUS SETUP] SIRIUS Parental Code Setup SIRIUS Parental Lock Setup SIRIUS Parental Lock Channel Select [TV SETUP] TV Setup (DDX7034BT only) English...
-
Page 4: How To Read This Manual
C ontinue to the next page The instruction continues to the next page. Make sure to flip the page for the rest of the truction. DNX7140/DNX7000EX/DDX714/DDX7034BT Source Control Screen Switches to the source control screen to use various functions. Display the Source See <How to Display the Source Control... - Page 5 Function Icon Icons representing available functions are shown below. : Function of DVD-VIDEO playback. D D D EO E DEO O O O EO -V -V V R : Function of DVD-VR playback. : Function of Video CD playback. oCD CD CD o CD : Function of CD (CD-DA) playback.
-
Page 6: Before Use
• If you experience problems during installation, consult your Kenwood dealer. • When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area. • Characters that conform to ISO 8859-1 can be displayed. -
Page 7: Notes
① to ⑩. An online manual about audio files is put on the site, www.kenwood.com/audiofile/. On this online manual, detailed information and notes which are not written in this manual are provided. Make sure to read through the online manual as well. - Page 8 Changing the browse item will display a correct title, etc. • When the iPod is connected to this unit, "KENWOOD" or "✓" is displayed on the iPod to indicate that you cannot operate the iPod. About USB device •...
-
Page 9: Region Codes In The World
Region codes in the world The DVD players are given a region code according to the country or area it is marketed, as shown in the following map. DVD disc marks Symbol Description Indicates a region number. The discs with this mark can be played with any DVD player. -
Page 10: Functions Of The Buttons On The Front Panel
DDX models DDX models Displays the Top Menu screen. Turns the power On. Displays the Source Select screen. 1 sec. Turns the power Off. DNX7140/DNX7000EX/DDX714/DDX7034BT For DDX models VOLUME 1 sec. : Press for more than 1 second Remote control sensor ⁄... - Page 11 DNX models DNX models Hands Free control On/Off. 1 sec. 7 While watching the navigation screen or playback screen of a visual source Displays the Easy Control screen. 7 While watching the screen other than the above Screen Switching function On/Off. DDX models DDX models Hands Free control On/Off.
-
Page 12: Getting Started
• For DDX models, an optional navigation system needs to be connected. See <Navigation unit that can be connected to this unit> (page 8) for connectable navigation units. DNX7140/DNX7000EX/DDX714/DDX7034BT How to Select the Source Sources can be selected from the Source Select screen. -
Page 13: How To Set A Medium / A Device
How to Set a Medium / a Device 7 Disc media Press the [0] button to open/close the front panel. If a disc is already inserted, it is ejected by pressing the [0] button. 7 iPod To disconnect the iPod, stop the playback by touching the [38] button on the source control screen, and then disconnect the iPod. -
Page 14: Basic Operation
⁄ • The screen will return to the navigation screen by touching the same part of the Source Control screen. DDX models DDX models DNX7140/DNX7000EX/DDX714/DDX7034BT The Source Control Screen appears. DNX/DDX models DNX/DDX models While watching the Easy Control Screen The Source Control Screen appears. -
Page 15: How To Display Top Menu Screen
How to Display Top Menu Screen Top Menu Screen is the entrance to all the functions. You can enter source operation screen as well as various setup menu from this screen. Top Menu screen How to display the Top Menu screen Touch the [MENU] button on any screen. -
Page 16: Operation On The Playback Screen Of Visual Sources
* Source information screen ⁄ • The information display is cleared automatically after approximately 5 seconds. DNX7140/DNX7000EX/DDX714/DDX7034BT How to display the playback screen The Source Select screen appears. Touch the icon of the source. The Playback screen of a visual source appears. -
Page 17: How To Display The Easy Control Screen
How to Display the Easy Control Screen Basic operation buttons of the selected source can be displayed on the playback screen of visual sources so that you can control the source without switching the screen. Easy Control Screen Buttons on the Easy Control Screen [∞] Changes the function as follows by touching the [∞] button. -
Page 18: Watching Dvd/Video Cd
4 Displays Source Information Screen. ⁄ • The information display is cleared automatically after approximately 5 seconds. DNX7140/DNX7000EX/DDX714/DDX7034BT Easy Control Screen Displays the basic operation buttons on the screen. Display the Easy Control Screen See <How to Display the Easy Control buttons>... - Page 19 Video CD Video CD [38] Plays or pauses. [7] Stops playing. When touched twice, the disc is played from its beginning when you play it the next time. [0] Ejects a disc. [1], [¡] Fast Forwards or Fast Backwards. [4], [¢] DVD-VIDEO DVD-VIDEO Searches for a chapter.
-
Page 20: Dvd-Video Disc Menu
Operation on the Highlight Control Highlight control lets you control DVD Menu by touching the menu button directly on the screen. DNX7140/DNX7000EX/DDX714/DDX7034BT ⁄ • To cancel Highlight Control, press the [TEL] button for more than 1 second. • The Highlight Control is cleared automatically after approximately 10 seconds. -
Page 21: Dvd-Vr Menu Control
[2], [3], [5], [∞] Scrolls the screen in the direction you touch. [Return] Returns to the previous screen. [Exit] Exits the Zoom Control screen. DVD-VR Menu Control Selects an option from the DVD-VR Disc Menu. Display the playback screen See <Operation on the Playback Screen of Visual Sources>... -
Page 22: Music Disc/ Audio File Listening & Video File/ Picture File Watching
Audio File Audio File MPEG MPEG Selects a folder. [List] Displays the folder list or play list. (page DNX7140/DNX7000EX/DDX714/DDX7034BT ] Switches to the playback screen. 1 Information display "Track" Track Number Display " " "#### / ####" Total number of file in the "3"... -
Page 23: List Select
[RDM] Starts or stops Random Play (to play files of the present folder in random order). [4Line]/ [2Line] Switches the number of lines displayed in the Information Display. [FOLD]/ [Flist] Displays the folder list. [Plist] Audio File Audio File Displays the play list. [SLIDE] Displays images in the folder currently being played one after another. -
Page 24: Usb Device Select
Music Disc/ Audio File Listening & Video File/ Picture File Watching Scrolls to the position of the specified initial Scrolls to the selected initial. DNX7140/DNX7000EX/DDX714/DDX7034BT USB device select Selects the connected USB device (or a partition). Display the Source Control Screen See <Source Control Screen>... -
Page 25: Link Search (Audio File In Usb)
Link search (Audio File in USB) Searches for another song of the currently selected artist. Display the Source Control Screen See <Source Control Screen> (page 22). Start Link search Select a song 1 Plays the touched song. ] When appears, the text display is scrolled by touching it. -
Page 26: Easy Control Screen (Video File, Picture File)
Display the Playback Screen See <Operation on the Playback Screen of Visual Sources> (page 16). Display the Picture Control Screen Adjust the video display DNX7140/DNX7000EX/DDX714/DDX7034BT ] Reverses the picture horizontally. ] Rotates counter clockwise. ] Rotates clockwise. [Exit] Ends Picture Control. -
Page 27: Ipod Control
iPod Control You can control and listen to songs in your iPod by connecting an iPod to this unit with KCA-iP301V (optional accessory). You can also display video contents on this unit when connecting an iPod with video. Playback Screen Basic functions are available even when the playback screen is displayed. -
Page 28: Source Control Screen
[MUSIC] Displays the list of music category. [VIDEO] Displays the list of video category. [REP] Repeats the present file or data. [RDM] Starts or stops Random play.* DNX7140/DNX7000EX/DDX714/DDX7034BT [ARDM] Starts or stops Album Random Play (plays randomly from current album).* [INFO] Displays information screen of music/ video being played. -
Page 29: Link Search (Music File)
Scrolls to the position of the specified initial Scrolls to the selected initial. Link search (Music file) Searches for another song of the currently selected artist. Display the Source Control Screen See <Source Control Screen> (page 28). Start Link search Select a song 1 Plays the touched song. -
Page 30: Radio Listening
"Preset" Preset number "MHz"/ "kHz" Frequency display ] When appears, the text display is scrolled by touching it. DNX7140/DNX7000EX/DDX714/DDX7034BT Multi Function [1/3] Switches the multi function display. ] Closes the multi function bar. [SEEK] Switches the Seek mode. The mode is switched in the following order each time you touch the button. -
Page 31: Preset Select
Preset Select Lists and selects memorized station. Display the Source Control Screen See <Source Control Screen> (page 30). Display the Tuner Preset List Screen Select a station 1 Memorized stations are displayed. Touch to tune in. [DISP] Switches the list display name to Station name or Program Service Name.* [CTRL] Returns to the Source Control screen. -
Page 32: Manual Memory
Select a station you wish to store in memory Store in memory 2 sec. Continue to touch until the memory number appears. DNX7140/DNX7000EX/DDX714/DDX7034BT Radio Text (North American sales area only) You can display the radio text. (Only when receiving the FM broadcast) Select a station See <Source Control Screen>... -
Page 33: Set Station Name
Set Station Name Assigns a name to a station. Tune in to the station to name See <Source Control Screen> (page 30). Start Name set Enter the name See <Character Entry> (page 47) for information on how to enter a name. End Name set Traffic Information (North American sales area only) -
Page 34: Search By Program Type (North American Sales Area Only)
[Search] Searches for the program type. It is displayed when the Program type is selected. [User] Continue to touch more than 2 seconds. The currently receiving station is registered to the selected program type. Search a station of the selected Program Type DNX7140/DNX7000EX/DDX714/DDX7034BT... -
Page 35: Tv Watching
TV Watching (DDX7034BT only) Various control screens appear in the TV source mode. You can only operate TV with the optional accessory TV Tuner connected. Function During TV Screen Basic functions are available even when the TV screen is displayed. -
Page 36: Source Control Screen
TV Watching (DDX7034BT only) Source Control Screen Switches to source control screen to use various functions. Display the Source Control Screen See <How to Display the Source Control Screen> (page 14). Operation on the Source Control Screen [BAND] Switches to TV1 or TV2. -
Page 37: Auto Memory
Auto Memory Stores stations with good reception in memory automatically. Display the Source Control Screen See <Source Control Screen> (page 36). Select a band you wish to store in memory Select the Auto Memory mode Start Auto Memory Auto Memory terminates when 6 stations are stored or when all stations are tuned in. -
Page 38: Preset Select
TV Watching (DDX7034BT only) Preset Select Lists and selects memorized station. Display the Source Control Screen See <Source Control Screen> (page 36). Start Preset Select Select a station 1 Memorized stations are displayed. Touch to tune in. ] Switches to the TV screen. -
Page 39: Sirius/Xm Control
SIRIUS/XM Control (North American sales area only) Various control screens appear in the Satellite radio source mode. (only with the optional accessory Satellite radio connected. To connect the SIRIUS tuner, a conversion cable CA-SR20V (optional accessory) is necessary and to connect the XM tuner, an XM interface Box KCA-XM100V (optional accessory) is necessary.) •... -
Page 40: Channel Search
Changes the display from Channel Name, Category Name, Song Title, Artist Name, to Composer Name. UP] Display the category list. DNX7140/DNX7000EX/DDX714/DDX7034BT Channel Memory Stores the current receiving channel in memory. Display the Source Control Screen See <Source Control Screen> (page 39). -
Page 41: Direct Channel Search
Direct Channel Search Tuning in by entering the desired channel number. Display the Source Control Screen See <Source Control Screen> (page 39). Start Direct Channel Search Enter the channel number 1 Enters the channel number. [Cancel] Cancels the direct channel search. [Clear] Clears the channel number. -
Page 42: Hd Radio Control
"Tag" When song information can be registered.* (page 45) ] When appears, the text display is scrolled by touching it. DNX7140/DNX7000EX/DDX714/DDX7034BT Multi Function [1/2] Switches the multi function display. ] Closes the multi function bar. [SEEK] Switches the Seek mode. -
Page 43: Auto Memory
Auto Memory Stores stations with good reception in memory automatically. Display the Source Control Screen See <Source Control Screen> (page 42). Select a band you wish to store in memory Select the Auto Memory mode Start Auto Memory Auto Memory terminates when 6 stations are stored or when all stations are tuned in. -
Page 44: Receive Mode
"Auto": Automatically tunes to analog broadcast when there is no digital broadcast. "Digital": Digital broadcasts only. "Analog": Analog broadcasts only. DNX7140/DNX7000EX/DDX714/DDX7034BT Direct Search Tuning in by entering the desired frequency or channel number. KTC-HR300 (optional accessory) connected only. Display the Source Control Screen See <Source Control Screen>... -
Page 45: Itunes Tagging (Hd Radio Tagging)
iTunes Tagging (HD Radio Tagging) Using an iTunes Tagging enabled HD Radio you can tag your music. When you hear a song you enjoy on your local HD Radio station, you only have to press the [ATT] button for at least 1 second. -
Page 46: Bluetooth Audio Control
Operation on the Source Control screen [3] Plays. [7] Stops playing. [8] Pauses. [4], [¢] Selects a file. ⁄ • If the Bluetooth Audio player does not support AVRCP profile, buttons are not displayed. Operate from the Audio player. DNX7140/DNX7000EX/DDX714/DDX7034BT... -
Page 47: Other Functions
Other Functions How To Use the Character Entry Screen Character Entry screen 1 Enters characters. [2], [3] Shifts the cursor. [5], [∞] Scrolls up or down the character button display. [QWE]/ [ABC] Sets the key layout of the character buttons. ABC : Alphabetical key layout. -
Page 48: Muting Audio Volume Upon Reception Of Phone Call
• To use the TEL Mute feature, you need to hook up the MUTE wire to your telephone using a commercial telephone accessory. Refer to <INSTALLATION MANUAL>. • Playback of the source output at the AV OUTPUT port may not be paused even a call comes in. DNX7140/DNX7000EX/DDX714/DDX7034BT... -
Page 49: Screen Control
Screen Control Setting the monitor screen. Screen Control Display the Easy Control Screen See <How to Display the Easy Control Screen> (page 17). Display the Screen Control screen Adjust the picture quality [Bright] Brightness Control [Tint] Tint Control Displayed for an NTSC system image on Video, iPod, TV or Rear View Camera. -
Page 50: Hands Free Unit Control
- The phonebook data cannot be downloaded normally if it contains images. It may take several hours to a full day to download the phone book depending on the total image size. DNX7140/DNX7000EX/DDX714/DDX7034BT • To cancel downloading of the phonebook data, operate the cell-phone. Receiving a Call... -
Page 51: Call Waiting
Call Waiting ] • Answering another incoming call with the current call suspended • Switching between the current call and waiting call Each touch of this button switches the calling party. ] • Answering another incoming call after terminating the current call •... -
Page 52: Calling By Phonebook
• During search, a non-accent character such as "u" is searched for instead of an accent character such as "ü". DNX7140/DNX7000EX/DDX714/DDX7034BT Calling by Entering a Phone Number Makes a call by entering a phone number. Display the Hands-Free Control screen See <Making a call>... -
Page 53: Making A Call Using Call Records
Making a Call Using Call Records Calls by selecting a phone number from the outgoing, incoming, or missed calls list. Display the Hands-Free Control screen See <Making a call> (page 51). Display the Outgoing Calls, Incoming Calls, or Missed Calls screen Select from calls list Example : Outgoing Calls screen Calls the selected phone number. -
Page 54: Controlling Tone-Based Services
See <Calling by Entering a Phone Number> (page 52). Display the DTMF input screen You can send tones during a call DNX7140/DNX7000EX/DDX714/DDX7034BT Setting Up the Hands-Free Phone The Hands-Free system can be set as follows. Display the Hands-Free Control screen See <Making a call>... -
Page 55: Voice Registration
[Call Beep] Sets the beep of the incoming call. "ON") "ON": Beep is heard. "OFF": Beep is canceled. [SMS Receive Beep] Sets the beep of the incoming SMS. ( "ON") "ON": Beep is heard. "OFF": Beep is canceled. [Phone Information Use] Sets whether to use cell-phone phonebook, outgoing calls list, incoming calls list and missed calls list. -
Page 56: Key Word Voice Registration
Select the Phone number category to register 1 Selects the Phone number category. "REC" turns on for data with voice for voice recognition already registered. DNX7140/DNX7000EX/DDX714/DDX7034BT [Record] Registers voice for the selected Phone number category. [Play] Plays voice registered for the selected Phone number category. -
Page 57: Phone Number Preset
Phone Number Preset Registers frequently used phone number to Hands Free control screen preset button. Display the Hands-Free Control screen See <Making a call> (page 51). Select the Preset number to register 1 sec. ⁄ • If no Preset number is registered, pressing this button momentarily moves to the step 3. - Page 58 Touching the screen displays a confirmation message. Touch [Yes]. To cancel clearing, touch [No]. Display the Create SMS Message screen DNX7140/DNX7000EX/DDX714/DDX7034BT Create a message 1 Enters characters. [2], [3] Moves the cursor. [5], [∞] Scrolls up or down the character button display.
-
Page 59: Audio Control
Audio Control Audio Control Menu Displays the Audio Control menu to set the sound effect function of this unit. Display the Source Select Screen Display the Audio Control menu In this manual, the above selection is indicated > Touch [ Select the Audio Control item Item [Audio Control]... -
Page 60: Equalizer Control
• When "iPod" is selected, the [EQ] button is deactivated. "iPod" uses its equalizer function. [EQ] Displays the Graphic Equalizer setup screen. (page 60) DNX7140/DNX7000EX/DDX714/DDX7034BT Graphic Equalizer Setup You can Manually set the equalizer curve. Display the Equalizer screen >... -
Page 61: Zone Control
Zone Control You can set the front and rear audio source. Display the Zone Control screen > > Touch [ [Zone Control]. (page 59) Set the Zone Control [Single Zone] Turns off the dual zone. [Front Source] Sets the front audio source. [Rear Source] Sets the rear audio source. -
Page 62: Position
Position DTA values) is stored in memory. Therefore, the final adjustment distance changes if you change the Car Type Set Up value (page 77). DNX7140/DNX7000EX/DDX714/DDX7034BT Position DTA Control You can fine-adjust your listening position. Display the Position DTA screen... -
Page 63: Setup Menu
Setup Menu You can set up various receiver parameters. How to Display SETUP Menu Screen Displays the Setup menu to set various functions. Display the Source Select Screen Display the Setup Menu Screen In this manual, the above selection is indicated >... -
Page 64: User Interface
( "ON") When turned "OFF", the remote control of TV reception is rejected. DNX7140/DNX7000EX/DDX714/DDX7034BT [Language] Select the language used for the control screen and setting items. (page 64) [Scroll] Allows scrolling of text display on the Source Control screen. ( "Auto": Scrolls the screen automatically. -
Page 65: Touch Panel Adjustment
Advanced mode (DNX models only) [GUI Language Select] Selects the display language used for the control screen and so forth. ( "American English") [Navigation Language Select] Selects the language used for navigation. "American English") Touch Panel Adjustment You can adjust the touch panel operations. Display the Touch panel Adjustment screen >... -
Page 66: Security Setup
If you have already completed the code registration, [CLR] is displayed. Enter a security Code Input four-digit number. Register your security code DNX7140/DNX7000EX/DDX714/DDX7034BT Reenter the security code Reenter the same security code as that you have entered in Step 4 for confirmation. ⁄... -
Page 67: Monitor Angle Control
Monitor Angle Control You can adjust the position of the monitor. Display the Angle Setup screen > > Touch [ [System] (page 63) Set the Monitor Angle 1 Sets the Monitor angle. [Memory] Stores the current monitor angle as the angle during power off. EXT SW Setup Setting up power specification of the external device for which the power is controlled from this... -
Page 68: Setup Memory
[Recall] Recalls the memorized settings. [Memory] Memorizes the current Audio Setup and AV Interface settings. [Clear] Clears the currently memorized settings. DNX7140/DNX7000EX/DDX714/DDX7034BT Memorize or recall the settings When memorizing the Audio Setup and AV Interface settings: If settings have already been memorized, a confirmation message appears. -
Page 69: Entering Background
Entering Background Loads a image for background. Connect the device which has the image to load Display the Background screen > > Touch [ [Display] [Background]. (page 63) Display the Background Memory screen [Change] Selects a image for background. [Delete] Deletes the background image. Touching the screen displays a confirmation message. -
Page 70: Panel Color Coordinate
Select a color 1 Sets to the touched color. [Adjust] Sets and registers favorite color to the preset buttons ([P1] – [P3]). DNX7140/DNX7000EX/DDX714/DDX7034BT To register your original color Start the RGB coordinate > [Color]. Adjust each color value 1 Selects a preset number to register. -
Page 71: Screen Adjustment
Screen Adjustment You can adjust the screen mode of the monitor. Display the Screen Adjust screen > > Touch [ [Display] Adjust]. (page 63) Set each item [Bright] Brightness Control [Contrast] Contrast Control [Black] Black Level Adjustment [Dimmer] Dimmer Mode Setup ( "ON": The display dims. - Page 72 Bluetooth Unit PIN Code> (page 73). • If the error message appears even though the PIN code is correct, try <Registering Special Bluetooth Unit>. DNX7140/DNX7000EX/DDX714/DDX7034BT Registering Special Bluetooth Unit Registers Special Bluetooth unit, that resulted in error by normal registration method, by selecting from the listed models.
-
Page 73: Registering Bluetooth Unit Pin Code
Registering Bluetooth Unit PIN Code Sets the PIN code of the Bluetooth unit to enter when registering (pairing) from the cell-phone or audio player side. Display the Bluetooth Setup screen > > Touch [ [Bluetooth SETUP]. (page 63) Display the Receiver PIN Code screen Enter PIN code 1 Use the keypad to enter a code number. -
Page 74: [Av-In Setup]
[AV-IN1 Name], [AV-IN2 Name] Sets a name to be displayed when you select a system that is connected via the AV INPUT port. "VIDEO") DNX7140/DNX7000EX/DDX714/DDX7034BT AV Interface Setup You can set audio and visual (AV) interface parameters. Display the AV Interface screen... -
Page 75: [Navigation]
[Navigation Input] Selects a navigation system connection. ( "RGB") (DDX models only) "RGB": Allows the Kenwood’s Navigation System to connect via its interface cable. "AV-IN": Allows a third-party navigation system to connect via the AV INPUT1 port. "OFF": Must be used if no navigation system is connected. -
Page 76: Dsp Bypass Control
[Tweeter] You can set the tweeter when you are selecting front speakers. If you are using a tweeter together with the DNX7140/DNX7000EX/DDX714/DDX7034BT front speakers, set the tweeter to "ON". In the "ON" position, the Equalizer is adjusted to its best position. -
Page 77: Car Type (Dta) Setup
Set the crossover [Phase] Sets the phase of subwoofer output. The phase is reversed 180 degrees when set to "Reverse". Sets the sub woofer phase. (Only when "Subwoofer" is set to "ON" in Audio Setup) [HPF FREQ] High Pass Filter adjustment. (When front speaker or rear speaker is selected on Speaker Select screen) [LPF FREQ] Low Pass Filter adjustment. -
Page 78: Dvd Setup
3 Calculate the distance difference in accordance with the farthest speaker. 1.6feet 5feet +0feet DNX7140/DNX7000EX/DDX714/DDX7034BT DVD Setup You can set up the DVD play. Display the DVD Setup screen Touch [ Set each item [Menu Language] Selects a disc menu language.*... -
Page 79: Dvd Language Setup
[Screen Ratio] Selects the screen display mode.* "16:9") "16:9": Displays wide pictures. "4:3 LB": Displays wide pictures in the Letter Box format (having black stripes at the top and bottom of screen). "4:3 PS": Displays wide pictures in the Pan & Scan format (showing pictures cut at the right and left ends). -
Page 80: Disc Setup
> > Touch [ [DVD SETUP]. (page 63) Display the Disc Setup screen Set each item DNX7140/DNX7000EX/DDX714/DDX7034BT [Picture Display Time] Selects a picture display time. * "Long") The Display of a JPEG picture is changed. ("Short", "Middle", "Long") [CD Read] Sets a music CD playback. * "1": Automatically recognizes and plays back... -
Page 81: [Sirius Setup]
iPod Setup Performs setup when using iPod. Display the iPod Setup screen > > Touch [ [iPod SETUP]. (page 63) Set each item [AudioBook Speed] Sets the Audio book playback speed. ( "Normal") [Wide Screen] Sets Wide Screen on or off. "OFF") [On Screen iPod] Sets an on-screen display of the iPod Playback screen. -
Page 82: Sirius Parental Lock Setup
Enter the same code number as you input in step 4. SIRIUS Parental code is now set, and the display returns to SIRIUS Setup screen. DNX7140/DNX7000EX/DDX714/DDX7034BT SIRIUS Parental Lock Setup Sets a SIRIUS Parental Lock function on or off. Display the SIRIUS Setup screen >... -
Page 83: Sirius Parental Lock Channel Select
("Channel", "Song title", "Artist", "Composer" and "Category") [ UP] Moves to SIRIUS Category Select Setup screen. TV Setup (DDX7034BT only) The TV signal receiving areas can be set. (only with the optional accessory TV Tuner connected) Displaying TV SETUP screen >... -
Page 84: Remote Controller
Remote Controller For DNX7140/ DNX7000EX/ DDX7034BT : This unit can be operated using the Remote Controller supplied with this unit. For DDX714 : Optional Remote Controller KNA-RCDV330 is designed for controlling this unit. ¤ • Put the Remote Controller in a place where it will not move during braking or other operations. A dangerous situation could result, if the Remote Controller falls down and gets wedged under the pedals while driving. -
Page 85: Common Operations (Aud Mode)
Common operations (AUD mode) Source switching Switches to the source to be played. DISP V.SEL ZOOM MENU POSITION • • ENTER • Volume control Adjusts the volume. VIEW MAP DIR ANGLE FM + ZOOM AM− 2 ZONE Volume attenuator Press the key once to lower the volume. Press again to restore the previous volume. -
Page 86: Dvd/Vcd (Dvd Mode)
* You may not be able to use this function with some discs or scenes. DVD-VR Title number Chapter number Play time Cancel DNX7140/DNX7000EX/DDX714/DDX7034BT VCD 1.X, VCD 2.X (PBC OFF) Track number Cancel VCD 2.X (PBC ON) Scene number Number... -
Page 87: Music Disc/Audio File/Video File/ Picture File (Aud Mode)
ZOOM Switches the zoom ratio each time you press this key. VIEW MAP DIR ANGLE FM + ZOOM AM− 2 ZONE Picture Angle Switches the picture angle each time you press this key. ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW MAP DIR ANGLE... -
Page 88: Radio (Aud Mode)
• To use preset tuning, press the number of a programmed broadcast station. ( • Press the direct tuning key first, then specify the frequency of the station to receive. DNX7140/DNX7000EX/DDX714/DDX7034BT NAVI (NAVI mode) Joystick Scrolls the map, or moves the cursor. -
Page 89: Tv (Tv Mode)
ROUTEM Displays Route Option menu. • ENTER • • NAVI AUDIO RETURN MODE/TOP MENU FNC/MENU/PBC ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW MAP DIR ANGLE VIEW Switches between 2D and 3D map displays. NAVI MODE/TOP MENU FNC/MENU/PBC AUDIO RETURN ROUTEM VOICE CANCEL... -
Page 90: Initial Setup
[Color] Sets the screen and button illumination color. (page 70) [EXT SW] Setting up power specification of the external device for which the power is controlled from this unit. (page 67) DNX7140/DNX7000EX/DDX714/DDX7034BT End initial setup ⁄ • The settings above can be changed in (page 63). -
Page 91: Status Bar Indicator Items
Status bar Indicator items Shown below is a list of indicators displayed on the Status bar. Source Display Overview General "ATT" Indicates that the attenuator is active. "DUAL" Turns on the Dual zone function. "TEL" Indicates the connection state of the Bluetooth hands-free unit. -
Page 92: Dvd Language Codes
Fiji Faroese French Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hebrew Hindi Croatian Hungarian Armenian Interlingua Interlingue Inupiak Indonesian DNX7140/DNX7000EX/DDX714/DDX7034BT Code Language Icelandic Italian Japanese Javanese Georgian Kazakh Greenlandic Cambodian Kannada Korean Kashmiri Kurdish Kirghiz Latin Luxembourgish Lingala Laotian... -
Page 93: Help? Troubleshooting
Help? Troubleshooting Some functions of this unit may be disabled by some settings made on this unit. • Cannot set up the subwoofer. • Cannot set up subwoofer phase. • No output from the subwoofer. • Cannot set up the low pass filter. •... -
Page 94: Help? Error
"Mecha Error" : The disc player is malfunctioning. ➡ Eject the disc and try inserting it again. Contact the Kenwood dealer if this indicator continues blinking or the disc cannot be ejected. "Disc Error" : Disc is quite dirty. - Page 95 "Check SIRIUS" : The unit cannot recognize the connected SIRIUS Tuner Box. ➡ Check the connection of the SIRIUS Tuner Box. "Antenna Error" : Something is wrong with the anntena. ➡ Check the connection of the antenna. "Acquiring Signal" : The unit cannot receive any signal.
-
Page 96: Specifications
Disc Format : DVD-Video/ VIDEO-CD/ CD-DA Sampling Frequency : 44.1/ 48/ 96 kHz Quantifying Bit Number : 16/ 20/ 24 bit DNX7140/DNX7000EX/DDX714/DDX7034BT USB interface section USB Standard : USB 2.0 High speed File System : FAT 16/ 32 Maximum Power Supply Current... - Page 97 Frequency Range 200 kHz : 87.9 MHz – 107.9 MHz (DNX7140/DNX7000EX/DDX714 only) 50 kHz : 87.5 MHz – 108.0 MHz (DDX7034BT only) Usable Sensitivity (S/N : 30 dB) : 9.3 dBf (0.8 μV/ 75 Ω) Quieting Sensitivity (S/N : 50 dB) : 15.2 dBf (1.6 μV/ 75 Ω)
- Page 98 Storage Temperature Range : -20 °C – +85 °C Weight DNX7140/DNX7000EX: 2.5 kg (5.5 lbs) DDX714/DDX7034BT: 2.47 kg (5.4 lbs) DNX7140/DNX7000EX/DDX714/DDX7034BT Specifications subject to change without notice. Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or...
- Page 99 Kenwood Corporation 2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI TOKYO, JAPAN KENWOOD CORP. CERTIFIES THIS EQUIPMENT CONFORMS TO DHHS REGULATIONS N0.21 CFR 1040. 10, CHAPTER 1, SUBCHAPTER J. Location : Bottom Panel FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual.
- Page 100 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation is under license. Other trademarks and trade names are those of their respective owners. The "AAC" logo is a trademark of Dolby Laboratories.
