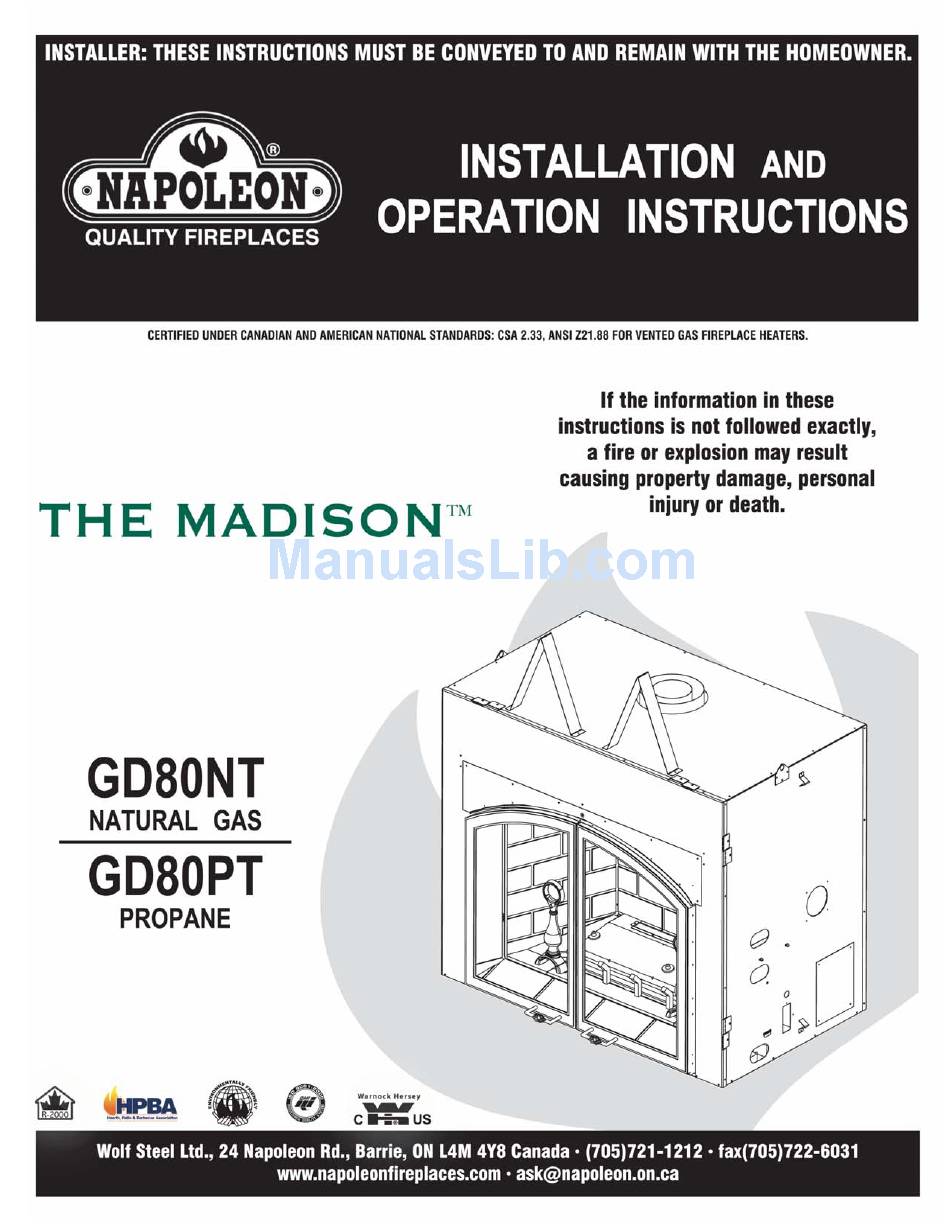

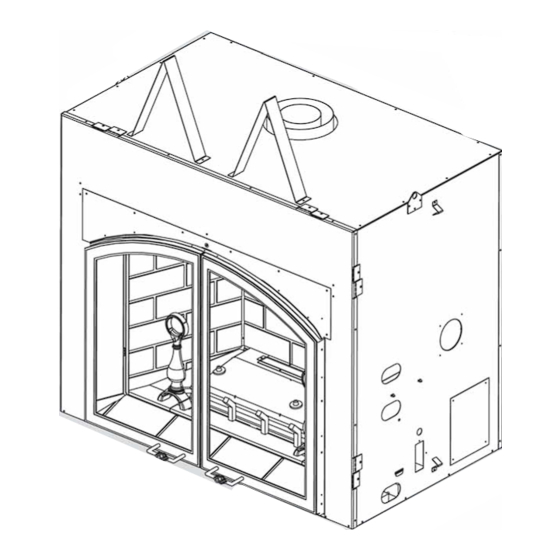

  • Page 1 W415-0447 / B / 05.24.05 W415-0447 / B / 05.24.05...
  • Page 2 WARNINGS & SAFETY PRECAUTIONS WHAT TO DO IF YOU SMELL GAS W415-0447 / B / 05.24.05...

  • Page 3: Table Of Contents

    TABLE of CONTENTS PG2-6 INTRODUCTION BLOWER REPLACEMENT Warnings and Safety Precautions Warranty REMOTE AND VALVE ACCESS Dimensions Remote Removal General Instructions Valve Removal General Information Care of Glass & Plated Parts 22-24 OPERATION / MAINTENANCE Fireplace Operation 6-11 VENTING Vent lengths Hand Held Remote Operation Venting Specifications Operating Instructions...
  • Page 4 NAPOLEON warrants its stainless steel burners against defects in workmanship and material for life, subject to the following conditions: During the first 10 years NAPOLEON will replace or repair the defective parts at our option free of charge. From 10 years to life, NAPOLEON will provide replacement burners at 50% of the current retail price.

  • Page 5: General Instructions

    FIGURE 1 Purge all gas lines with the glass door of the fireplace open. GENERAL INSTRUCTIONS Assure that a continuous gas flow is at the burner before closing the door. THIS GAS FIREPLACE SHOULD BE INSTALLED AND SER- VICED BY A QUALIFIED INSTALLER to conform with local Under extreme vent configurations, allow several minutes codes.

  • Page 6: Care Of Glass & Plated Parts

    The glass is 3/16" ceramic on the rating plate. This fireplace is not convertible for use glass available from your Napoleon / Wolf Steel Ltd. dealer. with other gases, unless a certified kit is used.
  • Page 7 DEFINITIONS ELBOW VENT LENGTH VALUES feet inches for the following symbols used in the venting calculations 1° 0.03 and examples are: 15° 0.45 > - greater than 30° 11.0 > - equal to or greater than 45° 1.35 16.0 < - less than 90°* 32.0 <...
  • Page 8 TOP EXIT / HORIZONTAL TERMINATION when (H ) > (V Example 3: Simple venting configuration (only one 90° elbow) 90° FIGURE 6 See graph to determine the required verti- cal rise V for the required horizontal run 90° FIGURE 8 = 4 ft = 1.5 ft = 4 + 1.5 = 5.5 ft...
  • Page 9 TOP EXIT VERTICAL TERMINATION when (H ) < (V Simple venting configurations REQUIRED VERTICAL RISE IN FEET FIGURE 9 HORIZONTAL VENT RUN PLUS OFFSET IN FEET The shaded area within the lines represents acceptable values for H and V For vent configurations requiring more than zero 90° elbow (top exit) or one 90°...
  • Page 10 TOP VERTICAL TERMINATION For vent configurations requiring more than two 90° elbow when (H ) > (V (top exit) or one 90° elbow (rear exit), the following formulas Simple venting configurations apply: Formula 1: H < 3V FIGURE 10 Formula 2: H <...
  • Page 11 AIR TERMINAL INSTALLATIONS FIGURE 12 INSTALLATIONS CANADIAN U.S.A. 12 INCHES 12 INCHES Clearance above grade, veranda porch, deck or balcony. 12 INCHES 9 INCHES Clearance to windows or doors that open. 12 INCHES* 12 INCHES* Clearance to permanently closed windows. Vertical clearance to ventilated soffit located above the terminal within 18 INCHES** 18 INCHES**...
  • Page 12 INSTALLATION WALL AND CEILING PROTECTION FOR SAFE AND PROPER OPERATION OF THE FIRE- VERTICAL INSTALLATION PLACE, FOLLOW THE VENTING INSTRUCTIONS This application occurs EXACTLY. FIGURE 15 when venting through a A 2” CLEARANCE IS REQUIRED AROUND THE roof. Installation kits for VENT PIPE.

  • Page 13: Using Flexible Vent Components

    USING FLEXIBLE VENT COMPONENTS Use only approved aluminum flexible liner kits For safe and proper operation of the fireplace, follow marked: the venting instructions exactly. All inner exhaust and outer intake vent pipe joists may be sealed using either Red RTV high temp silicone seal- ant or Black high temp Mill Pac with the exception of the "Wolf Steel Approved Venting"...

  • Page 14: Fireplace Vent Connection

    7. If more liner needs to be used to reach the fireplace, couple 5. Remove nails from the shingles, above and to the sides them together as illustrated. The vent system must be sup- of the chimney. Place the flashing over the air terminal and ported approximately every 3 feet for both vertical and horizon- slide it underneath the sides and upper edge of the shingles.

  • Page 15: Gas Installation

    VERTICAL VENTING INSTALLATION GAS INSTALLATION 1. Move the fireplace into position. Proceed once the vent installation is complete. 2. Fasten the roof support to the roof using the screws Note : All gas connections must be contained within provided. The roof support is optional. In this case the vent- the fireplace when complete.

  • Page 16: Framing

    CLEARANCE TO COMBUSTIBLES FRAMING MAINTAIN THESE MINIMUM CLEARANCES TO COM- The Madison can be installed with either an arched opening BUSTIBLES: (FK80-A) or a rectangular opening (FK80-R) using one of Fireplace framing - 0" to stand-offs (top, rear & sides) the above kits.

  • Page 17: Schematic

    MANTLE CLEARANCES Combustible mantle clearance can vary according to the mantle depth. Use the graph to help evaluate the clearance needed. FIGURE 34 ELECTRICAL CONNECTION Do NOT use the fireplace if any part has been under HARD WIRING CONNECTION water. It is necessary to hard wire this fireplace.

  • Page 18: Finishing

    FINISHING FIGURE 38 DOOR REMOVAL FIGURE 36 The glass door is secured to the top front edge of the fire- box. Pull the handle of the latch forward, then lift the hook out from the slot in the door frame to release the top of the door. Lift the door out from the retainer along the bottom of the Before the glass door can be removed, the control doors door using the top and bottom handles.

  • Page 19: Log Placement

    See installation instructions supplied with the panel kit. LOG PLACEMENT PHAZER logs, exclusive to Napoleon Fireplaces, provide a unique and realistic glowing effect that is different in every installation. The madison logs are fuel specific. Do not interchange. Refer to the replacement parts list.

  • Page 20: Lamp Replacement

    8. Repeat steps 5 - 1 for installation. BLOWER REPLACEMENT The Napoleon MADISON comes equipped with a heat circu- FIGURE 44 lating blower. The blower is pre-wired and is controlled by the remote control supplied with the unit. For control details, see operation.

  • Page 21: Remote And Valve Access

    REMOTE AND VALVE ACCESS INNER ACCESS DOOR FIGURE 47 The control area can be accessed either through the control door or through the access door inside the firebox. Follow the door removal instructions. Remove the right side panel. Remove the four screws from the access door. Note: A new gasket will be required, when re-installing the door (see replacement parts).

  • Page 22: Operation / Maintenance

    OPERATION / MAINTENANCE TIMER OPERATION FIREPLACE OPERATION The timer setting is used to maintain the desired room To operate the gas fireplace, the pilot needs to be running temperature for a specific length of time (1 to 120 minutes) and the gas valve turned to the on position. that you want the fireplace to operate.

  • Page 23: Operating Instructions

    To restore button function temporarily, press the Up and The receiver will emit a “beep” sound to confirm pro- Down buttons in the following sequence: gramming has been successful. up-down-down-up-down. OPERATING INSTRUCTIONS If no button is pressed within 2 minutes, the transmitter will return to the Child-Proof mode.

  • Page 24: Maintenance

    MAINTENANCE TURN OFF THE GAS AND ELECTRICAL POWER 3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning or are BEFORE SERVICING THE FIREPLACE. CAUTION: Label all wires prior to disconnection when ser- not burning properly.

  • Page 25: Replacements

    ERIAL UMBER OF FIREPLACE availability of replacement parts. Normally all parts can be 2. I NSTALLATION DATE OF FIREPLACE ordered through your Napoleon dealer or distributor. 3. P UMBER When ordering replacement parts always give the following 4. D ESCRIPTION OF PART information: 5.
  • Page 26 * WARNING: This is a fast acting thermocouple. It is an integral safety component. Replace only with W415-0447 / B / 05.24.05 a fast acting thermocouple supplied by Wolf Steel Ltd.

  • Page 27: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPEN SYMPTOM PROBLEM TEST SOLUTION Main burner flame Blockage in vent. - remove blockage. In really cold conditions, ice buildup may occur on is a blue, lazy, the terminal and should be removed as required.
  • Page 28 SYMPTOM PROBLEM TEST SOLUTION - connect a jumper wire across the wall switch terminals; if main burner Themostat or switch is defec- Pilot burning; no lights, replace switch / thermostat. tive. gas to main burner; gas knob is on 'HI'; Wall switch wiring is defec- - disconnect switch wires &connect a jumper wire across terminals 1 wall switch / ther-...
