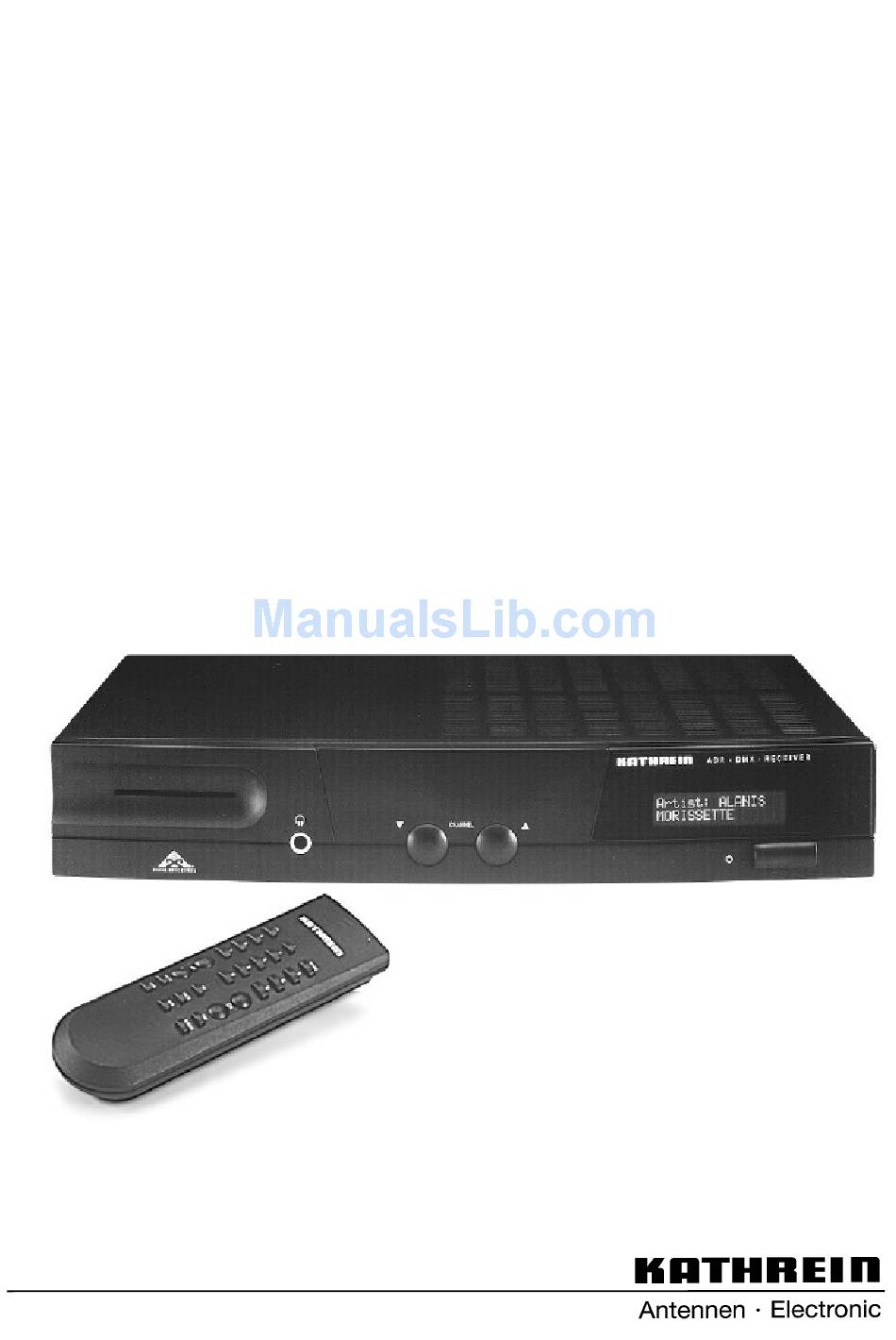

- Page 1 Operating Instructions Kathrein Radio Satelliten Receiver UFD 231 260376...
-
Page 2: Table Of Contents
CONTENTS Front, Rear and Remote Control Handset... 3 Displays, Keys and Connections ... 4 Technical Features... 5 Preprogrammed Radio Programs... 6-9 ADR Radio Programs ... 6 DMX Radio Programs ...7/8 Analog Radio Programs ... 9 Favorite Programs ...10 Sections Especially Relevant to the User: ...11-16 Safety and Installation Tips ...11 Description of Remote Control Handset...12 Receiver Operation ...13-16... -
Page 3: Front, Rear And Remote Control Handset

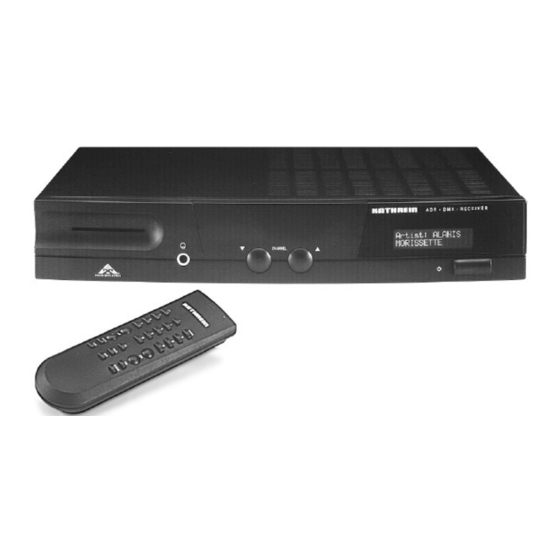

FRONT, REAR AND REMOTE CONTROL HANDSET FRONT REAR REMOTE CONTROL HANDSET... -
Page 4: Displays, Keys And Connections
DISPLAYS, KEYS AND CONNECTIONS FRONT Power switch (with supply isolation) Pushbuttons for program selection Two-line, 16-digit LCD display REAR Power supply socket DATA socket IO for connection of an external infrared sensor and a UFP 10 copy programmer (type Western 8-way) Sat-IF input (F-socket) Interface for PC card (type Sub-D 9-way) -
Page 5: Technical Features
TECHNICAL DESIGN DETAILS Satellite receiving frequency range 950 - 2150 MHz Reception of digital (ADR/DMX) and analog radio programs Smart card reader for DMX radio programs 120 DMX program memory 100 ADR (free) program memory 100 Analog radio program memory Favorite mode for 200 program memory Automatic station search with storing of ADR/DMX radio programs in standby mode Two-line, 16-digit LCD-display for displaying DMX- and ADR-Info data (e.g. -
Page 6: Preprogrammed Radio Programs
ADR RADIO PROGRAMS Prog.- Programm- Programm- Platz name Sparte (Kategorie) Bayern 1 General Bayern 2 General Bayern 3 Bayern 4 Classic BR 5 aktuell New Events Bremen 2 General New Events DLR-Bln General DW DProg New Events DW Euro 1 New Events DW Euro 2 New Events... -
Page 7: Dmx Radio Programs
DMX RADIO PROGRAMS Progr- Programm- Progr. Numm. name Sparte (Kategorie) Symphonic Classic Chamber Classic Opera Classic Classical Guitar Classic BTFL Instrumental Speciality Con Instrumentals Speciality New Age Speciality Classic Rock Rock Dance / Techno Rock US Hottest Hits Rock Album Rock Rock Heavy Metal Rock... - Page 8 DMX RADIO PROGRAMS Progr- Programm- Progr. Numm. name Sparte (Kategorie) Deutsche Schlager Regional Deutscher Rock Regional French Chanson Regional Dutch Hits Regional Flemish Regional Italian Hits Regional Dansish Regional Norwegian Regional Greek Music Regional Hebrew Hits Regional Folk Rock Rock Indian Regional Reggae...
-
Page 9: Analog Radio Programs
ANALOG RADIO PROGRAMS Progr Programm Sat- Platz Name Frequenz sation position hub Frequ. Mode Antenne Bayern 11214 Hor. Low Deutsche Welle 1 11229 Vert. Low Deutsche Welle 2 11229 Vert. Low Deutsche Welle 3 11229 Vert. Low Sky Radio 11318 Vert. Low Radio Eviva 11332 Hor. -
Page 10: Favorite Programs
FAVORITE PROGRAMS Programmbank 1 Progr Programm Platz Name Programmbank 2 Progr Programm Platz Name Programmbank 3 Progr Programm Platz Name... -
Page 11: Sections Especially Relevant To The User
SAFETY AND INSTALLATION TIPS 1. Instructions Ready carefully through the safety- and oper- ating instructions before switching the unit on. 2. Supply-voltage Operate the Receiver only from a supply volt- age of 230 V and 50 Hz supply frequency. The unit is not be connected up to the supply before the installation work is completed. -
Page 12: Description Of Remote Control Handset
DESCRIPTION OF KEYS ON REMOTE CONTROL HANDSET This key switches the receiver into standby or back into operation again. Caution: No supply isolation. Note! If the receiver is switched into standby and the appropriate setting has been made in the initial setup menu, an automatic station search will be carried out for ADR- and DMX-programs. -
Page 13: Receiver Operation
The extensive equipping of this receiver permits reception of digital DMX pay-radio programs (with a card), free digital ADR radio programs and also analog satellite radio programs. In the operating description that follows it is as- sumed that the receiver has already been properly connected up by a competent specialist. -
Page 14: Analog Radio Programs
RECEIVER OPERATION Analog radio programs To receive the analog radio programs press the "RADIO" key. The LCD display readout indicates "R .. " together with the most recently selected ra- dio program position. Information, such as that for the digital radio pro- grams (ADR and DMX), is not available with ana- log radio programs. -
Page 15: Headphone Connection
RECEIVER OPERATION Headset The headset connection on the front is designed for a 6.3 mm stereo jack plug. The headset volume can be adjusted independently of the audio con- nections, if the MUTE key is used to turn off the sound at the audio connections. -
Page 16: Exchange, Insert And Copy Program Position
RECEIVER OPERATION Further setting possibilities for the Info displays are: 1. Step on through the Info data manually with the ok key. 2. Info data running independently (scrolling) (the scroll interval is adjustable from 1 to 5 sec- onds). 3. Fade-in title and artist only. 4. -
Page 17: Connection And Start-Up
EL) for recording of the digital data stream of ADR radio programs. If there is an optical input available on the digi- tal recorder, connect the UFD 231 to the optical input. External infrared receiver If the receiver is to be operated from a location that the remote control handset is unable to reach, (e.g. -
Page 18: Programming Of Radio Programs
PROGRAMMING RADIO PROGRAMS The satellite receiver has been preprogrammed in the factory. The predefined programs are all listed on pages 6 to 9 (German)! More and more new programs are continually be- ing transmitted via the satellites. To program-in these new programs you can obtain the necessary receiving parameters from current satellite maga- zines. - Page 19 PROGRAMMING RADIO PROGRAMS Oscillator The receiver is preprogrammed with 4 different os- cillator frequencies (LO-settings) to allow matching to different feeder systems. This also allows prob- lem-free operation of the receiver with other feeder systems (receiving systems) that possibly use a different oscillator frequency.
-
Page 20: Search For Digital (Adr/Dmx) Radio Programs
To locate new ADR- and DMX-programs the auto- matic search can be set up in the Initial Setup Menu for the UFD 231 receiver (setting in the de- livered state). The automatic search is started if the receiver is... -
Page 21: Initial Setting
INITIAL SETTING The matching of the satellite receiver to the satel- lite receiving installation is carried out in the Initial Setup Menu. The receiver has however already been factory- preprogrammed for standard satellite receiving installations Changes to the initial settings are therefore only necessary if your receiving installation dif- fers from these types of installation. -
Page 22: Lcd-Display Language Selection
INITIAL SETTING LCD display language In this menu the LCD display language can be set up. The available languages are: German, English and French Presetting: German Program selection The unit allows you to enter the program number in one-, two- or three-digit form. Setting Settable program position One-digit input... -
Page 23: Search
INITIAL SETTING The following settings are possible: 22 kHz Off, High/Low or Pos. 1/2 Tone Burst Off, High/Low or Pos. 1/2 Full DiSEqC Off, On or Remote Mode Tone Burst (simple DiSEqC) Full DiSEqC (to Eutelsat specification) The setting is dependent on the receiving system that is used. -
Page 24: Technical Data
Technical Data HF range: Frequency range: 950 - 2150 MHz Input level range: 47 - 78 dBµV IF band width: 27 MHz FM threshold: <7 dB Audio (digital) Standard: ISO/IEC 11172-3 (MPEG-1/Layer II) Audio carrier freq. range: 0.18 - 8.82 MHz Tuning: Search, direct input and adjustable in... -
Page 25: Menu Structure
MENU STRUCTURE Setup Menu Open setup Menu: Press MODE+RADIO Open setup Menu: Press MODE+ADR Open setup Menu: Press MODE+ DMX Open setup Menu: Press MODE+ FAV Selection of menu entries Return with Call-up and activate with BACK Radio program entry ---> (OK) or else ADR program entry --->... -
Page 26: Initial Setup Menu
MENU STRUCTURE Initial setup menu Return with BACK Open Initial Setup Menu Call-up and activate with General-Menu entry-->(OK) Oscillator-Menu entry--> (OK) DiSEqC-Menu entry--> (OK) Search-Menu entry --> (OK) Selection of menu entries with Setting possibilietis LNB-supply On/OFF LNB-supply On/Off in stand by LNB voltage On/Off step-up... -
Page 27: Info Menu
MENU STRUCTURE Info-Menu TTA-Data-Menu MODE + INFO Not possible in Radio mode TTA-Data (Title, Track Artist) Return with BACK Display TTA-DATA -->OK Separetely adjustable for ADR- and DMX-mode Not available in DMX-mode Selection of menu entries with Call-up and activate with Setting possibilities: TTA-scroll-line 1...5 sek.
