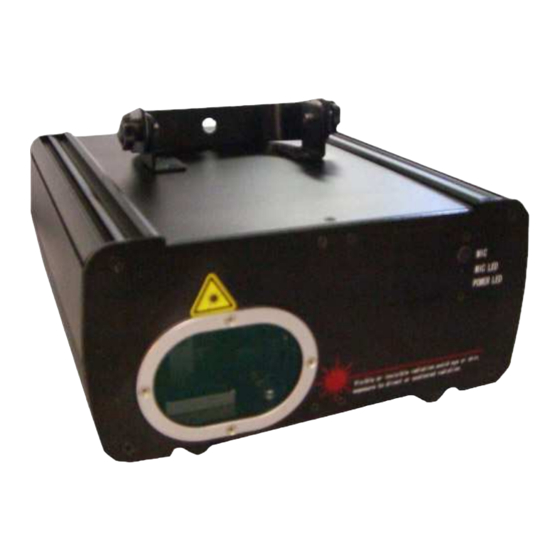

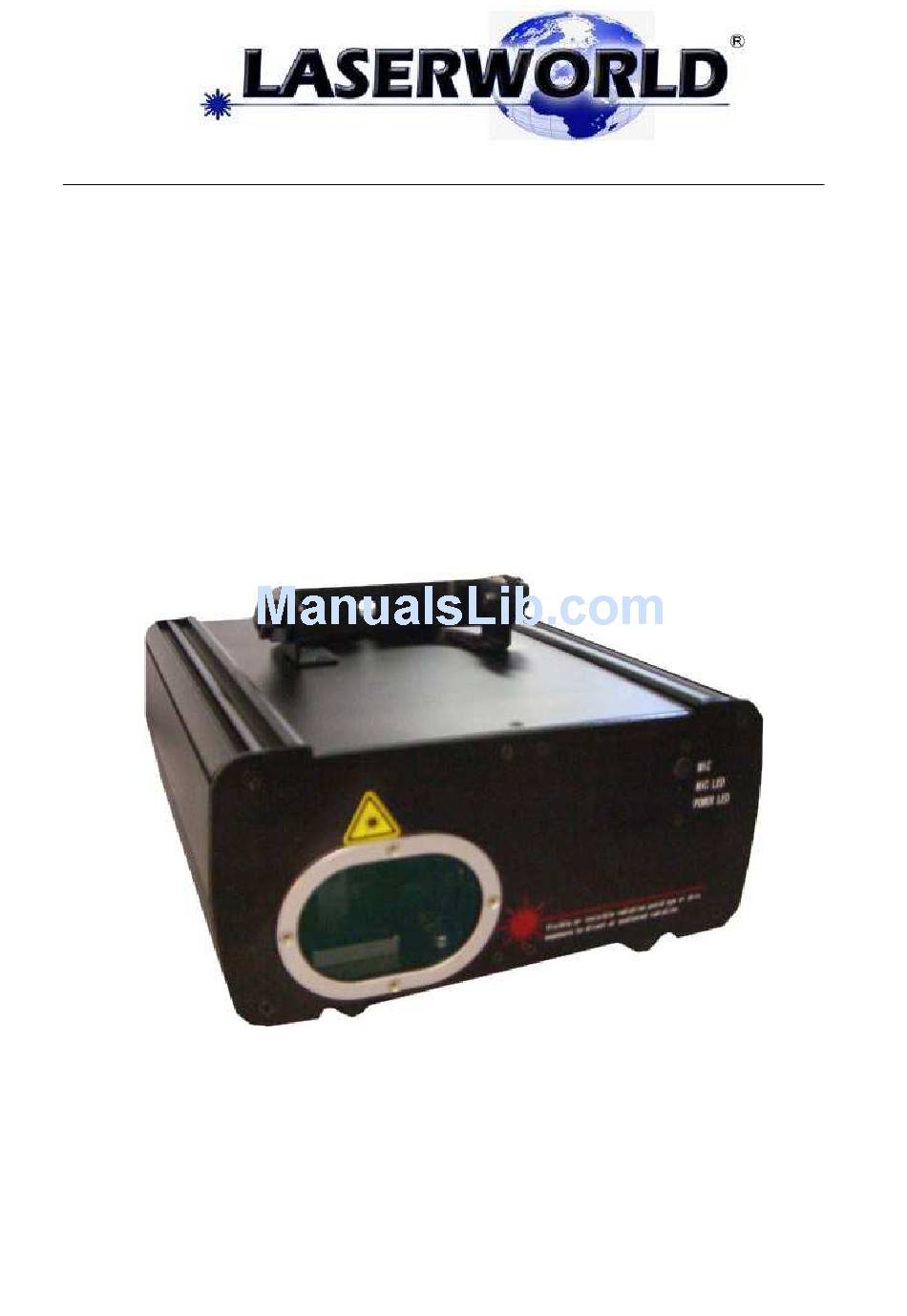

6. ILDA OPERATION 7. MAINTENANCE 8. TECHNICAL SPECIFICATIONS Checking Parts Please check if the following parts are included: 1 x DISCO-300G Laser 1 x Power cable 1 x DMX cable 1 x ILDA adaptor 1 x User manual Date: 01/2008...
USER MANUAL: DISCO-300G Page 3 of 9 DANGER LASER RADIATION! Avoid direct eye exposure! Laser radiation can cause eye damage and/or skin damage All protective measures for a safe operation of this laser must be applied. 1. SAFETY INSTRUCTIONS If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.
USER MANUAL: DISCO-300G Page 4 of 9 2. OPERATING DETERMINATIONS 6. The operator has to make sure that laser radiation – also reflected laser radiation –higher than the highest allowed level is avoided by technical or organisational measures. 7. Make sure that the used voltage is : AC 220V~240V, 50/60Hz 8.
USER MANUAL: DISCO-300G Page 5 of 9 3. OPERATION Please note: for sound/DMX mode the two switches on the back of the device labelled “BLANKING” and “X/Y” have to be up. When both switches are down the device can be controlled by an ILDA output (such as our USB-Box).
Page 6
USER MANUAL: DISCO-300G Page 6 of 9 The device uses 11 channels, so if you set the first on DMX address “1” the second should be DMX address “12” and so on. The DMX channels are as following: channel Function Mode: 0-69 laser off;...
You can now control laser output with a PC, using for example our ShowEditor 2006 software. Laserworld offers a variety of music synchronous lasershows for ShowEditor 2006. Date: 01/2008...
Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation!
Page 9
After installing the device, an inspection and official approval is indispensable for the overall setup. The inspection must follow the european guidelines EN 60825-1 and corresponding regulations for the prevention of accidents BGV-B2. This declaration is executed on behalf of the DISCO-300G Laser manufacturer. Laserworld (Switzerland) AG Oberstrasse 1 8274 Tägerwilen...
