GENERAL INFORMATION
The 5805-6 is a compact, six-button, eight-loop portable
wireless transmitter. It is intended for use only with
wireless alarm systems that support 5800 series
receivers. Individual buttons on the transmitter may
be programmed for any zone response, but are typically
used for arming and disarming.
This device supports both Standard and High-Security
(encrypted) modes. The latter sends rolling-code
encrypted messaging to the RF receiver.
This device must be used with a receiver or control
that supports high security mode i.e.: 5881EN,
5883, 6150RF, or 6160RF receiver or a LYNXR
Series control panel (Revision 13.1 or higher if you
intend to use it in high security mode).
The 5805-6 is powered by one replaceable lithium
battery designed to provide up to four years of life. For
battery installation, see Replacing the Battery.

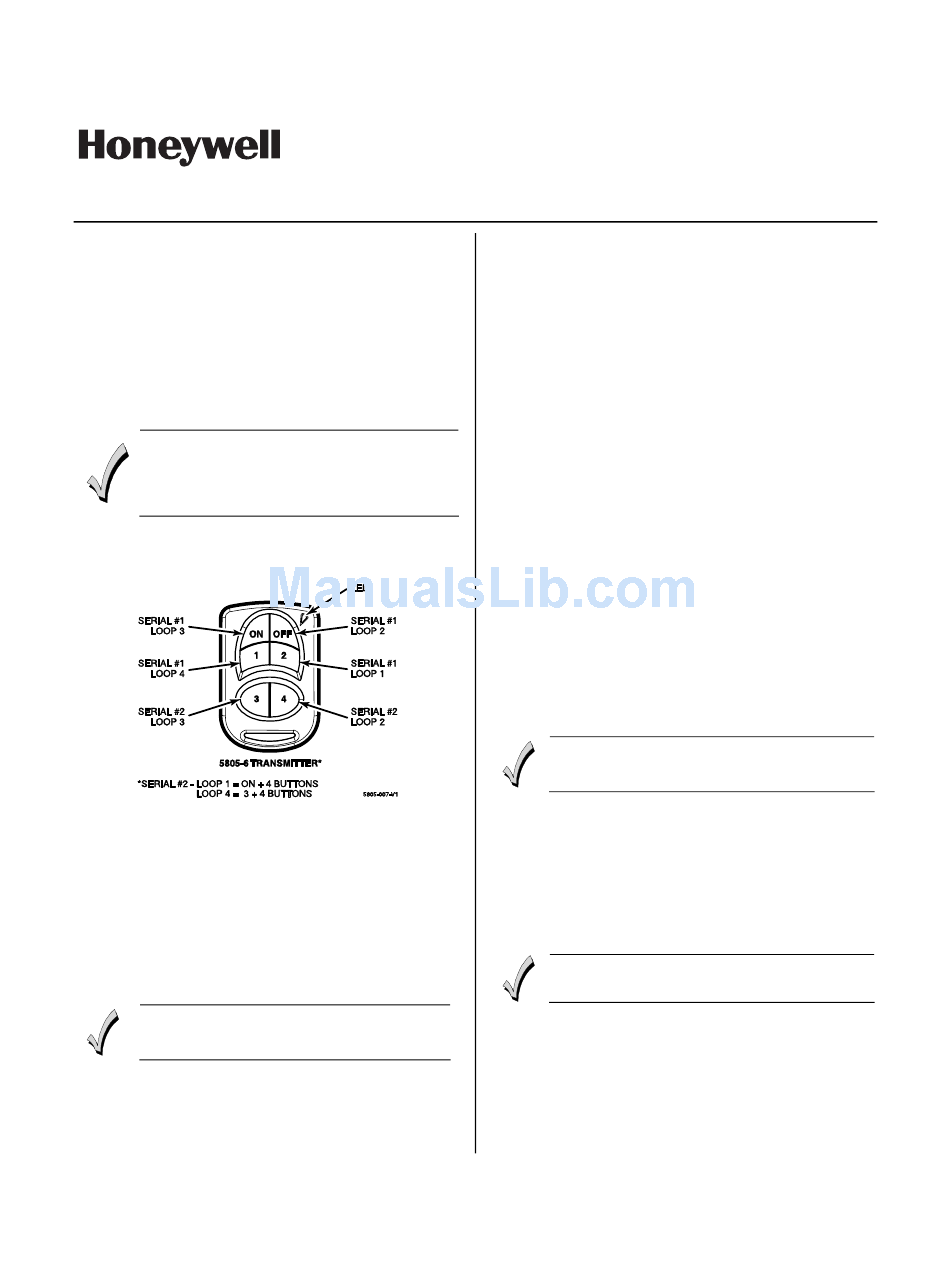

Figure 1 - 5805-6 Button Designations
PROGRAMMING
The 5805-6 is assigned two unique serial numbers
during manufacture and each button, or button
combination on the unit also has a distinct "loop"
number (refer to Figure 1) that must be programmed
into the control panel during installation. Assign each
button, or button combination, to one of eight
individual zones and designate the Input Type as "BR"
(Button Type RF).
If you are enrolling the 5805-6 locally with an
RF Keypad, refer to the keypad's Installation
Instructions for programming instructions.
1. When prompted, enter the serial number either by:
Pressing and releasing the button (or buttons) that
you are programming twice (wait about 5 seconds
between button activations).
or Manually through the keypad.
INSTALLATION AND SETUP GUIDE
ADEMCO 5805-6
Wireless Key Transmitter
Notes: (1) To activate the transmitter, the 5805-6 buttons must
be pressed and held for at least one-half second.
(2) Serial #2 is one (1) digit higher than serial #1,
which is printed on the rear of the transmitter
Loop 4 Setup
Both of the Loop 4 buttons must be enrolled in the
control, even if they will not be used. If one or both of
the loops is not being used, program it as Zone Type 23
(No Alarm Response). Otherwise assign it to the
desired zone type.
2. Exit Programming Mode after programming is
complete.
For complete details on how to program the
transmitter's serial number at the control panel, see
the control unit's installation instructions.
Assigning a Wireless Key to a User
On most control panels, if the wireless key is assigned
to arm and disarm the system, you must assign it to a
user in order for it to operate. This is accomplished
through User Code programming at the control panel.
See the control panel's Installation and Setup Guide
for specific instructions on programming User Codes.
If you are programming arming and disarming
functions on both serial numbers, each serial number
must be assigned to a separate user.
SELECTING STANDARD OR HIGH-SECURITY MODE
For use with LYNXR Series controls earlier than
Revision 13.1, the Standard Mode must be
selected.
To select Standard Mode, simultaneously press and
hold the OFF, 1 and 2 buttons for three seconds.
To select High-Security Mode, simultaneously press
and hold the ON, 1 and 2 buttons for three seconds.
The LED flashes green when transmitting in Standard
Mode and red when transmitting in High-Security
Mode.
ACTIVATING HIGH-SECURITY MODE
To ensure proper functionality, the 5805-6 must
be synced to the security system.
1. After selecting High-Security mode, put the system
in Go/No Go Test mode.
2. To sync the transmitter with the receiver,
simultaneously press and hold the ON, OFF, 1 and 2
buttons until the panel beeps (see Figure 1). For
LYNXR Series controls proceed to step 4.
Note: The LYNXR Series panels confirm the synchronization
by sounding two beeps.
