ADEMCO 5802MN
SUPERVISED MINIATURE
INSTALLATION AND SETUP GUIDE
The ADEMCO 5802MN is a wireless transmitter that may
be worn on a belt (belt holder supplied) or around the
neck (necklace supplied). Pressing the button on the
transmitter sends a signal to the control receiver. The
5802MN is intended for use only with wireless alarm
systems that support 5800 Series devices.
The transmitter is supervised, i.e., every hour it
automatically sends a message to the control receiver
that includes battery status information.
This transmitter can be programmed as any zone type
response (e.g., Emergency Panics, Relay Action, etc.).
Battery Replacement
The 5802MN is powered by a long-life Lithium battery that
may be replaced when a low battery is eventually
indicated by the control unit.
NOTE: Although the 5802MN is water-resistant, please
do not submerge.
Programming the Serial Number
The 5802MN has a unique identification code (serial
number) permanently assigned during manufacture.
You must "enroll" the transmitter's serial number and loop
number during system programming. The 5802MN may
be defined as Input Type "RF" (supervised RF, for an
hourly check-in; do not take out of range) or "UR"
(Unsupervised RF). Its loop number is "1." See the control
unit's Installation Instructions for further details regarding
programming.
When installation is complete, verify operation from
desired location(s).
N7131V5 5/04 Rev. A
TRANSMITTER
Specifications
Unit Dimensions:
2.4" (61mm) x 1.5" (38mm) x 0.5" (13mm)
LED:
Lights when unit transmits.
Battery:
3V Duracell DL 2032 or Newsum, Maxell, Panasonic,
Renata, or Sanyo CR2032
In UL installations: 3V Newsum, Maxell, or
Renata CR2032 only

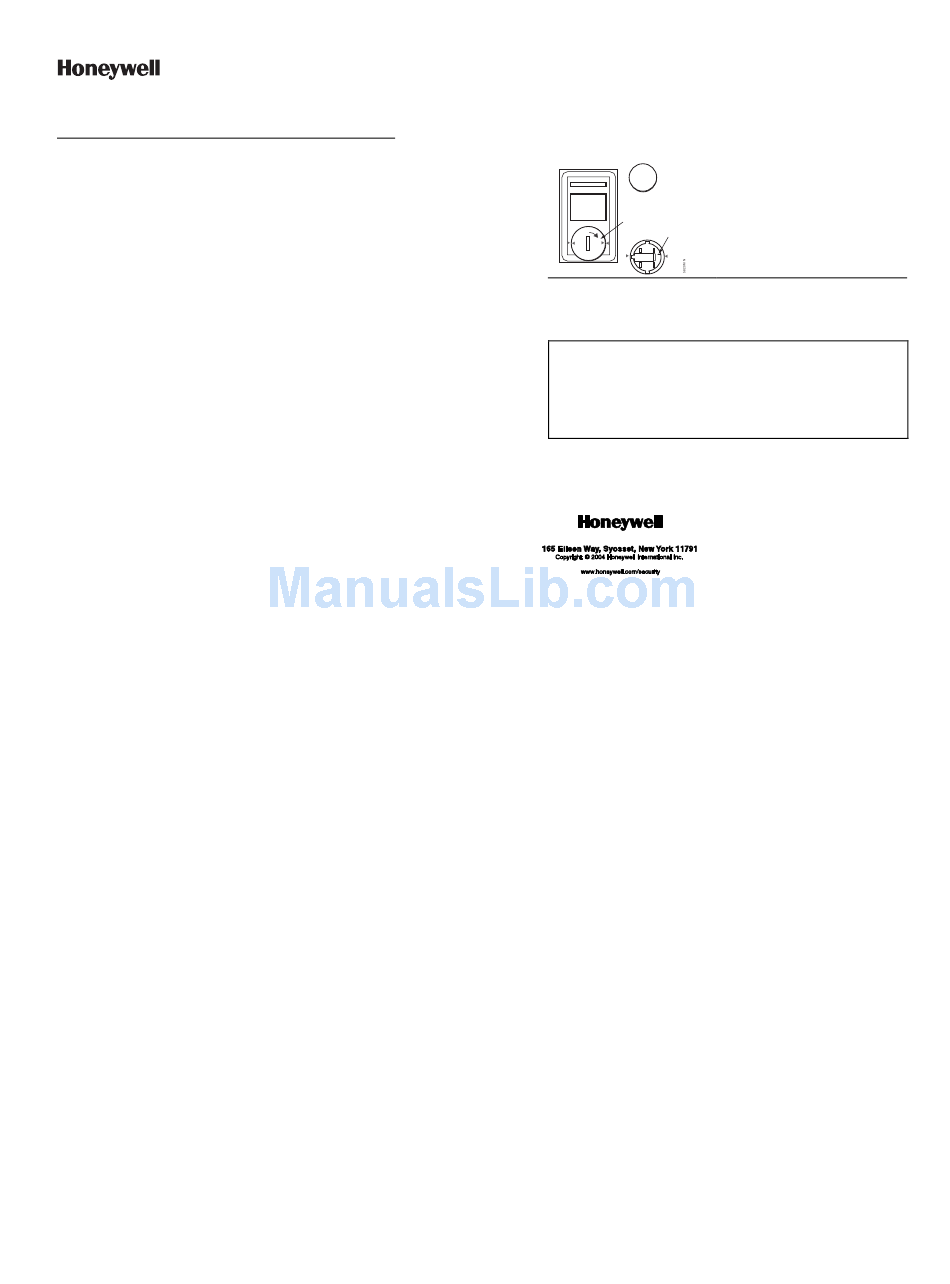

Battery access is via a quarter
3V
LITHIUM
RENATA
turn (use a nickel to open
CR2032
Battery
case back). Excessive turning
Remove
may result in damaging the
battery
Slide
cover
battery
L
cover.
under
L
pin
L
Note battery polarity:
+ POS end must face up
(visible when installed).
Back of 5802MN
REFER TO THE
INSTALLATION INSTRUCTIONS FOR THE
RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED FOR
WARRANTY INFORMATION AND FOR DETAILS REGARDING THE
LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
FCC STATEMENT
FCC ID: CFS8DL5802MN
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including
interference that may cause undesired operation.
UL US Listings: HOUSEHOLD BURGLARY WARNING SYSTEM
CONTROL
UNIT
ACCESSORY
HOUSEHOLD BURGLARY WARNING SYSTEM CONTROL UNIT
ACCESSORY ALSO LISTED FOR USE AS A SIGNAL APPLIANCE,
MISCELLANEOUS CERTIFIED FOR CANADA.
ÊN7131V5WŠ
CANADA: 1748101382 5 3
UL
Canadian
Listings:
N7131V5 5/04 Rev. A
