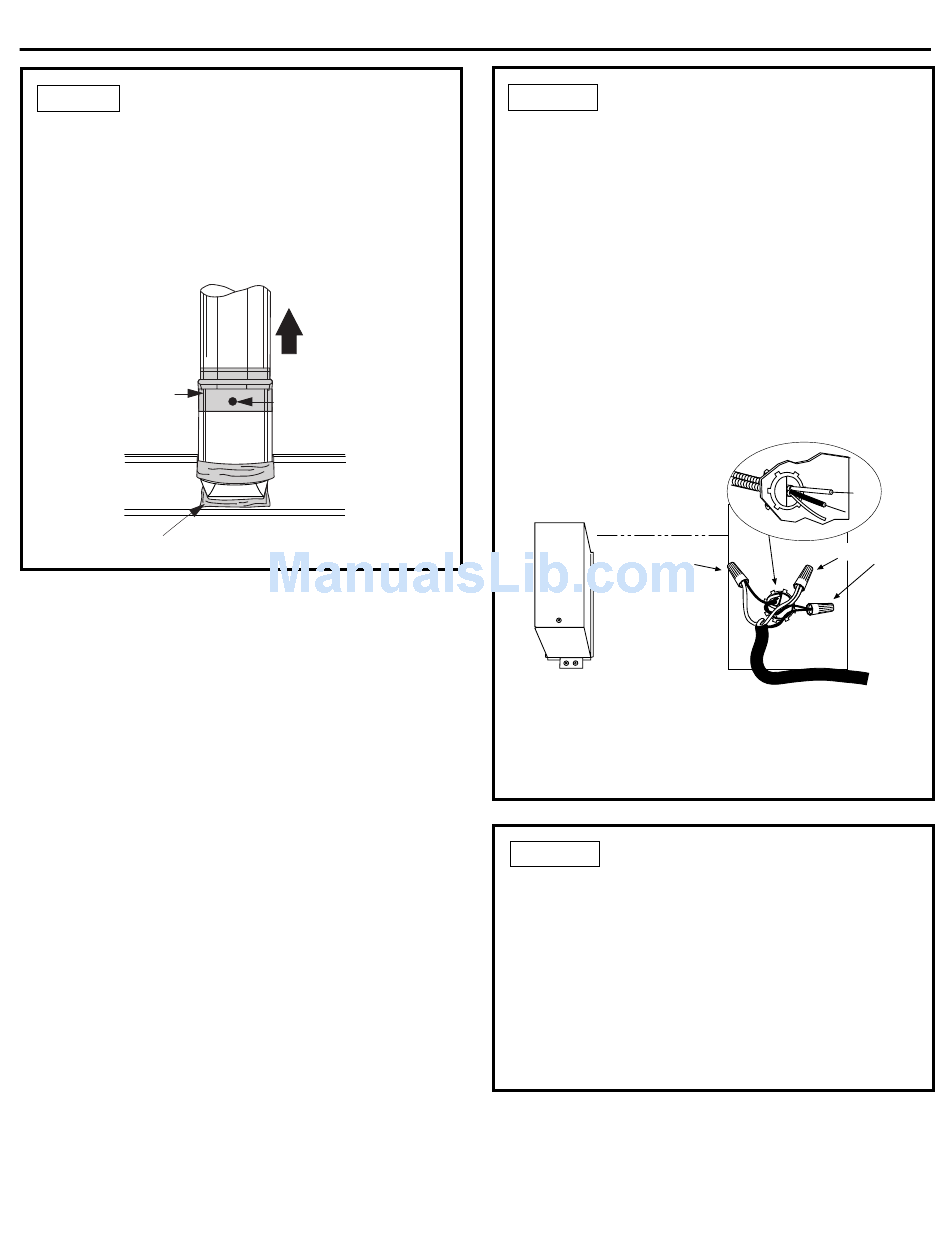

STEP 3 CONNECT DUCTWORK

• Install ductwork, making connections in direction of
airflow as illustrated.
• Secure joints in ductwork with sheetmetal screws.
• Wrap all duct joints with duct tape for an airtight seal.
• Use duct tape to seal the flange connection. Reach
inside the hood and push the damper up to be sure it
moves freely.
Duct Tape
Over Seam
and Screw
Duct Tape
Over Transition
Installation Instructions
Air Flow
Screw

STEP 4 CONNECT ELECTRICAL

Verify that power is turned off at the source.
WARNING:
2-wire with a ground wire, a ground must be provided
by the installer. When house wiring is aluminum, be
sure to use U.L. approved anti-oxidant compound
and aluminum-to-copper connectors.
AVERTISSEMENT–
de la maison n'est pas du type à deux fils avec un fil de
terre, l'installateur doit fournir un circuit de terre.
Quand les fils de la maison sont en aluminium, il
prendre soin d'utiliser de la pâte antioxidation
approuvée par UL et des connecteurs pour
l'aluminium-cuivre.
A
Remove B
Junction Box
Cover
C
Use UL Listed
• Use wire nuts to connect incoming ground to green,
white to white and black to black.
• Push wires into junction box and replace cover. Be
sure wires are not pinched.

STEP 5 INSTALL DUCT COVERS

Note: For easier handling, remove cardboard insert
after film is peeled off.
Remove protective film from duct covers. If more than
one duct cover is used, secure each piece together with
screws provided.
• Place the duct cover(s) on top of the hood.
• From inside the hood, secure the duct cover to the
top with the small Phillips head screws supplied with
the covers.
13
If house wiring is not
Si le câblage
Insert Power
Conduit Thru
Strain Relief
and Tighten
White
Ground
Wire Nuts
Black
