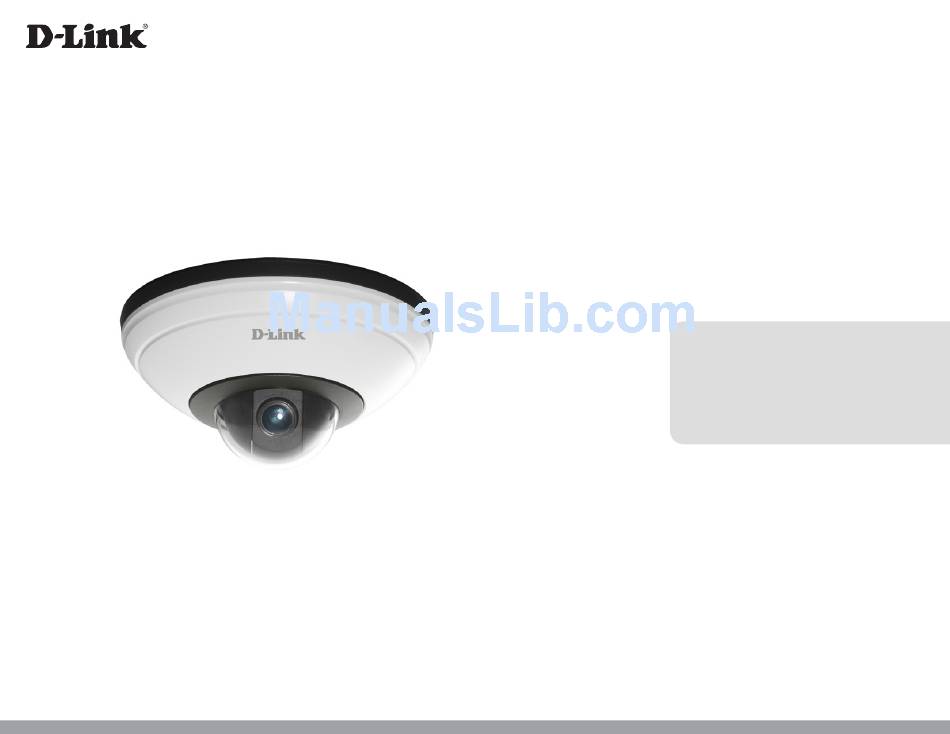

Page 1: User Manual
Version 1.0 | 02/07/2014 User Manual Full HD Mini Pan & Tilt Dome Network Camera DCS-5615... -
Page 2: Manual Revisions
Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description December 31, 2013 DCS-5615 Revision A1 with firmware version 1.00... -
Page 3: Table Of Contents
Video ..............29 Time and Date ..........68 Video Settings ..........29 Maintenance ..........69 Image Settings ..........32 Parameter List ..........71 Audio Settings ..........34 Logs .............. 72 Network ............35 IP Settings ............. 35 D-Link DCS-5615 User Manual... - Page 4 Appendix A - Technical Specifications ....73 Technical Specifications ........73 D-Link DCS-5615 User Manual...
-
Page 5: Product Overview
Product Overview Package Contents DCS-5615 Network Camera Power Adapter Mount bracket Screw Extension Adaptor Quick Install Guide CD-ROM with User Manual and software Alignment sticker If any of the above items are missing, please contact your reseller. D-Link DCS-5615 User Manual... -
Page 6: System Requirements
ƒ VGA card resolution: SVGA or XGA (1024x768 or above) ƒ CPU: 1.7GHz or above (2.8GHz plus processor with 512MB memory and a 32MB video card is required for multiple camera viewing and recording in IP surveillance program) ƒ An available Ethernet connection D-Link DCS-5615 User Manual... -
Page 7: Introduction
D-Link DCS-5615 is dome camera equipped with industry-leading high definition (Full HD) megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. The DCS-5615 connects to a network to provide high-quality live video over the Internet. The motorized pan/tilt controls and 16x digital zoom allow you to monitor a large area and zoom to view fine detail. -
Page 8: Features
With accurate, responsive pan/tilt movement and digital zoom, the DCS-5615 gives you full control, so you can quickly scan a wide area from a variety of angles, and 16x digital zoom lets you zoom in on specific areas for more detail. The DCS-5615 can also be set to automatically move to specific preset positions, allowing the camera to patrol particular areas of interest within a surveillance area. -
Page 9: Hardware Overview
Product Overview Hardware Overview Plastic housing Pan -180° Pan +180° Tilt 80° D-Link DCS-5615 User Manual... - Page 10 Reset Press and hold this button for 10 RESET seconds to reset the camera microSD microSD Card Slot Local MicroSD card for storing recorded images and video D-Link DCS-5615 User Manual...
-
Page 11: Hardware Installation
Slip the card socket forward and up. Insert a microSD card, close the the the bottom. cover, and push it back to secure the installation. Install the plastic cover by pressing it back to its original position. D-Link DCS-5615 User Manual... -
Page 12: Hardware Installation
5. Attach “Plate B" to the bottom of the camera and secure it with two screws. 6. Slide the Camera into “Plate A“ 7. Secure the camera to the “Plate A” with the screw. Plate B Plate A D-Link DCS-5615 User Manual... -
Page 13: Installation
Connect the supplied power cable from the camera to a power outlet. Connection with a PoE Switch If using a PoE switch, connect the network camera to the switch via an Ethernet cable, which will provide both power and data transmission over a single cable. D-Link DCS-5615 User Manual... -
Page 14: Configuration With Wizard
Installation Configuration with Wizard Insert the DCS-5615 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\ autorun.exe, where D: represents the drive letter of your CD-ROM drive. - Page 15 Installation Click Yes to accept the License Agreement. To start the installation process, click Next. Note: The installation may take several minutes to finish. D-Link DCS-5615 User Manual...
- Page 16 Installation Click Finish to complete the installation. Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE D-Link DCS-5615 User Manual...
- Page 17 Click the Wizard button to continue. Enter the Admin ID and password. When logging in for the first time, the default Admin ID is admin with the password left blank. Click Next, to proceed to the next page. D-Link DCS-5615 User Manual...
- Page 18 Select static IP if the camera will use the same IP address each time it is started. Click Next, to proceed to the next page. Take a moment to confirm your settings and click Restart. D-Link DCS-5615 User Manual...
-
Page 19: Web-Based Configuration Utility
Installation Web-based Configuration Utility This section explains how to configure your new D-Link Network Camera using the Web-based Configuration Utility. Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > D-Link > Setup Wizard SE Select the camera and click the button labeled "Link"... - Page 20 This section shows your camera’s live video. You can select your video profile and view or operate the camera. For additional information about web configuration, please refer to the user manual included on the CD-ROM or the D-Link website. D-Link DCS-5615 User Manual...
-
Page 21: Configuration
When you connect to the camera's web interface you will see the following page. This is the Live Video page which will allow you to view the camera's video feed and control basic camera functions using the icons on the screen. Please refer to the tables on the following pages for detailed information about the icons on this screen. D-Link DCS-5615 User Manual... - Page 22 Configuration Click this logo to visit the D-Link website. D-Link Logo The logos and website can be customized to fit your needs. For more information, please refer to User Customization on page 64. Securicam Logo Setup the stream transmission mode and saving options on the local computer.
- Page 23 Stop: Stop Pan and Tilt Select from the preset drop-down list to quickly move the camera to the desired preset position. Go Preset Control Pan/Tilt/Zoom speed Pan Speed Control Tilt Speed Control Zoom Speed Control Speed Control D-Link DCS-5615 User Manual...
-
Page 24: Camera Control
50%: Keep the video zoom ratio at 50% Zoom ratio 25%: Keep the video zoom ratio at 25% Click the Help button to learn the detailed information regarding camera setup and solve any problems you encounter. Help D-Link DCS-5615 User Manual... -
Page 25: Client Setup
Add date and time suffix to file name: Select this checkbox if you would like the date and time to be added to the end of each filename. Local Streaming Buffer Time Enter the buffer time in milliseconds. The buffer will cause a slight delay between live activity and the video of the live stream but may increase the quality of video. D-Link DCS-5615 User Manual... -
Page 26: Setup
Configuration Setup The DCS-5615 includes basic and advanced setup screens. Both screens include a tree view with multiple setup options. This manual includes detailed explanations for all advanced setup screens. Basic Setup Click the setup button to enter the setup screen. -
Page 27: Advanced Setup
- Motion Detection, Tamper Detection, DI, Event Settings Recording - Recording Settings, Local Storage PTZ Control - Mechanical PT, Calibrate User Customization - Live Video Page Config, HTML Code Examples System - User Settings, Device Settings, Time and Date, Maintenance, Parameter List, Logs D-Link DCS-5615 User Manual... -
Page 28: System Overview
Configuration System Overview The system overview page contains a summary of the camera's current settings. For more information about adjusting these settings, please consult the subsequent instructions found in this manual. D-Link DCS-5615 User Manual... -
Page 29: Video
Note: All the items in the “Output Frame Size” should not be greater than the “Region of Interest “(current maximum resolution). The definition of multiple streams: Stream 1-3: Users can define the "Region of Interest" (viewing region) and the "Output Frame Rate" (size of the live view window). D-Link DCS-5615 User Manual... - Page 30 2. Select the applied mode: Day mode, Night mode, or schedule mode. Please manually enter a range of time if you choose Schedule mode. 3. Configure Exposure setting in the second column. 4. Click Save to enable the setting and click Close to exit the page. D-Link DCS-5615 User Manual...
- Page 31 • Fixed quality: To optimize the bandwidth utilization and video quality. The video quality can be adjusted to the following setting: Medium, Standard, Good, Detailed and Excellent. You can also select Customize and manually enter a value. D-Link DCS-5615 User Manual...
-
Page 32: Image Settings
2. Place a sheet of white paper in front of the lens, then allow the camera to adjust the color temperature automatically. 3. Select Fixed to confirm the setting while the white balance is being measured. 4. Click Save to enable the new setting. D-Link DCS-5615 User Manual... - Page 33 • Up to 5 privacy mask windows can be set up on the same screen. • If you want to delete the privacy mask window, please click the ‘x’ at the upper right-hand corner of the window. D-Link DCS-5615 User Manual...
-
Page 34: Audio Settings
AAC bit rate: Select an AAC bit rate from the drop-down list. Higher bit rate means higher audio quality but it takes more network bandwidth to transmit. G.711: Select between uLAW (G.711) and ALAW (G.711) compression formats. A higher audio quality will require more bandwidth. D-Link DCS-5615 User Manual... -
Page 35: Network
Primary DNS: The Primary Domain Name Server (DNS) that translates hostname into IP address. Secondary DNS: Secondary Domain Name Server (DNS) that backups the Primary DNS. Primary WINS Server: The primary WINS server that maintains the database of computer name and IP address. D-Link DCS-5615 User Manual... - Page 36 3. Go to Setup > Event management > Event settings > Media Settings (please refer to Media Settings). Select System log so that you will receive the system log in TXT file format which contains the camera’s public IP address in your e-mail or on the FTP server. D-Link DCS-5615 User Manual...
- Page 37 3. Press Enter on the keyboard or click Refresh button to refresh the webpage. Manually Setup the IP Address: Select this option to manually configure IPv6 setting if your network environment does not have DHCPv6 server and advertisements-enabled routers. D-Link DCS-5615 User Manual...
-
Page 38: Port And Access Name Settings
The FTP server allows the user to save recorded video clips. You can utilize D-Link's IP Cam Wizard to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It also can be assigned to another port number between 1025 and 65535. - Page 39 If digest authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access. D-Link DCS-5615 User Manual...
- Page 40 RTCP port number is the multicast RTP port number plus one, and thus is always odd. When the multicast RTP port changes, the multicast RTCP port will change accordingly. Multicast TTL [1~255]: The multicast TTL (Time To Live) is the value that tells the router the range a packet can be forwarded. D-Link DCS-5615 User Manual...
-
Page 41: Dynamic Dns
Host Name: Enter the host name of the DDNS server. Username: Enter your username or e-mail used to connect to the DDNS Password: Enter your password used to connect to the DDNS server. Status: Indicate the connection status, automatically determined by the system. D-Link DCS-5615 User Manual... -
Page 42: Https
1. Click Create to open the Create Certificate page, then click Save to generate the certificate. 2. The Certificate Information will automatically be displayed in the third column as shown below. You can click Property to see detailed information about the certificate. D-Link DCS-5615 User Manual... - Page 43 If you want to create and install other certificates, please remove the existing one. To remove the signed certificate, deselect Enable HTTPS secure connection in the first column and click Save. Then click Remove to erase the certificate. D-Link DCS-5615 User Manual...
-
Page 44: Access List
User settings. 2. The administrator has set up a user password, but set RTSP Authentication to “disable“. For more information about RTSP Authentication, please refer to RTSP Streaming. D-Link DCS-5615 User Manual... - Page 45 Administrator IP address Always allow the IP address to access this device: You can select this item and add the Administrator’s IP address in this field to make sure the Administrator can always connect to the device. D-Link DCS-5615 User Manual...
-
Page 46: Advanced Settings
Read Only and enter the community name. • Authentication type: Select MD5 or SHA as the authentication method. • Authentication password: Enter the password for authentication (at least 8 characters). • Encryption password: Enter a password for encryption (at least 8 characters). D-Link DCS-5615 User Manual... - Page 47 Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc. D-Link DCS-5615 User Manual...
- Page 48 CoS as "coarsely-grained" traffic control and QoS as "finely- grained" traffic control. • Though CoS is simple to manage, it lacks scalability and does not offer end-to-end guarantees since it is based on L2 protocol. D-Link DCS-5615 User Manual...
- Page 49 Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc. D-Link DCS-5615 User Manual...
-
Page 50: Event Management
Sensitivity and Percentage slide bar. special situations(Profile2), such as day/night/ 4. Click Save to apply the changes. schedule mode. 5. Select Enable motion detection to activate motion detection. D-Link DCS-5615 User Manual... -
Page 51: Tamper Detection
Set up the event source as Camera Tampering Detection on Event Settings > Server Settings (how to send alarm message)/ Media Settings (send what type of alarm message)/Event Settings/. Please refer to Event settings for detailed information. D-Link DCS-5615 User Manual... - Page 52 The I/O connector provides the physical interface for digital input (DI+. GND) that is used for connecting a diversity of external alarm devices to the camera such as IR-Sensors. Once triggered images will be taken and e-mailed. DI Schematics D-Link DCS-5615 User Manual...
-
Page 53: Event Settings
To verify if the e-mail settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an e-mail indicating the result. Click Save to enable the settings, then click Close to exit the page. D-Link DCS-5615 User Manual... - Page 54 Network storage: Select to send the media files to a network storage location when a trigger is activated. Click Save to enable the setting, then click Close to exit the page. When completed, the new server settings will automatically be displayed on the Event Settings page. D-Link DCS-5615 User Manual...
-
Page 55: Media Settings
Add date and time suffix to the file name: Select this option to add a date/ time suffix to the file name. Click Save to enable the settings, then click Close to exit the page. D-Link DCS-5615 User Manual... - Page 56 Click Save to enable the settings, then click Close to exit the page. When completed, click Save to enable the settings and click Close to exit this page. The new media settings will appear on the Event Settings page. D-Link DCS-5615 User Manual...
- Page 57 Priority: Set the priority for this event (High, Normal, or Low). The event with higher priority will be executed first Detect next event after * seconds: Select the delay time before selecting the next event. It is being used for both events of motion detection and digital input trigger. D-Link DCS-5615 User Manual...
- Page 58 Camera tampering detection: This option allows the camera to trigger when the camera detects that it is being tampered with. To enable this function, you need to configure the Tamper detection option first. Please refer to Tamper detection for detailed information. D-Link DCS-5615 User Manual...
- Page 59 To set an event with recorded video or snapshots, it is necessary to configure the server and media setting so that the camera will know what action to take (i.e. the server to send the media files to) when a trigger is activated. • Add Server: same as Server Settings • Add Media: same as Media Settings D-Link DCS-5615 User Manual...
-
Page 60: Recording
Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording. File name prefix: Enter the text that will be appended to the front of the file name. D-Link DCS-5615 User Manual... - Page 61 Network Storage. The new recording name will appear in the drop-down list on the recording page. To remove a recording setting from the list, select a recording name from the drop-down list and click Delete. D-Link DCS-5615 User Manual...
-
Page 62: Local Storage
Search Results Window. Search Results This area will show the search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click up and down arrow to sort the search results in either direction. D-Link DCS-5615 User Manual... -
Page 63: Ptz Control
5. If you want to delete a selected location, select it from the Source list and click Remove. 6. Select a location and click Up or Down to rearrange the patrol order. 7. Click Save to enable the setting. D-Link DCS-5615 User Manual... -
Page 64: User Customization
5. The selected color will be displayed in the corresponding fields and in the Preview column. Click Save to enable the setting. Title: You can also change the title at the top of your Live Video page. D-Link DCS-5615 User Manual... -
Page 65: Html Code Examples
If target remote user client use FireFox, then the example code can only support MJPEG stream. Still Image Format: • Refresh interval second: If user only need to embedded still image in the browser, please use this option and setup the refresh interval of the still image. D-Link DCS-5615 User Manual... -
Page 66: System
Username: Enter a username for the new account. Password: Enter a password for the new account. Privilege: Select the access rights for the new user. Manage user: Manage the accounts for existing users. Authentication: The access rights for existing users. D-Link DCS-5615 User Manual... -
Page 67: Device Settings
Turn off the LED indicator: Select this option to turn off the LED next to the lens. This will prevent anyone from observing the operation of the network camera. Camera Name: Create a unique name for your camera. D-Link DCS-5615 User Manual... -
Page 68: Time And Date
Update Interval: The time interval for updating the time information from NTP server. Set the date and time manually: This option allows you to set the time and date manually. Copy Your Computer’s Time Setting: This will synchronize the time information from your PC. D-Link DCS-5615 User Manual... -
Page 69: Maintenance
Notepad and locate your time zone. Set the ® start and end time of DST. 4. When completed, save the file Upload daylight saving time rule: Click Browse… and specify the XML file to upload. Export language file: Click to export language strings. D-Link DCS-5615 User Manual... - Page 70 Note: Do not power off the camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the D-Link website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.
-
Page 71: Parameter List
Configuration Parameter List The Parameters List page lists the entire system’s parameters in alphabetical order. If you need technical assistance, please provide the information listed on this page. D-Link DCS-5615 User Manual... -
Page 72: Logs
3. When completed, select Enable remote log and click Save to enable the setting. Current Log: This column displays the system log in chronological order. The system log is stored in the camera’s buffer area and will be overwritten when reaching a certain limit. D-Link DCS-5615 User Manual... -
Page 73: Technical Specifications
• Operating system: Microsoft Windows 7, Vista, XP, 2000 • Browser: Internet Explorer 7 or higher Integration D-ViewCam™ System • Operating System: Microsoft Windows 7, Vista, XP • Protocol: Standard TCP/IP Requirements for Web • Web Browser: Internet Explorer 7 or higher Interface D-Link DCS-5615 User Manual... - Page 74 Humidity • 90% non-condensing • Storage: 5% to 95% non-condensing Weight • 210 g (0.46 lbs) • CE (Class A) • ICES-003 Certifications • CE LVD (EN60965-1) • C-Tick • FCC (Class A) Dimensions 116.34 mm D-Link DCS-5615 User Manual...
