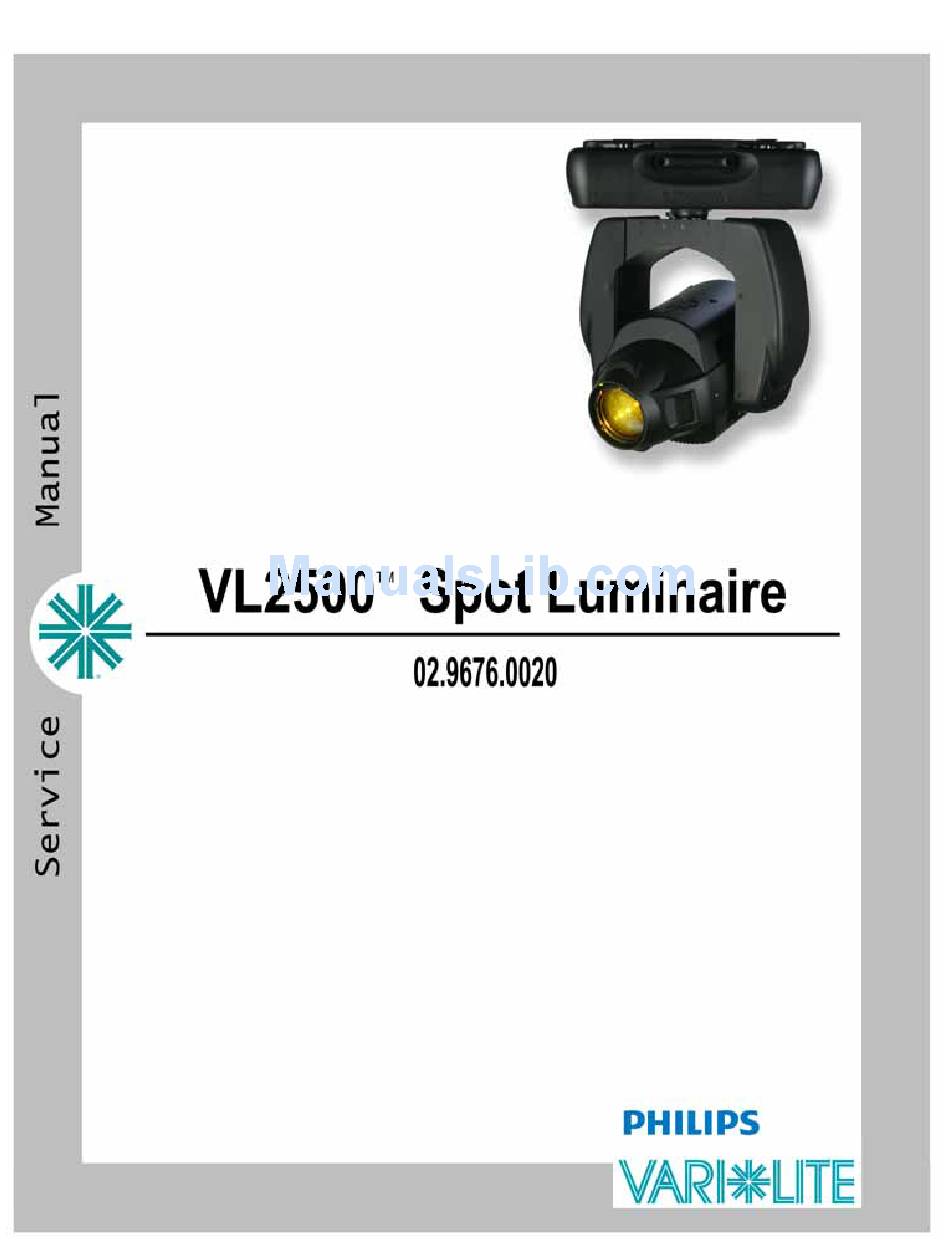

VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL ® VARI❋LITE is a trademark owned by Genlyte Thomas Group LLC and is registered in the United States and other countries. VL500™, VL1000™, VL2000™, VL2201™, VL2202™, VL2400™ (and the individual product designations), VL3000™, ™...
Page 3
OREWORD How To Obtain Warranty Service A copy of the Vari-Lite, Inc. Limited Warranty was included in the shipping package for this VARI❋LITE® product. To obtain warranty service, please contact customer service at 1-877-VARI-LITE (1-877-827-4548) or customerservice@genlytecontrols.com and request a Return Material Authorization (RMA) for warranty service.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Compliance Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.
Page 5
OREWORD GENERAL INFORMATION PERTAINING TO PROTECTION AGAINST ELECTRICAL SHOCK, FIRE, EXPOSURE TO EXCESSIVE UV RADIATION, AND INJURY TO PERSONS CAN BE FOUND BELOW. WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST FIRE 1. VARI❋LITE® luminaires have been designed for use only with certain Philips and Osram HID lamps.
Page 6
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI❋LITE® luminaires use an HID type lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
Page 7
OREWORD Sicherheitshinweise Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein. Folgende Sicherheitssymbole werden in diesem Handbuch verwendet: VORSICHT - weist auf möglichen Produktschaden hin.
Page 8
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare Beschädigung (z. B. Sprünge oder Schrammen) eingeschränkt ist. WARNUNG: HINWEISE ZUM SCHUTZ GEGEN KÖRPERVERLETZUNGEN 1.
Page 9
OREWORD Notes de sécurité Avant de procéder à l’installation des produits décrits dans ce guide et de les mettre en marche, il est extrêmement important de lire TOUS les renseignements et TOUTES les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe. Tenir compte de tous les avertissements et suivre toutes les précautions pendant l’installation et l’utilisation de cet appareil.
Page 10
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL AVERTISSEMENT: DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE AUX RAYONS UV 1. Plusieurs luminaires VARI❋LITE® utilisent une lampe de type HID qui produit des rayons UV. NE PAS fixer son regard sur la lampe. 2.
Page 11
OREWORD Aviso sobre Seguridad Es muy importante leer TODA la información e instrucciones sobre seguridad que se indica en este manual así como en los documentos adjuntos antes de instalar y operar los productos descritos. Se debe prestar atención a todos los avisos y advertencias durante la instalación y uso de este producto.
Page 12
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL ADVERTENCIA: INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN EXCESIVA DE RADIACIÓN ULTRA VIOLETA 1. Muchas luminarias VARI❋LITE® usan un tipo de lámpara HID que produce radiación UV. NO mire directamente a la lámpara. 2.
ABLE OF ONTENTS Table of Contents Introduction About This Manual ...................... 1 Additional Documentation................... 1 Customer Service ......................2 Technical Bulletins / Technical Notices............... 2 Chapter 1. Description Features Overview........................4 Features ......................... 4 Major Components External Components....................5 Menu Display ......................6 Menu Controls.......................
Page 16
Drawing Tree VL2500 Series Spot Luminaire .................. 44 Top Assembly VL2500 Spot Included Items Kit ................46 VL2500 Spot Luminaire..................... 48 VL2500 Generic Luminaire ..................50 Front Assembly ......................52 Lens Barrel Assembly ....................54 Sub-Barrel Group 2 Assembly ................... 56 Motor Zoom Optics Assembly ...................
Page 17
Ballast to Controller Cable Assembly..............118 Lamp Supply to Relay Cable Assembly ..............119 DC Output Cable Assembly..................120 Appendix A. Technical Bulletins and Notices VL2500 Spot Luminaire Technical Bulletins and Notices ........121 02. 96 76. 002 0 B 29-May-2009 xvii...
Page 18
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Notes xvi i i 29-May-2009 02 .9 676 .00 20 B...
This manual covers the following models: Model Part Number Source VL2500 Spot Luminaire 20.9676.0001 700W Arc Note: Performing maintenance procedures contained in this manual may void the product warranty. Refer to the Vari-Lite, Inc. Limited Warranty card included in the shipping package for this VARI❋LITE®...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Customer Service Our Goal At Vari-Lite, we are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefit of being a Vari-Lite customer. Whether your needs are telephone/troubleshooting assistance, product training or technical service, our full- time staff of experienced professionals are on-hand to provide support.
HAPTER Description This chapter provides an overview of luminaire features, components and operations. • Features • Major Components • Principles of Operation 02. 96 76. 002 0 B 29-May-2009...
ERVICE ANUAL Features Overview The VL2500 Spot luminaire comes complete with all of the qualities and options designers love from the original Series 2000™ fixtures. It is still small, lightweight, and fast with a 700- watt shortarc lamp, impressive lumen output, and a zoom range from 18.5°...
ESCRIPTION AJOR OMPONENTS Major Components External Components The following illustration shows major luminaire components and controls. Truss Hook Bracket Assembly Removable Lamp Assembly (to access lamp for replacement) Upper Enclosure Assembly AC Input Cable Head Assembly Yoke Assembly Vertical Captive Knob Horizontal for lamp access (does not adjust...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Menu Display The menu system is a programmable set of commands used to configure, address, operate, and test the luminaire. The menu system is controlled at the Menu Display available at the enclosure input panel. Menu Display AC PWR DATA IN...
ESCRIPTION AJOR OMPONENTS Head Components The following illustration shows the major sub-assemblies that are located in the luminaire head assembly. (Yoke and enclosure not shown for clarity.) Removable Cover Dual Blade Strobe Assembly Back Cap / CYM Color/Dimmer Bulkhead Lamp Assembly Fixed Color / Fixed Gobo / Iris Bulkhead Fan Assembly...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Yoke Components The following illustration shows the major sub-assemblies that are located in the luminaire yoke assembly. (Head and enclosure not shown for clarity.) Fan Assembly Yoke Arm Cover Ignitor PCB Relay Yoke Structure Yoke Arm Cover Tilt-Side Leg Main Control Board (MCB)
ESCRIPTION AJOR OMPONENTS Enclosure Components The following illustration shows the major sub-assemblies that are located in the luminaire enclosure assembly. (Yoke and head assembly not shown for clarity.) Enclosure Top Covers 700W Arc Ballast Module Fan Assembly Input Panel Assembly containing DMX Input PCB and Menu Display 150W +24V/6.3A...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Principles of Operation Power and Data Flow Diagram The following diagram shows how data and power are distributed in the luminaire. Fix Gobo UV / IR Back Cap OT Sw Switch OT Sw Bulb Ignitor Relay...
HAPTER Maintenance This chapter contains test, service, and standard maintenance procedures. • Testing • Troubleshooting • Maintenance Procedures WARNING: All maintenance procedures are to be performed with power removed from the luminaire. Never remove cover or backcap while lamp is in operation.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Testing Testing Software Testing software is available in all Series 2000 luminaires through the luminaire’s menu system TEST function. For information on specific tests and test parameters, see the VL2500™ Spot Luminaire User’s Manual (VL Part no. 02.9676.0019). Note: After 10 seconds of inactivity, the menu display will change to the default state showing the address.
AINTENANCE ROUBLESHOOTING Troubleshooting Error Messages If a problem occurs during luminaire calibration, at the end of the calibration sequence the Menu Display will cycle through any applicable error message(s), one at a time until the end of the list is reached. To review the error messages again, it will be necessary to access them “Troubleshooting Guide”...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Troubleshooting Guide If a problem is suspected, try recalibrating the luminaire to prompt an error message. Refer to “Troubleshooting” on page 13 for more information. The chart below provides possible causes and remedies for each message. Table 2-2: Troubleshooting Guide Message Symptom...
Page 33
AINTENANCE ROUBLESHOOTING Table 2-2: Troubleshooting Guide (Continued) Message Symptom Description Possible Cause and Remedy Pan No Luminaire will not pan or Pan Sensor Not Found EOT flag attached to large pulley is not engaging the Sens hits against stop EOT sensor... - ensure flag is attached to the large pulley.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Maintenance Procedures Head Assembly This section provides removal and replacement procedures for components found in the luminaire head assembly. Lamp Replacement Parts: 71.2528.0700 WARNING: Remove power from luminaire before performing maintenance. To remove and replace lamp: Step 1.
Page 35
AINTENANCE AINTENANCE ROCEDURES Lamp Replacement (continued) Note: Wear cotton gloves or other covering while servicing lamp. Touching lamp glass with bare fingers will leave oil and may cause the lamp to explode or reduce lamp life. If required, use alcohol and cotton cloth to thoroughly clean glass portion of lamp.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Color/Gobo/Iris Bulkhead Assembly Replacement Parts: 21.9676.4120 To remove and replace color/gobo/iris bulkhead assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2. At top head cover, gradually loosen two 8-32x1/2" captive screws and remove cover.
AINTENANCE AINTENANCE ROCEDURES Standard Gobo/Color Filter Replacement ❋ WARNING: Users of VARI LITE luminaires should not install or use metal gobos. The ® ❋ use of metal gobos in any VARI LITE product may damage the luminaire and could void ®...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Strobe Bulkhead Replacement Parts: 22.9676.0016 To remove and replace strobe bulkhead assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2. At luminaire, remove both top and bottom covers as follows: a.
AINTENANCE AINTENANCE ROCEDURES Front Assembly Removal Parts: 22.9676.0016 Note: This procedure may be necessary to gain access to other components. To remove and re-install front assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2. At luminaire, remove both top and bottom covers as follows: a.
Page 40
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Front Assembly Removal (continued) Step 7. At junction connector, disconnect edge motor and zoom motor wires. Step 8. Face head nose upward. At front of bulkhead, using #2 Phillips long handle screwdriver, remove four 6-32 X 3/8" PPZ screws (note, tether will be attached to one screw), and pull front assembly partially out of head assembly.
AINTENANCE AINTENANCE ROCEDURES Edge Motor Assembly Replacement Parts: 21.9667.0310 To remove and replace edge motor assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2. Remove front assembly. Refer to “Front Assembly Removal” on page Step 3. Cut cable ties that secure edge motor wires to front assembly. (Edge motor is larger of two linear actuator motors.) Step 4.
Page 44
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Edge Motor Assembly Replacement (continued) CAUTION: If you use pliers instead of 1/4-inch wrench in next step, ensure you place pliers on standoff on edge motor shaft. Do not hold edge motor shaft with pliers, or shaft may be damaged.
Page 45
AINTENANCE AINTENANCE ROCEDURES Edge Motor Assembly Replacement (continued) Step 6. At side rail, disconnect edge motor wire connector from junction connector. Figure 2-11. Junction Connector Figure 2-11: Disconnecting Edge Motor Wiring Step 7. Remove two 4-40×3/8" PPZ screws and nuts which secure motor to bulkhead and remove motor assembly.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Lens Barrel Assembly Replacement Parts: 21.9676.4306 To remove and replace lens barrel assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2. At top head cover, gradually loosen two 8-32 x 3/8" captive screws. Step 3.
Page 47
AINTENANCE AINTENANCE ROCEDURES Lens Barrel Assembly Replacement (continued) Step 7. At front of optical support ring, remove three 8-32×3/8" PPZ screws. Figure 2-14. Guide Rod #6 Flat Washer 6-32×1/2" PPZ Screw Lens Barrel Assembly Optical Support Ring 8-32×3/8" PPZ Screw Figure 2-14: Lens Barrel Assembly Replacement Step 8.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Yoke Assembly This section provides removal and replacement procedures for components found in the luminaire yoke assembly. Tilt Motor Assembly Replacement Parts: 22.9676.0610 To remove and replace tilt motor assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2.
AINTENANCE AINTENANCE ROCEDURES Main Control Board (MCB) PCB Replacement Parts: 24.9676.3730 To remove and replace an MCB PCB: Step 1. Disconnect luminaire AC input cable from power source. Step 2. At board-side leg, remove yoke leg cover by removing four 6-32×5/16" PTB screws.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Ignitor PCB Replacement Parts: 24.9661.3126 To remove and replace ignitor PCB: Step 1. Disconnect luminaire AC input cable from power source. Ignitor PCB Screws Yoke Leg Cover Yoke cross member Figure 2-17: Ignitor PCB Replacement Step 2.
Page 51
AINTENANCE AINTENANCE ROCEDURES Ignitor PCB Replacement (continued) Step 8. Remove two 1/4" hex standoffs from ignitor PCB by removing one 6-32×5/ 16" PPZ screw and #6 lock washer. Install in same place on new ignitor PCB. Figure 2-18. 6-32×5/16" PPZ Screw #6 Lock Washer 1/4"...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Enclosure Assembly This section provides removal and replacement procedures for components found in the luminaire enclosure assembly. Removing Enclosure Covers To gain access to enclosure components, it will be necessary to remove the top and bottom covers.
AINTENANCE AINTENANCE ROCEDURES Removing Enclosure Covers (continued) CAUTION: Be careful not to damage lens during next step. Step 4. Carefully lay luminaire on its side as shown in Figure 2-20. Make sure that lens does not come into contact with any surface.. Figure 2-20: Laying Luminaire on Its Side Step 5.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Ballast Module Assembly Replacement Parts: 69.9676.0700 To remove and replace ballast module assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2. At enclosure, remove ballast-side and ventilation covers. Refer to “Removing Enclosure Covers”...
Page 55
AINTENANCE AINTENANCE ROCEDURES Ballast Module Assembly Replacement (continued) Step 6. At ballast, disconnect the following cable assemblies: a. Lamp wires b. AC input a. Control wiring Step 7. Pull lamp wires through ferrite core. Step 8. At bottom of enclosure, remove three 8-32x3/8" PFZ screws and four 8/ 32x3/8"...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Pan Motor / Pan Belt Assembly Replacement Parts: 21.9678.0864 - Pan Motor Assembly 54.2055.0001 - Pan Motor Belt To remove and replace pan motor assembly: Step 1. Using console or internal menus, run lens as far to the rear as possible. Step 2.
Page 57
AINTENANCE AINTENANCE ROCEDURES To remove and replace pan motor belt: Step 1. Using console or internal menus, run lens as far to the rear as possible. Step 2. Disconnect luminaire AC input cable from power source. Step 3. At each top enclosure cover, remove two 6-32 x 1/4" PPB screws and remove cover.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Pan Encoder Replacement Parts: 24.9678.9729 To remove and replace pan encoder: Step 1. Using console or internal menus, run lens as far to the rear as possible. Step 2. Disconnect luminaire AC input cable from power source. CAUTION: Be careful not to damage lens during next step.
AINTENANCE AINTENANCE ROCEDURES Pan EOT (End of Travel) Sensor Replacement Parts: 86.7002.0003 To remove and replace pan EOT sensor: Step 1. Using console or internal menus, run lens as far to the rear as possible. Step 2. Disconnect luminaire AC input cable from power source. CAUTION: Be careful not to damage lens during next step.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL LVS (Low-Voltage Supply) Power Supply Replacement Parts: 69.3177.0151 To remove and replace LVS power supply: Step 1. Disconnect luminaire AC input cable from power source. Step 2. At enclosure, remove two 6-32 x 1/4" LG PPZ screws from display side cover and remove cover.
HAPTER Illustrated Parts Breakdown This chapter contains illustrated parts breakdowns for assemblies in the VL2500™ Spot Luminaire. • Drawing Tree • Top Assembly • Yoke • Enclosure • Cables WARNING: All maintenance procedures are to be performed with power removed from the luminaire. Never remove cover or backcap while lamp is in operation.
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Drawing Tree VL2500 Series Spot Luminaire VL2500 Spot Luminaire 20.9676.0001 Rev L VL2500 Generic Luminaire Front Assembly 21.9676.0010 Rev J 21.9676.4006 Rev D Rotating Gobo Wheel Assembly Upper Enclosure Assembly 21.9660.0105 Rev E 21.9676.0800 Rev T...
Page 63
LLUSTRATED ARTS REAKDOWN RAWING Drawing Tree (continued) Continued from previous page VL2500 Spot Luminaire (continued) Upper Enclosure Assembly 21.9676.0800 Rev T Reflector Assembly Connector Panel Assembly Connector Panel Assembly 22.9676.0018 Rev B 21.9676.0805 Rev B 21.9676.0805 Rev B Fan Assembly...
LLUSTRATED ARTS REAKDOWN SSEMBLY Top Cover Assembly 22.9676.0008 Rev I Refer to Figure 3-9. Item Qty. UM. Description 06.6018.0011 0.041 VELCRO, DOUBLE HOOK, 2" BLACK ADH BACKED 07.5049.0001 LANYARD, NYLON COATED, 8" LONG 10.9676.8009 COVER, TOP VL2500 10.9676.0010 FILTER, TOP HEAD COVER 12.9676.0076 BAFFLE, RIGHT, TOP COVER 12.9676.0077...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Fan Assembly 22.9676.0090 Rev D Refer to Figure 3-13. Item Qty. Description 10.9676.0068 AIR DUCT, FRONT FAN 22.9676.0091 ASSY, FAN BULKHEAD 22.9676.0095 AIR DUCT, REAR FAN 25.8007.2212 CABLE ASSY, GROUND STRAP, #6 RING 3" LG 40.7113.0002 FAN, +24 VOLT, 80 X 80 X 25MM, 39CFM 40.7146.0002...
Page 83
LLUSTRATED ARTS REAKDOWN SSEMBLY Fan Assembly (continued) (x4) (x4) (x2) (x3) (x2) 7, 8 (x5) Figure 3-13: Fan Assembly 02. 96 76. 002 0 B 29-May-2009...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Crossfade Color Assembly 21.9676.0201 Rev N Refer to Figure 3-15. Item Qty. Description 10.9676.0230.01 SPACER, COLOR WHEEL 10.9676.0230.02 SPACER, COLOR MOTOR 10.9676.0234 AFT BULKHEAD, CROSSFADE COLOR SYSTEM 10.9676.0238 BULKHEAD SPACER 2, COLOR SYSTEM 10.9676.0235 SPACER, BULKHEAD, COLOR SYSTEM 10.9676.0284...
Page 87
LLUSTRATED ARTS REAKDOWN SSEMBLY Item Qty. Description 55.9676.0255 BELLEVILLE SPRING WASHER, SPEC B0500-018-S (x4) (x2) (x2) (x4) (x5) (x4) (x2) (x4) Yellow Cyan Detail A (x2) Magenta Dimmer (x4) (x2) (x5) 29 1 (x5) Detail A Yellow Dimmer (x3) Cyan Magenta Figure 3-15: Crossfade Color Assembly 02.
LLUSTRATED ARTS REAKDOWN Tilt Motor Assembly 22.9676.0610 Rev C Refer to Figure 3-23. Item Qty. Description 10.9676.7298 PLATE, TENSION ADJUST, PAN MOTOR 22.9661.0608 ASSY, DRIVE PULLEY - 10.9661.8640 CODEWHEEL, 90 COUNT - 10.9661.0649 TIMING PULLEY, 2MM GT, 17 TOOTH - 53.5561.0250 SCREW, 6-40 X 1/4"...
Page 98
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Tilt Motor Assembly (continued) Detail A Detail A (x2) (x2) (x2) (x2) (x2) (x2) Pulley Height Detail & Installation 0.080" (x4) Step 1. Apply one drop of Loctite 603 to motor shaft. Step 2.
LLUSTRATED ARTS REAKDOWN Yoke Fan Assembly 22.9676.0609 Rev A Refer to Figure 3-24. Item Qty. Description 10-9676.0646 FAN TRAY, YOKE ARM 40.7113.0001 FAN, +24V 80 X 80 X 25 MM 32CFM RECPT, 2POS MTA100 W/ POL TAB RED CLSD END 52.6396.2202 NUT, 6-32 KEPS SS 53.2200.0006...
LLUSTRATED ARTS REAKDOWN NCLOSURE Pan Tube Assembly 21.9678.0880 Rev C Refer to Figure 3-30. Item Qty. Description 10.9678.0809 PAN TOGGLE STOP 10.9678.0847 WASHER, SILICONE FOAM 10.9678.0848 WASHER, PAN TEFLON 12.9678.0891 PAN TUBE, MACHINED 54.1206.0021 RING, RETAINING 1.562" SHAFT 1.468" GRV DIA 54.1255.0002 BEARING ASSY, FLUSH MOUNT HOUSING LARGE Figure 3-30: Pan Tube Assembly...
VARI❋LITE® - VL2500™ S UMINAIRE ERVICE ANUAL Pan Motor Assembly 21.9678.0864 Rev E Figure 3-31 Refer to Item Qty. Description 10.9678.0865 PLATE, PAN MOTOR MOUNT 21.9678.0828 ASSY, DRIVE PULLEY, PAN - 10.9686.8720 CODEWHEEL, 120 COUNT LARGE ID - 10.9678.0749 TIMING PULLEY, 2MM GT 17 TOOTH - 53.5560.0250 SCREW, 8-32 X 1/4"...
Page 111
LLUSTRATED ARTS REAKDOWN NCLOSURE Pan Motor Assembly (continued) Detail A Pressure-Sensitive Adhesive See Detail A (x2) (x2) (x2) (x4) Drive Pulley Detail & Installation (x4) 0.875" Step 1. Apply one drop of Loctite 603 to motor shaft. Step 2. Install drive pulley on motor shaft using twisting motion to insure coverage of shaft with loctite.
LLUSTRATED ARTS REAKDOWN ABLES Cables Note: Cables are only available as complete assemblies. The information contained in this section is for reference only. Ground Strap Cable Assembly 25.8007.2212 Rev 0 Refer to Figure 3-48. Item Qty. Description 52.8329.0001 TERM, RING # 6 22-16 AWG NON-INS 73.7130.0002 0.33 WIRE, 7/64"...
PPENDIX Technical Bulletins and Notices VL2500 Spot Luminaire Technical Bulletins and Notices The following table identifies the current technical bulletins and notices associated with the VL2500™ Spot Luminaire. If applicable, these improvements have been incorporated into this manual. Technical Bulletin...
