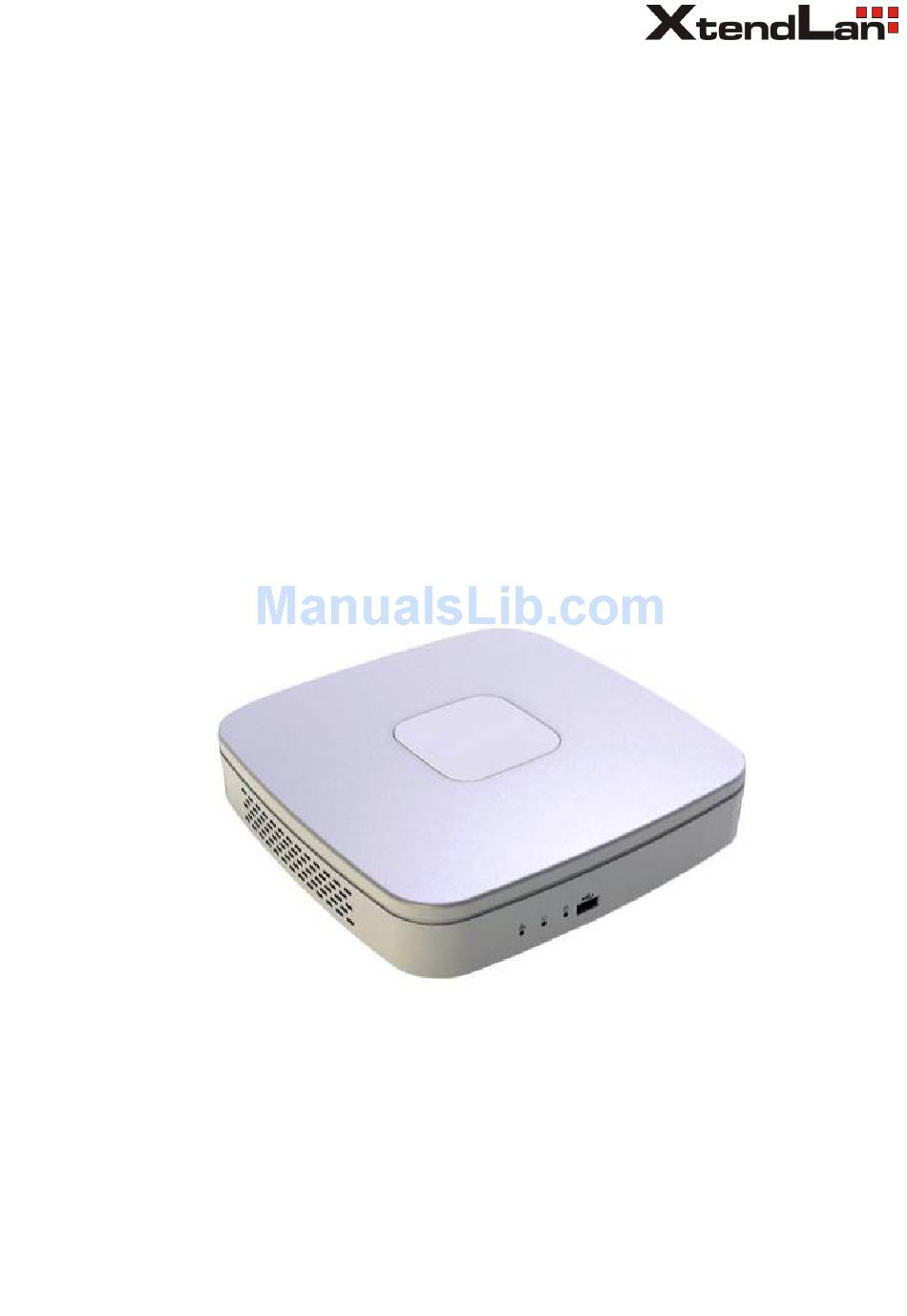

  • Page 1 NVR-xU NVR-xUD Network video recorder User´s manual...

  • Page 2: Table Of Contents

    Table of Contents Features and Specifications ........................1 Overview .............................. 1 Features ............................... 1 1.3 Specifications ............................2 Front Panel and Rear Panel ......................26 Front Panel ..........................26 Rear Panel ..........................37 Alarm Connection ........................64 Alarm Port ........................... 64 2.3.1 2.3.2 Alarm input port ........................
  • Page 3 Image ..........................101 4.4.3 Channel Name ......................... 102 4.4.4 Upgrade ..........................103 4.4.5 UPNP ..........................104 4.4.6 Built-in Switch Setup ....................... 104 4.4.7 Preview ............................ 104 Preview ..........................105 4.5.1 Preview control interface ....................105 4.5.2 Right Click Menu ......................107 4.5.3 4.5.4 Preview Display Effect Setup ..................
  • Page 4 Backup ............................. 141 4.9.1 File Backup ........................141 Import/Export ........................143 4.9.2 Backup Log ........................144 4.9.3 USB Device Auto Pop-up ....................144 4.9.4 4.10 Alarm ............................145 Detect Alarm ........................145 4.10.1 4.10.1.1 Motion Detect ......................145 4.10.1.2 Tampering ......................... 149 4.10.1.3 Video Loss .......................
  • Page 5 4.14.1.2 BPS ........................... 190 4.14.1.3 Online User ......................190 4.14.1.4 Remote Device Information ................... 191 4.14.1.5 Remote ........................192 4.14.1.5.1 Device Status ......................192 4.14.1.5.2 Firmware ....................... 193 Log ............................. 194 4.14.2 Account ..........................195 4.14.3 4.14.3.1 Add/Modify Group ....................196 4.14.3.2 Add/Modify User ......................
  • Page 6 5.8.2.7 DDNS ........................225 5.8.2.8 IP filter ........................226 5.8.2.9 Email ........................227 5.8.2.10 UPnP ........................228 5.8.2.11 SNMP ........................229 5.8.2.12 Multicast ........................230 5.8.2.13 Auto Register ......................230 5.8.2.14 Alarm Centre ......................231 5.8.2.15 HTTPS ........................231 5.8.2.15.1 Create Server Certificate ..................232 5.8.2.15.2 Download root certificate ..................
  • Page 7 5.8.5.3.1 Display ........................260 5.8.5.3.2 Tour ......................... 260 5.8.5.4 Alarm Out ......................... 261 5.8.5.5 Default ........................262 5.8.5.6 Import/Export ......................262 5.8.5.7 Auto maintain ......................263 5.8.5.8 Upgrade ........................263 5.8.5.9 RS232 ........................264 5.8.5.10 PTZ ........................... 264 Information ..........................266 Version ..........................

  • Page 8: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electric shock caused by improper handling or installation.
  • Page 9  Keep away from extreme hot places and sources  Avoid direct sunlight  Keep away from extreme humid places  Avoid violent vibration  Do not put other devices on the top of the NVR  Be installed in well ventilated place; do not block the vent. ...

  • Page 10: Features And Specifications

    1 Features and Specifications 1.1 Overview This series NVR is a high performance network video recorder. This series product support local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. This series product supports centre storage, front-end storage and client-end storage.

  • Page 11: Specifications

    IR control function (For some series product only.). Shortcut menu operation via remote control.  Support IPC or NVS remote video preview and control. 1.3 Specifications 1.3.1 NVR-xUD Series 4/8-ch series product support 4/8 HD connection respectively. Total System System bandwidth supports 28/56Mbps respectively.
  • Page 12 Type Decode Max 2-ch 1080P 30fps or 4-ch 720P 30fps or 8-ch D1 30fps Capability Video Video Input 4/8-ch network compression video input Video Output 1-channel VGA analog video output HDMI 1-ch HDMI output. Version number is 1.4 Window Split 1/4/8-window Audio Audio Input...
  • Page 13 Network 1 RJ45 10/100Mbps self-adaptive Ethernet port. Connection Power Port 1 power socket. Power adapter 1 power socket. Power adapter power supplying mode. DC 5V power supplying mode. DC 48V 2A power. 1.25A power. Power Button Power On-off Button Receiver Window Clock Built-in clock.
  • Page 14 1.3.2 NVR-401U/801U Series 4/8-ch series product support 4/8 HD connection respectively. Total System System bandwidth supports 28/56Mbps respectively. Resources Embedded Linux real-time operation system Operation WEB/Local GUI Interface Decode Video Decode H.264/MJPEG Type Decode Max 2-ch 1080P 30fps or 4-ch 720P 30fps or 8-ch D1 30fps Capability Video...
  • Page 15 Multiple-Chann Max 8-channel D1 or 4-channel 720P or 2-channel 1080P playback el Playback Port and RS232 Port Indicator RS485 Port 2 peripheral USB2.0 ports. USB Port Network 1 RJ45 10/100Mbps self-adaptive Ethernet port. Connection Power Port 1 power socket. Power adapter 1 power socket.
  • Page 16 Dimension 205mm×206.75mm×45.2mm Weight 0.5kg 1kg (Exclude HDD) Installation Desk installation Mode 1.3.3 NVR-1001U Series 4/8/16-ch series product support 4/8/16 HD connection respectively. System System Total bandwidth supports 28/56/80Mbps respectively. Resources Embedded Linux real-time operation system Operation WEB/Local GUI Interface Decode Video Decode H.264/MJPEG/MJPEG4...
  • Page 17 1-ch bidirectional talk input Audio Audio Input 1-ch bidirectional talk output Audio Output Audio G.711a Compression Standard Alarm Alarm Input Alarm Output Funciton Storage 1 built-in SATA port Multiple-Chann Max 4-channel 1080P playback el Playback Port and RS232 Port Indicator RS485 Port 2 peripheral USB2.0 ports.

  • Page 18: Front Panel And Rear Panel

    Dimension 205mm×206.75mm×45.2mm Weight 0.5kg 1kg (Exclude HDD) Installation Desk installation Mode 2 Front Panel and Rear Panel 2.1 Front Panel 2.1.1 NVR-401U/801U Series The front panel is shown as in Figure 2-1. Figure 2-1 Please refer to the following sheet for detailed Name Function information.
  • Page 19 2.1.2 NVR-1001U Series The front panel is shown as below. See Figure 2-3. Figure 2-3 Please refer to the following sheet for detailed information. Name Function Network status indicator The red light becomes on when the network light connection is abnormal. The red light becomes on when the power Power indicator light connection is OK.

  • Page 20: Rear Panel

    2.2 Rear Panel 2.2.1 NVR-xUD Series The rear panel is shown as below. See Figure 2-10. Figure 2-10 Port Name Connection Function USB2.0 port. Connect to mouse, USB storage USB2.0 port device, USB burner and etc. 10M/100Mbps self-adaptive Ethernet port.
  • Page 21 Port Name Connection Function VGA video output port. Output analog video video signal. It can connect to the monitor to view analog output port video. Power socket. Power input port input DC 5V/2A. 2.2.2 NVR-401U/801U Series The rear panel is shown as below. See Figure 2-12. Figure 2-12 Please refer to the following sheet for detailed information.
  • Page 22 Port Name Connection Function High definition audio and video signal output port. High Definition It transmits uncompressed high definition video HDMI Media Interface and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4. VGA video output port. Output analog video video signal.
  • Page 23 Port Name Connection Function USB2.0 port. Connect to mouse, USB storage USB2.0 port device, USB burner and etc. 10M/100Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port. High Definition It transmits uncompressed high definition video HDMI Media Interface and multiple-channel data to the HDMI port of the...

  • Page 24: Alarm Connection

    2.3 Alarm Connection 2.3.1 Alarm Port The alarm port is shown as below. See Figure 2-38. The following figure is based on the another series. Figure 2-38 Icon Function 1 16 ALARM1 ALARM16. The alarm becomes activated in the low level. NO1 C1 NO2 C2 NO3 C3 NO4 Four NO activation output groups.

  • Page 25: Alarm Input And Output Port

    Figure 2-39 Note  There are two alarm input types: NO/NC.  When connect the ground port of the alarm device to the NVR, you can use any of the GND ports  Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR. ...

  • Page 26: Bidirectional Talk

    Between touches with different 1000VAC 1minute polarity Between touch and winding 1000VAC 1minute Between touches with same 1500V (10×160us) Surge voltage polarity Length of open 3ms max time 3ms max Length of close time 50×106 Longevity Mechanical (3Hz) Electrical 200×103 (0.5Hz) Temperature ~+70...

  • Page 27: Mouse Operation

    Login the Web and then enable the corresponding channel real-time monitor. Please refer to the above interface (Figure 2-40) to enable bidirectional talk. Listening Operation At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the device-end.
  • Page 28 In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. Right click In real-time monitor mode, pops up shortcut menu. mouse Exit current menu without saving the modification. In numeral input box: Increase or decrease numeral value.

  • Page 29: Device Installation

    HDD of 7200rpm or higher. Usually we do not recommend the PC HDD. Please follow the instructions below to install hard disk. 3.3.1 NVR-xUD Series Please make sure the metal surface of the HDD is facing up when you are installing! This series NVR has only one 2.5-inch SATA HDD.
  • Page 30 the proper position, the columns on the two sides can lock the screw holes of the HDD to secure When you remove the HDD, please refer to the following figure to pull the spring up and then remove the HDD. 3.3.2 NVR-401U/801U Series 1.
  • Page 31 7. Put the cover in accordance Secure the screws in the with the clip and then place the rear panel and the side panel. upper cover back. 3.3.3 NVR-1001U Series 1. Loosen the screws of the 2. Fix four screws in the HDD 3.

  • Page 32: Connection Sample

    3.4 Connection Sample Figure 3-3...

  • Page 33: Local Basic Operation

    4 Local Basic Operation 4.1 Boot up and Shutdown 4.1.1 Boot up Before the boot up, please make sure:  The rated input voltage matches the device power on-off button. Please make sure the power wire connection is OK. Then click the power on-off button. ...
  • Page 34 Figure 4-1 Click Cancel button or Next Step button, system goes to login interface. See Figure 4-2. System consists of four accounts:  Username: admin. Password: admin. (administrator, local and network)  Username: 888888. Password: 888888. (administrator, local only)  Username: 666666.
  • Page 35 Figure 4-3 Click Next button, you can go to network interface. See Figure 4-4 For detailed information, please refer to chapter 4.11. Figure 4-4 Click Next button, you can go to remote device interface. See Figure 4-5 For detailed information, please refer to chapter 4.4.
  • Page 36 Figure 4-5 Click Next button, you can go to Schedule interface. See Figure 4-6. For detailed information, please refer to chapter 4.7.2. Figure 4-6 Click Finish button, system pops up a dialogue box. Click the OK button, the startup wizard is complete. See Figure 4-7.

  • Page 37: Navigation Bar

    Figure 4-7 4.3 Navigation Bar You need to go to the Main menu->Setting->System->General to enable navigation bar function; otherwise you can not see the following interface. The navigation bar is shown as below. See Figure 4-8. Figure 4-8 4.3.1 Main Menu Click button to go to the main menu interface.

  • Page 38: Output Screen

    Note  Screen 2 funciton is null if tour is in process. Please disable tour funciton first,  Right now, the screen 2 operation can only be realized on the navigation bard. The operations on the right-click menu are for screen 1 only. 4.3.3 Output Screen Select corresponding window-split mode and output channels.

  • Page 39: Remote Device

    4.3.10 Remote Device Click , system goes to the remote device interface. Please refer to chapter 4.4 4.3.11 Network Click , system goes to the network interface. It is to set network IP address, default gateway and etc. Please refer to chapter 4.11. 4.3.12 HDD Manager Click system goes to the HDD manager interface.

  • Page 40: Short-Cut Menu

    Click Device search button, you can view the searched IP addresses at the top pane of the interface. Double click an IP address or check one IP address and then click Add button, you can add current device to the bottom pane of the interface. System supports batch add function. Click Manual Add button, you can add a device directly.

  • Page 41: Image

    4.4.3 Image From main menu->setting->camera->image, you can see the image interface is shown as below. See Figure 4-15.  Channel: Select a channel from the dropdown list.  Saturation: It is to adjust monitor window saturation. The value ranges from 0 to 100. The default value is 50.

  • Page 42: Channel Name

     Day/night. It is to set device color and the B/W mode switch. The default setup is auto.  Color: Device outputs the color video.  Auto: Device auto select to output the color or the B/W video accord ing to the device feature (The general bright of the video or there is IR light or not.) ...

  • Page 43: Upgrade

    Figure 4-16 4.4.5 Upgrade It is to update the network camera. From main menu->setting->camera->remote, the interface is shown as below. See Figure 4-17. Click Browse button and then select the upgrade file. Then select a channel (or you can select device type filter to select several devices at the same time.) Click Begin button to upgrade.

  • Page 44: Built-In Switch Setup

    4.4.6 Built-in Switch Setup The built-in switch function is for product of PoE port. From Main menu->Setting->Network->Switch, you can set switch IP address, subnet mask, gateway and etc. See Figure 4-19. Figure 4-19 4.5 Preview After device booted up, the system is in multiple-channel display mode. See Figure 4-20.Please note the displayed window amount may vary.

  • Page 45: Preview

    Figure 4-20 4.5.1 Preview If you want to change system date and time, you can refer to general settings (Main Menu- >Setting->System->General). If you want to modify the channel name, please refer to the display settings (Main Menu->Camera->CAM name) Please refer to the following sheet for detailed information. Recording status Video loss Motion detection...
  • Page 46 System may pop up a dialogue box if there is no such record in current channel. Digital zoom It is to zoom in specified zone of current channel. It supports zoom in function of multiple -channel. Click button , the button is shown .

  • Page 47: Right Click Menu

    channels become as Remote device Shortcut menu. Click it to go to the remote device interface to add/delete remote device or view its corresponding information. Please refer to chapter4.4.2 for detailed information. 4.5.3 Right Click Menu After you logged in the device, right click mouse, you can see the short cut menu. Please see Figure 4-24.

  • Page 48: Video Color

    4.5.4.1 Video Color Here you can set hue, brightness, contrast, saturation, gain, white level, color mode and etc. See Figure 4-25. Figure 4-25 Please refer to the following sheet for detailed information. Item Note Period There are two periods in one day. You can set different sharpness, brightness, and contrast setup for different periods.

  • Page 49: Display

    Item Note lack brightness while the bright section may over exposure .The recommended value ranges from 40 to 60. Saturation It is to adjust monitor window saturation. The value ranges from 0 to 100. The default value is 50. The larger the number, the strong the color is. This value has no effect on the general brightness of the whole video.

  • Page 50: Tv Adjust

     Resolution: There are four options: 1280×1024 (Default), 1280×720, 1920×1080, 1024×768. Please note the system needs to reboot to activate current setup.  VGA+HDMI2: It is for dual-screen operation. Please select from the dropdown list according to your actual situation. Click Apply button, system needs to restart to activate new setup. For example, 32+4 means for VGA, system max supports 32-window split and for HDMI2, system max supports 4-window split.

  • Page 51: Ptz

    release button, you can change channel 1 and channel 16 position.  Tour setup: Here you can set preview window channel display mode and interval. Please follow the steps listed below. From Main menu->Setting->System->Display->Tour, you can see an interface shown as in Figure 4-28. Here you can set tour parameter.
  • Page 52  Channel: Select the current camera channel.  PTZ type: There are two types: local/remote. Please select local mode if you are connect RS485 cable to connect to the Speed dome (PTZ). Please select remote mode if yo u are connecting to the network PTZ camera.

  • Page 53: Ptz Control

    Figure 4-30 4.6.2 PTZ Control After completing all the setting please click save button. Right click mouse (click “Fn” Button in the front panel or click “Fn” key in the remote control). The interface is shown as in Figure 4-31. Please note you can only go to the PTZ control interface when you are in 1 -window display mode.
  • Page 54 The PTZ operation is only valid in one-window mode. Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux function, light and wiper, rotation and etc. Speed is to control PTZ movement speed. The value ranges from 1 to 8.The speed 8 is faster than speed 1.

  • Page 55: Ptz Function Setup

    Figure 4-34 Please refer to the following sheet for detailed information. Please note the above interface may vary due to different protocols. The button is grey and can not be selected once the current function is null. Right click mouse or click the ESC button at the front panel to go back to the Figure 4-32. Icon Function Icon...
  • Page 56 The interface is shown as in Figure 4-36. Click Set button and then input preset number. Click Set button to save current preset. Figure 4-36 Tour Setup In Figure 4-35, click tour button. Input tour value and preset No. Click Add preset button to add current preset to the tour. See Figure 4-37. Tips Repeat the above steps to add more presets to the tour.

  • Page 57: Call Ptz Function

    Figure 4-38 Scan Setup In Figure 4-35, click Scan button. Use direction buttons to set camera left limit and then click Left button. Use direction buttons to set camera right limit and then click Right button. Now the scan setup process is complete.

  • Page 58: Record And Snapshot

    Call Scan In Figure 4-34, input Scan value and then click to call a tour. Click again to stop call. Rotate In Figure 4-34, click to enable the camera to rotate. System supports preset, tour, pattern, scan, rotate, light and etc function. Note: ...

  • Page 59: Overlay

     Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image quality.  Video/audio: You can enable or disable the video/audio. Please note, once you enable audio function for one channel, system may enable audio func tion of the rest channels by default. ...

  • Page 60: Snapshot

    Figure 4-42 4.7.1.3 Snapshot Here you can set snapshot mode, picture size, quality and frequency. See Figure 4-43.  Snapshot mode: There are two modes: regular and trigger. If you set regular mode, you need to set snapshot frequency. If you set trigger snapshot, you need to set snapshot activation operation. ...

  • Page 61: Schedule

    Figure 4-43 Figure 4-44 4.7.2 Schedule The record type priority is: Alarm>Motion detect>Regular. 4.7.2.1 Schedule Record Set record time, record plan and etc. Please note system is in 24-hour record by default after its first boot up. In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu. See Figure 4-48.
  • Page 62  Channel: Please select the channel number first. You can select “all” if you want to set for the whole channels.  : Sync connection icon. Select icon of several dates, all checked items can be edited or together. Now the icon is shown ...
  • Page 63 Figure 4-47 Please check the box to select the corresponding function. After completing all the setups ple ase click save button, system goes back to the previous menu. There are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording.

  • Page 64: Schedule Snapshot

    Figure 4-49 Quick Setup Copy function allows you to copy one channel setup to another. After setting in channel 1, click Copy button, you can go to interface Figure 4-50. You can see current channel name is grey such as channel 1. Now you can select the channel you wan to paste such as channel 5/6/7.
  • Page 65 Figure 4-51 From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure 4-52. Select the snapshot channel from the dropdown list and then select snapshot mode as Timing (Schedule) from the dropdown list and then set picture size, quality and snapshot frequency. Figure 4-52...

  • Page 66: Motion Detect Record/Snapshot

    In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu. See Figure 4-48. Here you can set snapshot period. There are total six periods in one day. Please refer to chapter 4.7.2.1 for detailed setup information. The setup steps are general the same. Figure 4-53 Note ...
  • Page 67 Figure 4-54 Select motion detect from the event type dropdown list. Select a channel from the dropdown list and then check the enable button to enable motion detect function. Click Region Select button to set motion detect zone. There are 396(PAL)/330(NTSC) small zones.

  • Page 68: Motion Detect Snapshot

    Click Copy button to copy current setup to other channel(s). Click OK button to complete motion detect record setup. Figure 4-55 Figure 4-56 4.7.3.2 Motion Detect Snapshot From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure 4-57. In Figure 4-57, select trigger snapshot from the dropdown list and then set picture size, quality and snapshot frequency.

  • Page 69: Alarm Record/Snapshot

    Figure 4-57 4.7.4 Alarm Record/Snapshot 4.7.4.1 Alarm Record Before you set alarm setup information, please go to chapter 2.3 to connect alarm input and alarm output cable (such as light, siren and etc). The record priority is: Alarm>Motion detect>Regular. In the main menu, from Setting->Event-> Alarm, you can see alarm setup interface. See Figure 4-58. ...

  • Page 70: Alarm Snapshot

    Figure 4-58 From Mani menu->Setting->Storage->Schedule, you can go to Figure 4-48. Select alarm channel, period and the record type shall be alarm. Please refer to chapter 4.7.2. Click Copy button to copy current setup to other channel(s). Click OK button to save alarm record information. 4.7.4.2 Alarm Snapshot Please refer to Step a) to step c) of chapter 4.7.3.2 to enable timing snapshot.

  • Page 71: Manual Record/Snapshot

    Figure 4-59 4.7.5 Manual Record/Snapshot You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed. 4.7.5.1 Manual Record Right click mouse select manual record main menu, from Setting->Storage->Manual Record. Manual record menu is show n as in Figure 4-60. Tips You can click Rec button on the front panel (if possible) to go to the Manual Record interface.

  • Page 72: Manual Snapshot

    Figure 4-60 Check the box here to select manual record channel(s). You can see the corresponding indicator light on the front panel is on.  Channel: It is to display device all channels.  Manual: It has the highest priority. Enable corresponding channel to record no matter what period applied in the record setup.
  • Page 73 4-61. Figure 4-61 Click Add new holiday button, you can see an interface shown as in Figure 4-62. Here you can set holiday date name, repeat mode, start time/end time and etc. Figure 4-62...

  • Page 74: Holiday Snapshot

    Click Add button to complete holiday setup. Now you can enable holiday setup and then click Apply button. From Main menu->setting->Storage->schedule, you can go to schedule interface. See Figure 4-63. Now you can set period and record type of holiday time. Please refer to chapter 4.7.2.1 for detailed setup information.

  • Page 75: Search Interface

    4.8.2 Search Interface From Main menu->Search, or on the preview interface right click mouse and then select search item, you can go to the following interface. See Figure 4-64. Figure 4-64 Please refer to the following sheet for more information. Name Function ...
  • Page 76  mode In 1-window playback mode: you can select 1-X channels (X depends on the product channel amount).  channel In 4-window playback mode: you can select 4 channels according to your selection requirement.  pane. In 9-window playback mode, you can switch between 1-8, 9-16 and etc channels.

  • Page 77: Smart Search

    In normal play mode, when you pause current play, you can click │ and │ to begin frame by frame playback. In frame by frame playback mode, click ►/ to restore normal playback. ► Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc.
  • Page 78 display 32 files from one channel.  After you clip on record file, click Backup button you can save it.  For one device, if there is a backup in process, you can not start a new backup operation.  It is to edit the file.

  • Page 79: Accurate Playback By Time

    channel This function is null if there is no record file or system is in smart search process. when playback Note: All the operations here (such as playback speed, channel, time and progress) have relationship with hardware version. Some series NVRs do not support some functions or playback speeds. 4.8.2.1 Smart Search During the multiple-channel playback mode, double click one channel and then click the button,...

  • Page 80: Mark Playback

     After you searched files, system implement accurate playback once you click Play for the first time.  System does not support accurate playback for picture.  System supports synchronization playback and non-synchronous playback. The synchronization playback supports all channels and non-synchronous playback only supports accurately playback of current select channel.

  • Page 81: Picture Playback

     Mark Manager Click the mark manager button on the Search interface (Figure 4-64); you can go to Mark Manager interface. See Figure 4-68. System can manage all the record mark information of current channel by default. You can view all mark information of current channel by time. Figure 4-68 ...
  • Page 82 Figure 4-69 c) Select backup device and then set channel, file start time and end time. d) Click add button, system begins search. All matched files are listed below. System automatically calculates the capacity needed and remained. See Figure 4-70. √...

  • Page 83: Import/Export

    h) Click backup button, system begins burning. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. Note  During backup process, you can click ESC to exit current interface for other operation (For some series product only).

  • Page 84: Backup Log

     Format: Click Format button, system pops up a dialogue box for you to confirm current operation. System begins format process after you click the OK button. Note:  System can not open config backup interface again if there is backup operation in the process. ...

  • Page 85: Alarm

    Figure 4-73 4.10 Alarm 4.10.1 Detect Alarm In the main menu, from Setting to Detect, you can see motion detect interface. See Figure 4-74.There are three detection types: motion detection, video loss, tampering. 4.10.1.1 Motion Detect After analysis video, system can generate a motion detect alarm when the detected moving signal reached the sensitivity you set here.
  • Page 86 screen prompt, alarm upload, email will not be activated again. After 10s, if system detects another alarm signal, it can generate an alarm since the anti -dither time is out.  Period: Click set button, you can see an interface is shown as in Figure 4-77. Here you can set motion detect period.
  • Page 87 Figure 4-74 Figure 4-75...
  • Page 88 Figure 4-76 Figure 4-77...

  • Page 89: Tampering

    Figure 4-78 Motion detect here only has relationship with the sensitivity and region setup. It has no relationship with other setups. 4.10.1.2 Tampering When someone viciously masks the lens, or the output video is in one -color due to the environments light change, the system can alert you to guarantee video continuity.

  • Page 90: Video Loss

    Figure 4-79 4.10.1.3 Video Loss In Figure 4-74, select video loss from the type list. You can see the interface is shown as in Figure 4-80. This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function.

  • Page 91: Alarm Output

    Figure 4-80 4.10.2 Alarm output From Main menu->Setting->Event->Alarm output, you can see an interface shown as in Figure 4-81. Here is for you to set proper alarm output (Auto/manual/stop). Click OK button of the alarm reset, you can clear all alarm output status. Figure 4-81...

  • Page 92: Alarm Setup

    Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. 4.10.3 Alarm Setup In the main menu, from Setting->Event->Alarm, you can see alarm setup interface.  Alarm in: Here is for you to select channel number.
  • Page 93  Alarm output: The number here is the device alarm output port. You can select the corresponding ports(s) so that system can activate the corresponding alarm device(s) when an alarm occurred.  Latch: When the anti-dither time ended, the channel alarm you select in the alarm output may last the specified period.
  • Page 94 Figure 4-82 Figure 4-83...
  • Page 95 Figure 4-84 Figure 4-85...
  • Page 96 Figure 4-86 Figure 4-87...

  • Page 97: Abnormality

    Figure 4-88 Please highlight icon to select the corresponding function. After setting all the setups please click save button, system goes back to the previous menu. 4.10.4 Abnormality There are two types: Disk/Network.  Disk: Disk error, no disk, no space. See Figure 4-89 and Figure 4-90. ...
  • Page 98 Figure 4-89 Figure 4-90...

  • Page 99: Network

    Figure 4-91 4.11 Network 4.11.1 Basic Setup The single network adapter interface is shown as in Figure 4-92 and the dual network adapters interface is shown as in Figure 4-93.  Network Mode : Includes multiple access, fault tolerance, and load balancing ...
  • Page 100  IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access via them.  MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the LAN. It is read-only.

  • Page 101: Connection

    Figure 4-92 Figure 4-93 4.11.1.1 Connection The connection setup interface is shown as in Figure 4-94.

  • Page 102: Wifi

     Max connection: system support maximal 128 users. 0 means there is no connection limit.  TCP port: Default value is 37777.  UDP port: Default value is 37778.  HTTP port: Default value is 80.  HTTPS port: Default value is 443. ...
  • Page 103 Figure 4-95  WIFI working status: Here you can view current connection status. Please note:  After successful connection, you can see WIFI connection icon at the top right corner of the preview interface.  When the hotspot verification type is WEP, system displays as AUTO since the device can not detect its encryption type.

  • Page 104: Pppoe

     APN: It is the wireless connection server. It is to set you access the wireless network via which method.  AUTH: It is the authentication mode. It supports PAP/CHAP.  Dial number: Please input 3G network dialup number you got from your ISP. ...

  • Page 105: Ddns Setup

    Figure 4-97 4.11.1.5 DDNS Setup DDNS setup interface is shown as in Figure 4-98. You need a PC of fixed IP in the internet and there is the DDNS softw are running in this PC. In other words, this PC is a DNS (domain name server). In network DDNS, please select DDNS type and highlight enable item.
  • Page 106 Figure 4-98 Please note NNDS type includes: CN99 DDNS, NO-IP DDNS, Quick DDNS, Dyndns DDNS and sysdns DDNS. All the DDNS can be valid at the same time, you can select as you requirement. Private DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).

  • Page 107: Upnp

    the device IP.  User name: It is optional. You can input your commonly used email address. Important  Do not register frequently. The interval between two registrations shall be more than 60 seconds. Too many registration requests may result in server attack. ...

  • Page 108: Ip Filter

    Figure 4-99 Figure 4-100 4.11.1.7 IP Filter IP filter interface is shown as in Figure 4-101. You can add IP in the following list. The list supports max 64 IP addresses. System supports valid address of IPv4 and IPv6. Please note system needs to check the validity of all IPv6 addresses and implement optimization.
  • Page 109  Type: You can select trusted site and blacklist from the dropdown list. You can view the IP address on the following column.  Start address/end address: Select one type from the dropdown list, you can input IP address in the start address and end address.

  • Page 110: Email

    Figure 4-102 4.11.1.8 Email The email interface is shown as below. See Figure 4-103.  SMTP server: Please input your email SMTP server IP here.  Port: Please input corresponding port value here.  User name: Please input the user name to login the sender email box. ...

  • Page 111: Ftp

    Figure 4-103 4.11.1.9 FTP You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U Administator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user.
  • Page 112 Figure 4-105 System also supports upload multiple NVRs to one FTP server. You can create multiple folders under this FTP. FTP interface is shown as in Figure 4-106. Please highlight the icon in front of Enable to activate FTP function. Here you can input FTP server address, port and remote directory.

  • Page 113: Snmp

    4.11.1.10 SNMP SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system. The SNMP widely used in many environments. It is used in many network device, software and system. You can set in the following interface.
  • Page 114 Figure 4-108 Here you can set a multiple cast group. Please refer to the following sheet for detailed information.  IP multiple cast group address -224.0.0.0-239.255.255.255 -“D”addressspace  The higher four-bitofthefirstbyte=”1110”  Reserved local multiple cast group address -224.0.0.0-224.0.0.255 -TTL=1 When sending out telegraph -For example 224.1.1.1 All systems in the sub-net...

  • Page 115: Alarm Centre

    Please note multiple cast function applies to special series only. 4.11.1.12 Alarm Centre This interface is reserved for you to develop. See Figure 4-109. Figure 4-109 4.11.1.13 Auto register This function allows the device to auto register to the proxy you specified. In this way, you can use the client-end to access the NVR and etc via the proxy.

  • Page 116: Switch

    Figure 4-110 2) The proxy server software developed from the SDK. Please open the software and input the global setup. Please make sure the auto connection port here is the same as the port you set in the previous step. 3) Now you can add device.

  • Page 117: P2P

    Figure 4-111 4.11.1.15 The P2P interface is shown as in Figure 4-112. You can visit www.easy4ip.com to scan the QR code to login. Figure 4-112 4.11.2 Network Test In this interface, you can see network test and network load information. 4.11.2.1 Network Test From main menu->Info-Network->Test, the network test interface is shown as in Figure 4-113.

  • Page 118: Network Load

     Test: Click it to test the connection with the destination IP address. The test results can display average delay and packet loss rate and you can also view the network status as OK, bad, no connection and etc.  Network Sniffer backup: Please insert USB2.0 device and click the Refresh button, you can view the device on the following column.

  • Page 119: Hdd Setup

    Figure 4-114 4.12 HDD Setup Here you can view HDD information such as type, status, total capacity, record time and etc. The operation includes format, resume from error, change HDD property (Read write, Read-only). Here you can also set alarm and HDD storage position. 4.12.1 Format From Mani-menu->Setting->Storage->HDD Manager, you can go to HDD management interface.

  • Page 120: Hdd Information

    Figure 4-115 b) Select a HDD and then select format from the dropdown list. Click Execute button. c) Click OK button to complete the setup. You can see system needs to restart to activate current setup. 4.12.2 HDD Information Here is to list hard disk type, total space, free space, and status. See Figure 4-116. ○...
  • Page 121 Figure 4-116 In Figure 4-116, click one HDD item, the S.M.A.R.T interface is shown as in Figure 4-117. Figure 4-117...

  • Page 122: Advanced

    Parameter Function SATA 1 here means there is 1 HDD. For different series product, the max HDD amount may vary, When HDD is working properly, system is shown as O. . “_” means there is no HDD. You can view the HDD amount the device connected to; means the second HDD is current working HDD.
  • Page 123 Figure 4-118 Please select the correspond group from the dropdown list and then click Apply button. Click main stream/sub stream/snapshot button to set corresponding HDD group information. See Figure 4-119 through Figure 4-121. Figure 4-119...

  • Page 124: Raid Manager

    Figure 4-120 Figure 4-121 4.12.4 RAID Manager Important Please make sure your purchased product support the RAID function, otherwise you can not see the following interface. Right now, RAID supports Raid0, Raid1, Raid5, Raid6, and Raid10. Local hotspare supports Raid1,...

  • Page 125: Raid Config

    Raid5, Raid6, and Raid10. 4.12.4.1 RAID Config It is for you to manage RAID HDD. It can display RAID name, type, free space, total space, status and etc. Here you can add/delete RAID HDD. Click Add button to select RAID type and then select HDDs, click OK button to add. See Figure 4-122. Figure 4-122 4.12.4.2 Hotspare disks Click Hotspare disks tab name, you can add the hot spare HDD.

  • Page 126: Basic Setups

    Figure 4-123 4.13 Basic Setups Set NVR basic setup, device setup and other setups. 4.13.1 Device Setup From Main menu->Setting->System->General, you can go to the general interface. See Figure 4-125.  Pack duration: Here is for you to specify record duration. The value ranges from 0 to 120 minutes. Default value is 60 minutes.

  • Page 127: Data And Time

     IPC Time Sync: You can input an interval here to synchronize the NVR time and IPC time.  Startup wizard: Once you check the box here, system will go to the startup wizard directly when the system restarts the next time. Otherwise, it will go to the logi n interface. ...

  • Page 128: Holiday

    Figure 4-125 4.13.3 Holiday Holiday setup interface is shown as in Figure 4-126. Click Add new holiday button, you can input new holiday information. See Figure 4-127. Here you can set holiday name, repeat mode and start/end time. Figure 4-126...

  • Page 129: Device Maintenance And Manager

    Figure 4-127 4.14 Device Maintenance and Manager 4.14.1 System Info 4.14.1.1 Version From main menu->Info->System->version, you can go to version interface. Here is for you to view some version information. See Figure 4-128. Please note the following figure for reference only. ...

  • Page 130: Bps

    Figure 4-128 4.14.1.2 BPS Here is for you to view current video bit rate (kb/s) and resolution. See Figure 4-129. Figure 4-129 4.14.1.3 Online User Here is for you manage online users connected to your NVR. See Figure 4-130.

  • Page 131: Remote Device Information

    You can click button to disconnect or block one user if you have proper system right. System detects there is any newly added or deleted user in each five seconds and refresh the list automatically. Figure 4-130 4.14.1.4 Remote Device Information From main menu->info-Event, here you can view the channel status of the remote device, connection log and etc.

  • Page 132: Remote

    Figure 4-131 4.14.1.5 Remote 4.14.1.5.1 Device Status Here you can view the IPC status of the corresponding channel such as motion detect, video loss, tampering, alarm and etc. See Figure 4-132.  IPC status: : Front-end does not support. : Front-end supports. : There is alarm event from current front-end.

  • Page 133: Firmware

    Figure 4-132 4.14.1.5.2 Firmware It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio input, external alarm and etc. See Figure 4-133. Figure 4-133...

  • Page 134: Log

    4.14.2 Log From Main menu->Info->Log, you can go to the following interface. See Figure 4-134.  Start time/end time: Pleased select start time and end time, then click search button. You can view the log files in a list. System max displays 100 logs in one page. It can max save 1024 log files. Please use page up/down button on the interface or the front panel to view more.

  • Page 135: Account

    Figure 4-135 4.14.3 Account Here is for you to implement account management. See Figure 4-136 and Figure 4-137. Here you can:  Add new user  Modify user  Add group  Modify group  Modify password. For account management please note: ...

  • Page 136: Add/Modify Group

    Figure 4-136 Figure 4-137 4.14.3.1 Add/Modify Group...

  • Page 137: Add/Modify User

    Click add group button, the interface is shown as below. See Figure 4-138. Here you can input group name and then input some memo information if necessary. There are many rights such as control panel, shut down, real-time monitor, playback, record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc.

  • Page 138: Update

    Figure 4-139 4.14.4 Update From Mani menu->Setting->Info->Update, you can go to the following interface. See Figure 4-140. Insert USB device that contain the upgrade file. Click Start button and then select the .bin file. You can see the corresponding dialogue box after the update process is complete. Figure 4-140...

  • Page 139: Default

    4.14.5 Default You can restore factory default setup to fix some problems when the device is running slowly. Configuration error occurred. From Main menu->Setting->System->Default, you can go to the default interface. See Figure 4-141. Click default icon, system pops up a dialogue box. You can highlight to restore factory default setup.

  • Page 140: Auto Maintain

     Function: There are various devices for you to select. Console is for you to use the COM or mini -end software to upgrade or debug the program. The control keyboard is for you to control the device via the special keyboard. Transparent COM (adapter) is to connect to the PC to transfer data directly. Protocol COM is for card overlay function.

  • Page 141: Logout /Shutdown/Restart

    Figure 4-143 4.14.8 Logout /Shutdown/Restart From Mani menu->Operation->Shutdown, you can see an interface shown as in Figure 4-144.  Shutdown: System shuts down and turns off power.  Logout: Log out menu. You need to input password when you login the next time. ...

  • Page 142: Web Operation

    5 Web Operation 5.1 General Introduction The device web provides channel monitor menu tree, search, alarm setup, system setup, PTZ control and monitor window and etc. Important The following operation is based on 32-channel series device. 5.1.1 Preparation Before log in, please make sure: ...

  • Page 143: Lan Mode

    Figure 5-2 After installation, the interface is shown as below. See Figure 5-3. Figure 5-3 Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. 5.2 LAN Mode For the LAN mode, after you logged in, you can see the main window.
  • Page 144  Section 1: there are six function buttons: Live chapter 0 , setup (chapter 5.8), info (Chapter 5.9), playback (chapter 5.10), alarm (chapter 5.11), and logout (chapter 5.12).  Section 2: There are monitor channels successfully connected to the NVR. Please refer to Figure 5-4 for main stream and extra stream switch information.

  • Page 145: Real-Time Monitor

    The Web can playback the saved (Extension name is dav) files in the PC-end. Click local play button, system pops up the following interface for you to select local play file. See Figure 5-8. Figure 5-8  Section 7 Zero-channel encoding. Please refer to chapter 5.6 for detailed information. ...

  • Page 146: Ptz

    In section 2, left click the channel name you want to view, you can see the corresponding video in current window. On the top left corner, you can view device IP(172.11.10.11), channel number(1), network monitor bit stream(2202Kbps) and stream type(M=main stream, S=sub stream). See Figure 5-10. Figure 5-10 On the top right corner, there are six unction buttons.
  • Page 147 Parameter Function  Select Preset from the dropdown list. Preset  Turn the camera to the corresponding position and Input the preset value. Click Add button to add a preset.  Select Tour from the dropdown list. Tour  Input preset value in the column. Click Add preset button, you have added one preset in the tour.

  • Page 148: Image/Alarm-Out

    5.5 Image/Alarm-out Select one monitor channel video and then click Image button in section 9, the interface is shown as Figure 5-13. 5.5.1 Image Here you can adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click Reset button to restore system default setup. Figure 5-13 5.5.2 Alarm output Here you can enable or disable the alarm signal of the corresponding port.

  • Page 149: Wan Login

    Figure 5-15 5.7 WAN Login In WAN mode, after you logged in, the interface is shown as below. See Figure 5-16. Figure 5-16 Please refer to the following contents for LAN and WAN login difference. 1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The open/close button on the left pane is null.

  • Page 150: Setup

    Figure 5-17. Figure 5-17 Important The window display mode and the channel number are by default. For example, for the 16-channel, the max window split mode is 16. 3) Multiple-channel monitor, system adopts extra stream to monitor by default. Double click one channel, system switches to single channel and system uses main stream to monitor.
  • Page 151 Figure 5-18 Figure 5-19 Please refer to the following sheet for log parameter information. Parameter Function Click Device search button, you can view the searched device Device search information on the list. It includes device IP address, port, device name, manufacturer and type. Select a device in the list and then click Add button, system can connect the device automatically and add it to the Added device list.

  • Page 152: Image

    Parameter Function Modify Click or any device in the Added device list, you can change the corresponding channel setup. Delete Click , you can delete the remote connection of the corresponding channel. : Connection succeeded. Connection status : Connection failed. Delete Select a device in the Added device list and then click Delete button, system can disconnect the device and remove it from the Added...
  • Page 153 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Period It divides one day (24 hours) to two periods. You can set different hue, brightness, and contrast for different periods. It is to adjust monitor video brightness and darkness level.

  • Page 154: Encode

    The device auto exposures according to the environments situation so that the darkest area of the video is cleared Mode For the WDR scene, this function can lower the high bright section and enhance the brightness of the low bright section. So that you can view these two sections clearly at the same time.
  • Page 155 Figure 5-21 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Video enable Check the box here to enable extra stream video. This item is enabled by default. It includes main stream, motion stream and alarm stream. You Code stream type can select different encode frame rates form different recorded...

  • Page 156: Snapshot

    VBR mode. Reference bit Recommended bit rate value according to the resolution and rate frame rate you have set. I Frame Here you can set the P frame amount between two I frames. The value ranges from 1 to 150. Default value is 50.

  • Page 157: Video Overlay

    5.8.1.3.3Video Overlay The video overlay interface is shown as in Figure 5-23. Figure 5-23 Please refer to the following sheet for detailed information. Parameter Function Check Preview or Monitor first. Cover-area Click Set button, you can privacy mask the specified video in the preview or monitor video.

  • Page 158: Channel Name

    Figure 5-24 5.8.1.4 Channel Name Here you can set channel name. See Figure 5-25. Figure 5-25 5.8.1.5 IPC Upgrade This interface is to upgrade network camera. See Figure 5-26. Click Browse button to select upgrade file. Or you can use filter to select several network cameras at the same time.

  • Page 159: Network

    Figure 5-26 5.8.2 Network 5.8.2.1 TCP/IP The TCP/IP interface is shown as in Figure 5-27. Figure 5-27 Please refer to the following sheet for detailed information. Parameter Function Mode There are two modes: static mode and the DHCP mode.  The IP/submask/gateway are null when you select the DHCP mode to auto search the IP.

  • Page 160: P2P

    IP/submask/gateway manually.  If you select the DHCP mode, you can view the IP/submask/gateway from the DHCP.  If you switch from the DHCP mode to the static mode, you need to reset the IP parameters.  Besides, IP/submask/gateway and DHCP are read-only when the PPPoE dial is OK.

  • Page 161: Wifi

    Figure 5-29 Please refer to the following sheet for detailed information. Parameter Function Max connection It is the max Web connection for the same device. The value ranges from 1 to 120. The default setup is 120. TCP port The default value is 37777. You can input the actual port number if necessary.

  • Page 162: Cdma/Gprs

    Figure 5-30 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list. Double click a name to connect to it. Click Refresh button, you can view latest connection status. 5.8.2.5 3G 5.8.2.5.1CDMA/GPRS The CDMA/GPRS interface is shown as in Figure 5-31.

  • Page 163: Mobile

    Please refer to the following sheet for detailed information. Parameter Function WLAN type Here you can select 3G network type to distinguish the 3G module from different ISP. The types include WCDMA CDMA1x and etc. APN/Dial No. Here is the important parameter of PPP. Authorization It includes PAP,CHAP,NO_AUTH.

  • Page 164: Ddns

    Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from the IP address column. Please note, you need to use previous IP address in the LAN to login the device. Please go to the IP address item to via the device current device information.

  • Page 165: Ip Filter

    Parameter Function Server IP DDNS server IP address Server Port DDNS server port. Domain Name Your self-defined domain name. User The user name you input to log in the server. Password The password you input to log in the server. Update period Device sends out alive signal to the server regularly.

  • Page 166: Email

    Figure 5-35 5.8.2.9 Email The email interface is shown as in Figure 5-36. Figure 5-36 Please refer to the following sheet for detailed information. Parameter Function Please check the box here to enable email function. Enable Input server address and then enable this function. SMTP Server Port Default value is 25.

  • Page 167: Upnp

    Parameter Function Anonymity For the server supports the anonymity function. You can auto login anonymously. You do not need to input the user name. password and the sender information. The user name of the sender email account. User Name The password of sender email account. Password Sender email address.

  • Page 168: Snmp

    Figure 5-37 5.8.2.11 SNMP The SNMP interface is shown as in Figure 5-38. The SNMP allows the communication between the network management work station software and the proxy of the managed device. It is reserved for the 3 party to develop. Figure 5-38 Please refer to the following sheet for detailed information.

  • Page 169: Multicast

    Parameter Function It is a string. It is a command between the manage process Read Community and the proxy process. It defined the authentication, access control and the management relationship between one proxy and one group of the managers. Please make sure the device and the proxy are the same.

  • Page 170: Alarm Centre

    Please follow the steps listed below to use this function. Please set proxy server address, port, and sub-device name at the device-end. Please enable the auto register function, the device can auto register to the proxy server. Figure 5-40 5.8.2.14 Alarm Centre The alarm center interface is shown as below.

  • Page 171: Create Server Certificate

     You need to implement server certificate again if you have changed device IP.  You need to download root certificate if it is your first time to use HTTPS on current PC. Figure 5-42 5.8.2.15.1 Create Server Certificate If it is your first time to use this function, please follow the steps listed below. In Figure 5-42, click button, input country name,...
  • Page 172 Figure 5-45 Click Open button, you can go to the following interface. See Figure 5-46. Figure 5-46 Click Install certificate button, you can go to certificate wizard. See Figure 5-47.
  • Page 173 Figure 5-47 Click Next button to continue. Now you can select a location for the certificate. See Figure 5-48. Figure 5-48 Click Next button, you can see the certificate import process is complete. See Figure 5-49.

  • Page 174: View And Set Https Port

    Figure 5-49 Click Finish button, you can see system pops up a security warning dialogue box. See Figure 5-50. Figure 5-50 Click Yes button, system pops up the following dialogue box, you can see the certificate download is complete. See Figure 5-51. Figure 5-51 5.8.2.15.3 View and set HTTPS port From Setup->Network->Connection, you can see the following interface.

  • Page 175: Login

    Figure 5-52 5.8.2.15.4 Login Open the browser and then input https://xx.xx.xx.xx:port. xx.xx.xx.xx: is your device IP or domain mane. Port is your HTTPS port. If you are using default HTTPS value 443, you do not need to add port information here. You can input https://xx.xx.xx.xx to access. Now you can see the login interface if your setup is right.
  • Page 176 Figure 5-53 Figure 5-54...
  • Page 177 Figure 5-55 Figure 5-56 Figure 5-57...
  • Page 178 Figure 5-58 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. Please select a channel from the dropdown list. Period Motion detection function becomes activated in the specified periods.

  • Page 179: Video Loss

    Parameter Function message screen if you enabled this function. Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre. Message When 3G network connection is OK, system can send out a message when motion detect occurs.

  • Page 180: Tampering

    Figure 5-59 5.8.3.1.3Tampering The tampering interface is shown as in Figure 5-60. After analysis video, system can generate a tampering alarm when the detected moving signal reached the sensitivity you set here. For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. Figure 5-60 5.8.3.2 Alarm Before operation, please make sure you have properly connected alarm devices such as buzzer.
  • Page 181 Figure 5-61 Figure 5-62...
  • Page 182 Figure 5-63 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. Please select a channel from the dropdown list. Period This function becomes activated in the specified periods. There are six periods in one day.

  • Page 183: Net Alarm

    Parameter Function Show message System can pop up a message to alarm you in the local host screen if you enabled this function. Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre).

  • Page 184: Ipc Offline Alarm

    setup. For setup information, please refer to chapter 5.8.3.2.1. Figure 5-65 5.8.3.2.4 IPC Offline Alarm The IPC offline alarm interface is shown as in Figure 5-66. System can generate an alarm once the network camera is offline. For setup information, please refer to chapter 5.8.3.2.1.

  • Page 185: Abnormality

    5.8.3.3 Abnormality It includes six types: No disk, disk error, disks no space, disconnect, IP conflict, MAC conflict. See Figure 5-67 through Figure 5-72. Figure 5-67 Figure 5-68 Figure 5-69 Figure 5-7...
  • Page 186 Figure 5-71 Figure 5-72 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: No disk, disk error, disk no space, net Type disconnection, IP conflict and MAC conflict. You can set one or more items here. Less than: You can set the minimum percentage value here (For disk not space only).

  • Page 187: Storage

    Parameter Function Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. 5.8.4 Storage 5.8.4.1 Schedule In this interfaces, you can add or remove the schedule record setup. See Figure 5-73. There are four record modes: general (auto), motion detect, alarm and MD&alarm. There are six periods in one day.
  • Page 188 Figure 5-75 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Pre-record Please input pre-record time here. The value ranges from 0 to 30. Redundancy Check the box here to enable redundancy function. Please note this function is null if there is only one HDD.

  • Page 189: Hdd Manager

    Parameter Function 5/6/7. If you wan to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click the OK button to save current copy setup. Click the OK button in the Encode interface, the copy function succeeded.

  • Page 190: Record Control

    Figure 5-78 5.8.4.3 Record Control The interface is shown as in Figure 5-79. Figure 5-79 Please refer to the following sheet for detailed information. Parameter Function Here you can view channel number. Channel The number displayed here is the max channel amount of your device.

  • Page 191: Raid Manager

    It has the highest priority. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop current channel record no matter what period applied in the Stop record setup. Check the corresponding All button, you can enable or disable all Start all/ stop all channels record.

  • Page 192: Storage

    Figure 5-81 5.8.4.5 Storage 5.8.4.5.1 Main Stream The main stream interface is shown as in Figure 5-82. Here you can set corresponding HDD group to save main stream. Figure 5-82 5.8.4.5.2 Sub Stream The sub stream interface is shown as in Figure 5-83. Here you can set corresponding HDD group to save sub stream.

  • Page 193: Snapshot

    Figure 5-83 5.8.4.5.3Snapshot The snapshot interface is shown as in Figure 5-84. Here you can set corresponding HDD group to save snapshot picture. Figure 5-84 5.8.5 Setting 5.8.5.1 General The general interface includes general, date/time and holiday setup. 5.8.5.1.1General The general interface is shown as in Figure 5-85. Figure 5-85...

  • Page 194: Date And Time

    Please refer to the following sheet for detailed information. Parameter Function It is to set device name. Device ID Device No. It is device channel number. Language You can select the language from the dropdown list. Please note the device needs to reboot to get the modification activated.

  • Page 195: Holiday Setup

    There are two options: 24-H and 12-H. Time Format The time zone of the device. Time zone It is to set system time. It becomes valid after you set. System time Sync PC You can click this button to save the system time as your PC current time.

  • Page 196: User Name

    5.8.5.2.1User name In this interface you can add/remove user and modify user name. See Figure 5-88. Figure 5-88 Add user: It is to add a name to group and set the user rights. See Figure 5-89. There are four default users: admin/888888/666666 and hidden user “default”. Except user 6666, other users have administrator right.
  • Page 197 Modify user It is to modify the user property, belonging group, password and rights. See Figure 5-90. Modify password It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup. Please click the OK button to save. Please note, the password ranges from 1-digit to 6-digit.

  • Page 198: Group

    Add group: It is to add group and set its corresponding rights. See Figure 5-92. Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 5-92 Modify group Click the modify group button, you can see an interface is shown as in Figure 5-93.

  • Page 199: Display

    5.8.5.3 Display Display interface includes GUI, TV adjust, Tour and zero-channel encoding. 5.8.5.3.1Display Here you can set background color and transparency level. See Figure 5-94. Figure 5-94 Please refer to the following sheet for detailed information. Parameter Function There four options: Resolution 1920×1080,1280×1024(default),1280×720,1024×768.

  • Page 200: Tour

    Figure 5-95 Please refer to the following sheet for detailed information. Parameter Function Check the box here to enable tour function. Enable tour Here is for you to adjust transparency. The value ranges from 5 to Interval 120s. The default setup is 5s. Here you can set window mode and channel group.

  • Page 201: Default

    Figure 5-96 5.8.5.5 Default The default setup interface is shown as in Figure 5-97. Here you can select Network/Event/Storage/Setting/Camera. Or you can check the All box to select all items. Figure 5-97 5.8.5.6 Import/Export The interface is shown as in Figure 5-98. This interface is for you to export or import the configuration files.

  • Page 202: Auto Maintain

    Please refer to the following sheet for detailed information. Parameter Function Click to select import file. Browse It is to import the local setup files to the system. Import It is to export the corresponding WEB setup to your local PC. Export 5.8.5.7 Auto maintain The auto maintain interface is shown as in Figure 5-99.

  • Page 203: Rs232

    5.8.5.9 RS232 The RS232 interface is shown as in Figure 5-101. Figure 5-101 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol Default setup is console. Select the baud rate. Baud Rate Default setup is 115200.
  • Page 204 Figure 5-102 Figure 5-103 Please refer to the following sheet for detailed information. Parameter Function Select speed dome connected channel. Channel There are two options: local/remote. PTZ Type Please select remote type if you are connecting to the network PTZ. Select the corresponding dome protocol such as PELCOD.

  • Page 205: Information

    Parameter Function setup. Parity Default setup is none. Please set according to the speed dome dial switch setup. Information 5.9.1 Version The version interface is shown as in Figure 5-104. Here you can view record channel, alarm input/output information, software version, release date and etc. Please note the following information is for reference only.

  • Page 206: Online User

    Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, user management, log clear. Set the start time of the requested log. Start time Set the end time of the requested log. End time You can select log type from the drop down list and then click search Search button to view the list.
  • Page 207 Figure 5-107 Then please click File list button, you can see the corresponding files in the list. See Figure 5-108. Figure 5-108 Select a file you want to play and then click Play button, system can begin playback. You can select to playback in full-screen.
  • Page 208 Figure 5-109 Select the file(s) you want to download and then click download button, you can see an interface shown as in Figure 5-110. The Download button becomes Stop button and there is a process bar for your reference. Please go to you default file saved path to view the files. Figure 5-110...
  • Page 209 Load more Click More button in Figure 5-110, you can see an interface shown as in Figure 5-111. It is for you to search record or picture. You can select record channel, record type and record time to download. Figure 5-111 Watermark Watermark interface is shown as in Figure 5-112.

  • Page 210: Alarm

    5.11 Alarm Click alarm function, you can see an interface is shown as Figure 5-113. Here you can set device alarm type and alarm sound setup (Please make sure you have enabled audio function of corresponding alarm events.). Figure 5-113 Please refer to the following sheet for detailed information.

  • Page 211: Un-Install Web Control

    Click log out button, system goes back to log in interface. See Figure 5-114. You need to input user name and password to login again. Figure 5-114 5.13 Un-install Web Control You can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un-installation might result in error.

  • Page 212: Glossary

    6 Glossary  DHCP: DHCP (Dynamic Host Configuration Protocol) is a network protocol. It is one of the TCP/IP protocol cluster. It is principally used to assign temporary IP addresses to computers on a network.  DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.

  • Page 213: Appendix A Hdd Capacity Calculation

    Appendix A HDD Capacity Calculation Calculate total capacity needed by each device according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.

  • Page 214: Appendix B Compatible Network Camera

    Appendix B Compatible Network Camera Please note all the models in the following list are for reference only. For those products not included in the list, please contact your local retailer or technical supporting engineer for detailed information. Manufact Model Version Video Encode Audio/Vid...
  • Page 215 √ Cannon VB-M400 H264 Private √ MPix2.0DIR XNETM112011 H264 ONVIF 1229 √ VIPBL1.3MIR XNETM210011 H264 ONVIF 1229 √ IGC-2050F XNETM210011 H264 ONVIF 1229 √ CP PLUS CP-NC9-K 6.E.2.7776 H264 Private, ONVIF √ CP-NC9W-K 6.E.2.7776 H264 Private √ CP-ND10-R cp20111129AN H264 ONVIF √...
  • Page 216 √ HICC-1300W 2.0.1.7 H264 ONVIF √ HICC-2300 2.0.0.21 H264 ONVIF √ HDZ20HDX H20130114NS H264 ONVIF √ LW342-FP H264 Private √ LNB5100 H264 ONVIF √ Imatek KNC-B5000 H264 Private √ KNC-B5162 H264 Private √ KNC-B2161 H264 Private √ Panasonic NP240/CH MPEG4 Private √...
  • Page 217 √ DD4N-X 01.02.0015 MPEG4 Private √ DD423-X 01.02.0006 MPEG4 Private √ D5220 1.8.3-FC2-2012 H264 Private 0614-1.9320-A 1.8035 √ Samsung SNB-3000P 2.41 Private, ONVIF H264 MPEG4 √ SNP-3120 1.22_110120_1 Private, ONVIF H264 MPEG4 √ SNP-3370 1.21_110318 MPEG4 Private √ SNB-5000 2.10_111227 H264 MPEG4 Private, ONVIF √...

  • Page 218: Appendix C Compatible Backup Device List

    Appendix C Compatible Backup Device List Compatible USB drive list Manufacturer Model Capacity Sandisk Cruzer Micro 512M Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256M Sandisk Cruzer Freedom 512M Sandisk Cruzer Freedom Sandisk Cruzer Freedom Kingston DataTraveler Kingston DataTraveler Kingston DataTraveler...
  • Page 219 Manufacturer Model Capacity Kingston Data Traveler Locker+ 32GB Netac U228 Compatible SD Card List Please refer to the following sheet for compatible SD card brand. Brand Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston Kingston Sandisk SDHC2 Micro-SD Sandisk Micro-SD Compatible Portable HDD List...
  • Page 220 Manufacturer Model SONY AW-G170S Pioneer NVR-217CH Pioneer NVR-215CHG Compatible SATA HDD List Port Manufacturer Series Model Capacity Mode Seagate Seagate SV35.1 ST3250824SV 250G SATA Seagate Seagate SV35.1 ST3500641SV 500G SATA Seagate Seagate SV35.2 ST3250820SV 250G SATA Seagate Seagate SV35.2 ST3320620SV 320G SATA Seagate...
  • Page 221 Port Manufacturer Series Model Capacity Mode Seagate Seagate Pipeline ST3320311CS 250G SATA Seagate Seagate Pipeline ST3500414CS 500G SATA Seagate Seagate Pipeline ST3500312CS 500G SATA Seagate Seagate Pipeline ST31000424CS SATA Seagate Seagate Pipeline ST31000322CS SATA Seagate ST1000VM002 SATA Seagate Pipeline Seagate ST1500VM002 SATA Seagate...
  • Page 222 Port Manufacturer Series Model Capacity Mode Constellation ES Seagate Seagate ST2000NM0051 SATA Constellation ES Seagate Seagate ST1000NM0051 SATA Constellation ES Seagate Seagate ST500NM0051 500G SATA Constellation ES Seagate Seagate ST33000650NS SATA Constellation ES.2 Seagate Seagate ST32000645NS SATA Constellation ES.2 Seagate ST33000651NS SATA Seagate...
  • Page 223 Port Manufacturer Series Model Capacity Mode Digital Westem WD Caviar RE16 WD3200YS-01PGB0 320G SATA Digital Westem WD Caviar RE2 WD5000YS-01MPB0 500G SATA Digital Westem WD AV—AVJS WD2500AVJS-63WDA0 500G SATA Digital Westem WD AV—AVJS WD3200AVJS-63WDA0 320G SATA Digital Westem WD AV—AVJS WD5000AVJS-63YJA0 500G SATA...
  • Page 224 Port Manufacturer Series Model Capacity Mode Digital Westem WDAV-GP—EVDS WD20EVDS-63T3B0 SATA Digital Westem WDAV-GP—AVDS WD5000AVDS-63U7B0 500G SATA Digital Westem WD AV-GP WD30EURS SATA Digital Westem WD AV-GP WD25EURS 2.5T SATA Digital Westem WD AV-GP WD20EURS SATA Digital WD AV-GP WD15EURS 1.5T SATA Westem...
  • Page 225 Port Manufacturer Series Model Capacity Mode HitachiCinemaStar™ Hitachi HCT721075SLA360 750G SATA 7K1000.B HitachiCinemaStar™ Hitachi HCT721010SLA360 SATA 7K1000.B Maxtor DiamondMax 20 STM3320820AS 320G SATA Maxtor DiamondMax 20 STM3250820AS 250G SATA Compatible 2.5-inch HDD List Manufacturer Series Model Capacity Seagate ST1000LM024 SATA Seagate ST500LM012 500G...

  • Page 226: Appendix D Compatible Cd/Dvd

    Appendix D Compatible CD/DVD Manufacturer Model Port Mode Type Sony DRX-S50U DVD-RW Sony DRX-S70U DVD-RW Sony AW-G170S SATA DVD-RW Samsung TS-H653A SATA DVD-RW Panasonic SW-9588-C SATA DVD-RW Sony DRX-S50U DVD-RW BenQ 5232WI DVD-RW...

  • Page 227: Appendix E Compatible Displayer List

    11 Appendix E Compatible Displayer List Brand Model Dimension (Unit: inch) ET-0007-TA 19-inch (wide screen) BENQ LCD DELL LCD E178FPc 17-inch Q7T4 17-inch BENQ LCD Q7T3 17-inch BENQ LCD LENOVO LCD LXB-L17C 17-inch SANGSUNG LCD 225BW 22-inch (wide screen) LENOVO(CRT) LXB-FD17069HB 17-inch LENOVO(CRT)

  • Page 228: Appendix F Toxic Or Hazardous Materials Or Elements

    12 Appendix F Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ Panel ○ ○ ○ ○...

This manual is also suitable for:

Nvr-xuNvr-401uNvr-801uNvr-1001uNvr-xud series

Table of Contents
