Black & Decker BDL190S-XE Instruction Manual

A A u u
A A u u
W W o o o o d d & & M M e e t t a a l l S S
W W o o o o d d & & M M e e t t a a l l S S

INSTRUCTION MANUAL

Catalog No.
BDL190S-XE
www.blackanddecker.com.au
Thank you for choosing Black & Decker!
PLEASE READ BEFORE RETURNING THIS
PRODUCT FOR ANY REASON:
If you can't find the answer or do not have access to the internet,
call 1-800-444-224 from 9 a.m. to 5 p.m. EST Mon. -- Fri. to speak with an agent.
Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Cat No. BDL190S-XE Form # 90588003
March 2012 Copyright © 2012 Black & Decker
90588096
May 2012
WARNING: Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS

Safety Instructions

• Do not operate the laser in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust.
• Use the laser only with the specifically designated batteries. Use of any other batteries
may create a risk of fire.
• Store idle laser out of reach of children and other untrained persons. Lasers are dangerous
in the hands of untrained users.
• Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one laser, may create a risk of injury when used on
another laser.
• Do not use optical tools such as a telescope or transit to view the laser beam. Serious eye
injury could result.
• Do not place the laser in a position which may cause anyone to intentionally or
unintentionally stare into the laser beam. Serious eye injury could result
• Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring
into the laser beam.
• Repairs and servicing MUST be performed by a qualified repair facility. Repairs performed
by unqualified personnel could result in serious injury.
WARNING: DO NOT DISASSEMBLE THE LASER. There are no user serviceable
•
parts inside. Disassembling the Laser will void all warranties on the product. Do not modify
the product in any way. Modifying the tool may result in Hazardous Laser Radiation
Exposure.
• Do not operate the laser around children or allow children to operate the laser. Serious eye
injury may result.
• Do not remove or deface warning labels. Removing labels increases the risk of exposure
to radiation.
• Position the laser securely. Damage to the laser or serious injury could result if the laser
falls.
• CAUTION: Occasionally, pipes and electrical wiring may not be detected by this
product. The sensor will not detect hot wires inside metal pipe or metal conduit, behind
metallic wall covering, or behind some plywood or other dense materials.
• CAUTION: Material thickness, type of material, moisture content, and other variables
can affect sensing results. The sensor may detect electric wiring or pipes in the same
manner that studs are detected depending on their location to the wall surface. Use
caution when drilling, nailing or cutting into walls, floors and ceilings which may contain
electrical wiring or pipes. These items may be detected by the sensor in the same manner
in which studs are detected. Because studs are normally spaced 16 inches (406 mm) or
24 inches (610 mm) apart and are usually 1-1/2 inches (38 mm) wide, beware of anything
closer together or of a different width. Always turn off the power when working near
• CAUTION: Use of controls or adjustments or performance of procedures other than
electrical wires.
those specified in this manual may result in hazardous laser radiation exposure.
• This product is intended for use in a temperature range of 50°F(10°C) - 104°F(40°C).
• If liquid crystal comes in contact with your skin:
Liquid Crystal Display (First Aid Measures)
Wash area off completely with plenty of water. Remove contaminated clothing.
• If liquid crystal gets into your eye:
Flush the affected eye with clean water and then seek medical attention.
• If liquid crystal is swallowed:
Flush your mouth thoroughly with water. Drink large quantities of water and induce
vomiting. Then seek medical attention.
The label on your tool may include the following symbols.
V ..........................volts
nm ........................wavelength in nanometers IIIa ......................Class IIIa Laser
........................AC Wire Warning
t t o o L L e e v v e e l l i i n n g g L L a a
t t o o L L e e v v e e l l i i n n g g L L a a
t t u u d d / / A A C C W W i i r r e e S S
t t u u d d / / A A C C W W i i r r e e S S
DANGER PELIGRO
LASER RADIATION. AVOID DIRECT EYE EXPOSURE.
RADIACIÓN LÁSER. EVITE LA EXPOSICIÓN DIRECTA DE LOS OJOS.
MAXIMUM OUTPUT POWER< 5mW@633nm-670nm CLASS IIIa LASER PRODUCT. THIS PRODUCT
COMPLIES WITH THE APPLICABLE REQUIREMENTS OF 21CFR PARTS 1040.10 AND 1040.11.
LÁSER CLASE IIIa CON MÁXIMA POTENCIA DE SALIDA < 5mW@633nm-670nm. ESTE PRODUCTO
CUMPLE CON LOS REQUISITOS APLICABLES DE LAS PIEZAS 1040.10 Y 1040.11 DE 21CFR.
Printed in China
mW......................milliwatts
A
s s e e r r / /
s s e e r r / /
F
e e n n s s o o r r
e e n n s s o o r r
G
A
1
DANGER PELIGRO
RADIACIÓN LÁSER. EVITE LA EXPOSICIÓN DIRECTA DE LOS OJOS. LASER RADIATION. AVOID DIRECT EYE EXPOSURE.
LÁSER CLASE IIIa CON MÁXIMA POTENCIA DE SALIDA < 5mW@633nm-670nm. ESTE PRODUCTO COMPLIES WITH THE APPLICABLE REQUIREMENTS OF 21CFR PARTS 1040.10 AND 1040.11. MAXIMUM OUTPUT POWER< 5mW@633nm-670nm CLASS IIIa LASER PRODUCT. THIS PRODUCT
CUMPLE CON LOS REQUISITOS APLICABLES DE LAS PIEZAS 1040.10 Y 1040.11 DE 21CFR.
4
6
7
E
G
C
B
D
DANGER PELIGRO
LASER RADIATION. AVOID DIRECT EYE EXPOSURE.
RADIACIÓN LÁSER. EVITE LA EXPOSICIÓN DIRECTA DE LOS OJOS.
MAXIMUM OUTPUT POWER< 5mW@633nm-670nm CLASS IIIa LASER PRODUCT. THIS PRODUCT
COMPLIES WITH THE APPLICABLE REQUIREMENTS OF 21CFR PARTS 1040.10 AND 1040.11.
LÁSER CLASE IIIa CON MÁXIMA POTENCIA DE SALIDA < 5mW@633nm-670nm. ESTE PRODUCTO
CUMPLE CON LOS REQUISITOS APLICABLES DE LAS PIEZAS 1040.10 Y 1040.11 DE 21CFR.
2
DANGER PELIGRO
RADIACIÓN LÁSER. EVITE LA EXPOSICIÓN DIRECTA DE LOS OJOS. LASER RADIATION. AVOID DIRECT EYE EXPOSURE.
LÁSER CLASE IIIa CON MÁXIMA POTENCIA DE SALIDA < 5mW@633nm-670nm. ESTE PRODUCTO COMPLIES WITH THE APPLICABLE REQUIREMENTS OF 21CFR PARTS 1040.10 AND 1040.11. MAXIMUM OUTPUT POWER< 5mW@633nm-670nm CLASS IIIa LASER PRODUCT. THIS PRODUCT
CUMPLE CON LOS REQUISITOS APLICABLES DE LAS PIEZAS 1040.10 Y 1040.11 DE 21CFR.
5
DANGER PELIGRO
LASER RADIATION. AVOID DIRECT EYE EXPOSURE.
RADIACIÓN LÁSER. EVITE LA EXPOSICIÓN DIRECTA DE LOS OJOS. MAXIMUM OUTPUT POWER< 5mW@633nm-670nm CLASS IIIa LASER PRODUCT. THIS PRODUCT
COMPLIES WITH THE APPLICABLE REQUIREMENTS OF 21CFR PARTS 1040.10 AND 1040.11. LÁSER CLASE IIIa CON MÁXIMA POTENCIA DE SALIDA < 5mW@633nm-670nm. ESTE PRODUCTO
CUMPLE CON LOS REQUISITOS APLICABLES DE LAS PIEZAS 1040.10 Y 1040.11 DE 21CFR.

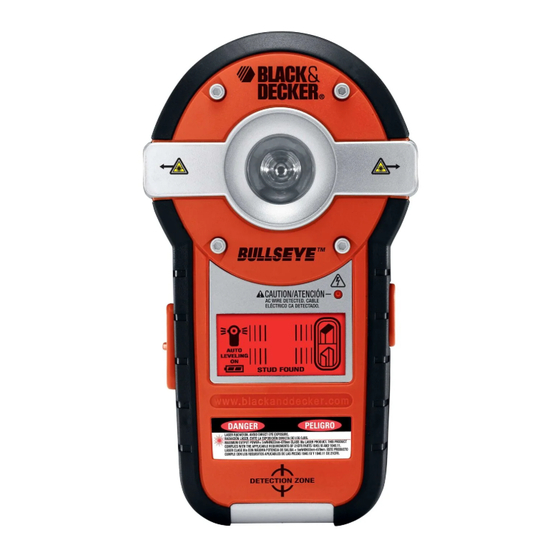

FEATURES
A.) Laser On/Off Button
B.) Detector On/Off Button
C.) AC Wire Indicator LED
D.) LCD Screen
E.) Wall Attachment -
Hanging Cone (keyhole)
F.) Wall Attachment -
Drywall Pin
G.) Self-Leveling Laser
Lines
H.) Battery Compartment
Cover (back side of unit)
H
3
Bip
Sonido
DANGER PELIGRO
RADIACIÓN LÁSER. EVITE LA EXPOSICIÓN DIRECTA DE LOS OJOS. LASER RADIATI O N. AVOID DIRECT EYE EXPOSURE.
COMPLIES WITH THE APPLICABLE REQUIREMENTS OF 21CFR PARTS 1040.10 AND 1040.11. MAXIMUM OUTPUT POWER< 5mW@633nm-670nm CLASS IIIa LASER PRODUCT. THIS PRODUCT
CUMPLE CON LOS REQUISITOS APLICABLES DE LAS PIEZAS 1040.10 Y 1040.11 DE 21CFR. LÁSER CLASE IIIa CON MÁXIMA POTENCIA DE SALIDA < 5mW@633nm-670nm. ESTE PRODUCTO
