Summary of Contents for Philips CED230

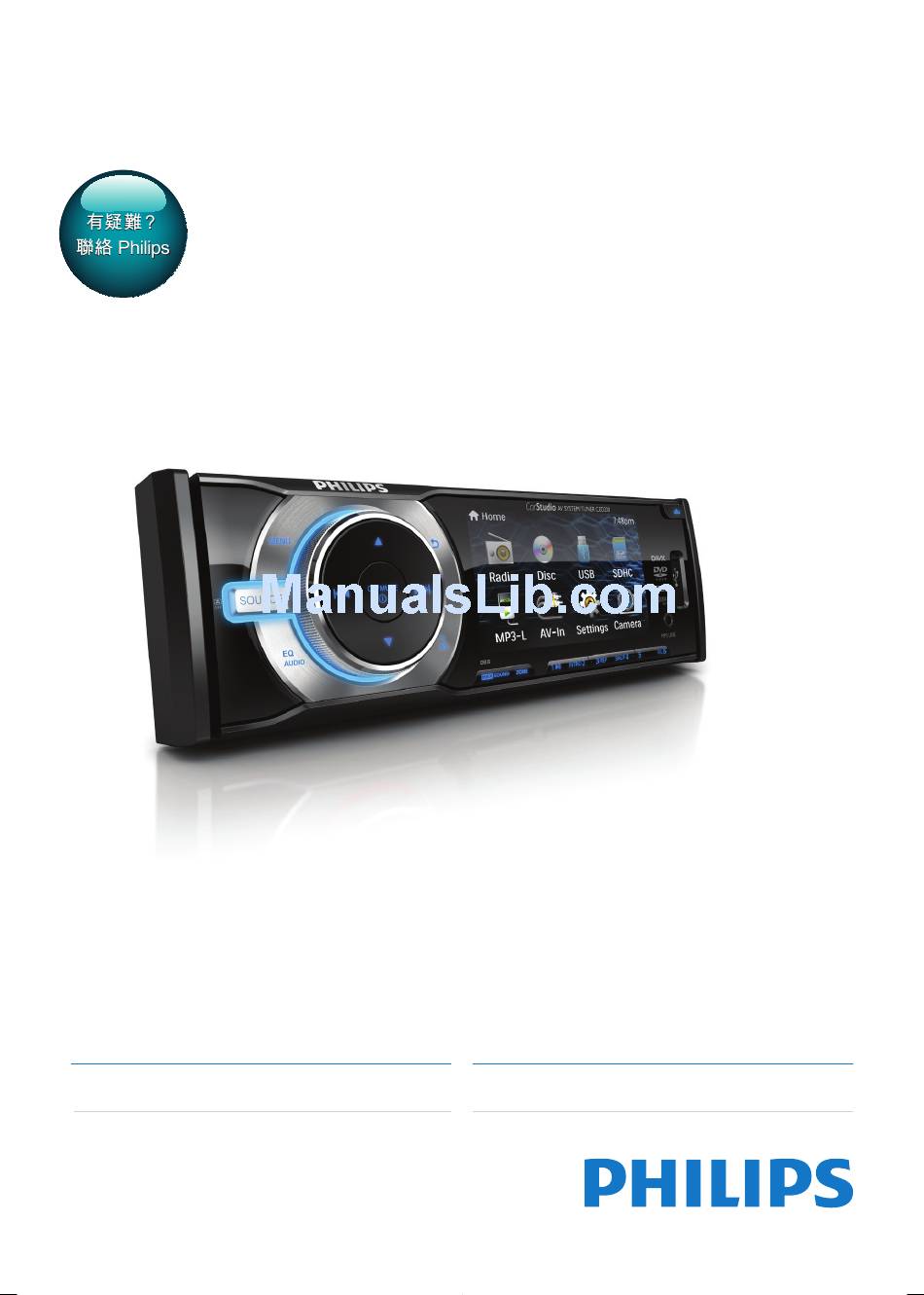

- Page 1 隨時隨地給您提供協助 在以下位置注冊產品及獲取支援： CED230 www.philips.com/welcome User manual 使用手冊...
-
Page 2: Table Of Contents
Contents 7 System settings Adjust general settings Select video settings Select language settings 1 Important Adjust turner settings Notice 8 Other settings 2 Your car audio system Turn on or off the screen backlight Introduction Select Video Output format What's in the box Listen to other devices Overview of the main unit Set rear view camera... -
Page 3: Important
1 Important • The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the • Read and understand all instructions battery can cause serious injury or death. before you use the apparatus. - Page 4 Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Environmental information 2013 © Koninklijke Philips Electronics N.V. All unnecessary packaging has been omitted.
-
Page 5: Your Car Audio System
Always follow the instructions in this chapter in sequence. system If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers... -
Page 6: Overview Of The Main Unit
Overview of the main unit a SOURCE • Unlock the front panel. • Select source. f USB socket b MENU g Remote control sensor • Access the system menu. h R/L, 6 • Select preset station no. 6. • Return to previous menu. • Select audio channel. -
Page 7: Overview Of The Remote Control
i 5, • Select preset station no. 5 • Eject disc. • Stop playback. w RESET j SHUF, 4 • Restore default settings. • Turn random play on or off. • Select preset station no. 4 Overview of the remote k 3, REP • Select repeat play mode. -
Page 8: Install The Car Audio
• Select video output format. make the corresponding adjustment. If you have any questions regarding installation kits, consult n SUBTITLE your Philips car audio dealer. • Select DVD or DivX subtitle language. o DISC MENU • Return to DVD main menu. - Page 9 Caution • This unit is designed for negative ground (earth) 12 V DC operation only. • Always install this unit in the car dashboard. Other locations can be dangerous as the rear of the unit heats up during use. • To avoid short-circuit: before you connect, ensure that the ignition is off.
-
Page 10: Mount Into Dashboard
Camera-In Video-Out Rear line-Out Front line-Out Connect parking brake cable and reverse driving cable to a rear view backup camera Note • Check your local driving regulations on whether it is legally required to install the rear view backup camera. These connections require a professional mechanic to install. -
Page 11: Install Remote Control Battery
To replace the remote control battery CR2025 CR2025 Reconnect the negative terminal of the car battery. Install remote control battery Caution • Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard batteries in fire. • Risk of decreased battery life! Never mix different brands or types of batteries. -
Page 12: Get Started
3 Get started Set clock Press MENU. Press the navigation buttons to select [SETTINGS], then press SEL on the Turn on and turn off remote control. Select [System], then press Turn On Select [Time mode], then press Press the power button ( »... -
Page 13: Play
4 Play DVD region Countries code Asia Pacific, Taiwan, Korea Make sure that the disc or device contains playable music or video. Press to open the front panel. Note • For CDs recorded in multiple sessions, only the first session is played. • Does not support MP3 Pro audio format. •... -
Page 14: Insert And Remove Usb Device
• If the disc is blocked in the disc compartment, press and hold the button until the disc comes out. Insert and remove USB device Slide down the USB socket cover. Select audio language You can select the audio language if the video discs contain two or more audio channels. -
Page 15: Intro Play
• [RPT ALL]: play all chapters in the title or all tracks repeatedly. • [RPT OFF]: cancel repeat play. Random play There are 3 standard modes of random play for • To search backward or forward quickly, audio and MP3/WMA. press for 3 seconds. -
Page 16: Radio
5 Radio » The six strongest stations of the selected band are saved in preset channels 1-6 automatically. Manual tune to a radio station Select the preset station Press Press to select band. » [FM] or [AM] is display. Press the navigation buttons to select [RADIO], then press Press the numeric button (1 to 6) to select Press and hold... - Page 17 • AF (alternate frequency): automatically EDUCATE Education and advanced searches for a different station when training the tuner cannot get a good reception. DRAMA Radio plays and • REG (regional radio): sets AF tuning literature region. CULTURE Culture, religion and • CT (clock time): synchronizes the society clock of the unit with that on the RDS...
-
Page 18: Adjust Sound
6 Adjust sound Select equalizer settings You can select preset equalizer settings, and they are: • [USER] Dynamic Bass Boost • [TECHNO] • [ROCK] [CLASSIC] • Press on the car audio [JAZZ] • system for 3 seconds or press on the [OPTIMAL] •... -
Page 19: Select Listening Zone
Press to select the audio settings Select listening zone to be adjusted. • [BALANCE]: 7L to 7R (L= left speaker ; R= right speaker) Press • [FADE]: 7R to 7F (R= rear speaker ; » The current zone setting is displayed. F= front speaker) Press to change the value, and... -
Page 20: System Settings
7 System settings [Beep] [ON]/[OFF] Turn on or off the beep sound. When it turned on, Within system settings, there are: each time you • General settings, press a button, • DVD settings, the device • Language settings, and beeps •... -
Page 21: Select Language Settings
[Auto] The correct format [CONT- Adjust the intensity of is set automatically. RAST] bright areas. Select this option [HUE] Compensate for if you are not sure color variations. which format should [SATUR- Adjust color be selected. ATION] saturation. [4:3 PS] While playing a full- TYPE] height picture, the... -
Page 22: Other Settings
8 Other settings Set rear view camera If you connected a rear view camera, you can Turn on or off the screen see from the screen of the car audio system backlight what the camera takes when the back lamp lights up. -
Page 23: Replace Fuse
9 Product Replace fuse information If the system does not power on, the fuse may be damaged and need replacement. Detach the front panel and take out the Note system. • Check the electric connection. Product information is subject to change without prior notice. -
Page 24: Tuner
Tuner Unsupported formats Frequency range - FM 87.5 - 107.9 MHz • Empty albums: an empty album is an album (50kHz per step) that does not contain MP3 / WMA files, Frequency range - AM 522 - 1620 kHz and is not be shown in the display. (MW) (9kHz per step) •... -
Page 25: Troubleshooting
DVD. Adjust video DVD settings. requesting service. If the problem remains • Video connection is improper. Check the unsolved, go to the Philips web site (www. connections. philips.com/support). When you contact Philips, make sure that your system is nearby and the Noise in broadcasts. - Page 26 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. CED230_98_UM_V1.0...
