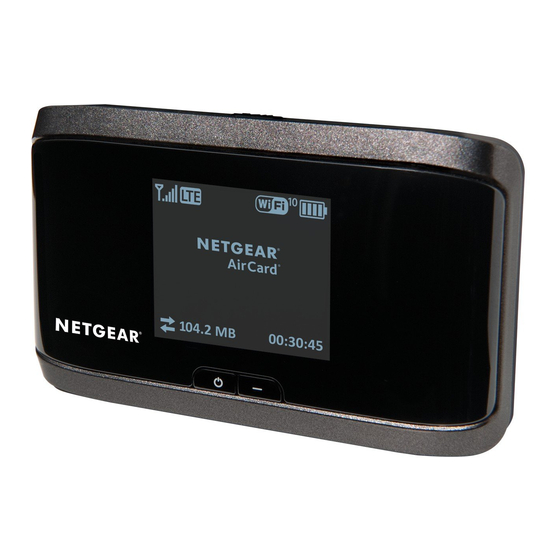

Get to Know Your Device Navigation key Power key WPS button LCD screen External antenna connector micro USB port External antenna connector Also in the box: • Lithium ion battery • Wall charger • USB cable Buttons & keys Turn on/off the hotspot Press and hold the Power key for 2 seconds .
Page 5
Your Device LCD Screen Network AirCard-xxxx Wi-Fi Passphrase: 12345678 To configure your hotspot go to http://aircard.hotspot Mobile signal strength Battery status Mobile connection type Mobile operator name Roaming Wi-Fi SSID (Wireless network name) Messages View at http://aircard .hotspot Configuration homepage Wi-Fi on or off Data usage information The number indicates...
. Do not force it .) Gold contacts Battery 3 . Replace the back cover . Your AirCard 4G Mobile Hotspot comes with the battery partially charged . When you need to recharge the battery, use the USB cable to attach the hotspot to: •...
Page 7
5 . When prompted, enter your Wi-Fi Passphrase, as it appears on the LCD screen . When the computer or mobile device connects to the 4G mobile hotspot, a ‘1’ appears beside the Wi-Fi icon on the LCD screen .
Page 8
6 . Launch your browser and, if desired, go to http://aircard.hotspot to personalize your settings . (Note: The 4G mobile hotspot is completely secured using its default security settings .) 7 . If you cannot connect to the mobile broadband network, you may need to create or update a profile .
Security Credentials Wi‑Fi Passphrase • Use to connect a wireless device to your Wi-Fi network • The Wi-Fi Passphrase is shown on the LCD screen . Admin Password • Your default Admin Password is webadmin . • Use this password to log in to the AirCard Homepage and make changes such as changing your security settings .
Page 10
4G Mobile Hotspot Configuration Homepage To access your 4G mobile hotspot homepage, connect to your device, and in your browser, enter http://aircard.hotspot . Log in with your Admin Password (webadmin) to modify settings . Note: Alternatively, you can enter the device IP address http://192.168.1.1...
Check Your Data Usage You have two options to view an estimate of your data usage .* On the 4G mobile hotspot LCD Dashboard: 1 . Press the Navigation key to cycle through the screens . The billing information screen shows your data usage .
Wi-Fi device (smartphones, tablets, media players, cameras, etc . ) . 2 . Select the 4G mobile hotspot Wi-Fi network displayed on the LCD screen (for example, AirCard-1234) . 3 . Enter the Wi-Fi Passphrase displayed on the LCD screen and launch your browser .
Reconnect to the Mobile Broadband Network By default, the 4G mobile hotspot automatically connects to the mobile broadband network . (When you are connected to the mobile broadband network, the technology icon on the LCD screen has a white background .)
On the Internet — Additional support is available online at support.netgear.com Caution: The NETGEAR 4G Mobile Hotspot must be 1 cm or more from users during operation . If an external antenna is used, the antenna must be maintained at least 20 cm from users during operation .
Page 15
. You must register your product before you can use NETGEAR telephone support . NETGEAR recommends registering your product through the NETGEAR website . For product updates and web support, visit http://support.netgear.com .
Informationen über das Gerät Navigationstaste Ein/Aus-Taste WPS-Taste LCD-Display Externer Antennenanschluss micro USB-Port Externer Antennenanschluss Im Lieferumfang enthalten: • Lithium-Ionen-Akku • Ladegerät • USB-Kabel Tasten Hotspot ein-/ausschalten Drücken und halten Sie die Ein/Aus-Taste 2 Sekunden gedrückt . • Stummschaltung Drücken und halten Sie die der akustischen WPS-Taste und die Navigationstaste Benachrichtigungen...
Page 17
LCD‑Display Ihres Geräts Netzwerk AirCard-xxxx Wi-Fi-Passphrase: 12345678 Zum Konfig. gehen Sie zu http://aircard.hotspot Mobilsignalstärke Akkustatus Mobilverbindungstyp Name des Mobilfunkbetreibers Roaming Wi-Fi-SSID (Name des Nachrichten Drahtlosnetzwerks) Siehe http://aircard . h otspot URL der Wi-Fi ein oder aus Konfigurations-Startseite Die Zahl gibt die Anzahl der Informationen zu verbundenen Geräte an .
Goldfarbene Kontakte Akku 3 . Bringen Sie die rückseitige Abdeckung wieder an . Der AirCard 4G Mobile Hotspot wird mit einem nicht vollständig aufgeladenen Akku ausgeliefert . Um den Akku aufzuladen, verbinden Sie den Hotspot über das USB-Kabel mit: •...
Page 19
4G-Hotspot eingeschaltet ist, stellt er automatisch eine Verbindung mit dem Mobilfunk-Breitbandnetz her . Wenn Sie den mobilen 4G-Hotspot zum ersten Mal einschalten, müssen Sie auf dem LCD-Display möglicherweise eine Sprache auswählen . a . Durch Drücken der Navigationstaste können Sie die verfügbaren Sprachen durchblättern, bis Sie diejenige finden, die Sie...
Page 20
6 . Öffnen Sie Ihren Internetbrowser und rufen Sie http://aircard.hotspot auf, um Ihre Einstellungen bei Bedarf individuell anzupassen . (Hinweis: Der mobile 4G-Hotspot ist mit den Standardsicherheitseinstellungen vollständig geschützt .) 7 . Sollten Sie keine Verbindung mit dem mobilen Breitbandnetz herstellen können, müssen Sie möglicherweise ein Profil erstellen...
Page 21
Anmeldeinformationen Wi‑Fi‑Passphrase (WLAN‑Schlüssel) • Sie benötigen diese Passphrase zum Herstellen einer Verbindung zwischen einem drahtlosen Gerät und Ihrem Wi-Fi-Netzwerk . • Die Wi-Fi-Passphrase wird auf dem LCD-Display angezeigt . Administratorkennwort • Das standardmäßige Administratorkennwort lautet webadmin . • Melden Sie sich mit diesem Kennwort auf der AirCard-Homepage an und nehmen Sie dort Änderungen wie die Änderung Ihrer Sicherheitseinstellungen vor .
Page 22
Mobiler 4G‑Hotspot: Konfigurations‑Startseite Um auf die Homepage Ihres mobilen 4G-Hotspots zugreifen zu können, müssen Sie eine Verbindung mit Ihrem Gerät herstellen und in Ihrem Internetbrowser http://aircard.hotspot eingeben . Melden Sie sich mit Ihrem Administratorkennwort (webadmin) an, um Einstellungen zu ändern .
Page 23
Sie haben zwei Möglichkeiten, wie Sie eine Schätzung Ihrer Datennutzung anzeigen können . * Auf dem LCD‑Display Ihres mobilen 4G‑Hotspots: 1 . Drücken Sie die Navigationstaste, um zwischen den Anzeigen zu wechseln . Auf der Anzeige mit den Abrechnungsinformationen wird Ihre Datennutzung angezeigt .
Kamera usw . ) . 2 . Wählen Sie das auf dem LCD-Display angezeigte WLAN-Netzwerk für den mobilen 4G-Hotspot aus (z . B . AirCard-1234) . 3 . Geben Sie die auf dem LCD-Display angezeigte Wi-Fi-Passphrase ein und starten Sie Ihren Internetbrowser .
Page 25
Herstellen einer neuen Verbindung mit dem Mobilfunk‑Breitbandnetz Standardmäßig stellt der mobile 4G-Hotspot automatisch eine Verbindung mit dem Mobilfunk-Breitbandnetz her . (Wenn Sie mit einem Mobilfunk-Breitbandnetz verbunden sind, wird das Netztechniksymbol auf dem LCD-Display mit weißem Hintergrund dargestellt .) Wenn Sie die neue Verbindung mit dem Mobilfunk-Breitbandnetz manuell herstellen müssen, führen Sie einen der folgenden Schritte aus:...
• Im Internet: Weiterer Support steht im Internet unter support.netgear.com zur Verfügung . Achtung: Der NETGEAR 4G Mobile Hotspot muss während des Betriebs mindestens 1 cm vom Benutzer entfernt aufgestellt sein . Wenn eine externe Antenne verwendet wird, muss der Abstand zwischen Benutzer und Antenne während des Betriebs mindestens 20 cm betragen .
Page 27
Support Vielen Dank, dass Sie sich für ein Produkt von NETGEAR entschieden haben . Nach der Installation des Geräts können Sie das Produkt unter http://www.netgear.de/registrierung registrieren . Die Seriennummer finden Sie auf dem Etikett Ihres Produkts . Die Registrierung ist Voraussetzung für die Nutzung des telefonischen Supports von NETGEAR .
Page 28
Découverte de votre appareil Touche de navigation Bouton marche/arrêt Bouton WPS Écran LCD Connecteur d’antenne externe Port micro USB Connecteur d’antenne externe Également fournis : • batterie lithium-ion • chargeur mural • câble USB . Boutons et touches Appuyez sur le bouton marche/arrêt Mise sous tension et maintenez-le enfoncé...
Page 29
L’écran LCD de votre appareil Réseau AirCard-xxxx Clé Wi-Fi : 12345678 Pour configurer, http://aircard.hotspot Intensité du signal mobile État de la batterie Type de connexion mobile Nom de l’opérateur mobile Itinérance SSID Wi-Fi (Nom du réseau sans fil) Messages Visualisation sur Configuration de l’URL de la http://aircard .hotspot page d’accueil...
; ne forcez pas) . Contacts dorés Batterie 3 . Replacez le cache arrière . Votre point d’accès mobile AirCard 4G est fourni avec une batterie partiellement chargée . Pour recharger la batterie, utilisez le câble USB pour relier le point d’accès mobile: •...
4 . Choisissez le SSID Wi-Fi affiché sur l’écran LCD . 5 . À l’invite, entrez votre passphrase Wi-Fi, telle qu’elle apparaît sur l’écran LCD . Lorsque l’appareil est connecté au point d’accès mobile 4G, un « 1 » apparaît à côté de l’icône Wi-Fi sur l’écran LCD .
Page 32
à l’adresse http://aircard.hotspot pour personnaliser vos paramètres (remarque : le point d’accès mobile 4G est entièrement sécurisé si vous utilisez ses paramètres de sécurité par défaut) . 7 . Si vous ne pouvez pas vous connecter au réseau mobile haut débit, vous devrez peut-être créer ou mettre à...
Informations relatives à la sécurité Mot de passe Wi‑Fi (Clé Wi‑Fi) • Utilisez-la pour connecter un appareil sans fil à votre réseau Wi-Fi • Le mot de passe Wi-Fi est indiquée sur l’écran LCD . Mot de passe administrateur • Votre mot de passe administrateur par défaut est webadmin .
Page 34
Page d’accueil de configuration du point d’accès mobile 4G Pour accéder à la page d’accueil de votre point d’accès mobile 4G, connectez votre appareil puis, dans votre navigateur, saisissez l’adresse : http://aircard.hotspot . Connectez-vous avec votre mot de passe administrateur (webadmin) pour modifier les paramètres .
Page 35
Vérification de votre utilisation des données Vous disposez de deux options pour afficher une estimation de votre utilisation des données . * Sur le tableau de bord de l’écran LCD : 1 . Appuyez sur la touche de navigation pour naviguer entre les écrans .
Page 36
Wi-Fi de manière simplifiée . . La fonction WPS est disponible sur certains appareils photo, imprimantes, smartphones et ordinateurs portables . 1 . Appuyez sur le bouton WPS de votre point d’accès mobile 4G . 2 . Vous avez 2 minutes pour appuyer sur le bouton WPS du périphérique sans fil que vous souhaitez connecter .
Reconnexion au réseau mobile haut débit Par défaut, le point d’accès mobile 4G se connecte automatiquement au réseau haut débit mobile . Quand vous êtes connecté au réseau mobile haut débit, l’arrière-plan de l’icône de technologie de l’écran LCD est blanc .
Sur Internet : une assistance supplémentaire est disponible en ligne à l’adresse support.netgear.com . Attention : le point d’accès mobile 4G NETGEAR doit se situer à plus de 1 cm des utilisateurs pendant son fonctionnement . En cas d’utilisation d’une antenne externe, le point d’accès mobile elle doit être situé...
Page 39
Vous devez enregistrer votre produit avant de pouvoir utiliser l’assistance téléphonique de NETGEAR . NETGEAR vous recommande d’enregistrer votre produit sur le site Web de NETGEAR . Pour obtenir des mises à jour de produits et accéder au support Web, rendez-vous à...
Presentazione del dispositivo Tasto di navigazione Tasto On/Off Pulsante WPS Display LCD Connettore per antenna esterna Porta USB micro Connettore per antenna esterna La confezione contiene inoltre: • Batteria agli ioni di litio • Caricabatteria per presa a muro • Cavo USB Pulsanti e tasti Tenere premuto il tasto On/Off per...
Page 41
Il display LCD del dispositivo Rete AirCard-xxxx Passphrase Wi-Fi: 12345678 Per configurare l'hotspot vai a http://aircard.hotspot Intensità del segnale mobile Stato batteria Tipo di connessione mobile Nome operatore mobile Roaming SSID Wi-Fi (Nome della rete wireless) Messaggi Visualizzabili su URL pagina home di configurazione http://aircard .hotspot Informazioni sul traffico dati...
Page 42
. Non forzare l’inserimento .) Contatti dorati Batteria 3 . Reinstallare il coperchio posteriore . L’hotspot mobile 4G AirCard viene fornito con batteria parzialmente carica . Quando la batteria deve essere ricaricata, utilizzare il cavo USB per collegare l’hotspot a: •...
Page 43
5 . Quando richiesto, immettere la passphrase Wi-Fi così come appare sul display LCD . Quando il computer o dispositivo mobile è connesso all’hotspot mobile 4G, il numero "1" appare accanto all’icona Wi-Fi sul display LCD . Nota: l’account SIM personale deve essere attivo per connettersi alla rete mobile a banda larga .
Page 44
6 . Avviare il browser e andare eventualmente all’indirizzo http://aircard.hotspot per personalizzare le impostazioni . (Nota: l’hotspot mobile 4G è totalmente protetto con le impostazioni di protezione predefinite . ) 7 . Qualora non sia possibile connettersi alla rete mobile a banda larga potrebbe essere necessario creare o aggiornare un profilo .
Page 45
Credenziali di protezione Passphrase Wi‑Fi • Utilizzarla per collegare un dispositivo wireless alla propria rete Wi-Fi • La passphrase Wi-Fi è visualizzata sul display LCD . Password amministratore • La password di amministratore predefinita è webadmin . • Utilizzare questa password per accedere alla pagina home AirCard e modificare ad esempio le impostazioni di protezione .
Page 46
Pagina Home di configurazione dell’hotspot mobile 4G Per accedere alla pagina home dell’hotspot mobile 4G, collegare il dispositivo e, nel browser, immettere http://aircard.hotspot . Effettuare l’accesso con la password di amministratore (webadmin) per modificare le impostazioni . Nota: in alternativa è possibile immettere l’indirizzo IP del dispositivo http://192.168.1.1...
Page 47
Sono disponibili due opzioni per visualizzare una stima del traffico dati . * Sul "cruscotto" del display LCD dell’hotspot mobile 4G: 1 . Premere il tasto di navigazione per scorrere le varie schermate . La schermata Info fatture elenca i dettagli sul traffico dati .
Page 48
Wi-Fi (smartphone, tablet, lettore multimediale, fotocamera e così via) . 2 . Selezionare la rete Wi-Fi dell’hotspot mobile 4G visualizzata sul display LCD (ad esempio, AirCard-1234) . 3 . Immettere la passphrase Wi-Fi visualizzata sul display LCD e avviare il browser .
Page 49
Riconnessione alla rete mobile a banda larga Per impostazione predefinita, l’hotspot mobile 4G si connette automaticamente alla rete mobile a banda larga . (Se questa connessione è attiva, l’icona della tecnologia di rete sul display LCD appare su sfondo bianco . )
Su Internet — È possibile accedere a ulteriore assistenza online all’indirizzo support.netgear.com Attenzione: quando è in funzione, l’hotspot mobile 4G NETGEAR deve essere posto a una distanza di almeno 1 cm dagli utenti . Se viene usata un’antenna esterna, accertarsi che sia posta a una distanza di almeno 20 cm dagli utenti durante il funzionamento .
Page 51
La registrazione del prodotto è necessaria per poter utilizzare il servizio di assistenza telefonica di NETGEAR . NETGEAR consiglia di registrare il prodotto dal sito Web di NETGEAR . Gli aggiornamenti del prodotto e l’assistenza Web sono disponibili alla pagina http://support.netgear.com .
Page 52
Conozca el dispositivo Tecla de navegación Tecla de encendido Botón WPS Pantalla LCD Conector de antena exterior Puerto microUSB Conector de antena exterior La caja también incluye los siguientes elementos: • Batería de ion litio • Cargador de pared • Cable USB Botones y teclas Mantenga pulsada la tecla de...
Page 53
Pantalla LCD del dispositivo AirCard-xxxx Contraseña Wi-Fi: 12345678 Para la configuración, vaya a http://aircard.hotspot Intensidad de la señal móvil Estado de la batería Tipo de conexión móvil Nombre del operador móvil Itinerancia SSID de Wi-Fi (Nombre de la red inalámbrica) Mensajes Ver en http://aircard .hotspot URL de la página de inicio de...
Page 54
Batería 3 . Vuelva a colocar la tapa trasera . El punto de acceso móvil 4G se suministra con la batería parcialmente cargada . Cuando tenga que recargar la batería, utilice elcable USB para conectar el punto de acceso móvil a: •...
Page 55
LCD . Cuando el ordenador o el dispositivo móvil se conecta al punto de acceso móvil 4G, se muestra un “1” junto al icono Wi-Fi de la pantalla LCD . Nota: Para conectarse a la red de banda ancha móvil, debe tener activa su cuenta SIM .
Page 56
6 . Inicie el navegador y, si lo desea, visite http://aircard.hotspot para personalizar la configuración . (Nota: El punto de acceso móvil 4G es completamente seguro cuando utiliza la configuración de seguridad predeterminada .) 7 . Si no se puede conectar a la red de banda ancha móvil, quizá tenga que crear o actualizar un perfil .
Page 57
Credenciales de seguridad Contraseña Wi‑Fi • Se utiliza para conectar un dispositivo inalámbrico a la red Wi-Fi . • La contraseña Wi-Fi se muestra en la pantalla LCD . Contraseña de administrador • La contraseña de administrador predeterminada es webadmin . •...
Page 58
4G Para acceder a la página de inicio de su punto de acceso móvil 4G, conecte el dispositivo y en el navegador escriba http://aircard.hotspot . Inicie sesión con la contraseña de administrador (webadmin) para modificar la configuración .
Page 59
Tiene dos opciones para ver una estimación del uso de datos .* En el panel LCD del punto de acceso móvil 4G: 1 . Pulse la tecla de navegación para desplazarse por las pantallas . La pantalla de información de facturación muestra el uso de datos .
Wi-Fi (teléfonos inteligentes, tabletas, reproductores multimedia, cámaras, etc . ) . 2 . Seleccione el punto de acceso móvil 4G de Wi-Fi que se muestra en la pantalla LCD (por ejemplo, AirCard-1234) . 3 . Introduzca la contraseña Wi-Fi que aparece en la pantalla LCD e inicie el navegador .
Reconexión a la red de banda ancha móvil De manera predeterminada, el punto de acceso móvil 4G se conecta automáticamente a la red de banda ancha móvil . (Cuando está conectado a la red de banda ancha móvil, el icono de tecnología que aparece en la pantalla LCD tiene un fondo blanco) .
En Internet: Tiene soporte adicional disponible en línea en soporte.netgear.com Precaución: El punto de acceso móvil 4G de NETGEAR debe estar al menos a 1 cm de los usuarios durante su funcionamiento . Si se emplea una antena externa, debe situarse al menos a 20 cm de los usuarios durante su funcionamiento .
Page 63
Deberá registrar su producto para poder hacer uso de nuestro servicio telefónico de asistencia NETGEAR . NETGEAR recomienda registrar su producto a través de la página web de NETGEAR . Podrá encontrar actualizaciones del producto y asistencia técnica en http://support.netgear.com .
Page 64
QUALCOMM® . NETGEAR, el logotipo de NETGEAR y AirCard son marcas comerciales o registradas de NETGEAR, Inc . o de sus filiales en Estados Unidos o en otros países . Otros nombres de marcas aquí mencionados se incluyen únicamente con fines identificativos y pueden ser marcas comerciales de sus respectivos propietarios .
