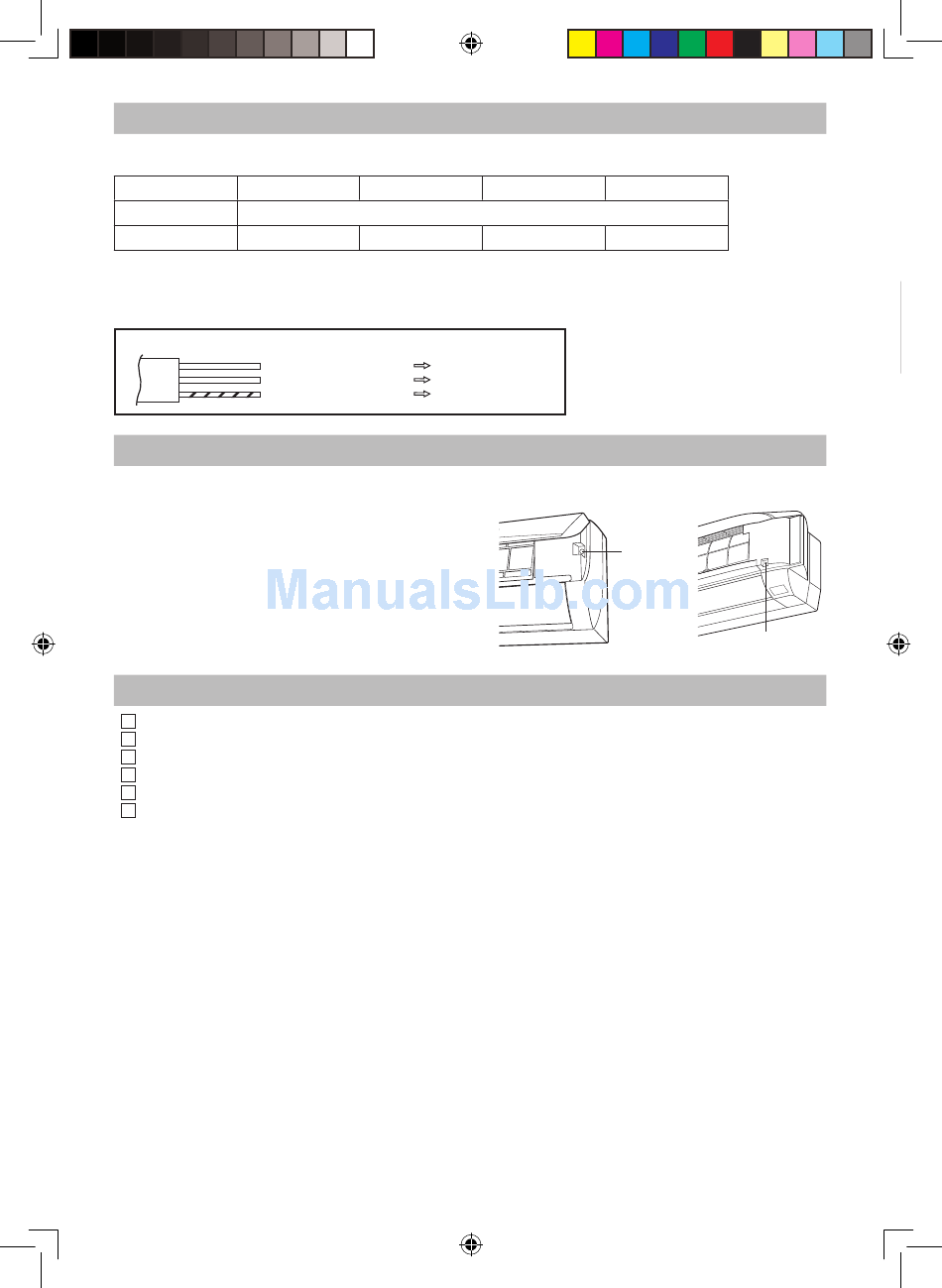

POWER CABLING

Prepare a dedicated power supply circuit.
9K-Btu/h type
Power supply
Circuit breaker 10 A
• Fit a disconnect switch, having a contact separation of at least 3mm in all poles, to the electricity
power line.
Power supply cable

TEST RUN

(1) Start the operation with the remote control.
(2) To start test run in cooling, hold down the
AUX button on the unit for over 5 seconds
until a beep sound is heard and an operation
lamp flashes.
(3) Make sure the system runs well.
To stop the operation, press the AUX button
again.
ITEMS TO CHECK
Is the specified power supply voltage used?
Is the connecting cable fixed to terminal board firmly?
Is the earth wire connected properly arranged?
Is the drainage properly?
Is the indoor unit hooked to the mounting plate firmly?
Is there any gas leakage at the pipe connection?
EXPLANATION TO CUSTOMER
• Explain to the customer how to use and maintain the system, referring to the operation manual.
• Ask the customer to carefully read the operation manual.
• When the system has been set up, hand the installation manual to the customer.
OM_AH-PN10 13GY_EN.indd Sec1:23 OM_AH-PN10 13GY_EN.indd Sec1:23
12K-Btu/h type
220 V - 240 V, single-phase
15 A
Power supply
Blue
Blue
Live
Brown
Green/Yellow-striped
Green/Yellow-striped
18K-Btu/h type 24K-Btu/h type
20 A 25 A
Model 9000/12000 BTU
E-23
Model 18000/24000 BTU
AUX
AUX
