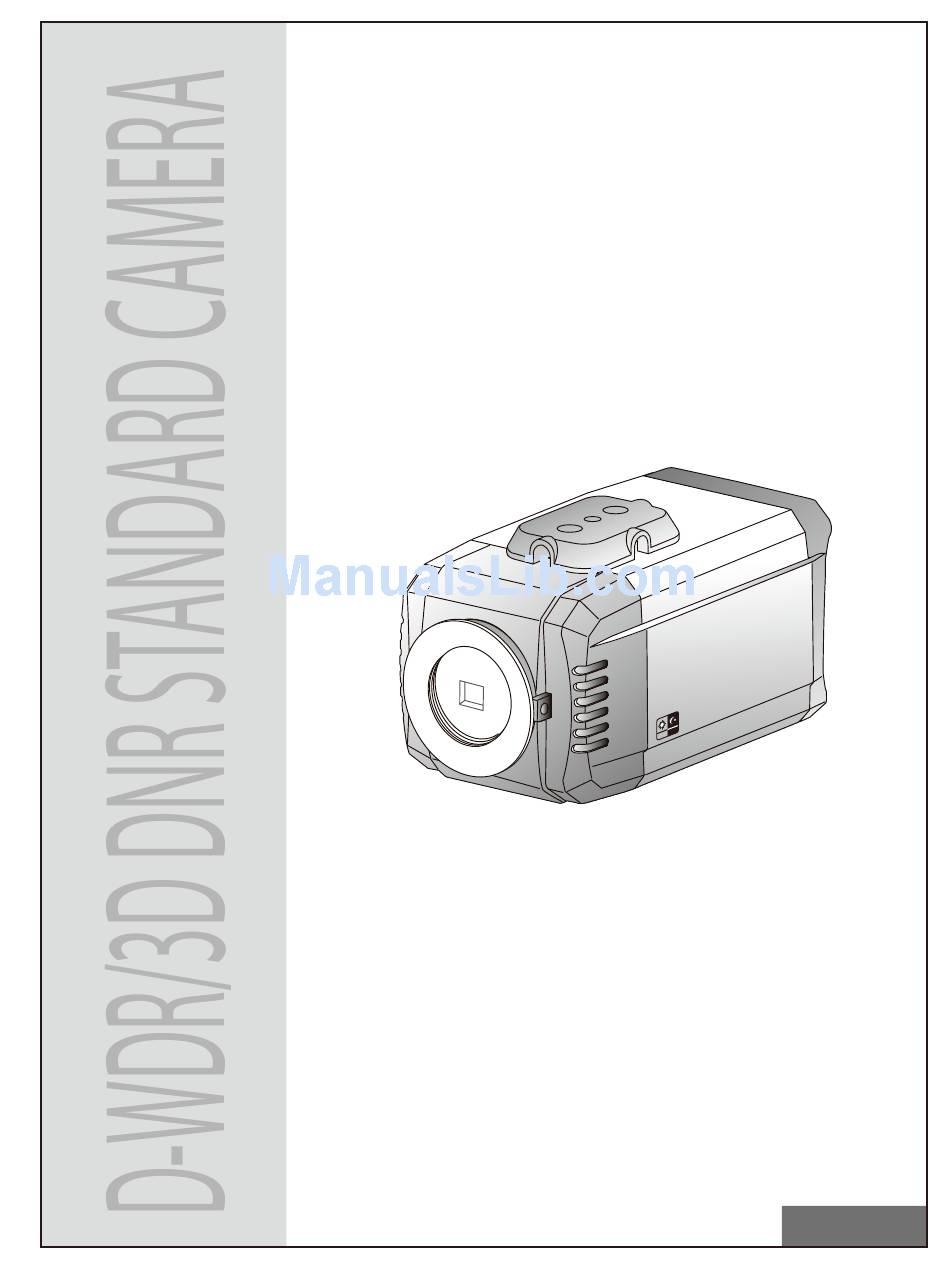

630 TVL
D-WDR / 3D DNR
STANDARD CAMERA
USER'S MANUAL
Sony 1/3" SuperHAD CCD
■
High Resolution 630TV Lines
■
D-WDR(Wide Dynamic Range)
■
3D DNR(Digital Noise Reduction)
■
Sens-Up Function(x1024)
■
LSC(Lens Shading Compensation)
■
■
Day & Night (ICR-Optional)
Intelligebt Motion Detection
■
Back Light Compensation
■
PELCO-D / RS485(Option)
■
Privacy Mask(Polygonal,8 Colors)
■
O.S.D menu function
■
R A
A M E
C E C
i T A L
L A N
D i G
V E I L
S U R
T
N IG H
D A Y
8-001-06
Advertisement
Table of Contents
Related Manuals for Sony 630 TVL
Summary of Contents for Sony 630 TVL
- Page 1 T A L L A N D i G V E I L S U R N IG H D A Y Sony 1/3” SuperHAD CCD ■ High Resolution 630TV Lines ■ D-WDR(Wide Dynamic Range) ■ 3D DNR(Digital Noise Reduction) ■...
- Page 2 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 3 Precaution Do not Keep the camera face to strong light directly Do not install the camera in extreme temperature conditions. Do not disassemble the camera even if troubles happened To avoid malfunctions, never use the camera close to a gas or oil leak Do not drop the camera or subject them to physical shocks.
- Page 4 You can adjust SET LEVEL to get clearer images. 630 TVL ULTRA HIGH RESOLUTION The horizontal resolution is 630 TV Lines in Color mode and 700 TV Lines in Black/ White mode using a high density CCD.
- Page 5 2. Components D-WDR/3D DNR Camera A M E C E C iT A L L A N D iG V E IL S U R NIG HT DA Y L-Wrench WDR / 3D DNR STANDARD CAMERA Manual USER’S MANUAL WDR/3D DNR Zero Defect High Resolution of 600 TV Lines Sens Up(x512, DSS)
-
Page 6: Names And Functions Of Parts
3. Names and Functions of Parts A M E C E C i T A L L A N D i G V E I L S U R N IG H D A Y 1) Front ① Lens protection cap Please cover while it is out of use. - Page 7 DC12V, DC12V/AC24V AC 220V VIDEO VIDEO RS 485 POWER POWER AC 90~240V RS 485 DC 12V DC IRIS DC IRIS AC 24V 2) Back ① Auto iris lens connector This is the connection terminal for auto iris lens. ② Video composite Out ③...
-
Page 8: Installation
4. Installation 1) Lens Lenses are sold separately. Lenses such as auto iris lens, CS-Mount lens and C-Mount lens can be used. Note) How to operate this product effectively • Please keep lens clean • Any foreign objects and finger marks on the lens can cause inferior image quality in low light conditions. - Page 9 Please remove the cover of the auto iris lens connection plug and solder the lens cable to the connector pin in the plug. LENS Pin No. No.1 Pin Damping- No.2 Pin Damping+ No.3 Pin Drive+ No.4 Pin Drive- Lens cable No.
-
Page 10: Rs485(Option)
② When using a CS-Mount lens Please take off the lens protection cap and attach the CS-Mount lens to the camera by screwing it in clockwise. ③ When using a C-Mount lens Please take off the lens protection cap and attach the C-mount adaptor. - Page 11 5. Setup Menu Flow EXPOSURE LENS DC, MANUAL OFF,LOW,MID,HIGH SENSE-UP AUTO, OFF, X2, X4, X8, X16, X32, X64, X128, X256, X512, X1024 BACK LIGHT BLC - BLC LEVEL<OFF, LOW, MID, HIGH> D-WDR-SET LEVEL<0~20> 3D-DNR OFF, LOW, MID, HIGH, AUTO RETURN WHITE BALANCE WB MODE ATW, MANUAL, PUSH...
- Page 12 PRIVACY MASK1 DOT SEL DOT XY MOVE XY COLOR SET<1~8> MASK8 DOT SEL DOT XY MOVE XY COLOR SET<1~8> RETURN SPECIAL LANGUAGE 9 Language TITLE COMMUNICATION ID <0 ~ 255> BAUD RATE<2400, 4800, 9600> PROTOCOL<PELCO-D> OFF, AUTO FACTORY SET NO, YES RETURN EXIT SAVE&EXIT...
-
Page 13: Special Features
6. Special Features 1. D-WDR(Wide Dynamic Range) D-WDR captures the images at all light levels by correcting GAMMA CURVE. If you use an ordinary camera in a scene with an intensive backlight, the object will be displayed dark on the monitor affected by the backlight. To solve this problem, you can use the D-WDR function to improve the dark part without saturation from bright part. - Page 14 3. 3D DNR(Digital Noise Reduction) Select 3D DNR ON or OFF. 3D-DNR function reduce the background noise in a low luminance environment. Upgraded 3D filtering ensures even more clear image. [DNR Level High : Picture image is more clear but Ghost is more increased. DNR Level Low : Picture image is not clear but less Ghost.] MAIN MENU EXPOSURE...
-
Page 15: Specifications
7. SPECIFICATIONS TV System NTSC ensor Sony 1/3” SuperHAD CCD Total Pixel 811(H) X 508(V) 795(H) X 596(V) E ective Pixel 768(H) X 494(V) 752(H) X 582(V) Synchronization H/V 15.734/59.94Hz H/V 15.625/50Hz Scanning System 2:1 Interlace Horizontal Resolution 630 TV Lines (Max.) Min. -
Page 16: Product Warranty Card
PRODUCT WARRANTY CARD 1) ITEM # : 2) S/N # : 3) INSTALLATION CONDITION - Indoor / Outdoor - Power supply SPECIFICATION : DC12V / AC24V CURRENT __________ mA 4) TROUBLESHOOTING - No picture - Bad image - No power - Water damage - LED ON / OFF...
