Kenwood TK-290 Quick Manual

Kenwood U.S.A. Corporation
Land Mobile Radio Division Price Guide
All 90 series portables include:
• Belt Clip
• Universal Connector Cap
• Instruction Manual
• Channel Selector
Mechanical stop & dressing plate
• Standard Warranty: 2 Years*
* All Accessories / options: 1 Year
Purchase Battery, Charger
& Antenna Separately
RADIO
136-174 MHz 5W, 160 Ch. w/dual priority scan
TK-290K
[MSHA Intrinsically Safe Option]
TK-290K2 136-174 MHz 5W, 160 Ch. w/dual priority scan, w/DTMF keypad
[MSHA Intrinsically Safe Option]
450-490 MHz 4W, 160 Ch. w/dual priority scan
TK-390K
[MSHA Intrinsically Safe Option]
450-490 MHz 4W, 160 Ch. w/dual priority scan, w/DTMF keypad
TK-390K4
[MSHA Intrinsically Safe Option]
ANTENNAS
VHF helical antenna 148-162 MHz
KRA-14M
VHF helical antenna 162-174 MHz
KRA-14M2
VHF helical antenna 136-150 MHz
KRA-14M3
UHF whip antenna 450-490 MHz
KRA-15AM
KRA-15AM2 UHF whip antenna 470-512 MHz
UHF whip antenna 403-430 MHz
KRA-15AM3

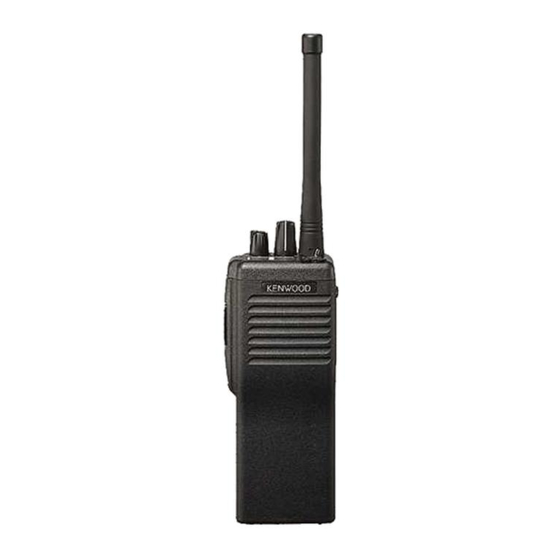

TK-290 / 390
VHF / UHF FM Transceivers
GENERAL FEATURES
• 5 W (136-174 MHz)
• 4 W (450-490 MHz)
• 160 Channels / 16 Channel Groups
• QT / DQT
• Dual Priority Scan
• Single & Multi-Group Scan
• 7-Character Alphanumeric Aliases
• Lighted 13-Segment LCD
• Inverting LCD Display
• 3-Digit Sub-Display
• Function / Status LCD Icons
• Transmit / Busy / Call Alert / Warn LED
• 2 Top Panel PF keys
• 2 Side PF Keys
• Orange Emergency / AUX Key (side)
• 2-Position PF Toggle Switch (top)
• 12-Key DTMF Keypad Models
• 500 mW Speaker Audio
• Companded Audio
• Encryption / ANI Board Control
• Emergency Call Features
• Emergency Man-Down Option
--- Must Order L-1027 for MSHA Intrinsically Safe option ---
** MSHA Intrinsically Safe Models: Under U.S. CFR Title 30 Part 23, APPROVAL No. 23-A060002, the
TK-290/390 portable radios*** (with or without keypad models) are approved intrinsically safe for use in
methane-air mixtures only with only the Kenwood 7.2V KNB-51NC battery pack and the MSHA-certified
listed options/accessories. The battery pack should only be charged in fresh air
*** TK-290K/K2 & TK-390K/K4 Only (TK-390K2/K3/K6 are not MSHA approved)
--- PA Bureau of Mine Safety option is also available through the LMR order desk --- PA Bureau of Mine Safety option is also available through the LMR order desk
*** PA Mines Intrinsically Safe Models: Under U.S. CFR Title 30 Part 23, APPROVAL No. 23-A060002,
the TK-290/390 portable radios*** (with or without keypad models) are approved intrinsically safe for use in
bituminous underground coal mines only with only the Kenwood 7.2V KNB-51NC battery pack and the
MSHA-certified listed options/accessories. The battery pack should only be charged in fresh air
*** TK-290K/K2 & TK-390K/K4 Only (TK-390K2/K3/K6 are not Commonwealth of PA approved)
Page 1 of 4
March 2012
• Two-Tone Decode
• Operator Selectable Tone
• DTMF Encode / Decode
• Time Out Timer
• Busy Channel Lockout
• Low Battery Alert
• Battery Saver
• Weather-sealed ACC Connector
• MIL-Spec Speaker Mic Options
®
• Windows Programming & Tuning
• Windows ® Firmware Uploading
• Front Panel Test / Tune
• Cloning
• MIL-STD-810 C/D/E/F/G
• MIL-STD "Driven-Rain"
• MSHA Mine Safety Option**
• PA Bureau of Mine Safety Option***
®
FleetSync
• PTT ID Digital ANI
• Emergency Status
TK-290・390
LIST
788.00
840.00
840.00
893.00
LIST
17.80
17.80
17.80
17.80
17.80
17.80
