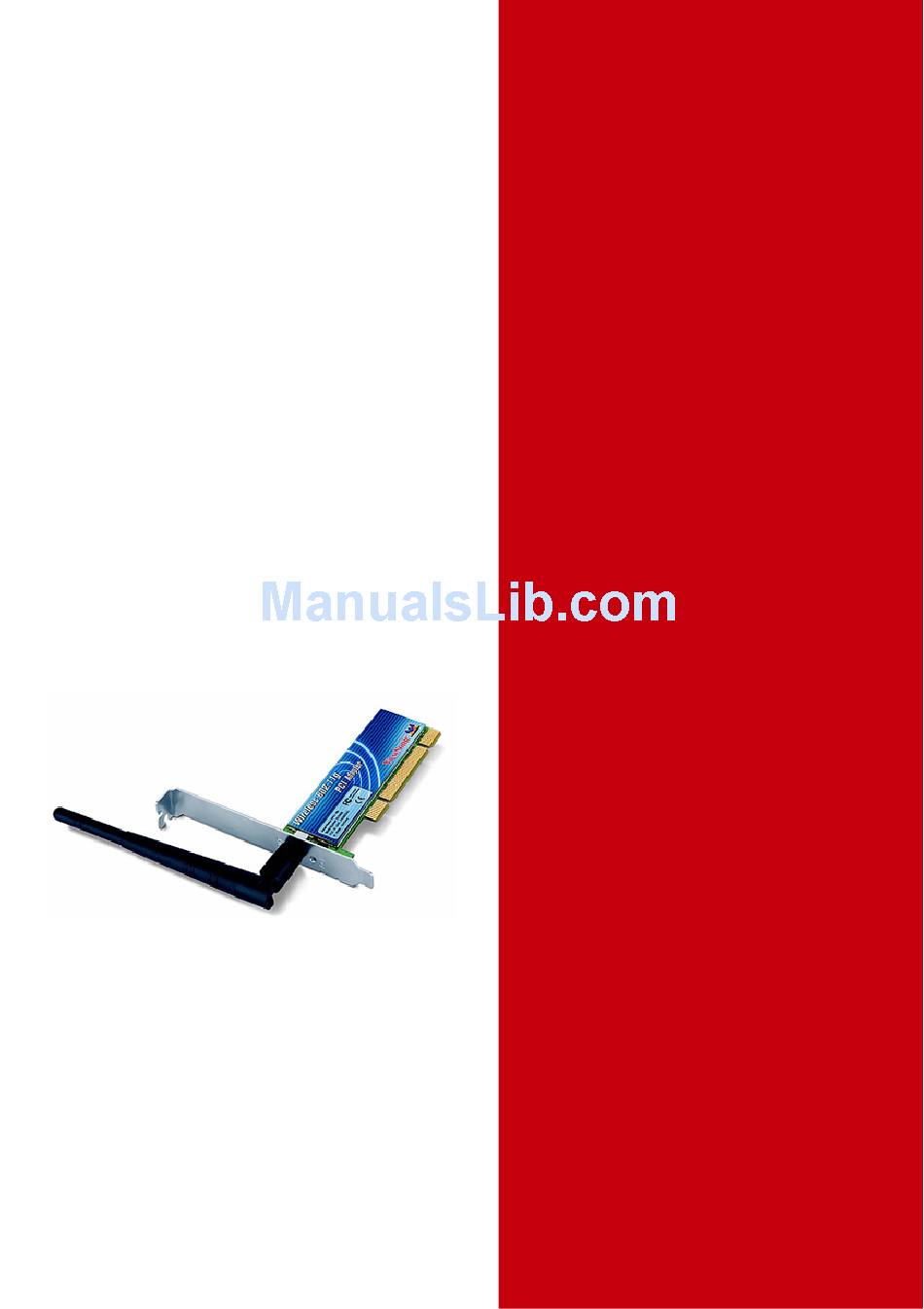

- Page 1 ViewSonic ® WPCI-100 Wireless PCI Adapter User Guide Wireless 802.11g PCI Adpter...
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Getting Started Product Registration ................1 Welcome ....................2 Package Contents................2 Features ....................2 Chapter 2: Installation System Requirements ................3 Wireless Network Overview ..............3 Installation .................... 4 NOTE for Windows 98 SE............... 6 Wireless Configuration .............. -
Page 3: Product Registration
Copyright © ViewSonic Corporation, 2004. All rights reserved. ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Corporate names and trademarks are the property of their respective companies. -
Page 4: Welcome
Chapter 1: Getting Started Welcome Congratulations on your purchase of a ViewSonic WPCI-100 802.11g Wireless PCI Adapter. This PCI Card supports both 802.11b and 802.11g wireless networks. Package Contents ViewSonic WPCI-100 Networking Companion CD Quick Start Guide 802.11g Wireless PCI... -
Page 5: Chapter 2: Installation
Microsoft Windows XP, Windows 2000, Windows ME, or Windows 98 Second Edition (SE) • Available PCI slot • 300MHz processor or higher • Minimum 5MB free disk space • Minimum 32MB RAM • CD-ROM drive Wireless Network Overview ViewSonic Wireless PCI Adapter... -
Page 6: Installation
Instructions for Windows 98 SE, ME, and 2000 are noted where applicable, and configuration instructions for these three operating systems are located in the Appendix. To install your ViewSonic WPCI-100 Wireless 802.11g PCI Adapter, do the following: 1. Insert the supplied Network Companion CD into the CD-ROM drive of your PC. - Page 7 3. From the next screen shown below, click WPCI-100 Driver Installation. 4. Complete the InstallShield Wizard instructions starting with the screen shown below. 5. After completing the on-screen instructions restart your PC. ViewSonic Wireless PCI Adapter...
-
Page 8: Note For Windows 98 Se
After restarting your PC, you may be asked to restart your PC again and/or insert the Windows 98 SE CD. Please follow these instructions. 6. With your PC powered off, plug in WPCI-100 Wireless PCI Adapter into an available PCI slot. -
Page 9: Wireless Configuration
For your convenience, write down these settings for later reference. To configure your WPCI-100 with Windows XP, do the following: 1. From the Windows XP desktop, right-click the Wireless Monitor utility icon on the Windows status bar (shown below), then select Enable Windows Zero Configuration (WZC). - Page 10 Confirm network key field, un-check Enable IEEE 802.1x authentication for this network, then click Connect. See the Wireless Network Connection screen shown on the next page. • IMPORTANT: Be sure to un-check Enable IEEE 802.1x authentication for this network. ViewSonic Wireless PCI Adapter...
- Page 11 (WEP or WPA) IMPORTANT: Un-check this box. NOTE: The WPCI-100 Wireless 802.11g PCI Adapter reads the Network Name (SSID) from accessible access points and/or the router or gateway connected to your wireless network. If you want to change/add an SSID or network key, change the configuration settings on your wireless router or gateway, repeat the WPCI-100’s installation procedure using the new...
-
Page 12: Verifying A Successful Installation
3. In the opened screen, expand Network Adapters double-click Wireless 802.11g Network Adapter. NOTE: If the WPCI-100 is installed properly, there will NOT be a red or yellow icon next to Wireless 802.11g Network Adapter, such as a question mark (?). -
Page 13: Chapter 3: Appendix
Before you start configuring your WPCI-100, be sure you complete the Installation steps on Pages 3 - 5. To configure your WPCI-100 with Windows 98SE, ME, or 2000, do the following: 1. Double-click the Wireless Monitor utility icon on the Windows status bar. - Page 14 3. Enter the wireless configuration settings that are consistent with your router, gateway, etc. This includes Profile Name (optional), SSID (network name), Network Type, Transfer Rate, WEP or WPA security settings, etc. 4. Click Complete, then click Connect. ViewSonic Wireless PCI Adapter...
-
Page 15: Troubleshooting
Check the distance to your router or gateway. It should be within 100 feet of your computer. • Uninstall the WPCI-100 driver software, restart your PC, then repeat the installation and wireless configuration steps listed in Chapter 2. My Wireless PCI Adapter disconnects soon after connecting. -
Page 16: My Network Is Slow
1 to another slot in your PC. Troubleshoot conflicts among your device resources. • Look for conflicts among your device resources. Try using Windows Troubleshooting to verify that the WPCI-100 is not trying to use computer resources already being used by another piece of hardware. My network is slow. •... - Page 17 10 seconds, then turn it back on again. When the status lights indicate that the router or gateway is functioning, try accessing the Internet from your PC connected to your wireless network. ViewSonic Wireless PCI Adapter...
-
Page 18: Customer Support
Customer Support Before contacting ViewSonic Customer Support, check the Troubleshooting section for possible solutions to any setup problems you have. NOTE: For Customer Support or product service you will need to provide the product’s serial number (on the back of the unit). -
Page 19: Specifications
Net:0.17 lb. (77 g) Gross:0.465 lb. (210 g) OS Support Supplied Driver Windows 98SE/ME/2000/XP LED Color Description Act Green Steady on when link is up and blinking when data is following through. Regulatory FCC part 15C,IC,WHQL,Wi-Fi, CE ViewSonic Wireless PCI Adapter... -
Page 20: Limited Warranty
If a ViewSonic Wireless Network Adapter product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. - Page 21 (e) the serial number of the product. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic. Limitation of implied warranties:...
-
Page 22: Regulatory Information
(2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT: FCC Radiation Exposure Statements This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. ViewSonic Wireless PCI Adapter... - Page 23 47 CFR 2.1093 paragraph (d)(2). This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ViewSonic Corporation declares that VS10408 (FCC ID: MXF-PI930723G) is limited in CH1~CH11 by specified firmware controlled in the U.S.A Canada IC Compliance Statement Low Power License-Exempt Radio communication Devices (RSS-210) 1.
