Honda FCX Emergency Response Manual

Fuel cell vehicle
Hide thumbs Also See for FCX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
Emergency Response Guide
Honda Fuel Cell Vehicle
Prepared for Fire Service, Law Enforcement, Emergency Medical, and Professional
Towing Personnel by American Honda Motor Co., Inc.

Advertisement

Table of Contents
loading

Related Manuals for Honda FCX

Summary of Contents for Honda FCX

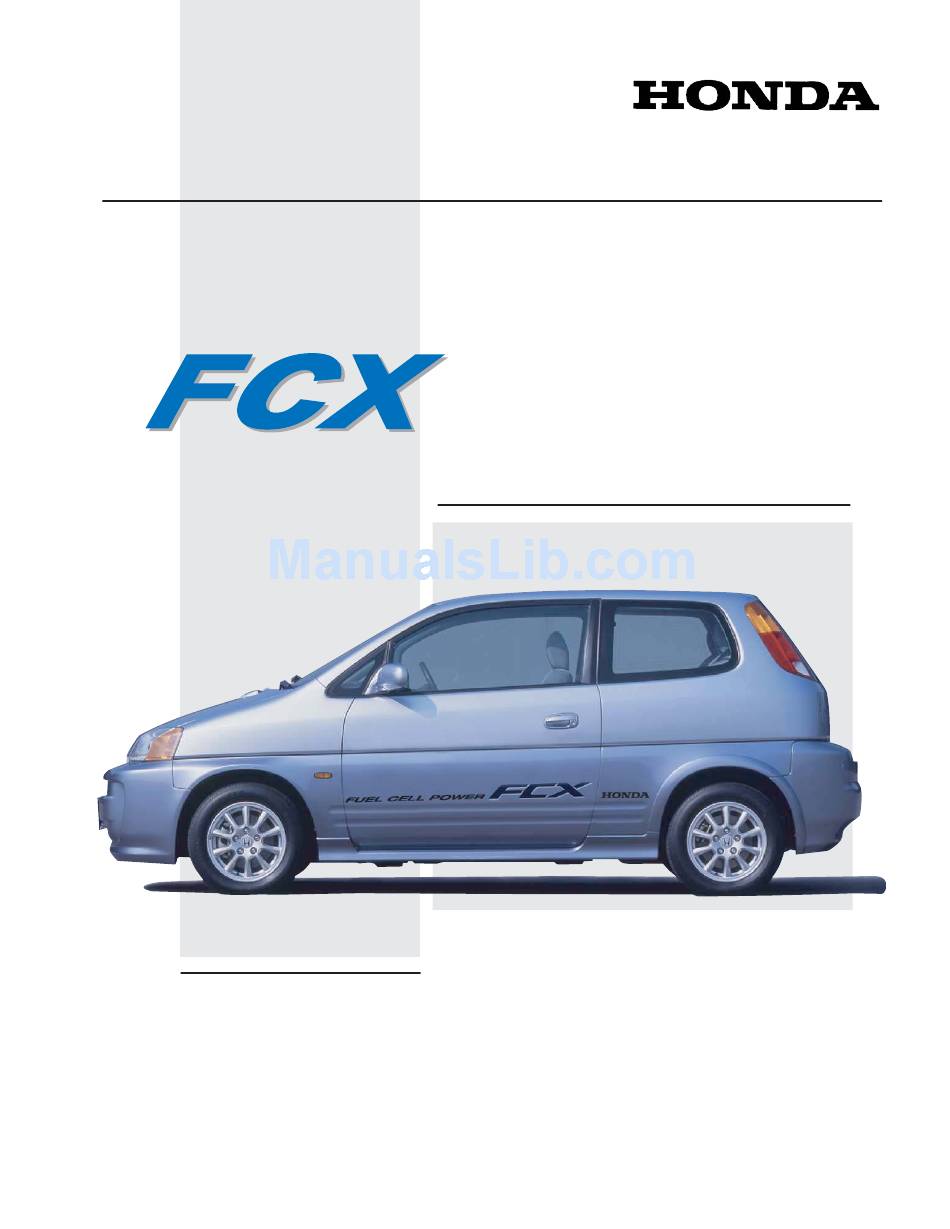

  • Page 1 Emergency Response Guide Honda Fuel Cell Vehicle Prepared for Fire Service, Law Enforcement, Emergency Medical, and Professional Towing Personnel by American Honda Motor Co., Inc.

  • Page 3: Table Of Contents

    Key Components Vehicle Description Type, Size, and Materials Curb Weight Fuel Cell Module Hydrogen Tanks High-Voltage Electric Motors Power Control Unit 12-Volt Battery Capacitor Module High-Voltage Cables Built-In Safety Features Occupant Protection Features Crash Detection System Hydrogen Tank Safety Valves Hydrogen Line Sensors Manual Hydrogen Shut-Off Valve Potential Hazards...

  • Page 5: Key Components

    Key Components Air Intake Radiators Battery Units Power High-Voltage Control Unit Cables Power Control Air Intake Radiators Unit Units Propulsion High-Voltage Motor Compressor Locations of the high-voltage cables are approximate. See page 4 for information on how to identify these cables. Fuel Cell High-Voltage Module...

  • Page 6: Vehicle Description

    Hydrogen Decal (1,680 kg). Fuel Cell Module The main power source for the FCX is a fuel cell module, which is housed inside a strong steel box under the passenger compartment floor. This module contains many individual fuel cells that combine hydrogen from onboard tanks with oxygen from the air intake units to produce electricity.

  • Page 7: High-Voltage Electric Motors

    Vehicle Description Propulsion Motor Front of Car 12V Battery Power Control Unit Continued High-Voltage Electric Motors Electricity generated by the fuel cell module powers these four high-voltage motors: • The propulsion motor drives the front wheels • An air compressor motor supplies air to the fuel cells •...

  • Page 8: Capacitor Module

    Vehicle Description One of Two Assemblies in the Capacitor Module High-Voltage Cables (driver’s-side under-hood view) Continued Capacitor Module Two integrated capacitor assemblies make up the capacitor module. Somewhat like a battery, the capacitor module provides long- term storage for electrical power generated by the fuel cells or regenerated by the propulsion motor.

  • Page 9: Built-In Safety Features

    Built-In Safety Features Pressure Relief Tube (rear view of vehicle) Occupant Protection Features The FCX has lap/shoulder belts in all four seating positions, dual front airbags, and pyrotechnic seat belt tensioners for the driver and a front passenger. To disable the...

  • Page 10: Hydrogen Line Sensors

    Manual Hydrogen Shut-Off Valve The FCX is equipped with a manual shut-off valve that can be used to stop the flow of hydrogen from the tanks. The valve is located inside the right rear wheelwell, in front of the tire.

  • Page 11: Potential Hazards

    1 to 7.6% 1.1 to 3.3% Gasoline Hydrogen The FCX does not present any greater hazards than a conventional gasoline-powered passenger car or any other type of electric car. It performed well in front-, offset-frontal-, side-, and rear-impact tests, with no damage to any of the high-voltage or hydrogen components.

  • Page 12: Electric Shock Potential

    Potential Hazards Continued Electric Shock Potential Unprotected contact with any electrically charged or “hot” high-voltage component can cause serious injury or death. However, receiving an electric shock is highly unlikely due to these facts: • Contact with high-voltage components inside the power control unit, the fuel cell box, or the capacitor module can occur only if these units are damaged and someone deliberately touches...

  • Page 13: Emergency Procedures

    Incidents Involving Fire If an FCX is involved in a fire, follow standard fire-fighting procedures, but keep away from the rear of the vehicle until the fire is completely out. Remember that high...

  • Page 14: Damaged Vehicle

    Emergency Procedures Continued Damaged Vehicle Before attempting to rescue occupants from a damaged FCX or to move a damaged vehicle, it’s important to prevent electric current from flowing through the high voltage cables and to prevent hydrogen leakage. You have three ways to do this, ranging from the best method to the least desirable.

  • Page 15: Best Method For Preventing Current Flow And Hydrogen Leakage

    Emergency Procedures Key in the Key Switch Manual Hydrogen Shut-Off Valve (Turn 1/4 turn clockwise to stop the flow of hydrogen.) Continued Best Method for Preventing Current Flow and Hydrogen Leakage Turn the key switch off, remove the key, and turn off the manual hydrogen shut-off valve.

  • Page 16: Second-Best Method For Preventing Current Flow And Hydrogen Leakage

    Emergency Procedures 12V Battery Battery Negative Ground Bolt Ground Bolt Second-Best Method for Preventing Current Flow and Hydrogen Leakage Disconnect the 12-volt battery negative cable and the negative DC-to-DC converter cable, then turn off the manual hydrogen shut-off valve. This method should be used only if the key switch is in the ON (II) position, and you cannot reach the key but you can reach under the hood.
  • Page 17 Emergency Procedures Manual Hydrogen Shut-Off Valve (Turn 1/4 turn clockwise to stop the flow of hydrogen.) Continued 4. Locate the red handle of the manual hydrogen shut-off valve (it’s in front of the tire in the right rear fenderwell). 5. Turn the handle one-quarter turn clockwise to stop the flow of hydrogen.

  • Page 18: Least-Desirable Method For Preventing Current Flow And Hydrogen Leakage

    Emergency Procedures Cargo Area Carpet Capacitor Module Main Switch Continued Least-Desirable Method for Preventing Current Flow and Hydrogen Leakage Turn off the capacitor module main switch, then turn off the manual hydrogen shut-off valve. This method does not disable the airbags or the seat belt tensioners.
  • Page 19 Emergency Procedures Red Locking Cover Manual Hydrogen Shut-Off Valve (Turn 1/4 turn clockwise to stop the flow of hydrogen.) Continued 3. Remove the red locking cover, then flip the switch from ON to OFF. 4. Reattach the locking cover to prevent the switch from inadvertently being flipped on.

  • Page 20: Extricating Occupants

    Emergency Procedures Continued Extricating Occupants If you need to break windows, cut into the body, or use “Jaws of Life”-type equipment to remove occupants from a damaged vehicle, be sure to stay within the cut zone (as indicated on the illustration by the light blue and dark blue diagonal lines).

  • Page 21: Emergency Towing

    Emergency Towing Towing Hook Continued If you need to move the FCX only a short distance, such as to the side of the road, and the car can still roll on the ground, the easiest way is to shift to neutral, then push the car manually.

  • Page 22: Using The Tie-Downs

    Emergency Towing Towing Hook Hole Tie-Down Points Continued 2. Remove the round grommet that covers the towing hook hole (on the driver’s side of the front grille). 3. Screw the towing hook firmly into the hole. Using the Tie-Downs Tie-down points are provided on the inside of the side sills.
  • Page 24 Copyright © 2003, American Honda Motor Co., Inc. Reorder Number Y0661 AXX 24924 (0303)
