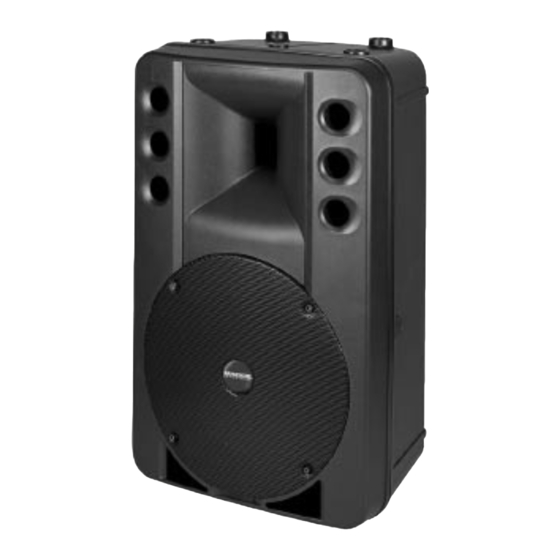

Mackie ART200AM Specifications

ART Series
Careful acoustic design and advanced materials
have resulted in an exceptional full range, full fidel-
ity, self-contained sound system. The ART200AM
provides an ideal combination of high power,
low distortion and wide bandwidth for permanent
installations.
The two-way design consists of a 12" woofer
that uses a massive magnet structure for accurate
bass reproduction and a CD horn loaded to a 1"
exit compression driver. The CD horn is a part of
the molded enclosure. Two discrete power ampli-
fiers and an electronic crossover are matched to
the two transducers and provide time correction,
CD horn compensation and peak-limiting, as well
as over-excursion and thermal protection.
A three input mixer features two mic/line inputs;
one balanced and one unbalanced. These two
inputs share a 4-band EQ, and an unbalanced
signal processing loop. The third input is an unbal-
anced line-level input. A single rotary control for
each adjusts the input level and mix. A special bus
connection is available to patch together additional
ART200AM speaker systems.
All components are housed in a lightweight,
vented enclosure formed from polypropylene that is
extremely rigid and is weather resistant. The woofer
is protected by a metal grille. All controls and con-
nectors are recessed on the rear. A 1-3/8" stand
socket and M10 threaded inserts are molded into the
cabinet to provide quick and easy installation using
specially designed accessory mounting hardware.
This Mackie Industrial product is covered by
an exclusive, one-time NO FAULT repair policy in
addition to a five year, limited warranty.
ART200AM
Active Speaker System and Mixer
Features
90° x 70° constant-directivity horn with 1" exit
compression driver
12" high-efficiency woofer
Internal bi-amplifier: 120W LF, 40W HF, and
driver-optimized electronic crossover
Three input mic/line mixer
Total system protection: over-excursion, ther-
mal, short circuit and peak limiting
Compact, lightweight polypropylene enclosure
Built-in hand grip, M10 fly points and stand
socket
Optional installation accessories include hard-
ware for truss, grid, pipe and adjustable wall
mounts
Exclusive Mackie Industrial — one-time NO
FAULT repair policy
Five year, limited warranty
Live Sound/Music Reinforcement
High-Level AV Playback
Large Speech Systems
1
O F 6 P A G E S
