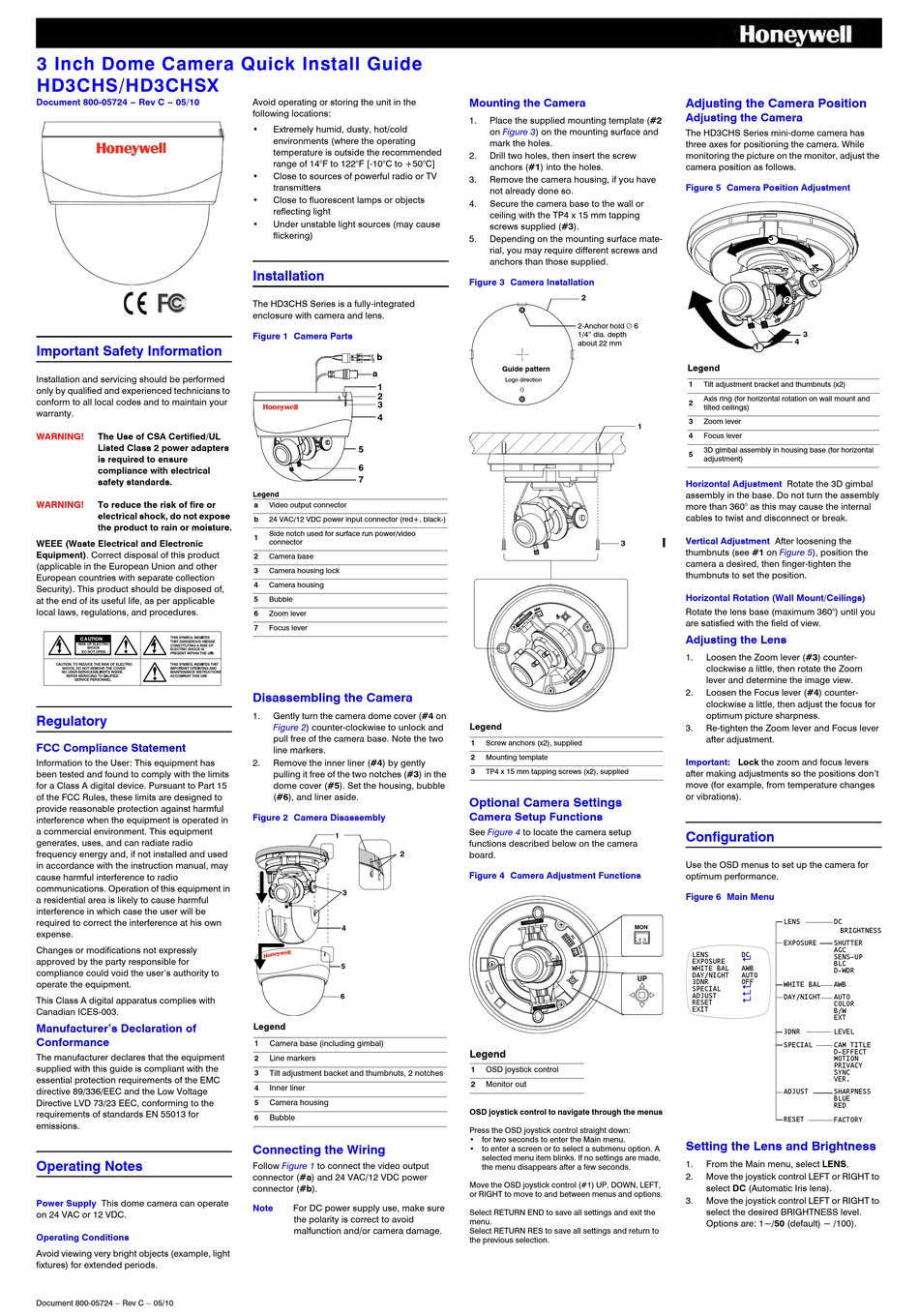

Honeywell HD3CHS Quick Install Manual

3 Inch Dome Camera Quick Install Guide
HD3CHS/HD3CHSX
Document 800-05724 – Rev C – 05/10

Important Safety Information

Installation and servicing should be performed
only by qualified and experienced technicians to
conform to all local codes and to maintain your
warranty.
WARNING! The Use of CSA Certified/UL
Listed Class 2 power adapters
is required to ensure
compliance with electrical
safety standards.
WARNING! To reduce the risk of fire or
electrical shock, do not expose
the product to rain or moisture.
WEEE (Waste Electrical and Electronic
Equipment). Correct disposal of this product
(applicable in the European Union and other
European countries with separate collection
Security). This product should be disposed of,
at the end of its useful life, as per applicable
local laws, regulations, and procedures.
THIS SYMBOL INDIC A TES
C A UTION
THAT DANGEROUS VO LTAGE
RISK OF ELECTRIC
CONSTITUTING A RISK OF
SHOCK
ELECTRIC SHOCK IS
DO NOT OPEN
PRESENT WITHIN THE UNI T.
CAUTION: TO REDUCE THE RISK OF ELECTRIC THIS SYMBOL INDIC A TES TH AT
SHOCK, DO NOT REMOVE THE COVER. IMPOR TANT OPER ATING AND
NO USER-SERVICEABLE PARTS INSIDE. MAINTENANCE INSTRUCTIONS
REFER SERVICING TO Q U ALIFIED ACCOM PANY THIS UNI T.
SERVICE PERSONNEL.
Regulatory
FCC Compliance Statement
Information to the User: This equipment has
been tested and found to comply with the limits
for a Class A digital device. Pursuant to Part 15
of the FCC Rules, these limits are designed to
provide reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
This Class A digital apparatus complies with
Canadian ICES-003.
Manufacturer's Declaration of
Conformance
The manufacturer declares that the equipment
supplied with this guide is compliant with the
essential protection requirements of the EMC
directive 89/336/EEC and the Low Voltage
Directive LVD 73/23 EEC, conforming to the
requirements of standards EN 55013 for
emissions.

Operating Notes

Power Supply This dome camera can operate
on 24 VAC or 12 VDC.
Operating Conditions
Avoid viewing very bright objects (example, light
fixtures) for extended periods.
Document 800-05724 – Rev C – 05/10
Avoid operating or storing the unit in the
following locations:
• Extremely humid, dusty, hot/cold
environments (where the operating
temperature is outside the recommended
range of 14°F to 122°F [-10°C to +50°C]
• Close to sources of powerful radio or TV
transmitters
• Close to fluorescent lamps or objects
reflecting light
• Under unstable light sources (may cause
flickering)
Installation
The HD3CHS Series is a fully-integrated
enclosure with camera and lens.
Figure 1 Camera Parts
b
a
1
2
3
4
5
6
7
Legend
a Video output connector
b 24 VAC/12 VDC power input connector (red+, black-)
Side notch used for surface run power/video
1
connector
2 Camera base
3 Camera housing lock
4 Camera housing
5 Bubble
6 Zoom lever
7 Focus lever

Disassembling the Camera

1. Gently turn the camera dome cover (#4 on
Figure 2) counter-clockwise to unlock and
pull free of the camera base. Note the two
line markers.
2. Remove the inner liner (#4) by gently
pulling it free of the two notches (#3) in the
dome cover (#5). Set the housing, bubble
(#6), and liner aside.
Figure 2 Camera Disassembly
1
2
3
4
5
6
Legend
Camera base (including gimbal)
1
2 Line markers
3 Tilt adjustment backet and thumbnuts, 2 notches
4 Inner liner
Camera housing
5
6 Bubble

Connecting the Wiring

Follow Figure 1 to connect the video output
connector (#a) and 24 VAC/12 VDC power
connector (#b).
Note For DC power supply use, make sure
the polarity is correct to avoid
malfunction and/or camera damage.
Mounting the Camera
1. Place the supplied mounting template (#2
on Figure 3) on the mounting surface and
mark the holes.
2. Drill two holes, then insert the screw
anchors (#1) into the holes.
3. Remove the camera housing, if you have
not already done so.
4. Secure the camera base to the wall or
ceiling with the TP4 x 15 mm tapping
screws supplied (#3).
5. Depending on the mounting surface mate-
rial, you may require different screws and
anchors than those supplied.
Figure 3 Camera Installation
2
2-Anchor hold  6
1/4" dia. depth
about 22 mm
Guide pattern
Logo direction
1
3
Legend
1 Screw anchors (x2), supplied
2 Mounting template
3 TP4 x 15 mm tapping screws (x2), supplied
Optional Camera Settings
Camera Setup Functions
See Figure 4 to locate the camera setup
functions described below on the camera
board.
Figure 4 Camera Adjustment Functions
MON
UP
UP
Legend
1 OSD joystick control
2 Monitor out
OSD joystick control to navigate through the menus
Press the OSD joystick control straight down:
• for two seconds to enter the Main menu.
• to enter a screen or to select a submenu option. A
selected menu item blinks. If no settings are made,
the menu disappears after a few seconds.
Move the OSD joystick control (#1) UP, DOWN, LEFT,
or RIGHT to move to and between menus and options.
Select RETURN END to save all settings and exit the
menu.
Select RETURN RES to save all settings and return to
the previous selection.
Adjusting the Camera Position
Adjusting the Camera
The HD3CHS Series mini-dome camera has
three axes for positioning the camera. While
monitoring the picture on the monitor, adjust the
camera position as follows.
Figure 5 Camera Position Adjustment
5
2
3
4
1
Legend
1 Tilt adjustment bracket and thumbnuts (x2)
Axis ring (for horizontal rotation on wall mount and
2
tilted ceilings)
3 Zoom lever
4 Focus lever
3D gimbal assembly in housing base (for horizontal
5
adjustment)
Horizontal Adjustment Rotate the 3D gimbal
assembly in the base. Do not turn the assembly
more than 360° as this may cause the internal
cables to twist and disconnect or break.
Vertical Adjustment After loosening the
thumbnuts (see #1 on Figure 5), position the
camera a desired, then finger-tighten the
thumbnuts to set the position.
Horizontal Rotation (Wall Mount/Ceilings)
Rotate the lens base (maximum 360°) until you
are satisfied with the field of view.
Adjusting the Lens
1. Loosen the Zoom lever (#3) counter-
clockwise a little, then rotate the Zoom
lever and determine the image view.
2. Loosen the Focus lever (#4) counter-
clockwise a little, then adjust the focus for
optimum picture sharpness.
3. Re-tighten the Zoom lever and Focus lever
after adjustment.
Important: Lock the zoom and focus levers
after making adjustments so the positions don't
move (for example, from temperature changes
or vibrations).
Configuration
Use the OSD menus to set up the camera for
optimum performance.
Figure 6 Main Menu
LENS DC
BRIGHTNESS
EXPOSURE SHUTTER
AGC
LENS DC
SENS-UP

EXPOSURE
BLC
WHITE BAL AWB
D-WDR
DAY/NIGHT AUTO
3DNR OFF
 WHITE BAL AWB
SPECIAL

ADJUST
DAY/NIGHT AUTO

RESET
COLOR
EXIT
B/W
EXT
3DNR LEVEL
SPECIAL CAM TITLE
D-EFFECT
MOTION
PRIVACY
SYNC
VER.
ADJUST SHARPNESS
BLUE
RED
RESET FACTORY
Setting the Lens and Brightness
1. From the Main menu, select LENS.
2. Move the joystick control LEFT or RIGHT to
select DC (Automatic Iris lens).
3. Move the joystick control LEFT or RIGHT to
select the desired BRIGHTNESS level.
Options are: 1~/50 (default) ~ /100).
