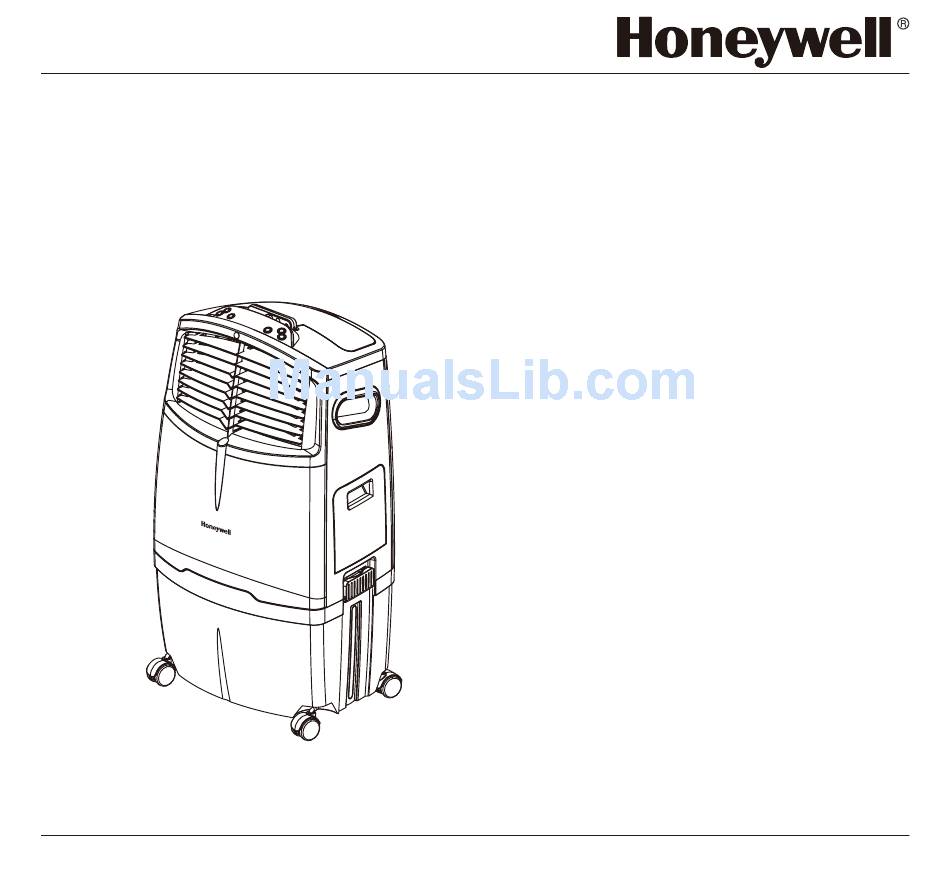

Portable Evaporative Air Cooler
OWNER'S MANUAL
Read and save these instructions before use
Model: CL30XC
Power rating: 250 Watts
Voltage rating:
230 Volt, 50Hz
Made in P.R.C.

Advertisement

Table of Contents
loading

Related Manuals for Honeywell CL30XC

Summary of Contents for Honeywell CL30XC

  • Page 1 Portable Evaporative Air Cooler OWNER’S MANUAL Read and save these instructions before use Model: CL30XC Power rating: 250 Watts Voltage rating: 230 Volt, 50Hz Made in P.R.C.

  • Page 2: Quick Start Guide

    QUICK START GUIDE Fill with water and plug into a standard power outlet. Note: Please make sure the household power voltage matches the product specifications. Place near an open door or window. Note : Evaporative air cooler requires cross ventilation. Turn ON and enjoy the cooling breeze.

  • Page 3: Table Of Contents

    INDEX Read all instructions carefully before setting up and operating the cooler, and please keep this instruction manual for future reference. This manual is designed to provide you with important information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to follow these instructions may damage and/or impair its operation and void the warranty.

  • Page 4: Thank You

    THANK YOU Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum cooling from your cooler, fill the water tank to maximum level and load ice inside the ice compartment before you turn on your air cooler.

  • Page 5: User Tips

    USER TIPS Energy efficient, No compressor Honeywell Evaporative Air Coolers are built to maximize energy efficiency and keep costs low. Warm air is drawn into the cooler through a dust and odor-reducing carbon filter and enters the Honeycomb Cooling Media. Water pumped from the tank pours over the honeycomb media. As the warm air passes through the media, the water absorbs the heat, naturally cooling and humidi- fying the air.
  • Page 6 USER TIPS The recommended maximum relative humidity level is 60% or less, which allows a noticeable temperature decrease. The temperature decrease will be greater in drier climates because higher evaporation occurs when the humidity is low. The evaporative air cooler should not be used in enclosed spaces.

  • Page 7: Safety

    SAFETY READ AND SAVE THESE INSTRUCTIONS: When using electrical appliances, basic safety precautions should always be followed: Your cooler runs on 230 Volt AC, 50 Hz current. Check the • household voltage to ensure it matches the appliance's rate 230 Volt 50 Hz specification.
  • Page 8 SAFETY • DO NOT attempt to repair or adjust any electrical or mechani- cal functions of the cooler, as this may void the warranty. • DO NOT cover the air inlet or outlet on the appliance as this may cause motor damage. •...

  • Page 9: Parts Description

    PARTS DESCRIPTION Front Panel Control Panel Water Level Indicator Handle Remote Control Louvers Latch Left Side Panel Right Side Panel Water Tank Water Fill Door Power Cord Drainage Tube / Cap Power Plug 18 Water Regulator Casters Ice Compartment Lid Rear Grill Removal Screws Back Grill ACCESSORIES:...

  • Page 10: Use & Operation

    USE & OPERATION CONTROL PANEL SWING SPEED COOL SLEEP TIMER Icons on LCD Cool Swing Fan operating Time delay set Low speed Sleep Medium speed High speed...

  • Page 11: Function Buttons

    USE & OPERATION FUNCTION BUTTONS POWER Press the 'POWER' button to turn the unit ON. To turn the unit OFF, press the button again. The cooler will start automatically at medium speed. After a few seconds the speed will switch to low. / SPEED Press the 'FAN OR SPEED' button repeatedly and the speed will change.
  • Page 12 USE & OPERATION SWING LOUVERS MOVEMENT Press the ''SWING'' button. The indicator light will come on and the louvers will begin to move from right to left automati- cally. Manually adjust the horizontal louvers to change vertical airflow. SLEEP SWING When the SLEEP button is pressed, the cooler will run on HIGH speed for 1 hour, subsequently changing to MEDIUM SLEEP...

  • Page 13: Room Cooling And Humidifying

    USE & OPERATION ROOM COOLING AND HUMIDIFYING When the Water Regulator is set to ''MIN'', the water pump distributes minimal amount of water to the Honeycomb Media. This results in less water evaporation and reduces cooling effect. When the Water Regulator is set to ''MAX'', the water pump distributes the maximum amount of water to the Honeycomb Media.

  • Page 14: Remote Control

    USE & OPERATION REMOTE CONTROL Power: On / Off Speed: Low / Medium / High POWER Cool/Fan: Controls cooling or fan option Swing: Controls the motion of the louvers SPEED SWING Timer: Controls timer function for automatic shut off TIMER Sleep : Turns on the sleep mode (Cooler runs on high COOL...

  • Page 15: Filling Water

    USE & OPERATION CAUTION Unplug from power when refilling. FILLING WATER Unplug the air cooler from power supply. Check water level indicator located on the front of the unit to determine the level of water inside the water tank. The water tank of this cooler holds up to 30 Litres of water.

  • Page 16: Cleaning & Maintenance

    CLEANING & MAINTENANCE IMPORTANT • The cooler is supplied with Honeycomb Cooling Media. • The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas where the mineral content of water is high, mineral deposits may build up on the Honeycomb Cooling Media and restrict air flow.
  • Page 17 CLEANING & MAINTENANCE DRAINING AND CLEANING THE WATER TANK • Turn the power “off” and disconnect the air cooler from the power supply. • Move the unit to a location where it can be drained. Remove the cap from the water drain plug and allow the tank to empty (see parts description on page 7).

  • Page 18: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION No discharge of air Cord is not plugged in. Make sure power cord is plugged in and the supply switch is on. Power is not on. Turn the unit ON by pressing buttons on the control panel. Not Cooling / Unit is Pump is not turned ON.
  • Page 19 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION The unit does not respond Remote control batteries. Check batteries, Replace if to remote control needed. Try to operate using the control panel. Damaged PCB. Try with remote control. If the unit responds, PCB board fasteners may be loose.

  • Page 20: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL NO. CL30XC Voltage 230V 50Hz Frequency 250 Watts Wattage Water Tank Capacity 25 Liters Cooling Media Honeycomb Product Dimension 458(L) x 352(W) x 856(H) mm 11.3 Kg Net Weight ELECTRICAL WIRING DIAGRAM Capacitor Power Cord 230V~ 50Hz...
  • Page 21 © 2012 AirTek International Corporation Limited The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representation or warranties with respect to this product. Manufactured by AirTek International Corporation Limited.
