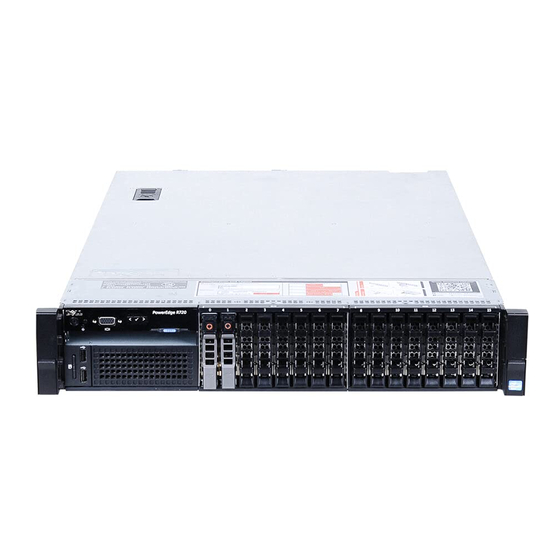

Dell PowerEdge R720 Getting Started Manual
Hide thumbs
Also See for PowerEdge R720:
- Technical manual (65 pages) ,
- Installation, maintenance and troubleshooting manual (48 pages) ,
- Specifications (2 pages)
Related Manuals for Dell PowerEdge R720
Summary of Contents for Dell PowerEdge R720
-
Page 1: Getting Started Guide
Dell PowerEdge R720 and R720xd Getting Started Guide Regulatory Model: E14S Series Regulatory Type: E14S001... -
Page 2: Notes, Cautions, And Warnings
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death. © 2012 Dell Inc. Trademarks used in this text: Dell , the Dell logo, Dell Boomi , Dell Precision , OptiPlex... -
Page 3: Installation And Configuration
Installation And Configuration WARNING: Before performing the following procedure, review the safety instructions that came with the system. Unpacking a Rack System Unpack your system and identify each item. Assemble the rails and install the system in the rack following the safety instructions and the rack installation instructions provided with your system. -
Page 4: Connecting The Power Cables
Connecting The Power Cable(s) Figure 3. Connecting the Power Cable(s) Connect the system’s power cable(s) to the system and, if a monitor is used, connect the monitor’s power cable to the monitor. Securing The Power Cable(s) Figure 4. Securing the Power Cable(s) Bend the system power cable(s), as shown in the illustration, and attach to the cable strap. -
Page 5: Turning On The System
Dell Software License Agreement Before using your system, read the Dell Software License Agreement that came with your system. You must consider any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do... -
Page 6: Other Information You May Need
NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often supersede information in other documents. -
Page 7: Technical Specifications
NOTE: The following specifications are only those required by law to ship with your system. For a complete and current listing of the specifications for your system, go to support.dell.com. NOTE: The following specifications apply to both PowerEdge R720 and PowerEdge R720xd unless specified. Power... - Page 8 Physical Weight (empty) 2.5-inch hard-drive systems (PowerEdge R720) 11.7 kg (25.7 lbs) 2.5-inch hard-drive systems (PowerEdge R720xd) 17.7 kg (39.02 lbs) 3.5-inch hard-drive systems (PowerEdge R720) 10.3 kg (22.7 lbs) 3.5-inch hard-drive systems (PowerEdge R720xd) 17.2 kg (37.91 lbs) Environmental NOTE: Your system is capable of 40 °C and 45 °C excursion operation for fresh air cooled data centers.
- Page 9 Environmental the system) of 22 G faired square wave pulse with velocity change at 200 inches/second (508 centimeters/ second). Altitude –15.2 m to 3048 m (–50 to 10,000 ft). Operating NOTE: For altitudes above 2950 ft, the maximum operating temperature is derated 1 ºF/550 ft. Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft).
