Page 1: Getting Started Guide

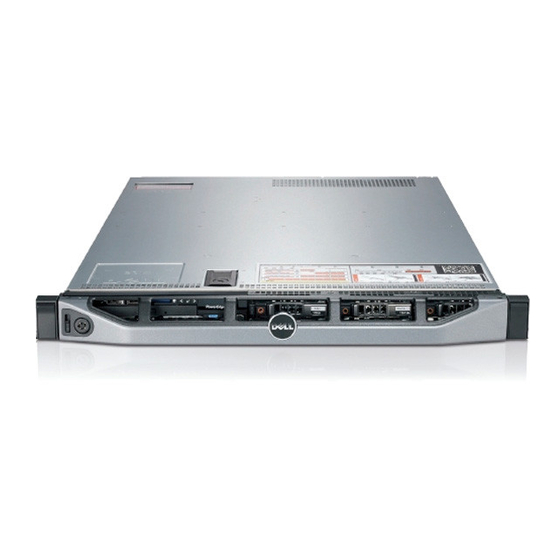

Dell PowerEdge R620 Getting Started Guide Regulatory Model: E16S Series Regulatory Type: E16S001... -
Page 2: Notes, Cautions, And Warnings
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death. © 2012 Dell Inc. Trademarks used in this text: Dell , the Dell logo, Dell Boomi , Dell Precision , OptiPlex... -
Page 3: Installation And Configuration
Installation And Configuration WARNING: Before performing the following procedure, review the safety instructions that came with the system. Unpacking a Rack System Unpack your system and identify each item. Assemble the rails and install the system in the rack following the safety instructions and the rack installation instructions provided with your system. -
Page 4: Connecting The Power Cables
Connecting The Power Cable(s) Figure 3. Connecting Power Cable(s) Connect the system’s power cable(s) to the system and, if a monitor is used, connect the monitor’s power cable to the monitor. Securing The Power Cable(s) Figure 4. Securing Power Cable(s) Bend the system power cable(s), as shown in the illustration, and attach to the cable strap. -
Page 5: Turning On The System
Dell Software License Agreement Before using your system, read the Dell Software License Agreement that came with your system. You must consider any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do... -
Page 6: Other Information You May Need
NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often supersede information in other documents. -
Page 7: Technical Specifications
Technical Specifications NOTE: The following specifications are only those required by law to ship with your system. For a complete and current listing of the specifications for your system, go to support.dell.com. Power AC Power Supply (per power supply) Wattage... - Page 8 1 °C/300 m above 900 m (1°F /550 ft). NOTE: For information on supported expanded operating temperature range and configurations, see support.dell.com/manuals. Storage –40 °C to 65 °C (–40 °F to 149 °F) with a maximum temperature gradation of 20 °C per hour.
- Page 9 Environmental –15.2 m to 3048 m (–50 to 10,000 ft). Operating NOTE: For altitudes above 2950 ft, the maximum operating temperature is derated 1 ºF/550 ft. Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft). Airborne contaminant level Class G1 as defined by ISA-S71.04-1985.
