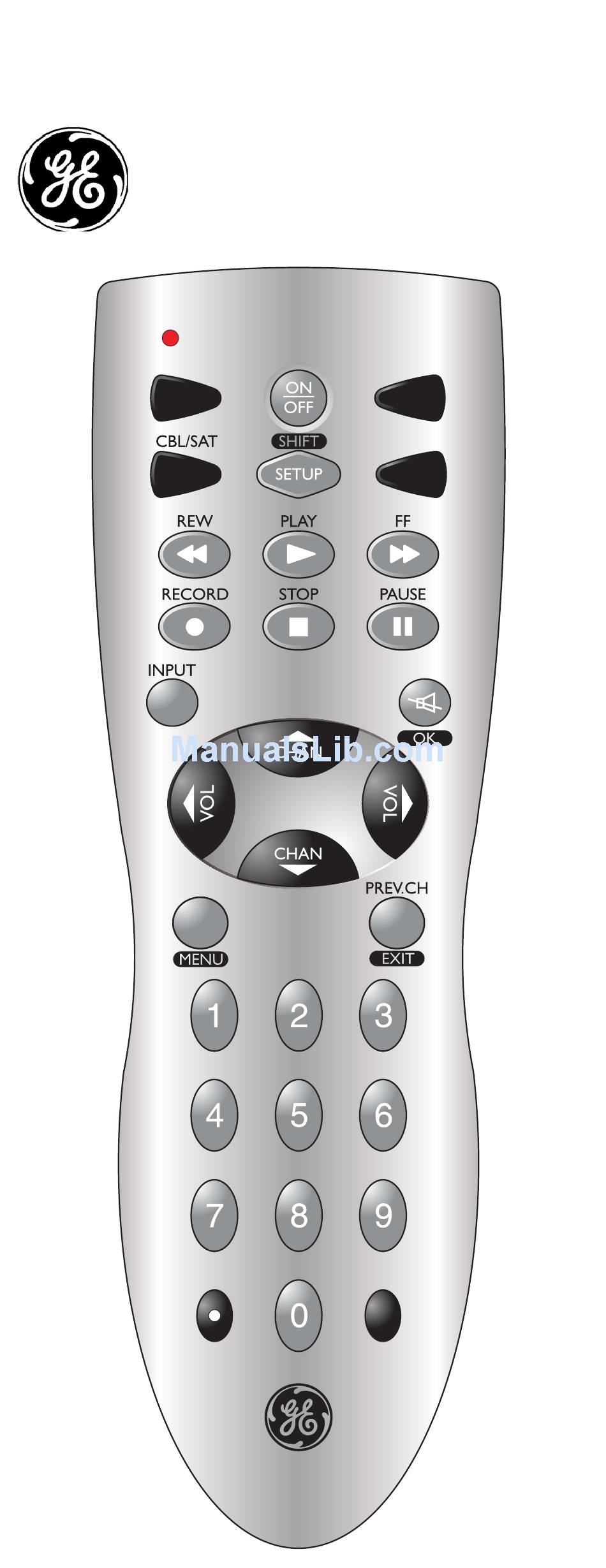

Your 20622 controls up to four devices, including the most popular brands of TV, VCR, DVD, CBL, and SAT. The 20622 is easy to use, easy to program, and it gives you total control—at the touch of your fingertips! Note: Some functions from your original remote may not be controlled by this remote.
Setup Battery Installation 1. On the back of the remote, push down on the tab and lift the cover off. 2. Match the batteries to the + and - marks inside the battery case, then insert 2 AAA Alkaline batteries. 3.
Button Functions Some buttons on the remote might have functions that are referred to by different names on the device you are controlling. E.G. PREV. CH may be called RECALL, or ENTER may be called DISPLAY. These differences depend on the brand and model of your product. Also, this remote can only operate features that exist on your product.
Page 5
Button Functions, cont. ON•OFF SETUP used to setup the remote, and turns product On or Off. for code search function. SHIFT Press and release to access buttons labeled in reverse print (OK, MENU, EXIT). See “Using SHIFT for Menu and Navigation” description on Page 9 for more information.
Direct Code Entry 1. Press and hold the SETUP button until the red indicator stays on, then release the SETUP button. 2. Press and release the desired device button (TV, DVR, etc.). The red indicator blinks, then stays lit. 3. Enter the 4 digit code from the code tables (on separate sheet).
Code Search If your device does not respond after you have tried all the codes for your brand, or if your brand is not listed, try searching for your code by following these steps. 1. Manually turn on the device (TV, DVR, etc.) to be controlled.
Using Your Remote Code Identification The Code Identification Feature allows you to identify the four digit library code stored under your device button. For example, if you want to find out what four digit code is stored under your TV device button, follow the six steps below: 1.
Using Your Remote, cont. Using SHIFT for Menu and Navigation The SHIFT button allows access to more than one function for certain buttons. Use the SHIFT/SETUP button prior to accessing the MENU, OK, EXIT and Navigation functions, for example: For MENU, press and release SHIFT/SETUP then MENU/INFO.
Using Your Remote, cont. Controlling Devices with Separate Power On and Off Buttons Some GE, RCA and ProScan models require you to press the device button for more than one second to turn the device on and the ON•OFF button to turn the device off. Controlling Combo Devices Some Combo devices (e.g.
Using Your Remote, cont. Volume/Mute Control and Punch-Through This remote lets you select which device Mode controls your Volume/Mute buttons. The remote is initially set for all device Modes to use their own Volume/Mute control if present. If the programmed code has no Volume/Mute operation of its own then those buttons will punch-through control to the TV Mode device without needing to change to TV Mode.
Page 12
Using Your Remote, cont. Setting any Mode to use its own Volume/Mute Control This routine can set any Mode to use only its own Volume/Mute control. Note - If your chosen Mode has no Volume/Mute functions of its own then the Volume/ Mute buttons will do nothing.
Troubleshooting Remote does not operate your product. • Press the device button of the product you want to control. • Program the remote with a new code. • Install new batteries. (You might have to reprogram your remote after installing new batteries.) •...
Page 14
90 Day Limited Warranty Jasco Products Company warrants this product to be free from manufacturing defects for a period of ninety days from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit.
Page 15
20622 Universal Remote Instruction Manual Jasco Products Company 10 E. Memorial Road Oklahoma City, OK 73114-220 Made in China 20622-04/09...
