Mackie SWA1801 Brochure

SWA1801

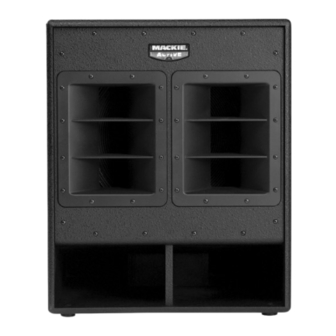

 The SWA1801 is an 18-inch high output, active sub-
woofer system. It features a newly designed high-preci-
sion 18-inch transducer combined with application-specifi c
amplifi er technology. The system is composed of a single,
compact subwoofer cabinet with built-in control and ampli-
fi er electronics.
 The transducer used in the SWA1801 system features
an RCF Precision 4-inch, inside/outside wound voice
coil that offers extreme power handling capabilities. The
magnetic assembly used features advancements in coil
venting, composite polymide former construction, and
structural cooling that provide lower temperature rise and
substantially improved power compression characteristics.
 The amplifi er found in the SWA1801 cabinet is an
example of application-specifi c amplifi er design that can
be exercised when designing active speaker systems. The
system uses a proprietary high-effi ciency, high-current
amplifi er designed to provide high current levels at all
levels of operation. Having access to high current levels,
no matter what the power output, is absolutely critical
in achieving precise, total control of the woofer mass.
This control is responsible for lowering audible distor-
tion artifacts and providing aggressive attack through the
operating band pass of the system. The amplifi er, which is
mounted on a large, fi nned aluminum heat sink, is rated at
900 watts RMS continuous output.

The SWA1801 features a sophisticated on board con-
trol system, allowing for fl exible integration with active or
passive full range or mid/high speaker systems. The input
panel accepts a line-level input signal and has LOOP OUT
connectors for signal routing to other devices. It also has
HIGH PASS out connectors for connection to active full range
speakers or amplifi ers powering passive full range speakers.
All signal routing is through XLR connectors in L+R stereo
or mono. There is a phase selection switch and a recessed
level control. The system features thermal protection for
the power supply and amplifi er and also incorporates RMS
limiting protection for the amplifi er stage that limits the
amount of long term power delivered to the transducer.
 The cabinet is constructed using 18 mm thick multi-
layered birch plywood and fi nished in black splatter paint.
There is one handle on each side for effi cient loading and
transport as well as a top, female pole mount fi xture.
R E L A T E D P R O D U C T S
SRM450/SR1530/SA1521 Active Loudspeakers, SWA1501
Active Subwoofer, 1202-VLZ PRO 12-Channel Mic/Line
Mixer, 1402-VLZ PRO 14-Channel Mic/Line Mixer, 1604-VLZ
PRO and 1642-VLZ PRO 16-Channel Mic/Line Mixers.
SWA1801
Active Subwoofer System
Features
Active, high-output 18-inch subwoofer system
High-effi ciency, high-current 900 watt RMS
continuous output amplifi er
High output 135 dB of peak SPL
Response down to 35Hz (–10 dB point)
Can be used with active or passive speaker systems
Built-in crossover network with stereo or mono high-
pass outputs
Recessed level control, center detent rotating knob
(–15 to +5 dB)
Recessed phase switch (0°–180°)
4-inch, inside/outside high-temperature coil
technology
Compact, portable enclosure
Small footprint allows for unobtrusive, strategic
placement
Baltic birch wood construction, built-in pole mount
Correctly weight-balanced enclosure
Two comfortable side handles for easy carrying and
setup
Applications
Live Sound/Music Reinforcement

High-Level AV Playback

Small to Medium-Sized Portable PA Systems

Corporate Events

Night Clubs

Houses of Worship

1
O F 4 P A G E S
