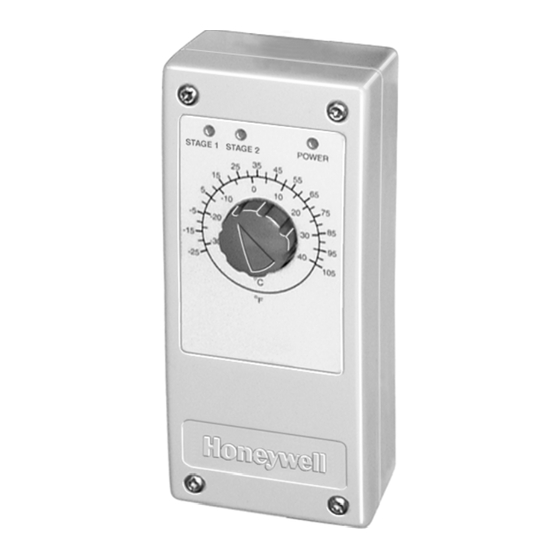

T7079A,B
Solid State
Remote Temperature Controllers
APPLICATION
The T7079 Electronic Remote Sensor Temperature Controller
is capable of providing on-off temperature control for ducts,
tanks, heating and refrigeration units, greenhouses, animal
confinement buildings and other applications where electronic
accuracy in addition to remote sensing is desired.
FEATURES
• Switch selection of heat or cool mode.
• Temperature sensing up to 400 feet.
• Does not require field calibration.
• 10K NTC temperature sensor.
• Wide setpoint temperature range.
• LED annunciation for both power on and relay state.
• Dual setpoint scale (°F and °C).
• Isolation transformer for 24 Vac input.
• Single- or Dual-stage output.
• Dual-stage output models can be configured as
two-heat, two-cool, or one-heat/one-cool.
Application ........................................................................1
Features ...........................................................................1
Specifications ....................................................................2
Ordering Information .........................................................2
Installation ........................................................................3
Wiring ...............................................................................4
Operation ..........................................................................5
Checkout ..........................................................................6
PRODUCT DATA
Contents
Put UPC Code Here
63-2572-04
Advertisement
Related Manuals for Honeywell T7079A
Summary of Contents for Honeywell T7079A
-
Page 1: Table Of Contents
T7079A,B Solid State Remote Temperature Controllers PRODUCT DATA FEATURES • Switch selection of heat or cool mode. • Temperature sensing up to 400 feet. • Does not require field calibration. • 10K NTC temperature sensor. • Wide setpoint temperature range. -
Page 2: Specifications
If you have additional questions, need further information, or would like to comment on our products or services, please write or phone: 1. Your local Honeywell Automation and Control Products Sales Office (check white pages of your phone directory). 2. Honeywell Customer Care... -
Page 3: Installation
T7079A,B SOLID STATE REMOTE TEMPERATURE CONTROLLERS Sensor Location Table 3. 10K thermistor output. The sensor can be located up to 400 feet (122 meters) from Resistance °C °F the T7079 using standard AWG 18/2 unshielded wire. The 97820 sensor may be attached to pipes, in an immersion well, in a wall-mounted case or on a bulb holder. -
Page 4: Wiring
T7079A,B SOLID STATE REMOTE TEMPERATURE CONTROLLERS T7047C1090 STAGE 2 LED POWER LED WALLMOUNT SENSOR STAGE 1 LED CASE (OPTIONAL) SENSOR LEADWIRES SENSOR TO T7079 TERMINALS SCREW STAGE DIFFERENTIAL TERMINAL ADJUSTMENTS SCREW TERMINAL INTERSTAGE DIFFERENTIAL 24 VAC VOLTAGE INPUT OUTPUT STAGE... -
Page 5: Operation
T7079A,B SOLID STATE REMOTE TEMPERATURE CONTROLLERS 240V 120V STAGE 2 M17573 STAGE 1 (HOT) M17563 Fig. 8. Adjustments (potentiometers and switches). Fig. 7. Typical line-voltage (120 Vac) wiring application. TWO-STAGE HEAT 1. Set ST1 and ST2 switches to HEAT. OPERATION 2. -
Page 6: Checkout
T7079A,B SOLID STATE REMOTE TEMPERATURE CONTROLLERS CHECKOUT With the controller installed and wired, use the following procedure: 1. Verify all settings. 2. Apply power. CAUTION 3. Check for proper equipment response. a. Cooling applications: turn the setpoint knob Compressor Damage Possible. - Page 7 T7079A,B SOLID STATE REMOTE TEMPERATURE CONTROLLERS 63-2572—04...
- Page 8 T7079A,B SOLID STATE REMOTE TEMPERATURE CONTROLLERS Automation and Control Solutions Honeywell International Inc. Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Toronto, Ontario M1V 4Z9 customer.honeywell.com ® U.S. Registered Trademark © 2009 Honeywell International Inc.
