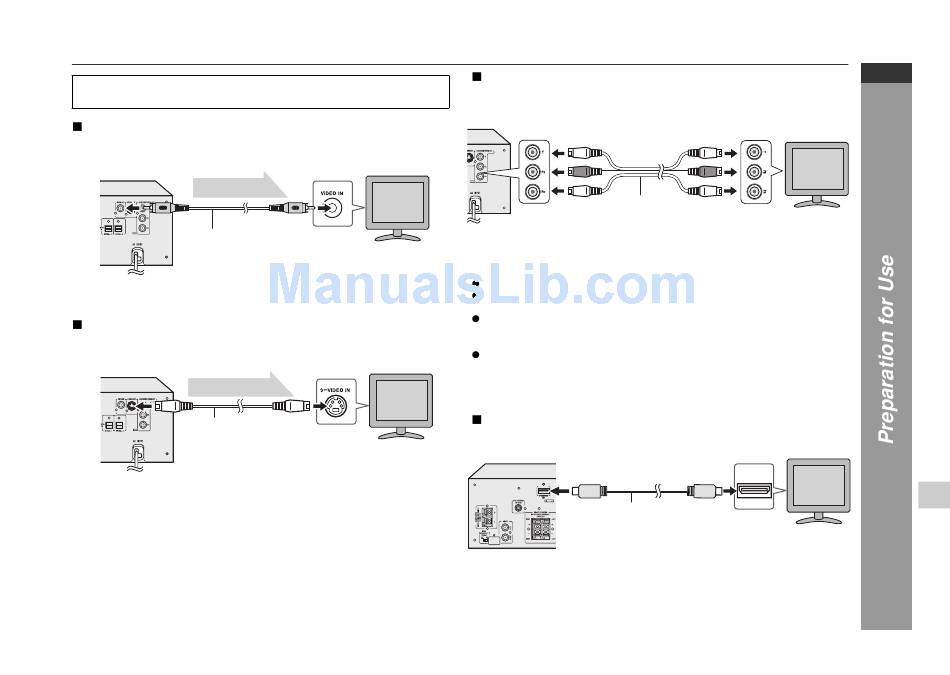

Connecting to a conventional TV/monitor

Caution:
Turn off all other equipment before making connections.
If the TV/monitor has video input, connect it to
the VIDEO OUT socket on the rear of the unit.
Video signal
(not supplied)
If the TV/monitor has S-video input, connect it to
the S-VIDEO OUT socket on the rear of the unit.
Video signal
S-video cable
(not supplied)
TV
To video
input socket
Notes:
TV
To S-video
input socket
If the TV/monitor has component video input,
connect it to the COMPONENT VIDEO OUT
socket on the rear of the unit.
Component
video cable
(not supplied)
Change the TV input in accordance with the connected socket.
Do not connect other equipment between the TV and this unit. If
they are connected via a VCR, pictures may be distorted.
If your TV has different indications for the component video inputs
(Y, CB and CR or Y, B-Y and P-Y), connect sockets with its
matching colour.
Do not connect to a component video input socket designed for
the high-vision system, which is not DVD-compatible (the images
may be distorted or not appear).
If the TV/monitor has HDMI input, connect it to
the HDMI socket on the rear of the unit.
HDMl cable
HT-DV40U
HT-DV50U
ENGLISH
TV
To component
video input socket
TV
To HDMI
input socket
E-20
