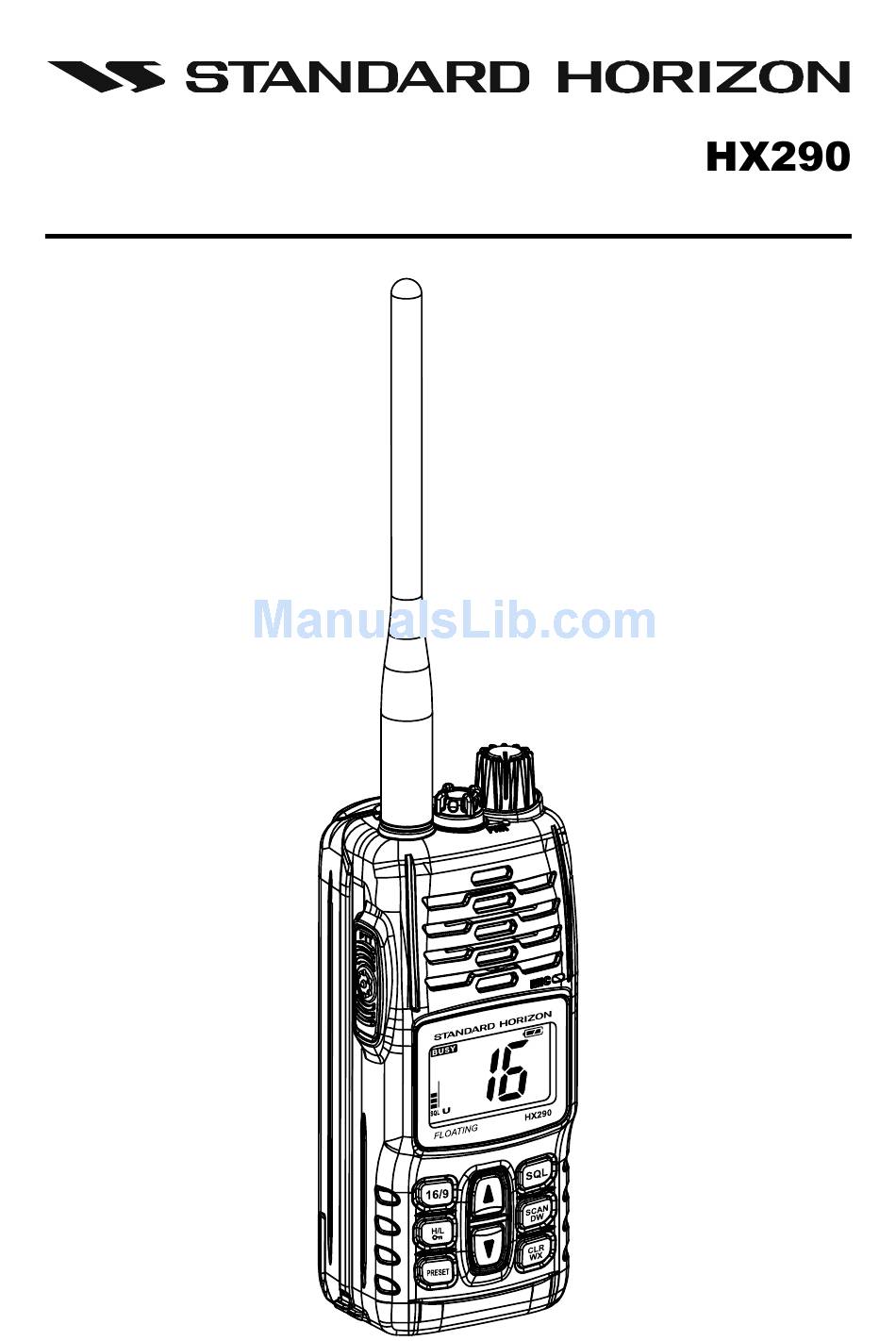

  • Page 1 Floating Marine Transceiver Owner’s Manual HX290 Page 1...

  • Page 2: Table Of Contents

    11.1 FBA-42 ALKALINE BATTERY CASE ................ 39 12. SPECIFICATIONS ......................... 40 12.1 GENERAL ........................40 12.2 TRANSMITTER ......................40 12.3 RECEIVER ........................ 40 13. FCC & CANADA RADIO LICENSE INFORMATION ............41 14. FCC NOTICE ........................42 Page 2 HX290...

  • Page 3: Quick Reference Guide

    [ ] key to tween High (5W) and Low (1W). un-squelch the radio. [ ] [ ] B Selects the operating channel. NOTE For additional details, refer to next page or section “5. CONTROLS AND INDICATORS”. HX290 Page 3...

  • Page 4: General Information

    LCD display, EEPROM memory back-up, Battery Life displayed on LCD, Glow-In-The-Dark strip, and a transmit Time-Out Timer (TOT). The HX290 transmitter provides a full 5 Watt of transmit power and also is selectable to 1 Watt to assist the user in ensuring maximum battery life.

  • Page 5: Accessories

    “C” suffix is for use with 230 VAC (Type-C plug), and “U” suffix is for use with 230 VAC (Type-BF plug). Note: Before operating the HX290 for the first time, it is recommended that the battery be charged. Please see section “4.3.3 BATTERY CHARGING” for details.

  • Page 6: About This Radio

    This is _____, _____, _____” (your vessel’s name). 2. Then repeat once: “Mayday, _____” (your vessel’s name). 3. Now report your position in latitude/longitude, or by giving a true or mag- netic bearing (state which) to a well-known landmark such as a navigation Page 6 HX290...

  • Page 7: Calling Another Vessel ( Channel 16 Or 9 )

    “over”. Then switch to the new channel. When the new channel is not busy, call the other vessel. After a transmission, say “over”, and release the PTT ( Push-To-Talk: ) switch. When all communication with the other vessel is completed, end the last trans- HX290 Page 7...

  • Page 8: Operating On Channel 13

    Canada, and International regulations. The mode of operation cannot be altered from simplex to duplex or vice-versa. Simplex (ship to ship) or duplex (marine operator) mode is automatically activated, depending on the channel and whether the USA, Canadian or International operat- ing band is selected. Page 8 HX290...
  • Page 9 MEMO HX290 Page 9...

  • Page 10: Getting Started

    The design of the HX290 allows water to enter between the radio and the battery pack, however waterproof performance is not compromised. After using the HX290 in salt water environment is recommended to clean the radio with fresh water by rinsing the battery and radio (separately) under a sink facet or by dunking in a fresh water.

  • Page 11: Batteries And Chargers

    Battery packs should be charged only in non-hazardous environments; Use only STANDARD HORIZON-approved batteries; Use only a STANDARD HORIZON approved charger. The use of any other charger may cause permanent damage to the battery. Follow charging instructions provided with the chargers.

  • Page 12: Battery Installation/Removal

    Battery Pack Latch. To remove the battery, turn the radio off. Slide the Battery Pack Latch on the bottom of the radio, then lift up on the bottom of the battery and remove it from the radio. Page 12 HX290...

  • Page 13: Battery Charging

    NOTE The CD-52 Charger Cradle is only designed for the charging of the HX290’s battery, and is not suitable for other purposes. The CD-52 may contribute noise to TV and radio reception in the immediate vicinity, so we do not recommend its use adjacent to such device.

  • Page 14: Controls And Indicators

    The supplied CAT460 flexible antenna is attached here. MIC/SP Jack ( Top Panel ) The jack accepts the optional MH-73 Speaker/Microphone, MH-57 Mini Speaker/Microphone, VC-24 VOX Headset, or VC-27 Earpiece/Mi- crophone. When this jack is used, the internal speaker and microphone are disabled. Page 14 HX290...
  • Page 15 Press the key momentarily to increase the channel one step. Hold the key down to increase the channel continuously. Secondary use: Used to adjust the squelch threshold level up after the key is pressed. HX290 Page 15...
  • Page 16 When transmitting, position your mouth about 1/2 to 1 inch (1.2 ~ 2.5 cm) away from the small mic hole. Speak slowly and clearly into the micro- phone. Battery Pack Lock ( Bottom side ) Slide the Battery Pack Lock to the “ ” position for battery removal. Page 16 HX290...

  • Page 17: Lcd Indicators

    “U” indicates the USA band; “I” indicates the International band; and “C” indicates the Canadian band. “SCN” Indicator This indicator appears when the Scan is activated. Channel Display The operating channel is shown on the LCD in both the transmission and reception modes. HX290 Page 17...

  • Page 18: Basic Operation

    Refer to the channel chart on page 33 for available chan- nels. 6. When a signal is received, adjust the VOL knob to the desired listening level. The “ ” indicator on the LCD is displayed indicating that the channel is being used. Page 18 HX290...

  • Page 19: Transmission

    ) switch must first be released. This Time-Out-Timer (TOT) prevents a con- tinuous transmission that would result from an accidentally stuck PTT ( switch. The PTT ( ) switch is disabled for 10 seconds after the transceiver automatically switches to the receiving mode by the TOT feature. HX290 Page 19...

  • Page 20: Usa, Canada, And International Channels

    3. Refer to the marine channel charts in section “9 VHF MARINE CHANNEL ASSIGNMENTS” for allocated channels. 6.6 KEYPAD LOCKING In order to prevent accidental channel change, the HX290’s keypad may be locked. Hold down the key to lock the keypad (except the...

  • Page 21: Noaa Weather Channels

    6.7.1 NOAA WEATHER ALERT The HX290 can receive Weather Alerts when on a weather channel or on the last selected Weather channel during scan modes or while on another chan- nel.

  • Page 22: Preset Channels 0 ~ 9 : Instant Access

    Preset Chan- nels (“ ” through “ ”). 3. To exit from the Preset Channel mode, press the key. The transceiver will revert to the channel you were on prior to switching to the Preset Channel mode. Page 22 HX290...

  • Page 23: Scanning

    6.9 SCANNING The HX290 has two methods of scan, Memory Scan and Priority Scan (de- fault). Memory Scan mode, scans channels programmed into Preset Channel Memory and also Scan Channel Memory. Priority Scan mode, scans channels pro- grammed into Preset Channel Memory, Scan Memory and the priority channel (Channel 16).

  • Page 24: Programming Scan Memory

    The “SCN” icon will appear at the left of the channel num- ber on the display during scanning. 3. When the HX290 receives a transmission, it will stop on the channel until signal disappears, then start scanning again. 4. To stop the scan, press the key briefly.

  • Page 25: Dual Watch

    4. When the HX290 receives a signal on the Priority channel it will stay on this channel until the incoming signal disappears, then start Priority scan- ning again.

  • Page 26: Menu "Set" Mode

    7. MENU “SET” MODE The HX290’s Setup Menu allows a number of the HX290 operating param- eters to be custom-configured for your operating requirements. The Setup Menu is easy to activate and set, using the following procedure: 1. Turn the transceiver off by rotating the VOL knob fully counter-clockwise.
  • Page 27 ALt ( WX ALERT ) Function: Enable/Disable the Weather Alert feature. Available Values: ON / OFF Default: ON SCn ( SCAN CHANNEL ) Function: Stores the Scan Channel. Refer to section “6.9.2 PROGRAMMING SCAN MEMORY” for programming. HX290 Page 27...

  • Page 28: Maintenance

    8. MAINTENANCE 8.1 GENERAL The inherent quality of the solid-state components in STANDARD HORIZON radios will provide many years of continuous use. Take the following precau- tions to prevent damage to the radio. To prevent corrosion of electrical contacts and keep the water resistance, keep the microphone connected or the jack covered at all times.

  • Page 29: Troubleshooting Chart

    Cannot select keylock Proper operation not Hold down the key for 2 sec- function. followed. onds. Charging indicator on Battery contacts not making Contact Standard Horizon Product CD-52 does not contact with the charger Support at (800)767-2450. illumininate. cradle. HX290 Page 29...

  • Page 30: Vhf Marine Channel Assignment

    5. Channels normally used by recreational boaters are those that include the term “non-commercial” in the Channel Use column of the chart. Some of these are shared with other users and some are used only in certain geo- graphic regions. Page 30 HX290...
  • Page 31 Mid-channel Lighted Whistle Buoy to mile 242.4 above Head of Passes near Baton Rouge. Additionally it is not available for use in the Mississippi River-Gulf Outlet, the Mississippi River-Gulf Outlet Canal, and the Inner Harbor Navigational Canal, except to aid the transition from these areas. HX290 Page 31...
  • Page 32 17. The duplex pair for channel 20 (157.000/161.600 MHz) may be used for ship to coast station communications. 18. Available for assignment to coast stations, the use of which is in accord with an agreed program, for the broadcast of information to ship stations concerning the environment. Page 32 HX290...
  • Page 33 U.S. Government Only D 157.200 161.800 Public Correspondence (Marine Operator) D 157.250 161.850 Public Correspondence (Marine Operator) D 157.300 161.900 Public Correspondence (Marine Operator) D 157.350 161.950 Public Correspondence (Marine Operator) D 157.400 162.000 Public Correspondence (Marine Operator) HX290 Page 33...
  • Page 34 Port Operations (Inter-ship only) (1W) 156.875 Port Operations (Inter-ship only) (1W) 156.875 Port Operations (Inter-ship only) D 156.925 161.525 Public Correspondence (Marine Operator), Port operation, ship-movement 156.925 Non-commercial (Recreational) D 156.975 161.575 Port operation and Ship movement 156.975 Commercial Page 34 HX290...
  • Page 35 - - - 161.775 Weather (receive only) - - - 163.275 Weather (receive only) NOTE: Simplex channels, 3A, 21A, 23A, 61A, 64A, 81A, 82A and 83A CANNOT be lawfully used by the general public in U.S.A. waters. HX290 Page 35...

  • Page 36: Warranty

    STANDARD HORIZON (a division of VER- TEX STANDARD). Include proof of purchase indicating model. serial number, and date of purchase. STANDARD HORIZON will return the Product to the purchaser freight prepaid. Products purchased prior to January 1, 1991 will bear the STANDARD HORIZON warranty terms in effect prior to that date.
  • Page 37 Products on which the serial number has been removed, defaced, or changed. STANDARD HORIZON cannot be responsible in any way for ancillary equip- ment not furnished by STANDARD HORIZON which is attached to or used in connection with STANDARD HORIZON’s Products, or for the operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty.
  • Page 38 STANDARD HORIZON Web site. Product Support Inquiries If you have any questions or comments regarding the use of the HX290, you can visit the STANDARD HORIZON Web site to send an E-mail or contact the Product Support team at (714) 827-7600 ext 6300 M-F 7:00- 5:00PST.

  • Page 39: Installation Of Option

    FBA-42 is a battery tray that holds six AA size Alkaline batteries and is used with the HX290 transceiver. When the FBA-42 is installed into the HX290 the radio can withstand immersion in water up to 1.5 m (about 5Ft) for 30 minutes.

  • Page 40: Specifications

    12. SPECIFICATIONS Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. 12.1 GENERAL Frequency Ranges: TX: 156.025 MHz - 157.425 MHz RX: 156.050 MHz - 163.275 MHz Channel Spacing: 25 kHz Frequency Stability: ±10 ppm (–4 °F to +140 °F [–20 °C to +60 °C]) Emission Type: 16K0G3E...

  • Page 41: Fcc & Canada Radio License Information

    13. FCC & CANADA RADIO LICENSE INFORMATION Standard Horizon radios comply with the Federal Communication Commis- sion (FCC) and Industry-Canada requirements that regulate the Maritime Ra- dio Service. 13.1 MARITIME STATION LICENSE An FCC ship station license is no longer required for any vessel traveling in U.S.

  • Page 42: Fcc Notice

    Unauthorized changes or modifications to this equipment may void compli- ance with FCC Rules. Any change or modification must be approved in writing by STANDARD HORIZON, a Marine Division of VERTEX STANDARD. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 43 This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Part 15.21: Changes or modifications to this device not expressly ap- proved by Vertex Standard could void the User’s authorization to oper- ate this device. HX290 Page 43...
  • Page 44 VERTEX STANDARD CO., LTD. Marine Division of VERTEX STANDARD All rights reserved. US Headquarters No portion of this manual 10900 Walker Street, Cypress, CA 90630, U.S.A. may be reproduced without the permission of VERTEX STANDARD CO., LTD. Printed in China Page 44 HX290...
