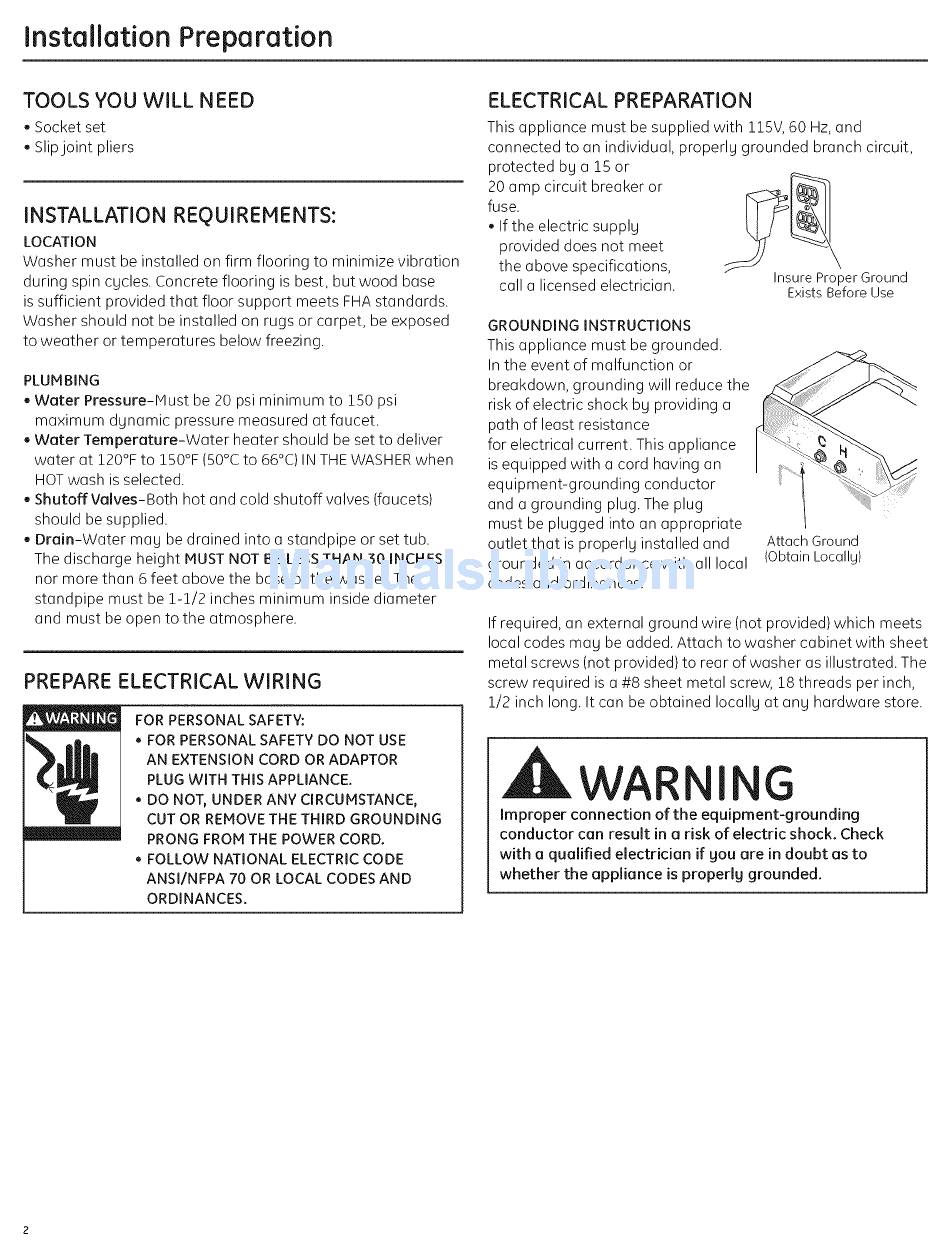

Installation Preparation
TOOLS YOU WILL NEED
o Socket set
Slipjoint pliers
INSTALLATION REQUIREMENTS:
LOCATION
Washer must be installed on firm flooring to minimize vibration
during spin cgcles. Concrete flooring is best, but wood base
is sufficient provided that floor support meets FHA standards.
Washer should not be installed on rugs or carpet, be exposed
to weather or temperatures below freezing.
PLUMBING
, Water Pressure-Must be 20 psi minimum to 150 psi
maximum dynamic pressure measured at faucet.
Water Temperature-Water heater should be set to deliver
water at 120°F to 150°F (50°C to 66°C)IN THE WASHER when
HOT wash is selected.
, Shutoff Valves-Both hot and cold shutoff valves (faucets)
should be supplied.
, Drain-Water mag be drained into a standpipe or set tub.
The discharge height MUST NOT BE LESSTHAN 30 INCHES
nor more than 6 feet above the base of the washer. The
standpipe must be 1-1/2 inches minimum inside diameter
and must be open to the atmosphere.
PREPARE ELECTRICAL WIRING
FOR PERSONALSAFETY:
• FOR PERSONALSAFETYDO NOT USE
AN EXTENSION CORD ORADAPTOR
PLUGWITH THIS APPLIANCE.
• DO NOT, UNDER ANY CIRCUMSTANCE,
CUT OR REMOVETHE THIRD GROUNDING
PRONG FROM THE POWER CORD.
• FOLLOW NATIONAL ELECTRICCODE
ANSI/NFPA 70 OR LOCAL CODESAND
ORDINANCES.
ELECTRICAL PREPARATION
This appliance must be supplied with 115V,60 Hz, and
connected to an individual, properlu grounded branch circuit,
protected bU a 15 or
20 amp circuit breaker or
fuse.
. If the electric supplu
provided does not meet
the above specifications,
call a licensed electrician.
Insure Proper Ground
Exists Before Use
GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of malfunction or
breakdown, grounding will reduce the
risk of electric shock bU providing a
path of least resistance
for electrical current. This appliance
is equipped with a cord having an
equipment-grounding conductor
and a grounding plug. The plug
must be plugged into an appropriate
outlet that is properlg installed and
grounded in accordance with all local
codes and ordinances.
Attach Ground
(Obtain Locallg)
If required, an external ground wire (not provided) which meets
local codes mag be added. Attach to washer cabinet with sheet
metal screws (not provided) to rear of washer as illustrated. The
screw required is a #8 sheet metal screw, 18 threads per inch,
1/2 inch long. It can be obtained locally at any hardware store.
WAR I G
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
with a qualified electrician if gou are in doubt as to
whether the appliance is properlg grounded.
