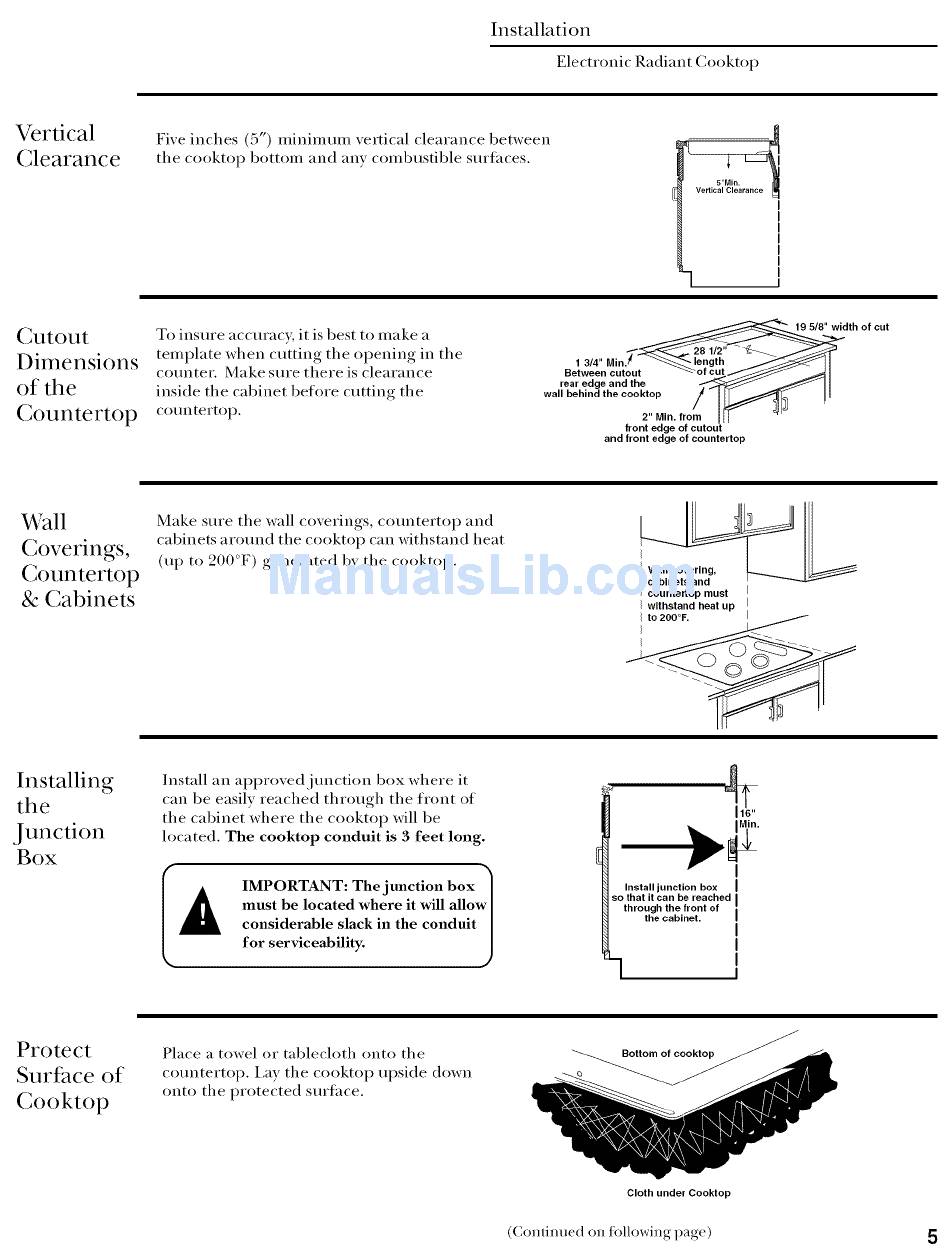

Installation
Electronic Radiant Cooktop
Vertical
Clearance
Fixe inches (5") mininmn_ xertical clearance between
tile cooktop bottom and am combustible surfitces.
5"Min.
Verlical Clearance
Cutout
Diinensions
of the
Countertop
To insure accuracy, it is best to make a
template when cutting the opening in the
cotmter. Make sm'e there is clearance
inside the cabinet before cutting the
CO/Ul [ei'tol).
1 314"
Between cutout
rear edge and the
wall behind the cooktop
2" MIn. from
front edge of cutout
and front edge of countertop
19 518" width of cut
Wall
Coverings,
Countertop
& Cabinets
Make sure tile wall coxerings,, ctmntertoi ) and
cabinets artmnd tile cooktop can withstand heat
(up t(t 200°F) generated by tile cooktop.
countertop must I
withstand heat up I
to 200°E_
Installing
the
Junction
Box
Install an ai)provedjm_ction box where it
can be easily reached through the front of
the cabinet where the cooktop will be
located. The cooktop conduit is 3 feet long.
IMPORTANT: Thejunction box |
must be located where it will allow I
considerable slack in the conduit |
for serviceability. )
Install junction box
;o that it can be reached
through the front of
the cabinet.
Protect
Surface of
k
Coo top
Place a towel or tablecloth onto tile
com_tertop, i,ay the cookto I) upside down
onto the protected surfitce,
_jBottom of cooktop
Cloth under Cooktop
(Contimmd on following page) 5
