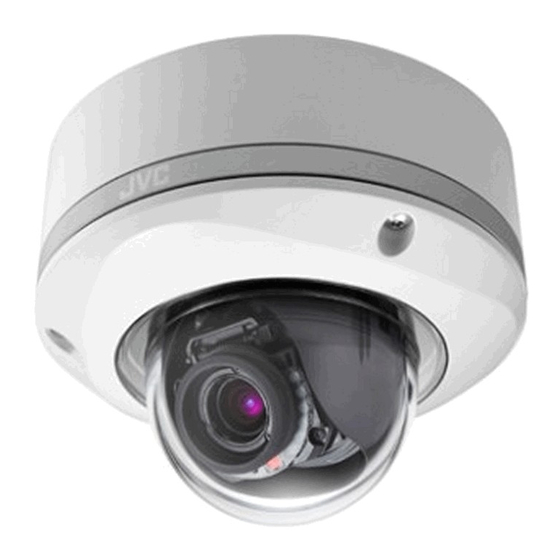

FIXED IR DOME CAMERA
TK-C2301WPRU
(For USA and Canada)
TK-C2301WPRE
(For Europe)
For Customer Use of TK-C2301WPRU :
Enter below the Serial No. which is located
on the body. Retain this information for future
reference.
Model No.
Serial No.
TK-C2301WPRU
INSTRUCTIONS
LST1406-001A

Advertisement

Table of Contents
loading

Related Manuals for JVC TK-C2301WPRU

Summary of Contents for JVC TK-C2301WPRU

  • Page 1 FIXED IR DOME CAMERA INSTRUCTIONS TK-C2301WPRU (For USA and Canada) TK-C2301WPRE (For Europe) For Customer Use of TK-C2301WPRU : Enter below the Serial No. which is located on the body. Retain this information for future reference. Model No. TK-C2301WPRU Serial No.

  • Page 2: Introduction

    Introduction Safety Precautions FOR USA These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances. IMPORTANT SAFEGUARDS 1. Read all of these instructions. 2. Save these instructions for later use. All warnings on the product and in the operating instructions should be adhered to.
  • Page 3 Introduction 8. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface.
  • Page 4 Introduction Safety Precautions (Continued) Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the appliance. c.
  • Page 5 Introduction FOR USA AND CANADA The lightning flash wish arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that age" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 6 Consult the dealer or an experienced radio/TV technician for help. CAUTION CHANGES OR MODIFICATIONS NOT APPROVED BY JVC KENWOOD Corporation COULD VOID USER'S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is...
  • Page 7 No user serviceable parts inside. Refer servicing to qualified service personnel. Dear Customer This apparatusis in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Germany...
  • Page 8 (Business users) If you wish to dispose of this product, please visit our web page http://www.jvc.eu to obtain information about the take-back of the product. [Other Countries outside the European Union] If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.
  • Page 9 Rating label is pasted on of the camera unit. JVC KENWOOD Corporation is not liable for any compensation if you drop the camera due to insecure mounting by not following the installation description. Pay careful attention during installation.

  • Page 10: Table Of Contents

    Contents Contents Introduction Safety Precautions ................2 Contents ..................10 Features ..................11 Operating Precautions ..............12 Name of Parts .................. 15 Setup About Connection Cables ..............18 Setting the Switches ................ 22 Installation Mounting the Camera ..............23 Adjustment Adjusting Image ................

  • Page 11: Features

    Thank you for purchasing this product. Before use, please read this “INSTRUCTIONS” and the information materials included to ensure proper use of this product. The instructions in this manual are for TK-C2301WPRU and TK- C2301WPRE. TK-C2301WPRE is not evaluated by UL.

  • Page 12: Operating Precautions

    Introduction Operating Precautions Storage and Location of Use Do not install the camera in the following places. - In a place with vapor or oil, for example in a kitchen. - When the ambient temperature rises above or falls below the acceptable range (from -10 f to 50 f) - In a place at which corrosive gases are emitted.
  • Page 13 Introduction Copyright Protection With the exception of the user being the copyright holder or when permission such as for duplication has been granted by the copyright holder, permission is required in principle for the duplication, modification, or transmission of copyrighted material. Unauthorized duplication, modification, or transmission of copyrighted material may constitute a copyright infringement, and the user may be liable to compensate for any damages.
  • Page 14 Introduction Operating Precautions (Continued) When the white balance of this camera is set to “ATW-N” or “ATW-W” and depending on the conditions of the object, the color tone may differ slightly from the actual color due to the principle of the automatic tracking white balance circuit.

  • Page 15: Name Of Parts

    E-type: Isolated power supply D Dome Cover only (A page 23) For inquiries on the heater, E Inner Dome consult your nearby JVC dealer. (A page 23) H Alarm Cable F Video signal output (A page 18, 19, 25) connector (BNC), Protection...
  • Page 16 Introduction Name of Parts (Continued) Camera (Interior) The dome cover and inner dome are removed. F ADJ MENU MONITOR A Gear for Focus Adjustment E Camera Unit Fastening Screw (A page 36) (A page 30) B Zoom Adjustment Ring F Space for Inserting Heater (A page 36) When mounting the heater C Rotation Knob...
  • Page 17 Introduction G Power Supply Connector for M Pan Center Mark Heater (A page 35) For connecting to the power N Rotation Center Mark supply connector of the heater. (A page 35) H Tilt Fastening Screw x 2 O Function Selection Switches (A page 35) (A page 22) I [MONITOR] Terminal (RCA...

  • Page 18: Setup

    Setup About Connection Cables The maximum connection distance varies with the type of cable used. Be sure to turn off the power of devices before connecting cables. To video signal cable To power supply cables To alarm cables Identification of cables Type Color Name of the Signals...
  • Page 19 Setup Connecting the Alarm Input/Output Cables Menu settings may be required depending on the connected equipment. (Refer to [AUX FUNCTION](A page 54). The default setting has been set to alarm input (IN:ALARM). Alarm input terminal Connect the infrared sensor, door sensor, metal sensor, manual switch sensor and the like.
  • Page 20 Setup About Connection Cables (Continued) DC 12 V or AC 24 V power supply cable Connect the power cord to the DC 12 V or the AC 24 V power supply. The unit is to be powered by a UL Listed Class 2 power supply only. (For USA and Canada) The AC 24 V and DC 12 V power supply shall conform to the following: UL Listed Class 2 power supply only,...
  • Page 21 If it is connected by mistake, the internal circuit may be damaged. Do not use the camera and make sure to send it to the nearest JVC dealer for inspection. Do not connect DC 12 V and AC 24 V cables at the same time.

  • Page 22: Setting The Switches

    Setup Setting the Switches Before mounting the camera, set the function setting switches on the camera. To set the switches, use a fine-tipped screwdriver. DIP switch settings chart AUTO MONITOR TYPE WIDE-D Function selection switches 1 [D/N AUTO/OFF]DAY & NIGHT Selector Switch Set this to “AUTO”...

  • Page 23: Installation

    Installation Mounting the Camera Selecting a mounting method Mounting the camera directly to the ceiling or on the wall (Refer to below) Mounting the Camera Using the Conduit Hole at the Bottom of the Base (A page 30) Mounting the Camera Using the Conduit Hole at the Side of the Base (A page 32) Mounting the Camera using the Electrical Box (A page 33) Memo When mounting the camera to the ceiling, ensure to wear...
  • Page 24 Installation Mounting the Camera (Continued) Mounting the Camera Unit 1 Make a hole (Φ30 mm) in the ceiling using the template provided 2 Mount the fall prevention wire for connecting the camera unit to the ceiling The fall prevention wire is not provided. Prepare a wire, taking into due consideration the length, strength, pull and material (insulating).
  • Page 25 Installation Connecting the cable For safety reasons, turn on the power only after all the connection is complete. The status indicator lights up when the camera is turned on. 1 Connect the coaxial cable (A page 18) Lower the protection cover and connect the connectors. Upon connecting, restore the protection cover to cover the connectors.
  • Page 26 Installation Mounting the Camera (Continued) Process after connection Fill the conduit hole and mounting holes with sealing agent and insert the silica gel. 1 Fill the conduit hole and the screw mounted holes (2 locations) with sealing agent (GE silicon) Seal the holes completely.

  • Page 27: Adjusting Images

    Installation Adjusting images After mounting is completed, adjust the images while checking the actual image. (A page 34) Mounting the Dome Cover Attach the dome cover back when all settings are finished. 1 Mount the inner dome Mount the inner dome in a way that supports the tilt direction of the lens.
  • Page 28 Installation Mounting the Camera (Continued) To use the camera with more than 45° tilt, tilt the inner dome Memo and mount/dismount the inner dome by avoid contacting the light shielding cushion. Inner dome Light shielding cushion To use the camera while rotating with more than 45° tilt, attach the provided sheet (black) to the inside of the dome cover, as illustrated below.
  • Page 29 Installation 2 Mount the dome cover ① Clean the dust and dirt on the dome cover. ② Align the position marks (3 locations) on the camera unit and dome cover, followed by pressing in directly to mount the cover. ③ Tighten the dome cover fastening screw. Position alignment mark (x3) Dome cover...
  • Page 30 Mounting the Camera Using the Conduit Hole at the Bottom of the Base Conduit hole: G3/4-14 UNC (TK-C2301WPRU), M25 (TK-C2301WPRE) 1 Remove the dome cover and inner dome (A page 23) 2 Remove the camera unit from the base and mount the fall prevention wire to the camera unit ①...
  • Page 31 Installation 4 Mount the base to the pipe Turn and screw the base unit to the pipe in the clockwise direction. When screwing the pipe, do not screw beyond 12 mm. Doing Note so can damage the camera interior. 5 Secure the base unit to the ceiling Use the M4 screw (x2) to secure the base firmly to the ceiling.
  • Page 32 If the camera cannot be mounted directly to the ceiling, use the conduit hole at the side of the base to mount the camera to the pipe. Conduit hole: G3/4-14 UNC (TK-C2301WPRU), M25 (TK-C2301WPRE) 1 Remove the dome cover and inner dome (A page 23)
  • Page 33 Installation Mounting the Camera using the Electrical Box 1 Remove the dome cover and inner dome (A page 23) 2 Mount the camera unit to the electrical box Mount the camera unit to the electrical box using the mounting hole (2 locations) with the M4 screw (2 pieces).

  • Page 34: Adjustment Adjusting Image

    Adjustment Adjusting Image After mounting the camera, adjust the images while looking at the actual image. Discharge the static electricity from your body by touching the metallic part of the monitor terminal before handling the camera as static electricity may cause the camera to malfunction. 1 Mount the monitor Connect the monitor terminal of this camera to a monitor to adjust the camera’s shooting direction, image and focus.
  • Page 35 Adjustment 3 Adjust the shooting direction of the camera Adjust the camera for pan, tilt and rotation, and face the camera towards the subject. Pan: ±175 ° Tilt fastening screw Tilt: ±80 ° Rotation: ±100 ° Shooting direction mark Pan center mark Rotation center mark Rotation knob (x2) Rotate both pan ±175 °...
  • Page 36 Adjustment Adjusting Image (Continued) Moving the camera beyond its adjustable range may Note deteriorate the performance of this camera. As this camera has a wide tilt/rotation range, a part of this camera may appear on the screen depending on the field angle and direction.
  • Page 37 Adjustment 5 Fine adjust the focus ① Press and hold the [J] button. Focus adjust mode will be activated and “FOCUS ADJUST MODE” is displayed on the monitor screen. The contours are emphasized as the iris opens and the depth of field becomes shallow.
  • Page 38 Adjustment Adjusting Image (Continued) When rotating the camera with more than 65° tilt, IR LED Note may be hidden by the camera, making the irradiation distance shorter. When the image size is set to wide end, part of the camera unit may be recorded at the most tilted point.

  • Page 39: Checking After Operation

    Adjustment Checking after Operation A light shielding cushion is attached to the lens so that the lens is not exposed to infrared light directly. After adjustment, when attaching the dome cover and the lens cover, make sure that the light shielding cushion is attached correctly with the taper (tilted) side facing up (refer to the figure below).

  • Page 40: Adjusting The Auto White Balance

    Adjustment Adjusting the Auto White Balance Each light source has its own color temperature. Therefore, when the main light source lighting the subject is changed, adjust the white balance again. 1 Press the [MENU] button. 2 Select [WHITE BALANCE] with the [J/K] button and “AWC” with the [H/I] button, then press the [SET] button.
  • Page 41 Adjustment Error display If auto white balance adjustment is not successful, the following messages will appear on the monitor. AWC ERROR : NG : (Subject error) Displayed when there is not enough white color on the subject or the color temperature is not suitable. Fill the screen with a white object thoroughly and adjust the white balance again.

  • Page 42: Menu Setting

    Menu Setting The Flow of Menu Screen page 45 - 46) BASIC MENU page 45) WHITE BALANCE ATW-N ATW-W page 45) WHITE BALANCE CONTROL page 46) page 46) SENSE UP page 46) CAMERA TITLE page 47 - 55) ADVANCED MENU page 47 - 49) ALC SETTINGS..
  • Page 43 Menu Setting page 51) PRIVACY MASK.. BRIGHTNESS MASK No. 1 MASK No. 2 MASK No. 3 MASK No. 4 page 51) MAINTENANCE.. CCD SPOT CORRECTION.. FACTORY SETTINGS.. page 52) DAY/NIGHT D/N MODE IR LED MODE AUTO LEVEL AUTO TIME page 53) MOTION DETECT DETECT LEVEL AREA EDIT..

  • Page 44: Menu Setting Procedure

    Menu Setting Menu Setting Procedure 1 Press the [MENU] button. 2 Set the cursor (E) to a desired menu item with the [ J / K ] button. 3 Change the setting with the [ H / I ] button. When a setting has been changed, a change mark (Z) is displayed.

  • Page 45: Basic Menu

    Menu Setting BASIC MENU WHITE BALANCE Screen This menu item allows to adjust camera white balance. [Setting values : ATW-N, ATW-W, AWC] (Default value: ATW-W) ATW-N : This is the ATW (Auto-Tracking White Balance) mode. The camera adjusts the white balance automatically according to the color temperature of the scene illumination (color temperature 3200 K to 8000 K).
  • Page 46 Menu Setting BASIC MENU (Continued) This item sets the AGC (Automatic Gain Control). [Setting values : OFF, MID, HIGH] (Default value: MID) When set to “HIGH”, the screen appears grainy in dark Memo places. When [AGC] in the menu setting is set to “OFF”, the camera won't be switched to black-and-white mode even if the [D/N MODE] is set to “AUTO”, and IR LED won't turn on.

  • Page 47: Advanced Menu

    Menu Setting ADVANCED MENU ALC SETTINGS Screen BRIGHTNESS Adjusts video signal brightness level. The larger the value, dark area becomes more visible. The smaller the value, bright area becomes more visible. [Setting values : -5 to NORMAL to 5] (Default value: NORMAL) BLC AREA Press the [SET] button to display the fixed photometry area.
  • Page 48 Menu Setting ADVANCED MENU (Continued) B&W Av:Pk Sets the exposure detection method for the black-and-white mode to the ratio of the AVERAGE value and PEAK value. When the screen, other than the highlighted section, becomes dark, increase the AVERAGE value (ex. 10:0). When the highlighted section becomes dark, increase the PEAK value (ex.
  • Page 49 Menu Setting WIDE-D LEVEL Enables subjects with a high contrast to be seen clearly and naturally. The larger the value, the higher the contrast. The smaller the value, the lower the contrast. [Setting values : -5 to NORMAL to 5] (Default value: NORMAL) Memo When the [WIDE-D] switch is set to “OFF”, [WIDE-D LEVEL] does not work even if it is set.
  • Page 50 Menu Setting ADVANCED MENU (Continued) AUTO BLACK Adjusts the black level of the video signal. [Setting values : OFF, ON] (Default value: ON) ENHANCE LEVEL Adjusts contour correction to enhance sharpness on the monitor screen. [Setting values : -5 (soft) to NORMAL to 5 (sharp)] (Default value: NORMAL) DNR LEVEL Sets DNR (Digital Noise Reduction).
  • Page 51 Menu Setting PRIVACY MASK Screen This function allows you to set and mask the parts on the screen that you do not wish to shoot so that they are not recorded. For details, refer to "Setting the Privacy Mask" (A page 56). BRIGHTNESS Sets the brightness of the part of the image that was masked.
  • Page 52 Menu Setting ADVANCED MENU (Continued) DAY/NIGHT Screen D/N MODE Sets the displayed video when the DAY & NIGHT selector switch is set to “AUTO”. When set to black-and-white mode, the IR cut filter is switched off and the sensitivity is increased. [Setting values : B&W (black-and-white), AUTO (black-and-white/color)] (Default value: AUTO) When the DAY &...
  • Page 53 Menu Setting MOTION DETECT Screen DETECT LEVEL Sets the level to detect movements. The larger the value, the higher the sensitivity. The smaller the value, the lower the sensitivity. [Setting values : -5 to NORMAL to 5] (Default value: NORMAL) Memo Even the flicker of a fluorescent lamp can be detected when a high value is set.
  • Page 54 Menu Setting ADVANCED MENU (Continued) AUX FUNCTION Screen AUX FUNCTION Sets the input/output signal of the AUX terminal. [Setting values : IN:ALARM, IN:D/N, OUT:ALARM, OUT:B&W] (Default value: IN:ALARM) : Displays image on the monitor when alarm signal is input IN:ALARM from the AUX terminal.

  • Page 55: Setting Examples

    Setting Examples IN POLARITY Sets the polarity of the input alarm signal. [Setting values : MAKE (short), BREAK (open)] (Default value: MAKE) Memo When the [AUX FUNCTION] switch is set to “OUT:ALARM” or “OUT:B&W”, [IN POLARITY] does not work even if it is set. OUT POLARITY Sets the polarity of the output alarm signal.

  • Page 56: Setting The Privacy Mask

    Setting Examples Setting the Privacy Mask 1 Select the [ADVANCED MENU] item on the menu screen and press the [SET] button. 2 Select the [PRIVACY MASK] item with the [J/K] button and press the [SET] button. The PRIVACY MASK screen appears on the monitor. 3 Select the mask number with the [J/K] button and set “ON”/ “OFF”...

  • Page 57: Settings In Dark Locations

    Setting Examples Settings in Dark Locations The followings are examples of recommended settings for recording scenes in various dark locations. Setting the displayed images (black and white or color) (Set in [D/N MODE]) Default setting is “AUTO”, to switch the displayed images (Color/black and white) based on the brightness.
  • Page 58 Setting Examples Settings in Dark Locations (Continued) Changing the level of brightness to switch the images (Color/ black and white) [AUTO LEVEL] in [DAY/NIGHT] is set to “NORMAL” in default. Change the setting by comparing below values and the “NORMAL” setting, and selecting the appropriate value.
  • Page 59 Setting Examples Recording the distant subjects Below settings are recommended when the subject in the distance needs to be captured brightly. Menu Setting Recommended Setting Values [SENSE UP] [AGC] HIGH [ALC PRIORITY] PICTURE Confirm that the black and white images (IR LED light on) is Memo selected if setting is in progress while viewing the images.

  • Page 60: Others

    Others Specifications Items TK-C2301WPRU TK-C2301WPRE Image pickup 1/3" Interline Transfer CCD device Effective Pixels 768 (H) x 494 (V) 752 (H) x 582 (V) Television Based on NTSC System Based on PAL System System Scanning Horizontal: Horizontal: 15734.26 Hz ± 0.003 % 15625.00 Hz ±...
  • Page 61 Others Items TK-C2301WPRU TK-C2301WPRE Ambient -10 f to 50 f (14 g to 122 g) (Operation) temperature 0 f to 40 f (32 g to 104 g) (Recommended) When using KA-ZH215: -30 f to 50 f (-22 g to 122 g) (Operation)
  • Page 62 113 (4-1/2) 9 (3/8) Attach the fall prevention wire here. Screw for conduit (bottom surface, side surface) (TK-C2301WPRU: G3/4-14 UNC, TK-C2301WPRE: M25) Φ160 (6-1/4) * Specifications and appearance of this camera are subject to change for improvements without notice. E-62...
  • Page 63 Others E-63...
  • Page 64 ©2012 JVC KENWOOD Corporation LST1406-001A...
