FS116 IG 21Sept12.fm Page 1 Monday, October 15, 2012 4:18 PM
Installation Guide

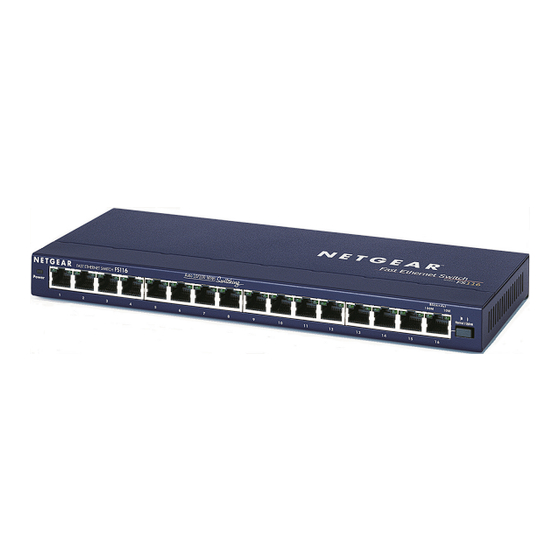

ProSafe 16-Port Ethernet Switch FS116
Step 1. Connect equipment
Computer
Server
FS116
Optional router
Step 2. Connect power
Internet
Optional
modem
Step 3. Check status
Port LEDs
Power LED
On
100 Mbps link
(left LED
Off
10 Mbps link
(right LED
Activity (blinking)
No link (off)
