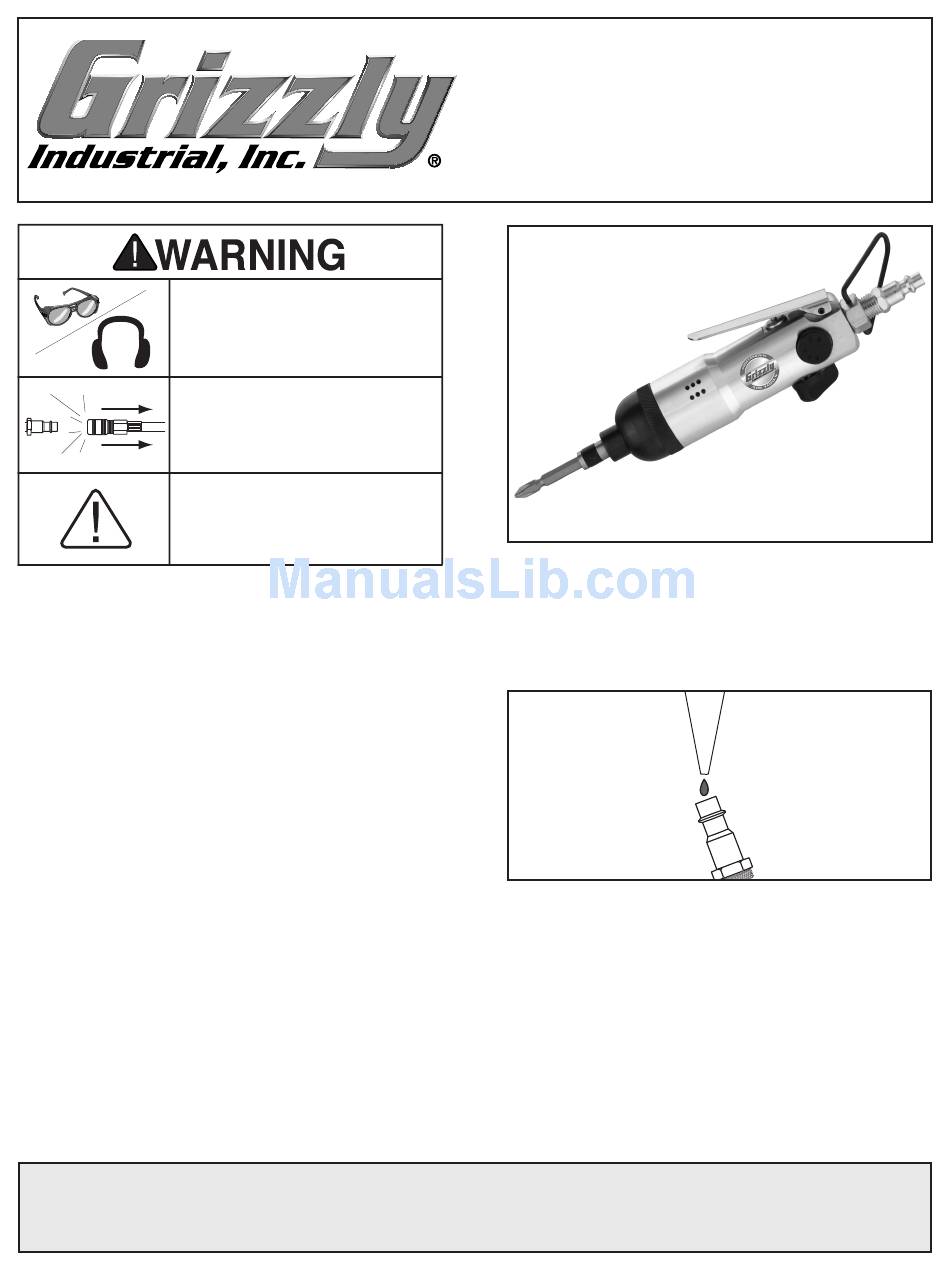

Grizzly H6191 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
DO NOT exceed 90 PSI air
pressure! Personal injury or
damage to tool could occur.
Introduction
This Industrial Air Screwdriver features 8,500
RPM free speed, forward and reverse directions,
10–60 in/lbs adjustable torque, 90 PSI, 4 CFM
average air consumption,
includes a single double ended No. 2 Phillips
head driver and male quick connect fitting.
Inventory
A. Industrial Air Screwdriver ........................... 1
B. ⁄ " NPT Air Fitting ....................................... 1
1
4
C. Phillips Head Driver .................................... 1
D. Hanger ........................................................ 1
Operation
Screw the ⁄ " NPT Air Fitting on the air inlet of the
1
4
screwdriver. Push the Phillips head driver into the
socket to lock in place. Twist the adjustment dial
to set the torque to your desired setting.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
⁄ " NPT air inlet and
1
4
COPYRIGHT © JULY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8462 PRINTED IN TAIWAN
MODEL H6191
INDUSTRIAL AIR
SCREWDRIVER
INSTRUCTION SHEET
Figure 1. Model H6191.
This Industrial Air Screwdriver MUST have 3-4
drops of oil directly dropped into the air fitting
before each use as shown in Figure 2.
Figure 2. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
