Grizzly H6190 Instruction Sheet

EYE/EAR INJURY HAZARD!
Wear safety glasses and
hearing protection during
use of this tool!
Always disconnect tool from
air to prevent unexpected
operation during service!
Introduction
This Air Screwdriver features 1,200 RPM free
speed, 3–16 in/lbs maximum torque, 90 PSI, 4
CFM average air consumption,
and includes two double ended No. 2 Phillips
head drivers and male quick connect fitting.
Inventory
A. Industrial Air Screwdriver ........................... 1
B.
⁄ " NPT Air Fitting ....................................... 1
1
4
C. Phillips Head Drivers .................................. 2
Operation
Screw the ⁄ " NPT Air Fitting on the air inlet of
1
4
the screwdriver. Pull the knurled collar back into
the screwdriver body and insert the Phillips head
driver into the socket. Twist the adjustment dial to
set the torque to your desired setting.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
INJURY HAZARD!
EXPLOSION HAZARD!
Never exceed 90 PSI!
⁄ " NPT air inlet
1
4
COPYRIGHT © MAY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8257 PRINTED IN TAIWAN
MODEL H6190
INDUSTRIAL AIR
SCREWDRIVER
INSTRUCTION SHEET

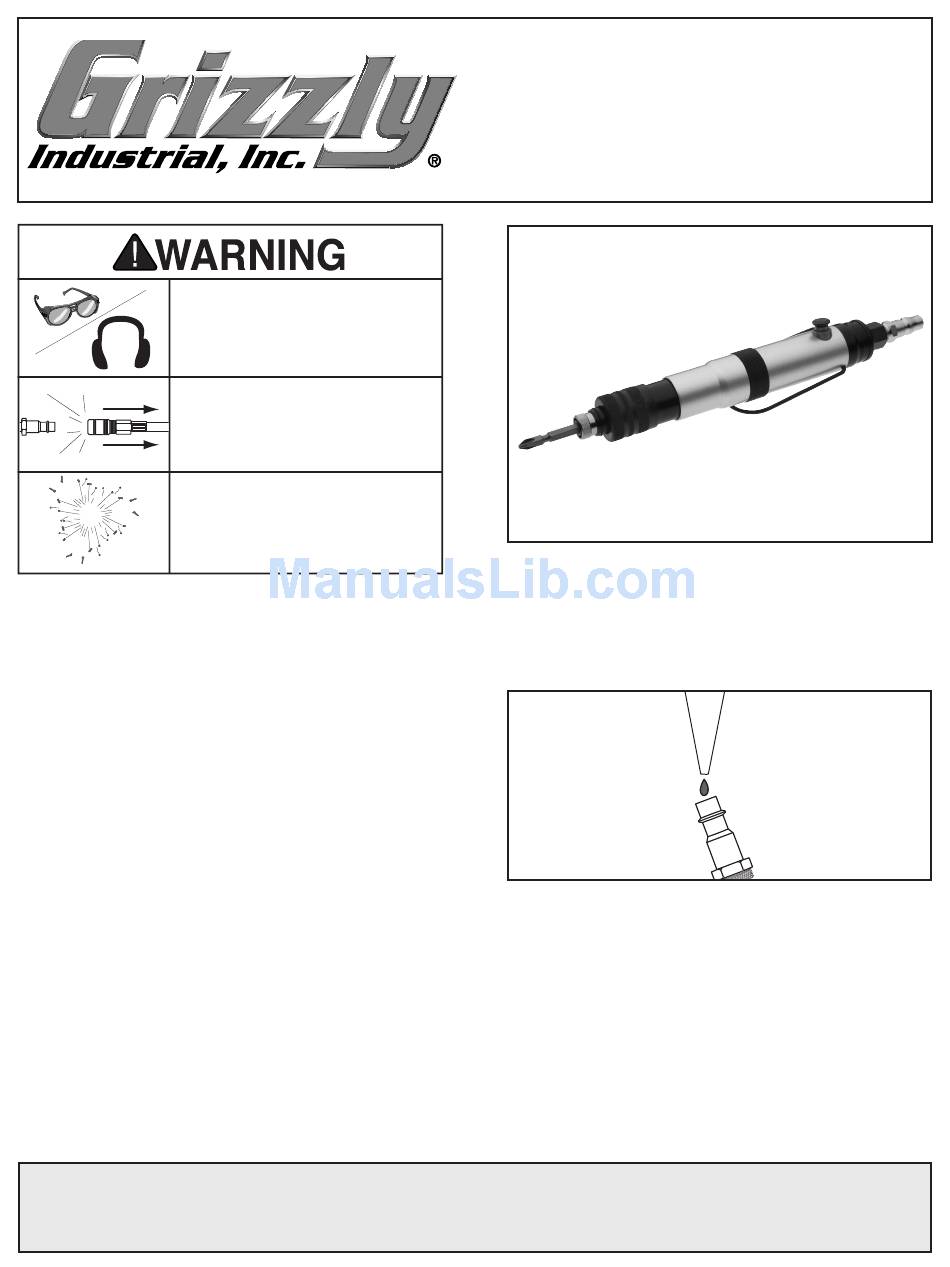

Figure 1. Model H6190.
This Industrial Air Screwdriver MUST have 3-4
drops of oil directly dropped into the air fitting
before each use as shown in Figure 2.
Figure 2. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
