Model H5374 Specifications
Power ......................................................... ½ HP
Cycle ............................................................60Hz
Voltage .................................................110/220V
Prewired ......................................................110V
Amps ............................................................6/3A
RPM ............................................................. 1725
Phase ........................................................ Single
Class ..................................................................B
Start Capacitor ........................ 200MFD 125VAC
Dimensions .............................. 1½"D x 2
Run Capacitor ........................... 30MFD 250VAC
Dimensions ..............................1

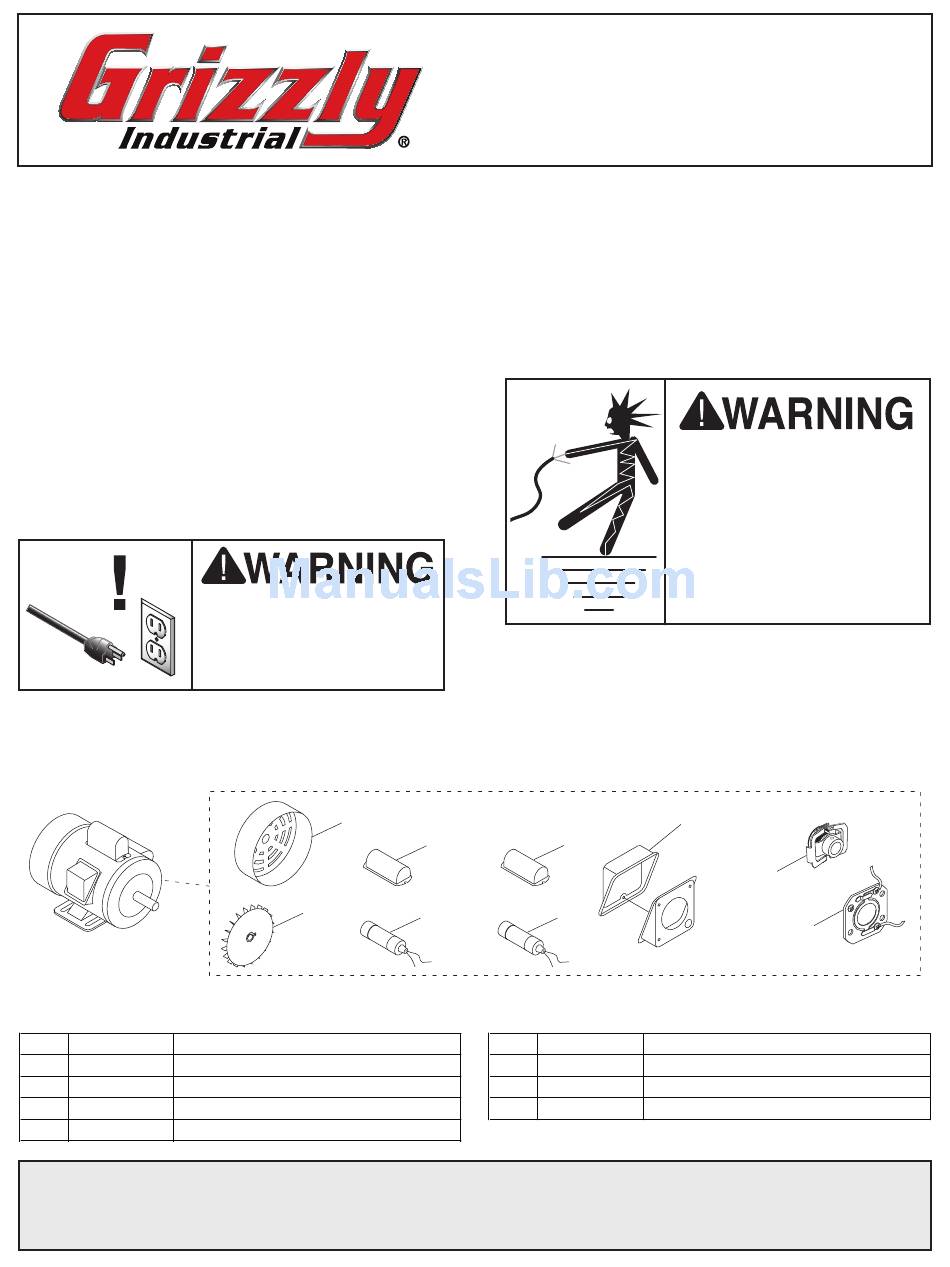

Replaceable Parts
REF PART #
DESCRIPTION
1
PH5374001
MOTOR FAN COVER
2
PH5374002
MOTOR FAN
3
PH5374003
S CAPACITOR COVER
4
PC200C
S CAPACITOR 200M 125V 1-1/2 X 2-3/8
5
PH5374005
R CAPACITOR COVER
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
/
"D x 2
3
8
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
�
�
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
#JB10233 PRINTED IN TAIWAN
MODEL H5374
½ HP ELECTRIC MOTOR
INSTRUCTION SHEET
Electrical Safety
If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
⁄
"L
3
8
⁄
"L
3
8
�
�
�
�
REF PART #
6
PC030C
7
PH5374007
8
PH5374008
9
PH5374009
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
�
�
�
DESCRIPTION
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
JUNCTION BOX
CENTRIFUGAL SWITCH
CONTACT PLATE
