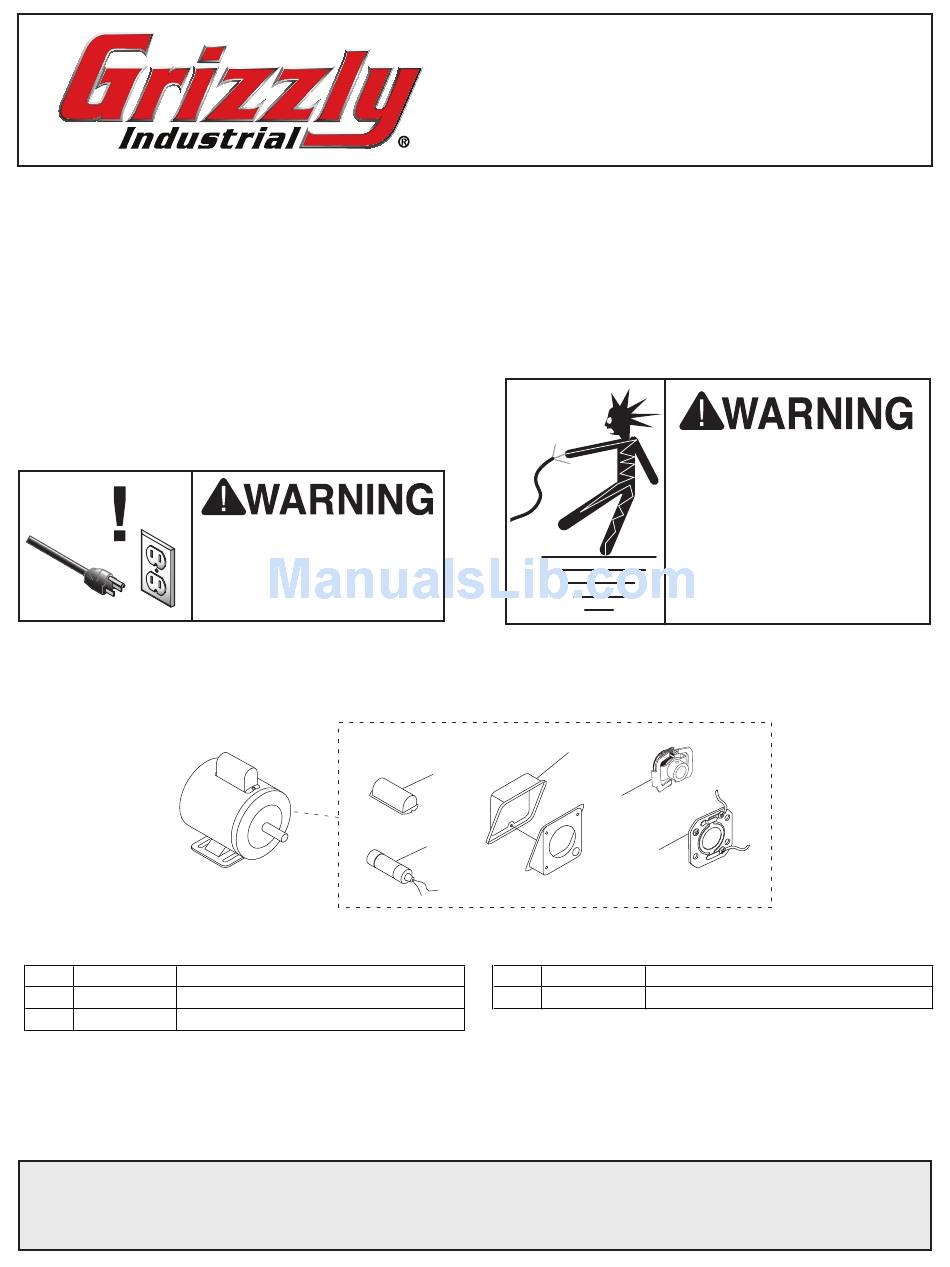

Grizzly H5376 Instruction Sheet

Model H5376 Specifications
Power ..........................................................
Cycle ............................................................60Hz
Voltage ........................................................110V
Amps .............................................................11A
RPM ............................................................. 1725
Phase ........................................................ Single
Class ..................................................................B
Start Capacitor ........................ 200MFD 125VAC
Dimensions .............................. 1½"D x 2
Replaceable Parts
REF PART # DESCRIPTION
1 PH5376001 S CAPACITOR COVER
2 PC400C S CAPACITOR 200M 125V 1-1/2 X 2-3/8
3 PH5376003 JUNCTION BOX
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
#JB10234 PRINTED IN TAIWAN
MODEL H5376
¾ HP ELECTRIC MOTOR
INSTRUCTION SHEET
Electrical Safety
⁄ HP If you are unsure how to attach wires to terminals,
3
4
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
⁄ "L
3
8
�
�
REF PART #
4 PH5376004
5 PH5376005
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
�
�
�
DESCRIPTION
CENTRIFUGAL SWITCH
CONTACT PLATE
