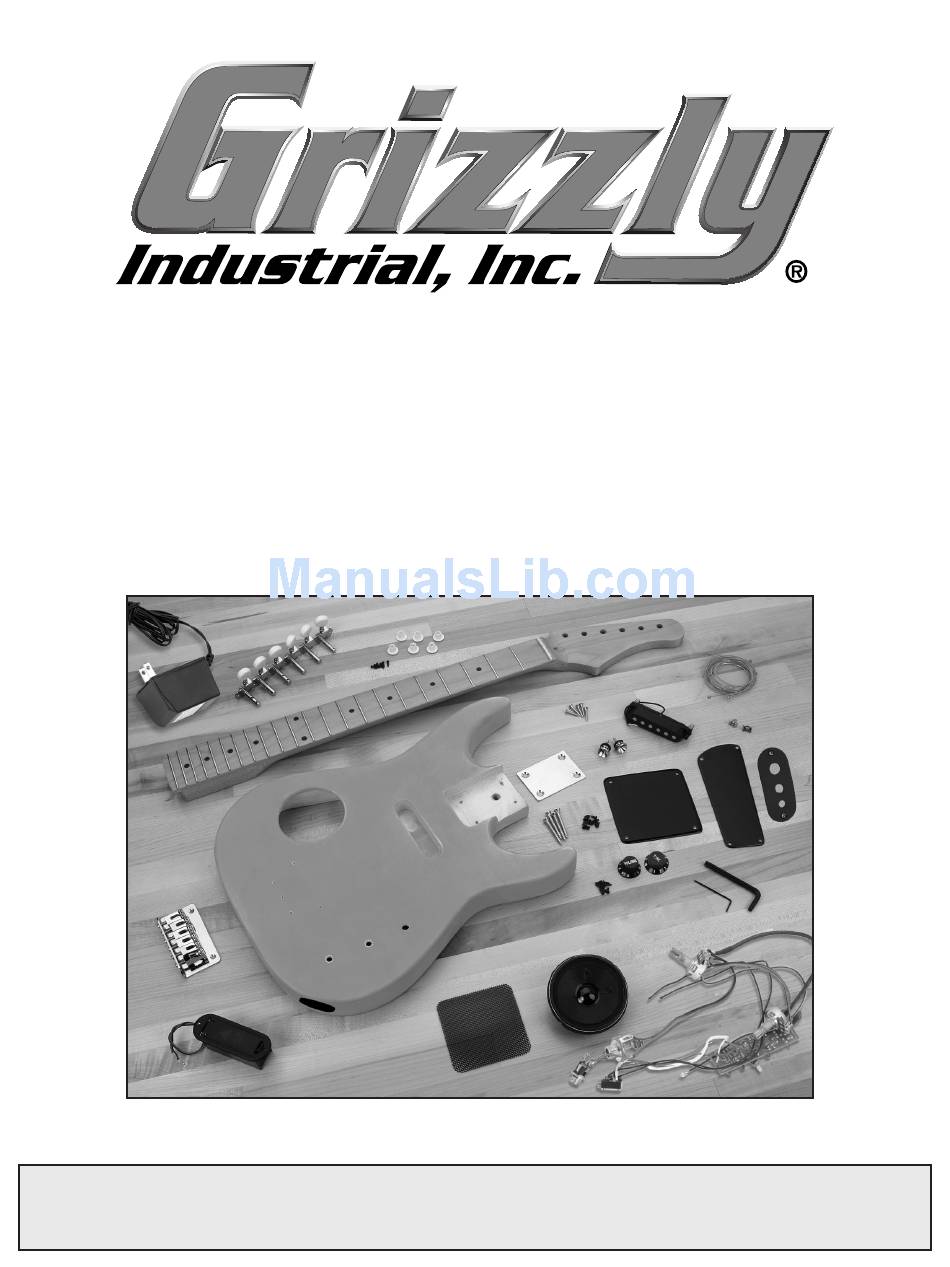

- Page 1 JUNIOR ELECTRIC GUITAR KIT MODEL H7582 INSTRUCTION MANUAL COPYRIGHT © AUGUST, 2005 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #BL7247 PRINTED IN CHINA...
-
Page 3: Table Of Contents
Neck Adjustment ... 17 String Height ... 18 Pickup Height ... 19 Setting Intonation ... 19 Tuning ... 20 Basic Guitar Care ... 20 SECTION 6: REFERENCE INFO ... 21 Accessories ... 21 Electrical Components ... 23 Electrical Components ... 24 Wiring Diagram ... -
Page 4: Section 1: Safety
Do not underestimate the ability of these tools and machin- ery to cause injury. Never operate any tool without all guards in place and always wear approved safety glasses. For your own safety, please heed this warning. Model H7582 Junior Electric Guitar Kit... -
Page 5: Section 2: Introduction
SECTION 2: INTRODUCTION Foreword We are proud to offer the Model H7582 Junior Electric Guitar Kit. This kit is a part of a grow- ing Grizzly family of fine woodworking products. When assembled according to the guidelines set forth in this manual, you can expect years of enjoyment from your guitar. -
Page 6: Section 3: Parts Inventory
" x ⁄ " ⁄ " x ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " ⁄ " Figure 2. Guitar parts. Figure 3. More guitar parts. Model H7582 Junior Electric Guitar Kit... -
Page 7: Supplies/Tools
8, 10, 11, and 13mm Wrenches • Flexible Sanding Block • Phillips Screwdriver #1, #2 • Temporary Wood Neck: Approximately 1" x 2" x 16" Model H7582 Junior Electric Guitar Kit • Wood Screws #7 x 1 • Drill • Drill Bit: •... -
Page 8: Identification
Bridge Strap Button Power Switch Tone Knob Output AC/DC Headphone Jack Jack Headstock Figure 5. Model H7582 headstock features. Identification Speaker Pickup Volume Knob Jack Figure 4. Model H7582 controls. Tuner or Tuning Machine String Retainer Fret Neck Tuning Peg... -
Page 9: Section 4: Assembly
When the primer is dry, use #320 grit sandpa- per for final sanding. DO NOT sand through the primer to the bare wood. Model H7582 Junior Electric Guitar Kit Finishing the Body Components Needed Guitar Body ... 1 Temporary Wood Neck ... - Page 10 • Avoid making unnecessary movements upon entering the finish room. • Apply the finish to the guitar parts and immediately leave the finish room. • DO NOT return to the room until the specified drying time has elapsed. Model H7582 Junior Electric Guitar Kit...
-
Page 11: Tuners
(Figure 7) until the bushings are seated against the face of the headstock. Model H7582 Junior Electric Guitar Kit Figure 7. Seating bushings. Slide the machine heads through the bush- ings from the back face of the headstock. -
Page 12: Neck
#7 x 1 (Figure 10) through the guitar into the neck. DO NOT use glue, since you may want to remove the neck for maintenance and tune- ups. Figure 10. Neckplate installation. Model H7582 Junior Electric Guitar Kit ⁄ " silver screws... -
Page 13: Electronics
To install the pickup: Place the guitar face-side up. Insert the pickup wire (Figure 11) through the hole in the pickup mortise and into the circuit board mortise. Figure 11. Pickup installation location. Model H7582 Junior Electric Guitar Kit -11-... - Page 14 Slide the battery case (Figure 13) into the mortise and secure with two #2 x screws. Figure 13. Installing battery case. -12- ⁄ " black Model H7582 Junior Electric Guitar Kit...
- Page 15 Figure 16. Installing tone and volume controls. -13- Model H7582 Junior Electric Guitar Kit...
-
Page 16: Covers
Align the mounting holes on the guitar and bridge (Figure 20) and secure over the ground wire with five #4 x ⁄ Figure 20. Bridge placement. Model H7582 Junior Electric Guitar Kit " silver screws. -
Page 17: Strap Button
Model H7582 Junior Electric Guitar Kit Winding Strings Components Needed Guitar ... 1 Strings ... 6 The correct position of the guitar strings is shown in Figure 22. The thin High E string is called the "1st" string and the thick Low E string is called the "6th"... -
Page 18: String Retainers
-16- Model H7582 Junior Electric Guitar Kit... -
Page 19: Section 5: Set Up
We highly recommend that you research more in-depth methods. Books on set- ting up electric guitars can be ordered through Grizzly Industrial, luthier supply catalogs, or may be available through your local library. Neck Adjustment Tools Needed Metal Straightedge 18"... -
Page 20: String Height
17th fret as shown in Figure 27. Use a 1.5mm hex wrench to adjust the saddle height (Figure 28) until each string is above the 17th fret. String Figure 28. Adjusting string height. Remove the capo. Model H7582 Junior Electric Guitar Kit ⁄ "... -
Page 21: Pickup Height
⁄ " above the pickup and the 6th string is ⁄ " above the pickup. Model H7582 Junior Electric Guitar Kit Setting Intonation Tools Needed Phillips Head Screwdriver ...1 Setting the intonation adjusts the length of the string to correct for flatness/sharpness on each string. -
Page 22: Tuning
These instructions explain how to tune by ear. You can also tune using an electronic tuner such as the Grizzly H3097 Chromatic Tuner shown on Page 21. To tune the guitar: Install a 9V battery into the battery case. -
Page 23: Section 6: Reference Info
H3633 protects against organic vapor, sulfur dioxide, hydrogen chloride and chlorine. H3635 protects against all particulate aerosols. Figure 32. Half-mask respirator and disposable cartridge filters. Model H7582 Junior Electric Guitar Kit G7984—Face Shield H1298—Dust Sealed Safety Glasses H1300—UV Blocking, Clear Safety Glasses H2347—Uvex Spitfire Safety Glasses ®... - Page 24 Behlen Master Lacquer Top Coat is an alcohol and water resistant, high solid nitrocellulose lacquer. Use to seal and protect Behlen solvent based stains and other Master Aerosols. Figure 37. Behlen clear and top coat lacquers. Model H7582 Junior Electric Guitar Kit...
-
Page 25: Electrical Components
Electrical Components Circuit Board Wiring Volume Control Wiring Brown Tone Control Wiring AC/DC Adapter Jack Wiring White Black Black Output Jack Wiring Headphone Jack Wiring -23- Model H7582 Junior Electric Guitar Kit... -
Page 26: Electrical Components
Electrical Components Speaker Battery Bridge (Not Shown) Black Pickup Black Black (Ground) Black Circuit Board Brown Tone Control AC/DC Jack White Black Volume Control Headphone Jack Output Jack -24- Model H7582 Junior Electric Guitar Kit... -
Page 27: Wiring Diagram
������ ����� ������ �������������� ������ ������� � � ����� � � � Model H7582 Junior Electric Guitar Kit Wiring Diagram ������� ������ ��� ������� ����� ��� ����� ��� ��������� ���� ����� ����� ������� ���� ��� ����� ������� ����� ��� �����... -
Page 28: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. -
