INSTALLATION
INSTRUCTIONS

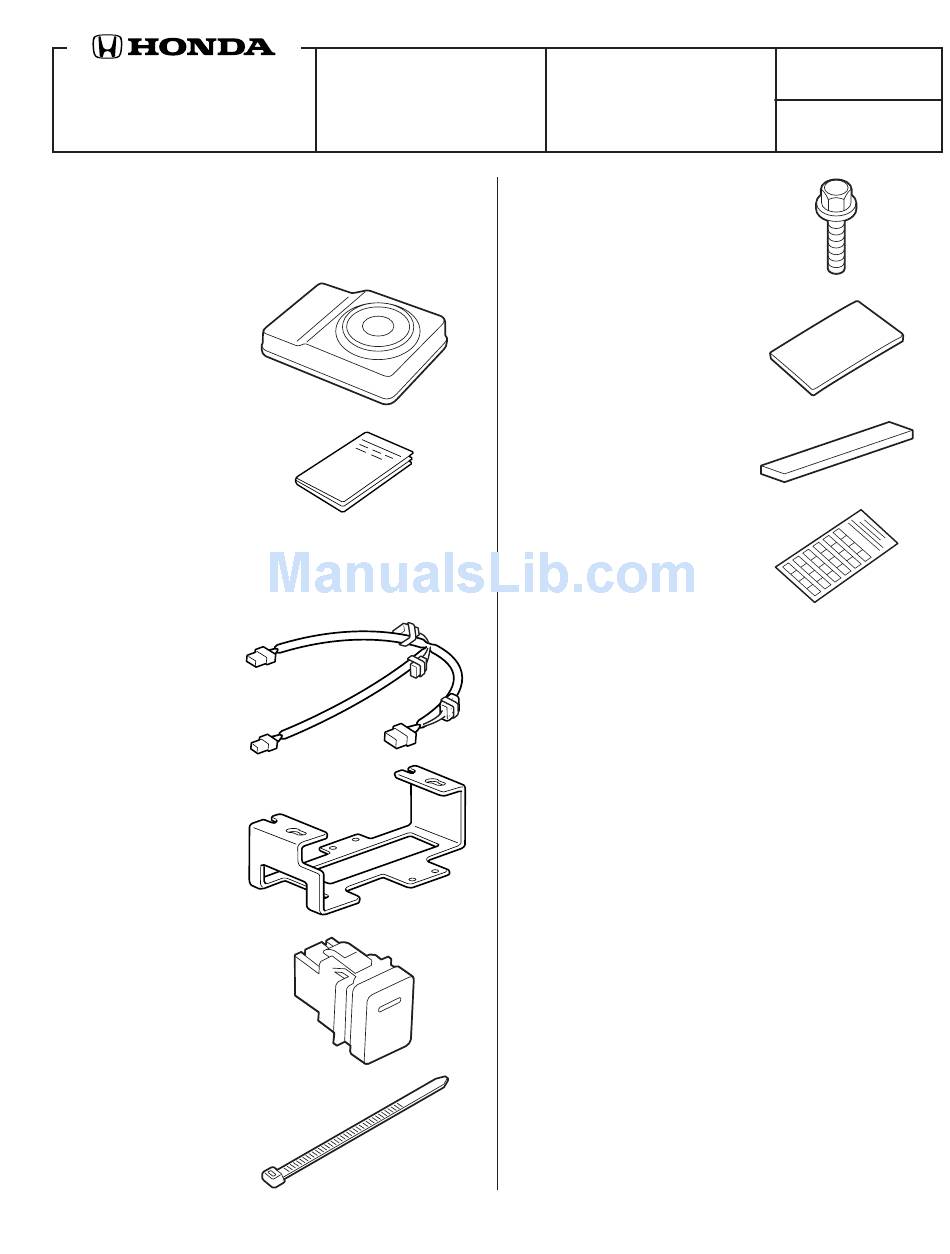

PARTS LIST
Compact Subwoofer Kit:
P/N 08A39-5E1-010
Subwoofer
Owner's manual
Subwoofer Attachment Kit:
P/N 08B39-SHJ-100
Subwoofer harness
Subwoofer bracket
Subwoofer switch
21 Wire ties
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
SUBWOOFER
4 Flange bolt, 6 x 12 mm
3 Cushion tapes
3 Cushion
Fuse label
TOOLS AND SUPPLIES REQUIRED
#2 Phillips screwdriver
Flat-tip screwdriver
Stubby Phillips screwdriver
8 mm and 10 mm, Combination wrenches
8 mm and 10 mm, 14 mm Sockets
Isopropyl alcohol
Tape measure
Ratchet
Shop towel
AII 27363 (0409)
Application
2005 ODYSSEY
Publications No.
AII 27363
Issue Date
SEP 2004
1 of 11
08B39-SHJ-1000-91
Advertisement
Related Manuals for Honda 2005 ODYSSEY
Summary of Contents for Honda 2005 ODYSSEY
-
Page 1: Installation Instructions
8 mm and 10 mm, 14 mm Sockets Subwoofer bracket Isopropyl alcohol Tape measure Ratchet Shop towel Subwoofer switch 21 Wire ties 1 of 11 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27363 (0409) 08B39-SHJ-1000-91... -
Page 2: Installation
With Navigation System SUBWOOFER HARNESS VEHICLE CENTER CONNECTOR 4219011B PANEL Remove the pocket (two bolts, two clips). CLIPS (2) SUBWOOFER 4315040B 4219021B BOLT POCKET 2 of 11 AII 27363 (0409) © 2004 American Honda Motor Co., Inc - All Rights Reserved. - Page 3 CLIPS (9) VEHICLE DAMPER CONNECTOR COVER VEHICLE 4712021B CENTER CONNECTOR PANEL GLOVE BOX 4324021B Remove the center panel (nine clips and disconnect the connectors). 3 of 11 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27363 (0409)
- Page 4 14. If equipped, remove the seat under box. 12. Remove the right front door sill trim (three clips). PASSENGER’S SEAT CLIPS (3) DOOR SILL TRIM UNDER SEAT 4506031Y 4712010B 4 of 11 AII 27363 (0409) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 5 CLIP RIGHT SIDE PASSENGER’S LOWER SEAT RAIL COVER COVER 4311131B CLIP 17. Remove the passenger’s seat rear rail cover (four CLIP 4603010B clips). 5 of 11 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27363 (0409)
- Page 6 CLIPS (6) RETAINING SELF-TAPPING SCREWS (4) SHOP TOWEL CENTER LOWER COVER 4603030B CLIPS (2) INSTRUMENT INSTRUMENT SIDE PANEL SIDE PANEL 4301202B FLAT-TIP SCREWDRIVER 6 of 11 AII 27363 (0409) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 7 WIRE TIE SUBWOOFER HARNESS VEHICLE RETAINING SWITCH 4311161B SUBWOOFER HARNESS 5-PIN CONNECTOR VEHICLE 4311150B WIRE TIE HARNESS 7 of 11 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27363 (0409)
- Page 8 FUSE CASE HARNESS 4712051B VEHICLE CUSHION BRACKET TAPE VEHICLE SUBWOOFER 7.5A HARNESS HARNESS 20-PIN FUSE CONNECTOR LABEL GLOVE AUDIO UNIT OPENING 4312010B OPENING 8 of 11 AII 27363 (0409) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 9 33. Continue routing the 5-pin connector side of the subwoofer harness along the vehicle harness and secure it to the vehicle frame with two wire ties. 9 of 11 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27363 (0409)
- Page 10 38. Remove and retain the four screws from the subwoofer. WIRE TIE SCREW (Reuse.) VEHICLE HARNESS SUBWOOFER HARNESS SUBWOOFER WIRE TIE 2930010W 4312081B 10 of 11 AII 27363 (0409) © 2004 American Honda Motor Co., Inc - All Rights Reserved.
- Page 11 2 seconds or more. BRACKET 6 x 12 mm 50. Test the AUTO window function. FLANGE BOLT 6 x 12 mm FLANGE BOLT 4312091B 11 of 11 © 2004 American Honda Motor Co., Inc - All Rights Reserved. AII 27363 (0409)
