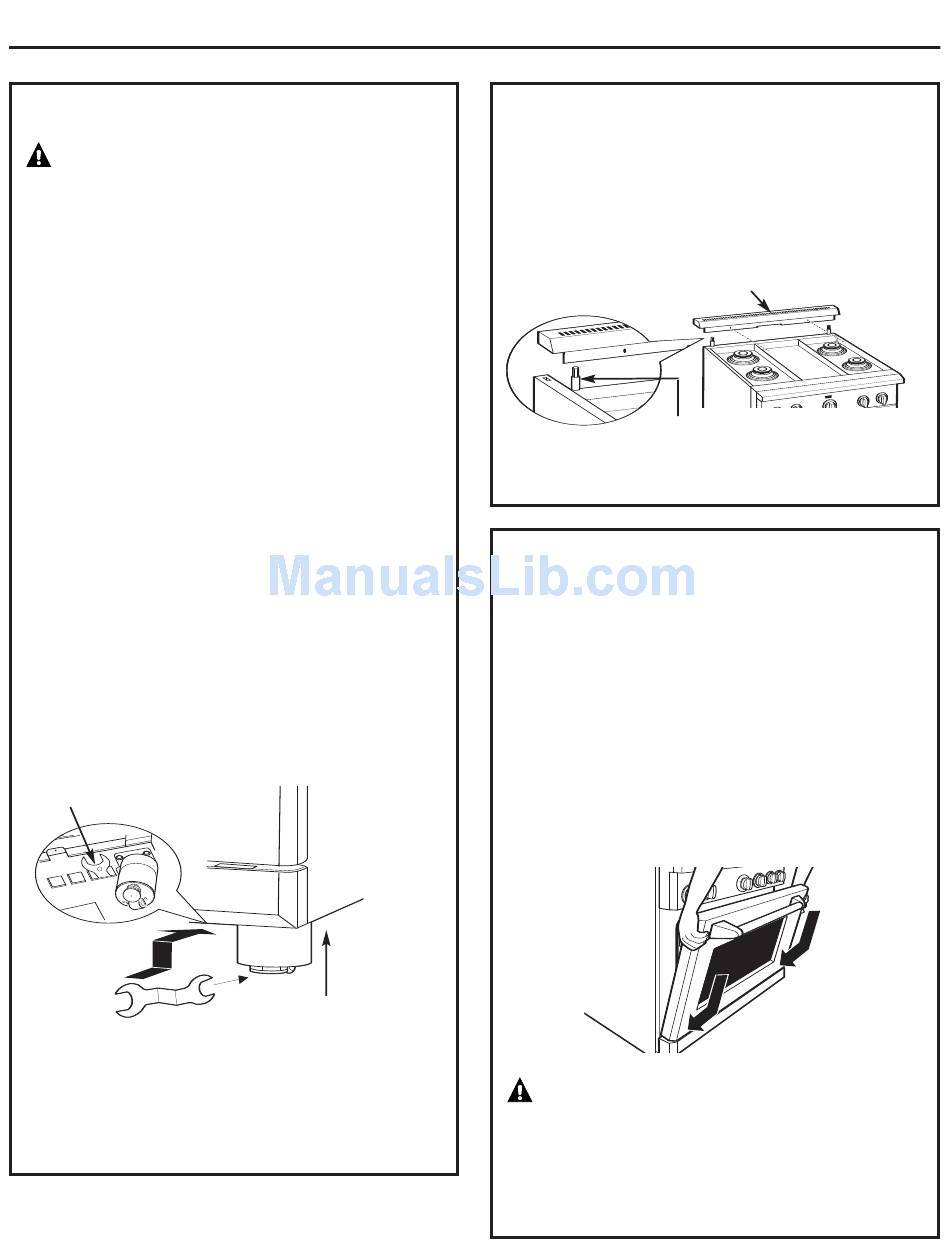

STEP 7 LEVEL THE RANGE
WARNING
The range must be level and be supported
by the legs—not the wheels. The range could move
if the wheels make contact with the floor. Be sure all
legs make contact with the floor in any installation.
•All legs must be leveled after the product is
installed.
•Check to be sure the adjoining cabinets/
countertops are level, front to back and left
to right across the opening of the range.
•Measure the distance from the floor to the top
of the countertop in the left and right rear corners.
•Adjust the height of the range to countertop height
or higher.
IMPORTANT: This range should always be installed
at countertop height or higher. DO NOT INSTALL
THE RANGE LOWER THAN ADJACENT COUNTERTOP
HEIGHT. The range must be supported by all 4 legs,
regardless of countertop height.
FRONT LEG ADJUSTMENT
•Slide front cylinders up to adjust front leveling
legs. Be careful not to damage cylinder.
•A leveling leg wrench is supplied. Reach under
the front of the range near the right side. Locate
and remove a thumb screw, then slide wrench out
of the slot.
Thumb Screw
•Use the supplied wrench to turn the front leveling
legs. Turn clockwise to raise the range above the
wheels. Turn counterclockwise to lower the legs.
•Be sure to return the wrench to its storage slot
for future use.
Installation
STEP 7
REAR LEG ADJUSTMENT
•Remove two screws from rear vent trim. Slide vent
trim forward, then lift up to remove.
•Find the two rear leg extension rods. Use a 1/4"
driver or wrench to adjust the left or right rear legs.
•Replace the rear vent trim using the original screws.
STEP 8
Skip this step if oven doors are in place.
IMPORTANT: Do not lift the door by the handle.
To replace the oven doors:
•Firmly grasp the door at the top sides.
This is critical.
•Approach the range with the door angled
in a vertical position.
•Guide the hinges into the slots.
•Push the door in firmly while opening.
•Once in position, open the door completely.
Push the hinge locks back in and toward
the front frame.
Slide leg
cylinder up.
the oven doors. If the hinge latch is not securely
locked, the hinge may snap back and separate.
If the hinge separates, you must apply pressure
(possibly with your foot) to press it back together
and then engage the hinge latch.
15
LEVEL THE RANGE (cont.)
Rear Vent Trim
Rear Leg
Extension Rod
REPLACE OVEN DOOR(S)
CAUTION:
Take care when replacing
