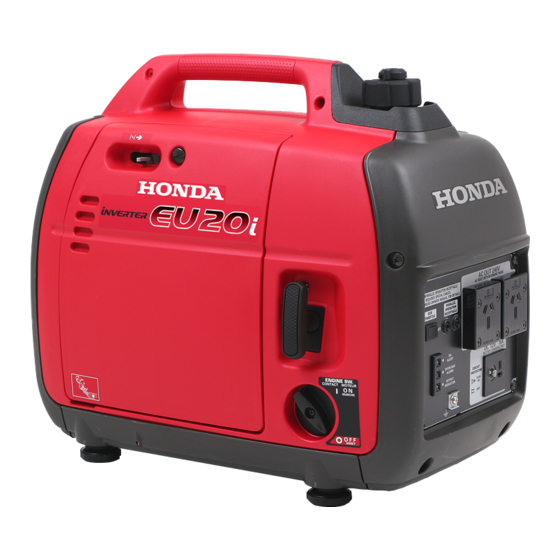

Honda EU20i Owner's Manual

Hide thumbs Also See for EU20i:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
GENERATOR
EU20i
OWNER'S MANUAL
MANUEL DE L'UTILISATEUR
BEDIENUNGSANLEITUNG
MANUAL DE EXPLICACIONES

Advertisement

Table of Contents
loading

Related Manuals for Honda EU20i

Summary of Contents for Honda EU20i

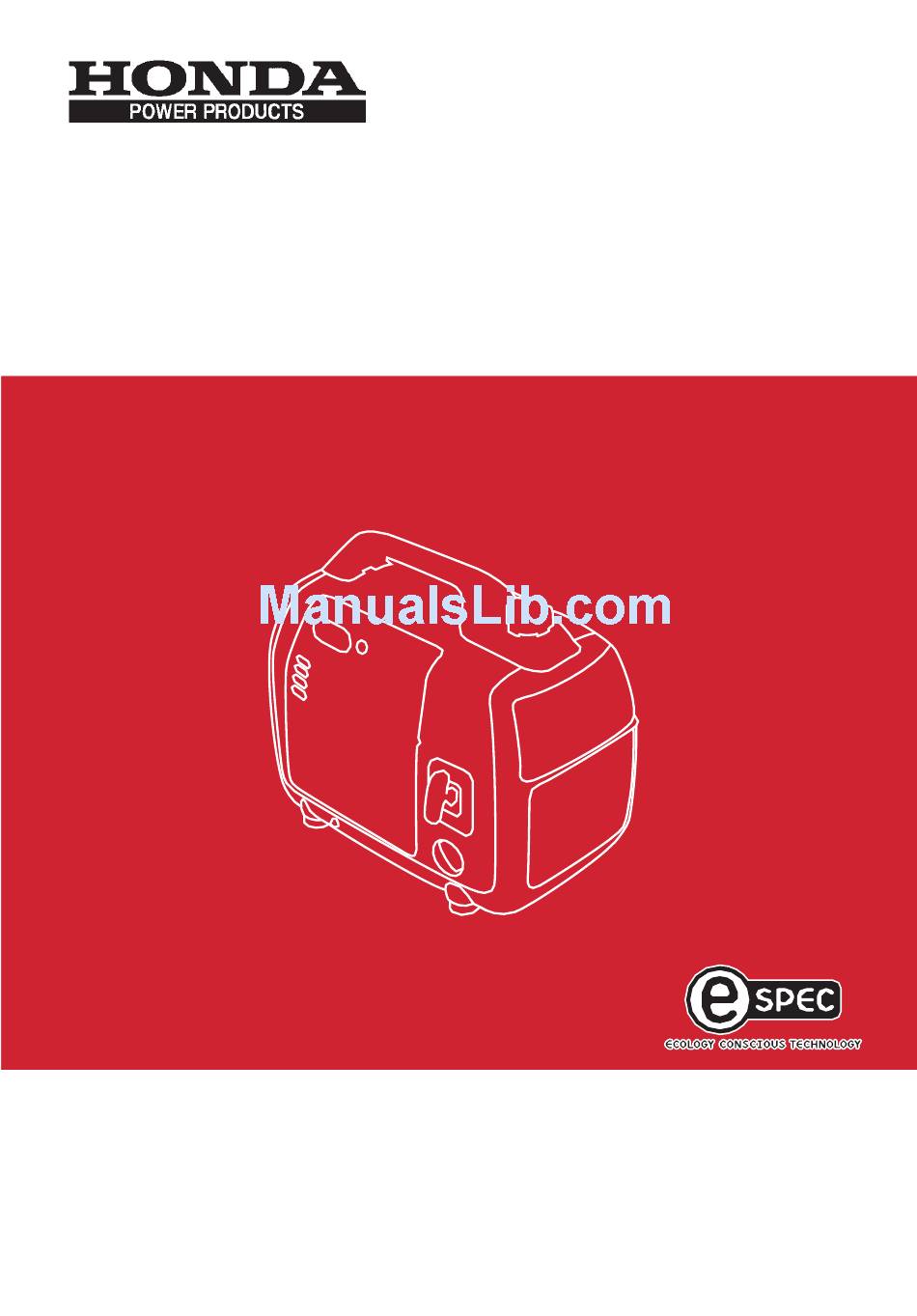

  • Page 1 GENERATOR EU20i OWNER'S MANUAL MANUEL DE L'UTILISATEUR BEDIENUNGSANLEITUNG MANUAL DE EXPLICACIONES...
  • Page 2 Honda EU20i OWNER’S MANUAL The‘‘e-SPEC’’mark symbolizes environmentally responsible technologies applied to Honda power equipment, which contains our wish to ‘‘preserve nature for generations to come.’’...
  • Page 3 Thank you for purchasing a Honda generator. This manual covers operation and maintenance of the EU20i generator. All information in this publication is based on the latest product information available at the time of approval for printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.

  • Page 4: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ..............SAFETY LABEL LOCATIONS ............CE mark and noise label locations ..........11 COMPONENT IDENTIFICATION ............12 PRE-OPERATION CHECK ..............16 STARTING THE ENGINE ..............21 Carburetor Modification for High Altitude Operation GENERATOR USE ................

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION Honda generators are designed for use with electrical equipment that has suitable power requirements. Other uses can result in injury to the operator or damage to the generator and other property. Most injuries or property damage can be prevented if you follow all instructions in this manual and on the generator.
  • Page 6 Carbon Monoxide Hazards Exhaust contains poisonous carbon monoxide, a colorless, odorless gas. Breathing exhaust can cause loss of consciousness and may lead to death. If you run the generator in an area that is confined, or even partially enclosed area, the air you breathe could contain dangerous amount of exhaust gas.
  • Page 7 Fire and Burn Hazards Do not use the generator in areas with a high risk of fire. When installed in ventilated rooms, additional requirements for fire and explosion protection shall be observed. The exhaust system gets hot enough to ignite some materials. Keep the generator at least 1 meter (3 feet) away from buildings and other equipment during operation.
  • Page 8 Disposal To protect the environment, do not dispose of the used generator, battery, engine oil, etc. carelessly by leaving them in the waste. Observe the local laws or regulations or consult your authorized Honda generator dealer to dispose of these parts. Please dispose of used motor oil in a manner that is compatible with the environment.

  • Page 9: Safety Label Locations

    SAFETY LABEL LOCATIONS These labels warn you of potential hazards that can cause serious injury. Read the labels and safety notes and precautions described in this manual carefully. If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.
  • Page 10 Honda generator is designed to give safe and dependable service if operated according to instructions. Read and understand the Owner’s Manual before operating the generator. Failure to do so could result in personal injury or equipment damage. Exhaust contains poisonous carbon monoxide, a colorless, odorless gas.
  • Page 11 Stop the engine before refueling. Gasoline is extremely flammable and explosive under certain conditions. Refuel in a well ventilated area with the engine stopped. Keep away from cigarette, smoke and sparks when refueling the generator. Always refuel in a well ventilated location. Wipe up spilled gasoline at once.
  • Page 12 [For Australian model: U type]...

  • Page 13: Ce Mark And Noise Label Locations

    CE mark and noise label locations [For European model: G, GP3, GW, B, F, W types] NOISE LABEL CE MARK Manufacturer and address Performance class IP code Dry mass Year of manufacture...

  • Page 14: Component Identification

    COMPONENT IDENTIFICATION FUEL CAP VENT LEVER CHOKE LEVER FUEL FILLER CAP CONTROL PANEL MAINTENANCE COVER STARTER GRIP ENGINE SWITCH SPARK PLUG MAINTENANCE COVER MUFFLER FRAME SERIAL NUMBER Record the frame serial number in the space below. You will need this serial number when ordering parts.

  • Page 15: Control Panel

    CONTROL PANEL G, GP3, GW, F, W, and B types AC OUTPUT RECEPTACLES PARALLEL OPERATION SOCKETS ECO THROTTLE SWITCH DC OUTPUT RECEPTACLE OIL ALERT INDICATOR LIGHT OVERLOAD INDICATOR DC CIRCUIT LIGHT PROTECTOR AC CIRCUIT PROTECTORS OUTPUT INDICATOR GROUND TERMINAL LIGHT...
  • Page 16 U type PARALLEL OPERATION SOCKETS AC OUTPUT RECEPTACLES ECO THROTTLE SWITCH OIL ALERT DC OUTPUT INDICATOR RECEPTACLE LIGHT OVERLOAD INDICATOR LIGHT DC CIRCUIT PROTECTOR OUTPUT INDICATOR LIGHT GROUND TERMINAL...
  • Page 17 Eco Throttle ECO: Engine speed is kept at idle automatically when the electrical appliance is disconnected and it returns to the proper speed by the electrical load when electrical appliance is connected. This position is recommended to minimize the fuel consumption while in operation. Eco Throttle system does not operate sufficiently if the electrical appliance requires the momentary electric power.

  • Page 18: Pre-Operation Check

    PRE-OPERATION CHECK Be sure to check the generator on a level surface with the engine stopped. Check the engine oil level. Using non detergent oil or 2-stroke engine oil could shorten the engine’s service life. Recommended oil Use high-detergent, premium quality 4-stroke engine oil, certified to meet or exceed U.S.
  • Page 19 Loosen the cover screw and remove the left side maintenance cover. Remove the oil filler cap, and wipe the dipstick with a clean rag. Check the oil level by inserting the dipstick in the filler hole without screwing it in. If the oil level is below the end of the dipstick, refill with recommended oil up to the top of the oil filler neck.
  • Page 20 Check the fuel level. If the fuel level is low, refuel the fuel tank until the level as specified. After refueling, tighten the fuel filler cap securely. Use automotive unleaded gasoline with a Research Octane Number of 91 or higher (a Pump Octane Number of 86 or higher). Never use stale or contaminated gasoline or an oil/gasoline mixture.
  • Page 21 Gasoline spoils very quickly depending on factors such as light exposure, temperature and time. In worst cases, gasoline can be contaminated within 30 days. Using contaminated gasoline can seriously damage the engine (carburetor clogged, valve stuck). Such damage due to spoiled fuel is disallowed from coverage by the warranty.
  • Page 22 Check the air cleaner. Check the air cleaner element to be sure it is clean and in good condition. Loosen the cover screw and remove the left side maintenance cover. Press the latch tab on the top of the air cleaner body, remove the air cleaner cover, check the element.

  • Page 23: Starting The Engine

    STARTING THE ENGINE Before starting the engine disconnect any load from the AC receptacle. Turn the fuel cap lever fully clockwise to the ON position. Turn the fuel cap vent lever to the OFF position when transporting the generator. FUEL CAP VENT LEVER Turn the engine switch to the ON position.
  • Page 24 Move the choke lever to the CLOSED position. Do not use the choke when the engine is warm or the air temperature is high. CHOKE LEVER CLOSED CLOSED Pull the starter grip lightly until you feel resistance, then pull the starter grip briskly toward in the direction of the arrow as shown below.
  • Page 25 Move the choke lever to the OPEN position as the engine warms up. CHOKE LEVER OPEN If the engine stops and will not restart, check the engine oil level (see page ) before troubleshooting in other areas.

  • Page 26: Carburetor Modification For High Altitude Operation

    Carburetor Modification for High Altitude Operation At high altitude, the standard carburetor air-fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions.

  • Page 27: Generator Use

    GENERATOR USE Be sure to ground the generator when the connected equipment is grounded. Do not connect to a building’s electrical system unless an isolation switch has been installed by a qualified electrician. Connections for standby power to a building’s electrical system must be made by a qualified electrician and must comply with all applicable laws and electrical codes.
  • Page 28 Do not exceed the current limit specified for any one receptacle. Do not connect the generator to a household circuit. This could cause the damage to the generator or to electrical appliances in the house. Do not modify or use the generator for other purposes than it is intended for.
  • Page 29 AC applications Start the engine and make sure the output indicator light (green) comes on. Confirm that the appliance to be used is switched off, and plug in the appliance. OVERLOAD INDICATOR LIGHT (RED) OUTPUT INDICATOR LIGHT (GREEN) Substantial overloading that continuously lights the Overload indicator (red) may damage the generator.
  • Page 30 AC Circuit Protector (B, F, G, GP3, GW and W types) The AC circuit protectors will automatically switch OFF (push button comes out) if there is a short circuit or a significant overload of the generator at receptacle. If an AC circuit protector switches OFF automatically, check that the appliance is working properly and does not exceed the rated load capacity of the circuit before resetting the AC circuit protector ON (pushing the push button in).
  • Page 31 Output and Overload Indicators The Output indicator (green) will remain ON during normal operating conditions. If the generator is overloaded (see page ), or if there is a short in the connected appliance, the output indicator light (green) will go OFF, the overload indicator light (red) will go ON and current to the connected appliance will be shut off.
  • Page 32 Please read the item ‘‘GENERATOR USE’’ before connecting any equipment to be used. Use only a Honda approved receptacle box for parallel operation (optional) when connecting two EU20i generators for parallel operation. Make sure that the electrical rating of the tool or appliance does not exceed that of the generator.
  • Page 33 Never connect the different generator models and types. Never connect a cable other than the receptacle box for parallel operation. Connect and remove the receptacle box for parallel operation with the engine stopped. For single operation, the receptacle box for parallel operation must be removed.
  • Page 34 Connect the cable connectors and ground terminals of the receptacle box for parallel operation to the generators and secure the cord clamp to handle. Place two generators at least 1 meter (3 feet) away from each other during parallel operation. Route the wire through the handle and clamp it to the handle using the band.
  • Page 35 Start the engines and make sure the output indicators (green) come Confirm that the appliance to be used is switched off, and plug in the appliance. Switch on the equipment to be used. OUTPUT INDICATOR LIGHT (GREEN) AC Circuit Protector (Except U type) The AC circuit protector on the receptacle box for parallel operation will automatically switch OFF (push button comes out) if there is a short circuit or a significant overload of the generator at receptacle.
  • Page 36 DC application The DC receptacle may be used for charging 12 volt automotive-type batteries only. In DC operation, turn the eco throttle switch to the OFF position. Connect the charging cable to the DC receptacle of the generator and then to the battery terminals. CHARGING CABLE (SOLD SEPARATELY: G, GP3, GW, B, F, W types) To prevent the possibility of creating a spark near the battery,...
  • Page 37 Batteries produce explosive gases: If ignited, and explosion can cause serious injury or blindness. Provide adequate ventilation when charging. CHEMICAL HAZARD: Battery electrolyte contains sulfuric acid. Contact with eyes or skin, even through clothing, may cause severe burns. Wear a faceshield and protective clothing. Keep flames and sparks away, and do not smoke in the area.
  • Page 38 Oil Alert system The Oil Alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the Oil Alert system will automatically shut down the engine (the engine switch will remain in the ON position).

  • Page 39: Stopping The Engine

    STOPPING THE ENGINE To stop the engine in an emergency, turn the engine switch to the OFF position. IN NORMAL USE: Switch off the connected equipment and pull the inserted plug. PLUG Turn the engine switch to the OFF position. ENGINE SWITCH...
  • Page 40 Turn the fuel cap vent lever fully counterclockwise to the OFF position. FUEL CAP VENT LEVER Be sure the fuel cap vent lever and the engine switch are OFF when stopping, transporting and/or storing the generator. When parallel operation has been executed, pull the receptacle box for parallel operation.

  • Page 41: Maintenance

    MAINTENANCE The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. Inspect or service as scheduled in the table below. Make sure the engine is off before you begin any maintenance or repairs.
  • Page 42 CHANGING OIL Drain the oil while the engine is still warm to assure rapid and complete draining. Make sure to turn the engine switch and the fuel cap vent lever OFF before draining. Loosen the cover screw and remove the left side maintenance cover. Remove the oil filler cap.
  • Page 43 AIR CLEANER SERVICE A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dusty areas. Do not use gasoline or low flash point solvents for cleaning. They are flammable and explosive under certain conditions.
  • Page 44 SPARK PLUG SERVICE RECOMMENDED SPARK PLUG: CR5HSB (NGK) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. Remove the spark plug maintenance cover. SPARK PLUG MAINTENANCE COVER Remove the spark plug cap. Clean any dirt from around the spark plug base. Use a spark plug wrench to remove the spark plug.
  • Page 45 Visually inspect the spark plug. Discard it if the insulator is cracked, chipped, or fouled. Clean the spark plug with a wire brush if it is to be reused. Measure the plug gap with a feeler gauge. Correct as necessary by carefully bending the side electrode. The gap should be: 0.6 0.7 mm (0.024 0.028 in) 0.6 0.7 mm...

  • Page 46: Transporting/Storage

    TRANSPORTING/STORAGE To prevent fuel spillage when transporting or during temporary storage, the generator should be secured upright in its normal operating position, with the engine switch OFF. The fuel tank cap vent lever is turned fully counterclockwise to the OFF position.
  • Page 47 Turn the engine switch ON, and loosen the carburetor drain screw and drain the gasoline from the carburetor into a suitable container. With the drain screw loosened remove the spark plug cap, and pull the starter grip 3 to 4 times to drain the gasoline from the fuel pump.

  • Page 48: Troubleshooting

    TROUBLESHOOTING When the engine will not start: Is there fuel in Refill the fuel the tank? tank. Is the engine Turn the engine switch on? switch on. Is the enough oil Add the in the engine? recommended oil. Is the spark plug Clean, readjust in good gap and dry the...
  • Page 49 Appliance does not operate: Except U type: Turn the AC Is the AC circuit circuit protector protector ON? Is the Output indicator ON? Take the Is the Overload generator to an indicator ON? authorized Honda dealer. Check the Take the electrical NO DEFECTS generator to an...
  • Page 50 No electricity at the DC receptacle: Is the DC circuit Turn the DC protector on? circuit protector Take the generator to an authorized Honda dealer.

  • Page 51: Specifications

    SPECIFICATIONS Dimensions and Weight Model EU20i Description code EAAJ Length 510 mm (20.1 in) Width 290 mm (11.4 in) Height 425 mm (16.7 in) Dry weight 21.0 kg (46.3 lbs) Engine Model GX100 Engine type 4-stroke, overhead camshaft, single cylinder Displacement 98 cm (6.0 cu-in)
  • Page 52 Noise EU20i Model G, GP3, GW, B, F, W Type 75 dB Sound pressure level (Lp ) According to 98/37/EC Microphone point CONTROL PANEL Center 1.60 m 1.0 m 89 dB Guaranteed sound power level (L Tested by 2000/14/EC ‘‘the figures quoted are emission levels and are not necessarily safe working levels.

  • Page 53: Wiring Diagram

    WIRING DIAGRAM AC, CP AC Circuit Protector BLACK AC, NF AC Noise Filter YELLOW ACOR BLUE AC Output Receptacle B Type GREEN Parallel operation socket Control Panel Block WHITE DC, CP DC Circuit Protector BROWN DC, D DC Diode LIGHT GREEN DC, NF DC Noise Filter GRAY...
  • Page 54 B, W, F, G types...
  • Page 55 U type...
  • Page 56 RECEPTACLE Shape Type G, GP3, GW...

  • Page 57: Major Honda Distributor Address

    MAJOR Honda DISTRIBUTOR ADDRESSES For further information, please contact Honda Customer Information Centre at the following address or telephone number: AUSTRIA CYPRUS FRANCE Honda Motor Europe (North) Alexander Dimitriou & Sons Ltd. HONDA RELATIONS CLIENTS Hondastraße 1 162, Yiannos Kranidiotis Avenue TSA 80627 2351 Wiener Neudorf 2235 Latsia, Nicosia...
  • Page 58 IRELAND NETHERLANDS ROMANIA Two Wheels Ltd. Honda Motor Europe (North) Hit Power Motor Srl Crosslands Business Park Afd. Power Equipment- Calea Giulesti N° 6-8 Sector 6 Ballymount Road Capronilaan 1 060274 Bucuresti Dublin 12 1119 NN Schiphol-Rijk Tel. : 40 21 637 04 58 Tel.
  • Page 59 SPAIN & TURKEY AUSTRALIA Las Palmas province Anadolu Motor Uretim Ve Honda Australia Motorcycle (Canary Islands) Pazarlama AS (ANPA) and Power Equipment Pty. Ltd Greens Power Products, S.L. Esentepe mah. Anadolu 1954-1956 Hume Highway Avda. Ramon Ciurans, 2 Cad. No: 5 Campbellfield Victoria 3061 08530 La Garriga - Barcelona Kartal 34870 Istanbul...
  • Page 61 Honda Motor Co., Ltd. 2007 5000.2009.01 36Z07608 Printed in Japan 00X36-Z07-6080...
