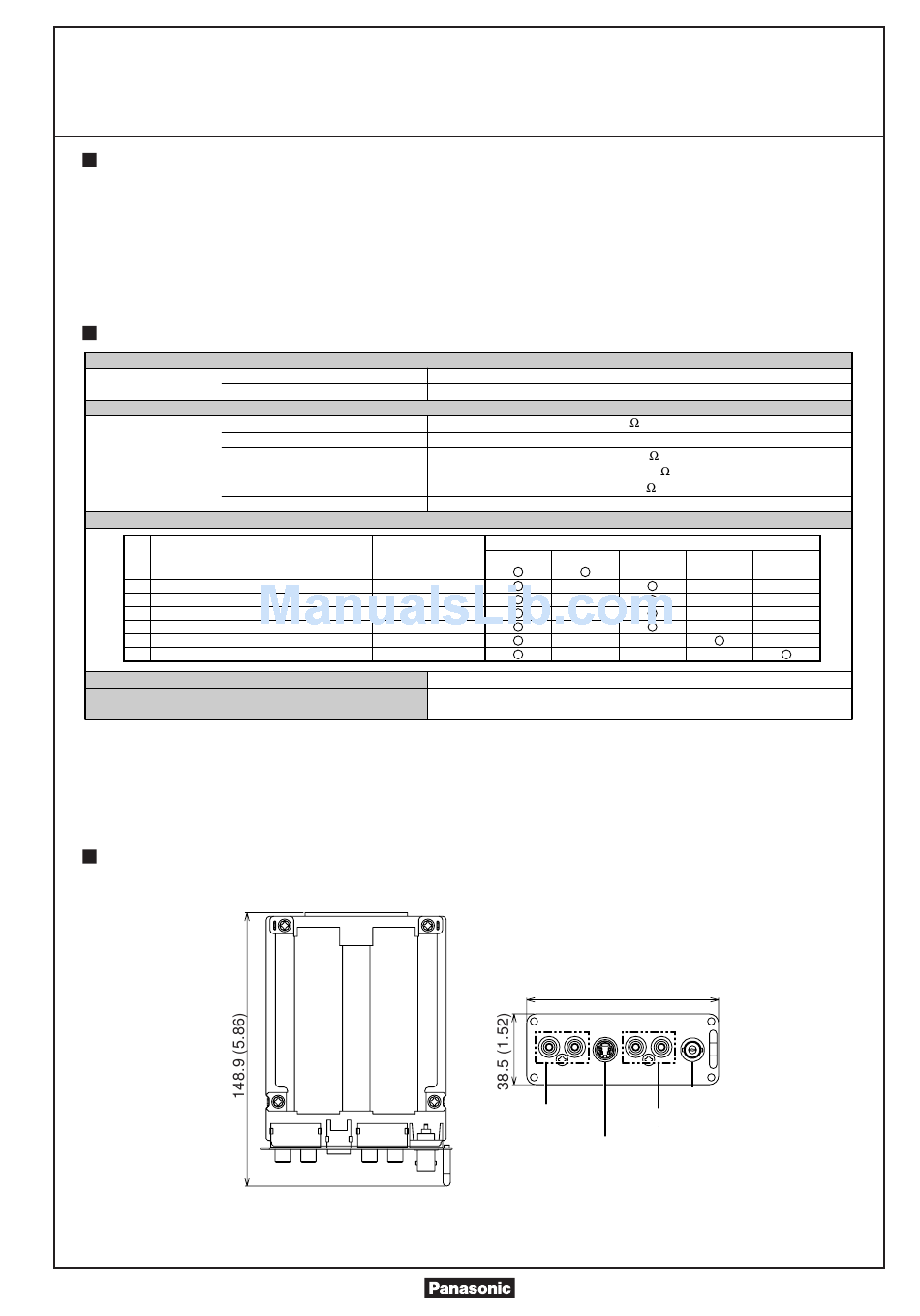

Panasonic TY-FB9BD Product Specification

BNC Dual video
Terminal Board
Product summary
1-slot width video terminal board with 2 independent inputs (Composite and S-Video).
Product specification
Slot Compatibility
2 slot model
3 slot model
INPUT / OUTPUT
VIDEO IN
AUDIO IN (L/R)
S-VIDEO IN
AUDIO IN (L/R)
Signals table
Signal
frequency (kHz)
1 NTSC
2 PAL
3 PAL60
4 PAL-M
5
PAL-N
6
SECAM
7
M. NTSC
Weight
Included Accessories
Dimensions
(Design and specifications subject to change without notice)
Slot 1, Slot 2
Slot 1, Slot 2 (Slot 3 is not compatible)
BNC x 1
RCA pin jack x 2
S-VIDEO x 1
RCA pin jack x 2
Horizontal Vertical
frequency (Hz)
15.734 59.94
15.625 50.00
15.734 59.94
15.734 59.94
15.625 50.00
15.625 50.00
15.734 59.94
approx. 250 g (0.55 lbs)
Terminal function label x 1
Terminal board replacement instructions
TY-FB9BD
1.0 Vp-p / 75
0.5 Vrms
Y : 1.0 Vp-p / 75
C: 0.286 Vp-p / 75
C: 0.3 Vp-p / 75 (PAL)
0.5 Vrms
Colour System Setting on OSD
AUTO NTSC PAL
Screw x 4
104.5 (4.11)
AUDIO IN (L/R) AUDIO IN (L/R)
S-VIDEO IN
(NTSC)
SECAM M.NTSC
Units : mm (inch)
VIDEO IN
TY-FB9BD (
