JGBP33WEL/CEL/BEL
46-3/8
GE 30" Free-Standing Self-Clean Gas Range
®
Dimensions and Installation Information (in inches)
Optional Gas Range Accessory Drip Pans for
Sealed and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.

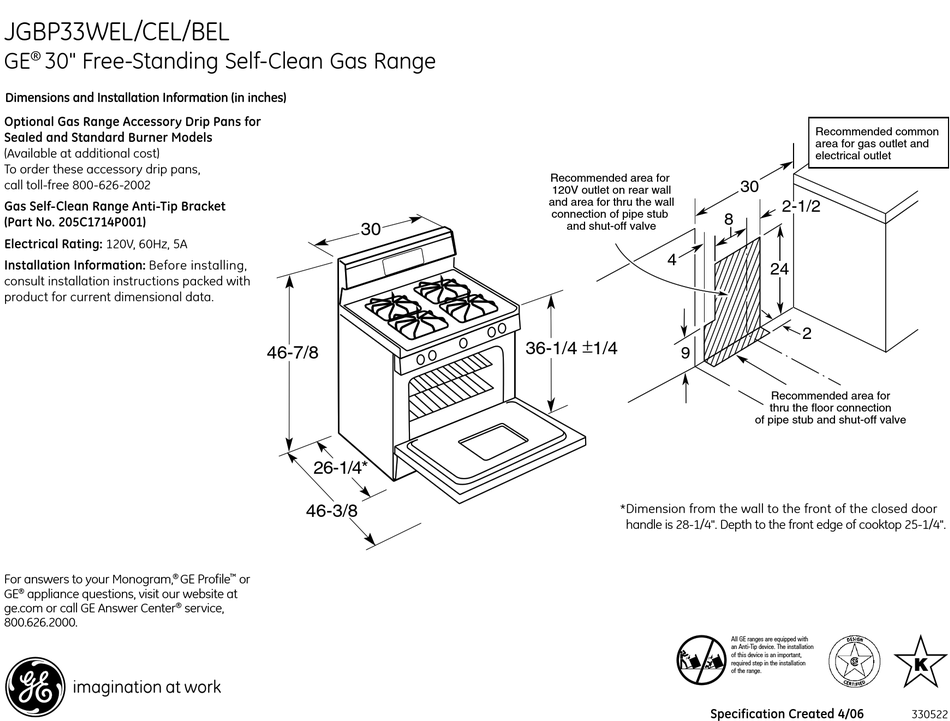

Installation Information (Dimensions in inches)
30
46-7/8
26-1/4*
46-3/8
or
™
service,
30" FS Gas Ranges-CL
JGBP30WEK/BEK
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
4
36-1/4 ± 1/4
9
* Dimension from the wall to the front of the closed door
handle is 28-1/4". Depth to the front edge of cooktop 25-1/4".
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
30
2-1/2
8
24
2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
30
2-1/2
8
4
24
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
