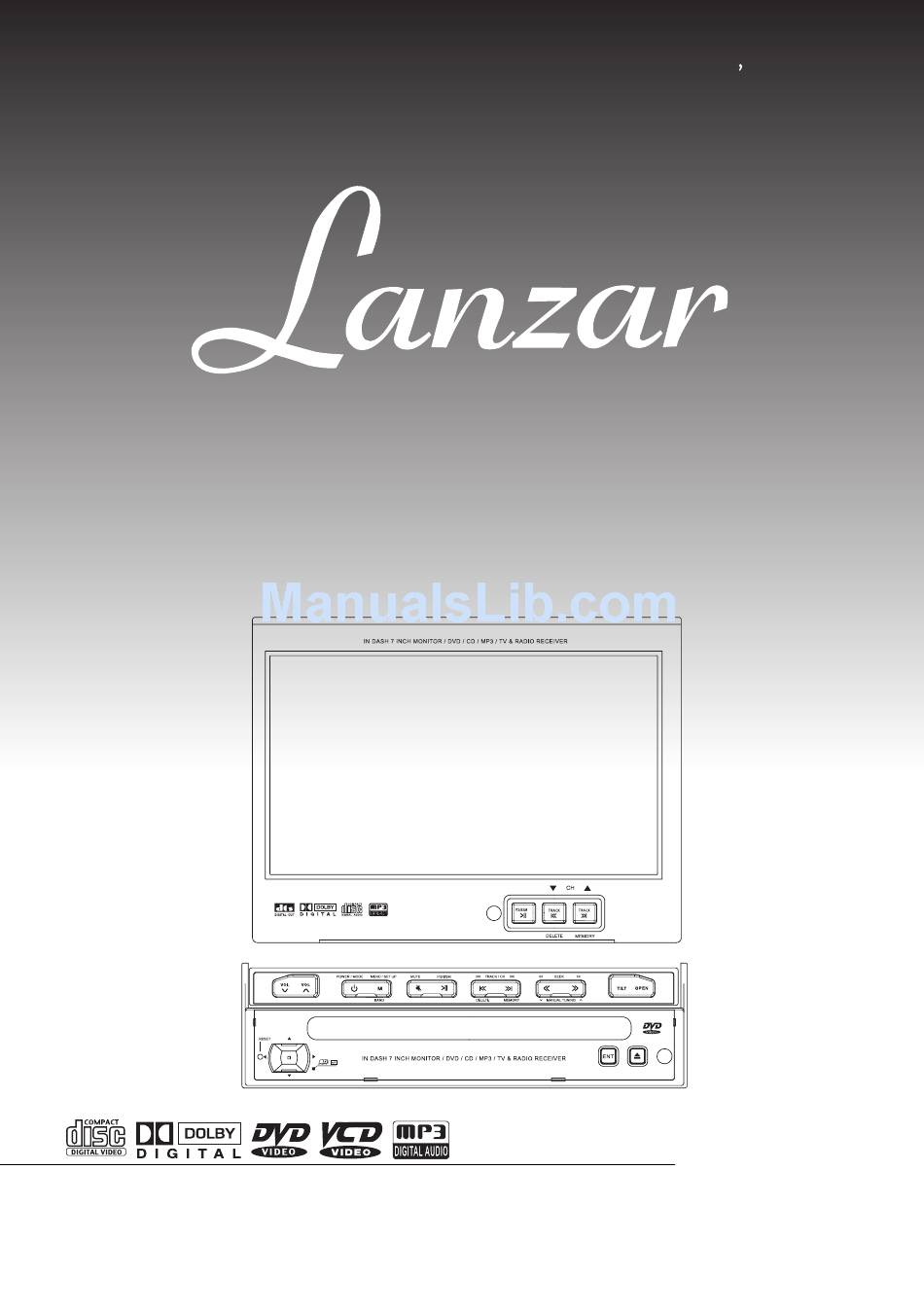

- Page 1 OWNER S MANUAL IN DASH 7 INCH MONITOR DVD/ CD/MP3/TV & RADIO RECEIVER MODEL. SVTVD7IN...
- Page 2 Any changes or modifications in construction of this device which is not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment. Warning : Do not watch TV while vehicle in Motion it Can be Hazardous...
- Page 3 If the unit starts to emit smoke or strange smells, turn off the power immediately and consult your LANZAR dealer. Be careful not to drop the unit or subject it to strong shock. The unit may break or crack because it contains glass parts.
-
Page 4: Table Of Contents
CONTENTS Safety Precaution (p4) About CDs (p5) Introduction (p6) 1. Region Number .......... (p6) 2. Control Parts ..........(p6) 2-1. With Display Closed ......(p7) 2-2. With Display Opened ......(p8) 3. Head unit Rear Panel ......... (p9) 4. Battery ............(p10) 5. -
Page 5: Safety Precaution (P4)
Reset button is pressed. If the unit still fails to operate properly after the Reset button has been pressed, contact your local LANZAR dealer for assistance. The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. - Page 6 Safety precaution Cleaning the Faceplate terminals If the terminals on the unit or faceplate get dirty, wipe them with a dry, soft cloth. Cleaning the Unit If the front panel of this unit is stained, wipe it with a dry soft cloth such as s silicon cloth. If the front panel is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, and then wipe neutral detergent off.
-
Page 7: About Cds (P5)
About CDs Handling CDs Removing CDs When removing CDs from this unit,pull Don t touch the recording surface of the them out horizontally. CDs that can t be used CDs that aren t round can t be used. CD-R and CD-RW are easier to damage than a normal music CD. -
Page 8: Introduction (P6)
INTRODUCTION Notice. “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation 1. Region Number The region number of this Unit is labeled on the rear panel of the unit. Most DVD s are manufactured specifically for sale and use in a specific geographic region. A disc s Region Number must correspond to the Region Number of this Unit. - Page 9 INTRODUCTION WITH THE DISPLAY CLOSED Volume Up/Down Use this button to increase/decrease the volume. Tilt Use this button to adjust the angle of the TFT LCD panel in 3 steps and every time this button is pressed with being held for about 2 second or longer, the TFT LCD panel moves backward with 2 steps &...
-
Page 10: With Display Opened
INTRODUCTION Track / CH Up/ Down - Use this button to tune to a station to be stored in the radio / TV mode . 1) Track up key with pressing over 2 seconds should be Radio Frequency or TV Channel memory. 2) Track down key with pressing over 2 seconds should delete Radio Frequency or TV Channel to be momorized. -
Page 11: Head Unit Rear Panel
INTRODUCTION 3. HEAD UNIT REAR PANEL 16 Pin Connector ACC (Red) Battery (Yellow) Illumination (Orange/Whtie) Remote Turn on (Blue/White) Auto Antenna (Blue) Reverse Gear (Orange) Tel Mute (Pink) Parking Brake (Brown) Ground (Black) Ground (Black) Cooling Fan Digital Out Minet (For RT Box) -
Page 12: Battery
INTRODUCTION 4. BATTERY Preparing & Using The Remote Control BATTERY INSTALLATION NOTICE (BATTERY) PLEASE FOLLOW THE INSTRUCTIONS BELOW. INCORRECT BATTERY USEAGE MIGHT CAUSE EARLY DISCHARGE, LEAKAGE OR CORROSION DAMAGE. * Do not insert battery in the wrong direction. Be sure to observe the correct polarity (+/-) as indicated in the battery compartment. -
Page 13: Remote Control Key
INTRODUCTION 5. Remote Control Key Power/Mode Mute Open /Close Volume Up/Down AF / TA (RDS Function) PTY/ REG (RDS Function) Track (P.Seek/CH) Up / Down Band (OSD ON / OFF) Menu Enter Set Up DVD Menu Slow Disc (Seek/Manual) Up / Down Tilt / Navi (Navigation Function) Rear Monitor NTSC/PAL(DVD ONLY) -
Page 14: Connecting To Power & Multi Channel Av Control Unit System (P12)
Connecting to Power & Multi Channel AV Control Unit System 1. Connecting to Power System The illustration below is showing power system connection. Please also refer to the owner s and installation manuals supplied with the associated equipment. If it doesn t have corrected connection, it may cause unexpected damage. - Page 15 Connecting to Power & Multi Channel AV Control Unit System 2. RT BOX 16P CONNECTOR WIRING DIAGRAM...
-
Page 16: Connecting To Multi Channel Av Control Unit System
Connecting to Power & Multi Channel AV Control Unit System 3. Connecting to Multi Channel AV Control Unit System The Illustration below is just possible examples with our Multi Channel AV Control Unit System only. The exact connection method will vary depending on the specific components selected for a particular installation. -
Page 17: Connecting Dvd/ Cd Changer Control System
Connecting to Power & Multi Channel AV Control Unit System 4. Connecting to DVD Changer Control System Don’t use AV2 Audio L / R input of RT Box when DVD Changer is Connected. You can just use only AV2 Video input of RT Box from DVD Changer Video output. -
Page 18: Connecting To Multi Channel Av Control Unit System With Additional 6Ch Amplifier
Connecting to Power & Multi Channel AV Control Unit System 5. Connecting to Multi Channel AV Control Unit System with Additional 6CH Amplifier The Illustration below is just possible examples for our Multi Channel AV Control Unit System with Additional 6CH Amplifier. The exact connection method will vary depending on the specific components selected for a particular installation. -
Page 19: Power On/Off
B B A A S S I I C C O O P P E E R R A A T T I I O O N N POWER ON/OFF CLOSING THE MONITOR 1. Hold the left and right upper side of the 1. -
Page 20: Audio Control
BASIC OPERATION 3. Use key and place cursor (Yellow 3. Use key and place cursor (Yellow bar) on the item you want to adjust (Ex. bar) on the item you want to adjust Contrast) and press ENTER key as (Ex. Tone/ Volume) and press ENTER key as picture below. -
Page 21: Pre Adjust (Color System)
BASIC OPERATION 8. Do the same process as above to adjust 5. Press ENTER key at least for 2 seconds Volume. on current screen to return to the previous screen. Press Menu key about 1second 9. Press ENTER key at least for 2 seconds t o t u r n MENU off directly. -
Page 22: Pre Adjust (Adjust Radio System)
BASIC OPERATION 5. E a c h t i m e y o u p r e s s E N T E R k e y , 4. Use key and place cursor (Yellow Field/Standard should be changed bar) on Band and press ENTER key as at the same time as below. - Page 23 BASIC OPERATION 7. Each time you press ENTER key, Center changes as below FRONT --> REAR --> ALL --> OFF 8. Press ENTER key at least for 2 seconds to return to the previous screen. 9. Use key and place cursor (Yellow bar) on Navigation and press ENTER key as picture below.
-
Page 24: Pre Adjust (Adjust Rear Ccd)
BASIC OPERATION 14. Press ENTER key at least 2 seconds on 5. Press ENTER key at least for 2 seconds to return to the previous screen. current screen to return to the previous screen. Press Menu key about 1 second 6. -
Page 25: Auto Tilt System
BASIC OPERATION * When no key is pressed for 5 seconds, the menu will disappear. AUTO TILT SYSTEM RDS (Radio Data System) 1. Press MENU key until the monitor displays following picture. 1. Press MENU key until the monitor displays following picture. 2. -
Page 26: Tuning (Tv-Auto Search)
BASIC OPERATION TUNING (TV-AUTO SEARCH) OVERVIEW OF THE RDS FUNCTION 1. After adjust TV system(Field/Standard) AF (Alternative Frequencies) / REG on Pre-Adjust, Press P.S/BSM to search (Regional) TV channels. When pressed short, AF switching mode * ‘Searching’ will be blinking as it searches is selected and the state of AF switching TV channels and channel number is mode is displayed by AF segment in LCD. - Page 27 BASIC OPERATION Regional mode off : The regional code in PTY (Program Type) the format of PI code is ignored when AF switching or PI SEEK is implemented. This key is operated as follows. REG of individual segment is turned off - PTY MUSIC group --->...
-
Page 28: Dvd Video Player Operation (P26)
DVD VIDEO PLAYER OPERATION DVD VIDEO PLAYER OPERATION 1. CHANGING DVD SYSTEM SETTING About 2CH or 6CH Setup: Press SET UP button and then, there should If 2CH is set into this menu with be shown 5 categories as Language, Video, Analog out, it’s sound will come out by Audio, More Audio and Parental. -
Page 29: Basic Playback
DVD VIDEO PLAYER OPERATION 2. BASIC PLAYBACK Preparation Insert a disc into the center of the insertion slot with the label side faced up. The disc plays automatically after loading. Note: Never insert foreign objects into the disc insertion slot. If the disc is not inserted easily, there may be an other disc in the mechanism or the unit may require service. - Page 30 DVD VIDEO PLAYER OPERATION 1) POWER /MODE Use this button to turn on/off. For Turn - off, hold this button about 2 seconds or longer. Each time This button is pressed, its source should be changed to AV1 RADIO 2) OPEN /CLOSE Use this button to open/close the TFT LCD Panel.
- Page 31 DVD VIDEO PLAYER OPERATION 5) CHANGING SUBTITLE LANGUAGE (S -TITLE) It is possible to change the subtitle language to a different language from the selected one. This operation works only with discs on which multiple subtitle languages are recorded. Press S-TITLE button for 3 seconds or longer during playback.
- Page 32 DVD VIDEO PLAYER OPERATION P l a y b a c k o f t h e s e l e c t e d i t e m w i l l begin. 8) REPEAT (SET UP) To repeat viewing or listening, press REPEAT during playback.
- Page 33 DVD VIDEO PLAYER OPERATION For further information, also refer to any instructions that may have been packaged with the disc you are playing. After playback When the unit is not in use, remove the disc and turn off the power by pressing the POWER button.
- Page 34 DVD VIDEO PLAYER OPERATION 3. LAST MEMORY - PICKING UP WHERE YOU LEFT OFF & OTHERS This unit is equipped with a LAST MEMORY function which lets you resume viewing of a movie from the point where you left off. You must press only PLAY button, not Power button in case the power has been turned off (and stand by power)
- Page 35 DVD VIDEO PLAYER OPERATION 4) ANGLE Some DVDs may contain scenes which have been shot simultaneously from number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.) 5) SLOW DISC...
-
Page 36: Am /Fm Radio Operation (P34)
AM/FM RADIO OPERATION 1. BAND (AM / FM) Each time this button is pressed, the band will be changed to FM1 2. PRESET SCAN / BSM Following your desired band selection, press P.S/BSM button about 2 seconds or longer, and then tuner will search until stations of sufficient strength have been found and will store them in sequence. -
Page 37: Tv Operation (P35)
TV OPERATION 1. PRESET SCAN / BSM Firstly, select the desired station and press the PS/BSM button shortly. And then, Tuner will now search until stations of sufficient strength have been found and will store them into TFT LCD automatically in sequence. 2. -
Page 38: Installation (P36~37)
INSTALLATION PRECAUTIONS Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater or where it would be subject to dust, dirt or excessive vibration. - Page 39 INSTALLATION Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction. For example, the source may skip. 1. Align the holes in the unit with the vehicle mounting bracket and secure the unit with the accessory screws.
-
Page 40: Specifications (P38)
SPECIFICATIONS FM TUNER LCD MONITOR Frequency Range: 87.50 MHz to 108.0 MHz Screen Size : 7-inch wide type Usable Sensitivity: 9 dBf 166mm Width 100mm Height 50dB Quieting Sensitivity: 15 dBf Display method: Alternate Channel Selectivity: 70 dB Transmission type TN liquid crystal display Stereo Separation (1 kHz): 30 dB Drive method: TFT (thin-film transistor) active matrix driving... - Page 42 WARNING DO NOT HOLD THE LCD SCREEN PANEL WHILE IT IS OPENING OR CLOSING UNTIL IT IS COMPLETELY OPENED OR CLOSED. OTHERWISE, THE MOTORIZED MECHANISM WILL BE DAMAGED. BEFORE WORKING THE UNIT, READ THE OWNER S MANUAL CAREFULLY AND FOLLOW UP THE INSTRUCTIONS IN IT.
